把这些图给大家分享的目的是因为我在需要使用的时候网上的图要不就是需要下载，要不就是不全，最好的也是需要自己下载js包，但是对于学习后端的我们来说上手十分不容易。尤其是课程项目紧张，难道我们还需要去学习前端js，显然这是不现实的，所以我把这些图分享给的大家。全是html文档，复制粘贴就能用**【**js包写的是动态地址，不用自己下载========》》拿来就用（当然，你复制漏博主是不背锅奥
ok,下面进入正题，这些图在日常的工作学习中都是需要的，可以收藏保存起来

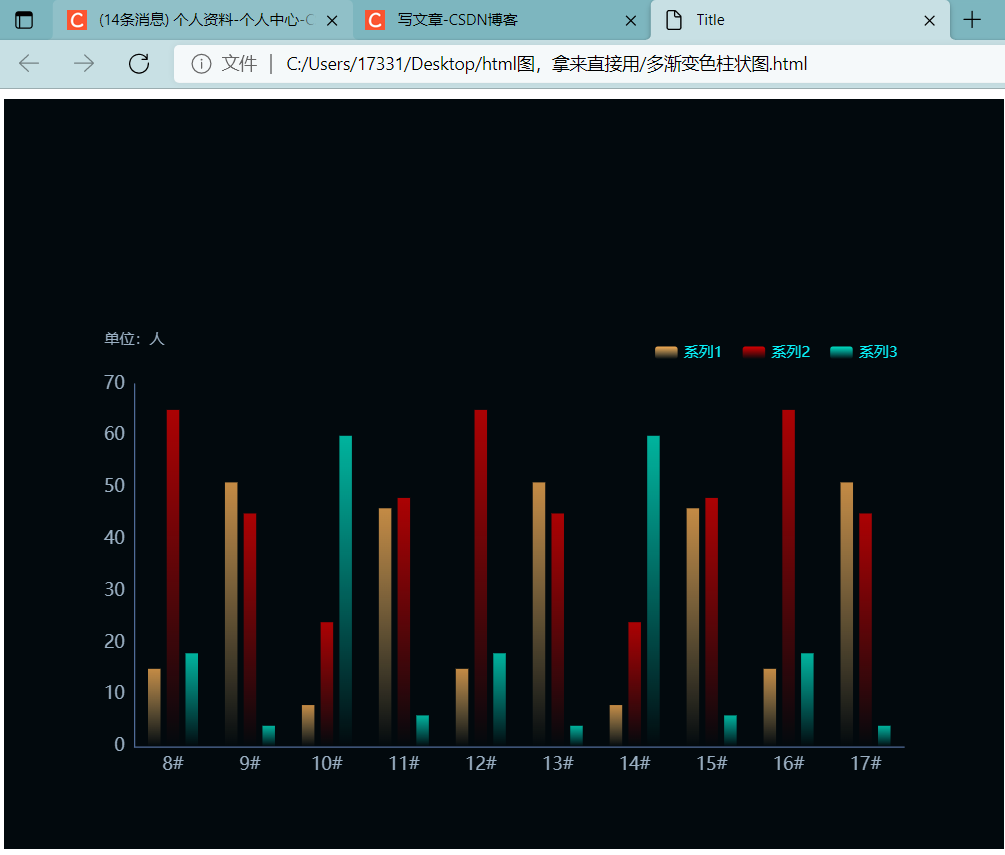

多渐变色柱状图
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>Title</title>
<script src="https://assets.pyecharts.org/assets/echarts.min.js"></script>
<script src="https://assets.pyecharts.org/assets/main.js"></script>
</head>
<body>
<div id="garps" class="container" style="width: 800px;height: 600px">
<script>
var chart_b859ef36a1b245b2b1eb24efe9b62146 = echarts.init(
document.getElementById('garps'), 'white', {
renderer: 'canvas'});
const xAxisData = ['8#', '9#', '10#', '11#', '12#', '13#', '14#', '15#', '16#', '17#']
const seriesData = [
{
name: "系列1", data: [15, 51, 8, 46, 15, 51, 8, 46, 15, 51], colors: [ "rgba(245, 171, 82, 1)","rgba(251, 213, 138, 0)"]},
{
name: "系列2", data: [65, 45, 24, 48, 65, 45, 24, 48, 65, 45], colors: ["rgba(214, 0, 1, 1)", "rgba(237, 0, 2, 0)"]},
{
name: "系列3", data: [18, 4, 60, 6, 18, 4, 60, 6, 18, 4], colors: ["rgba(0, 222, 193, 1)", "rgba(0, 241, 226, 0)"]},
]
const getSeries = () => {
return seriesData.map(item => {
return {
name: item.name,
type: 'bar',
data: item.data,
barWidth: 10,
barGap: 0.5, //柱间距离
itemStyle: {
normal: {
show: true,
color: new echarts.graphic.LinearGradient(0, 0, 0, 1, [
{
offset: 0,
color: item.colors[0],
},
{
offset: 1,
color: item.colors[1],
},
]),
opacity: 0.8,
borderRadius: [5, 5, 0, 0],
},
},
}
})
}
option = {
backgroundColor: '#02090d',
tooltip: {
//提示框组件
trigger: 'axis',
backgroundColor: "#02090d",
// formatter: (params) => {
// return params.value
// },
borderColor: "rgba(0, 243, 230, 0.4)", // 边框颜色
axisPointer: {
type: 'shadow',
label: {
backgroundColor: 'rgba(17, 27, 54, 1)',
},
},
textStyle: {
color: '#fff',
fontStyle: 'normal',
fontFamily: '微软雅黑',
fontSize: 14,
},
},
grid: {
left: '10%',
right: '10%',
bottom: '10%',
top: '38%',
// padding:'0 0 10 0',
containLabel: true,
},
legend: {
//图例组件，颜色和名字
right: '10%',
top: '32%',
itemGap: 16,
itemWidth: 18,
itemHeight: 10,
selectedMode: false,
data: ['系列1', '系列2', '系列3'],
textStyle: {
color: '#08f1f8',
fontStyle: 'normal',
fontFamily: '微软雅黑',
fontSize: 12,
},
},
xAxis: [
{
type: 'category',
// boundaryGap: true,//坐标轴两边留白
data: xAxisData,
axisLabel: {
//坐标轴刻度标签的相关设置。
// interval: 0,//设置为 1，表示『隔一个标签显示一个标签』
// margin:15,
textStyle: {
color: '#9AAFC2',
fontStyle: 'normal',
fontFamily: '微软雅黑',
fontSize: 14,
},
rotate: 0,
},
axisTick: {
//坐标轴刻度相关设置。
show: false,
},
axisLine: {
//坐标轴轴线相关设置
lineStyle: {
color: '#506B98',
},
},
//splitLine: {
// show: true,
// lineStyle: {
// color: 'rgba(255,255,255,0.2)',
// }
// },
},
],
yAxis: [
{
type: 'value',
name: "单位：人",
nameTextStyle: {
color: "#9AAFC2",
lineHeight: 20,
padding: [0, 0, 10, 0],
},
splitNumber: 5,
axisLabel: {
textStyle: {
color: '#9AAFC2',
fontStyle: 'normal',
fontFamily: '微软雅黑',
fontSize: 14,
},
},
axisLine: {
show: true,
lineStyle: {
color: '#506B98',
},
},
axisTick: {
show: false,
},
splitLine: {
show: false,
lineStyle: {
color: ['#fff'],
opacity: 0.06,
},
},
},
],
series: getSeries(),
};
chart_b859ef36a1b245b2b1eb24efe9b62146.setOption(option);
</script>
</div>
</body>
</html>
关系图
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>Title</title>
<script src="https://assets.pyecharts.org/assets/echarts.min.js"></script>
</head>
<body>
<div id="garps" class="container" style="width: 800px;height: 600px">
<script src="https://assets.pyecharts.org/assets/main.js"></script>
<script>
var chart_b859ef36a1b245b2b1eb24efe9b62146 = echarts.init(
document.getElementById('garps'), 'white', {
renderer: 'canvas'});
option = {
backgroundColor: '#1a4377',
grid: {
left: '10%',
top: 60,
right: '10%',
bottom: 60,
},
toolbox: {
feature: {
saveAsImage: {
}
}
},
series: [{
type: 'graph',
layout: 'force',
force: {
repulsion: 1000,
edgeLength: 70,
layoutAnimation: true,
},
symbolSize: 70,
nodeScaleRatio: 1, //图标大小是否随鼠标滚动而变
roam: true, //缩放
draggable: true, //节点是否可以拖拽
focusNodeAdjacency: false, //是否在鼠标移到节点上的时候突出显示节点以及节点的边和邻接节点
edgeSymbol: ['circle', 'arrow'], //线2头标记
label: {
normal: {
show: true,
position: 'inside',
color: 'gold'
}
},
edgeLabel: {
normal: {
show: true,
textStyle: {
fontSize: 12,
color: '#fff'
},
formatter: "{c}"
}
},
categories: [{
name: '亲人',
}, {
name: '租户',
symbol: 'rect'
}],
itemStyle: {
normal: {
borderColor: '#04f2a7',
borderWidth: 2,
shadowBlur: 10,
shadowColor: '#04f2a7',
color: '#001c43',
}
},
lineStyle: {
normal: {
opacity: 0.9,
width: 2,
curveness: 0,
color: {
type: 'linear',
x: 0,
y: 0,
x2: 0,
y2: 1,
colorStops: [{
offset: 0,
color: '#e0f55a' // 0% 处的颜色
}, {
offset: 1,
color: '#639564' // 100% 处的颜色
}],
globalCoord: false // 缺省为 false
}
}
},
symbolKeepAspect: false,
data: [{
name: '李富贵',
},
{
name: '王桂花',
},
{
name: '李思思',
},
{
name: '黄涛',
},
{
name: '于海',
},
{
name: '张柏',
},
{
name: '付梦杰',
}
],
links: [{
source: 0,
target: 1,
value: '夫妻'
},
{
source: 0,
target: 2,
value: '父女'
},
{
source: 0,
target: 3,
value: '自住'
},
{
source: 0,
target: 4,
value: '车主'
},
{
source: 0,
target: 5,
value: '租户'
},
{
source: 0,
target: 6,
value: '租赁'
}
],
}]
}
chart_b859ef36a1b245b2b1eb24efe9b62146.setOption(option);
</script>
</div>
</body>
</html>
雷达图
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>Title</title>
<script src="https://assets.pyecharts.org/assets/echarts.min.js"></script>
<script src="https://assets.pyecharts.org/assets/shine.min.js"></script>
<script src="https://assets.pyecharts.org/assets/main.js"></script>
</head>
<body>
<div id="garpd" class="container" style="width: 800px;height: 600px">
<script src="https://assets.pyecharts.org/assets/main.js"></script>
<script>
var myChart1 = echarts.init(document.getElementById('garpd'));
// 指定图表的配置项和数据
var option1 = {
title: {
text: '基础雷达图'
},
tooltip: {
},
legend: {
data: ['预算分配']
},
radar: {
name: {
textStyle: {
color: '#fff',
backgroundColor: '#999',
borderRadius: 3,
padding: [3, 5]
}
},
indicator: [
{
name: '销售', max: 6500},
{
name: '管理', max: 16000},
{
name: '信息', max: 30000},
{
name: '客服', max: 38000},
{
name: '研发', max: 52000},
{
name: '研发', max: 52000},
{
name: '研发', max: 52000},
{
name: '研发', max: 52000},
{
name: '市场', max: 25000}
],
center: ['50%', '50%'],
//雷达图的大小
radius: 100
},
series: [{
name: '预算 vs 开销',
type: 'radar',
data: [
{
value: [4300, 10000, 28000, 35000, 35000, 35000, 35000, 30000, 19000],
name: '预算分配）',
label: {
show: true,
formatter: function(params) {
return params.value;
}
}
}
]
}]
};
// 使用刚指定的配置项和数据显示图表。
myChart1.setOption(option1);
</script>
</div>
</body>
</html>
玫瑰图
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>Title</title>
<script src="https://assets.pyecharts.org/assets/echarts.min.js"></script>
</head>
<body>
<div id="garps" style="width: 400px;height: 500px">
<script>
var chart_b859ef36a1b245b2b1eb24efe9b62146 = echarts.init(
document.getElementById('garps'), 'white', {
renderer: 'canvas'});
var option = {
backgroundColor: "#0f375f",
legend: {
orient: 'horizontal',
bottom:5,
data: ['rose1', 'rose2', 'rose3', 'rose4'], //有数据
textStyle: {
color: "#fff",
fontSize: 16
}
},
tooltip: {
trigger: 'item',
formatter: '{a} <br/>{b} : {c} ({d}%)'
},
series: [{
name: '半径模式',
type: 'pie',
radius: ['30%', '80%'],
center: ['40%', '50%'],
roseType: 'radius',
data: [{
value: 1,
name: 'rose1',
itemStyle: {
color: "#0733F1",
borderColor: "#0733F1",
show:false
}
},
{
value: 2,
name: '1',
itemStyle: {
color: "#00B0E3",
borderColor: "#00B0E3"
}
},
{
value: 3,
name: 'rose3',
itemStyle: {
color: "#3D61FF",
borderColor: "#3D61FF"
}
},
{
value: 4,
name: 'rose4',
itemStyle: {
color: "#22E5F1",
borderColor: "#22E5F1"
}
},
],
label: {
show: false,
normal: {
formatter: '{d}%',
show: true,
position: ''
},
},
labelLine: {
normal: {
show: false
}
},
}]
};
chart_b859ef36a1b245b2b1eb24efe9b62146.setOption(option);
</script>
</div>
</body>
</html>
南丁格尔玫瑰图
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>Title</title>
<script src="https://assets.pyecharts.org/assets/echarts.min.js"></script>
<script src="https://assets.pyecharts.org/assets/main.js"></script>
</head>
<body>
<div id="garps" class="container" style="width: 800px;height: 600px">
<script>
var chart_b859ef36a1b245b2b1eb24efe9b62146 = echarts.init(
document.getElementById('garps'), 'white', {
renderer: 'canvas'});
option = {
backgroundColor: 'rgb(43, 51, 59)',
toolbox: {
show: true,
feature: {
mark: {
show: true,
},
dataView: {
show: true,
readOnly: false,
},
magicType: {
show: true,
type: ['pie', 'funnel'],
},
restore: {
show: true,
},
saveAsImage: {
show: true,
},
},
},
calculable: true,
tooltip: {
trigger: 'item',
formatter: '{a}<br/>{b}:{c}千万元',
},
title: {
show: true,
text: '南丁格尔玫瑰图',
left: 'center',
top: 40,
textStyle: {
color: '#fff',
},
},
calculable: true,
legend: {
show: true,
icon: 'circle',
x: 'center',
y: '15%',
data: ['医疗业务成本', '财政项目补助支出', '科教项目支出', '管理费用', '其他支出'],
textStyle: {
color: '#fff',
},
},
series: [
{
name: '总支出',
type: 'pie',
radius: [37, 155],
avoidLabelOverlap: false,
startAngle: 0,
center: ['50.1%', '34%'],
roseType: 'area',
selectedMode: 'single',
label: {
normal: {
show: true,
formatter: '{c}千万元',
},
emphasis: {
show: true,
},
},
labelLine: {
normal: {
show: true,
smooth: false,
length: 20,
length2: 10,
},
emphasis: {
show: true,
},
},
data: [
{
value: 600.58,
name: '医疗业务成本',
itemStyle: {
normal: {
color: '#f845f1',
},
},
label: {
color: '#f845f1',
},
},
{
value: 1100.58,
name: '财政项目补助支出',
itemStyle: {
normal: {
color: '#ad46f3',
},
},
label: {
color: '#ad46f3',
},
},
{
value: 1200.58,
name: '科教项目支出',
itemStyle: {
normal: {
color: '#5045f6',
},
},
label: {
color: '#5045f6',
},
},
{
value: 1300.58,
name: '管理费用',
itemStyle: {
normal: {
color: '#4777f5',
},
},
label: {
color: '#4777f5',
},
},
{
value: 1400.58,
name: '其他支出',
itemStyle: {
normal: {
color: '#44aff0',
},
},
label: {
color: '#44aff0',
},
},
{
value: 0,
name: '',
label: {
show: false,
},
labelLine: {
show: false,
},
},
{
value: 0,
name: '',
label: {
show: false,
},
labelLine: {
show: false,
},
},
{
value: 0,
name: '',
label: {
show: false,
},
labelLine: {
show: false,
},
},
{
value: 0,
name: '',
label: {
show: false,
},
labelLine: {
show: false,
},
},
{
value: 0,
name: '',
label: {
show: false,
},
labelLine: {
show: false,
},
},
],
},
],
};
chart_b859ef36a1b245b2b1eb24efe9b62146.setOption(option);
</script>
</div>
</body>
</html>
平均利用率图
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>Title</title>
<script src="https://assets.pyecharts.org/assets/echarts.min.js"></script>
<script src="https://assets.pyecharts.org/assets/main.js"></script>
</head>
<body>
<div id="garps" class="container" style="width: 800px;height: 600px">
<script>
var chart_b859ef36a1b245b2b1eb24efe9b62146 = echarts.init(
document.getElementById('garps'), 'white', {
renderer: 'canvas'});
/**
*
* 作者: GhostCat
* 博客: https://gcat.cc
* 描述: 双折线图
*
*/
let xLabel = ['3.26', '3.27', '3.28', '3.29', '3.30', '3.31'];
let L0 = ['40', '60', '22', '85', '50', '40'];
let L1 = ['50', '30', '72', '35', '80', '60'];
let L3 = ['20', '10', '22', '5', '50', '20'];
option = {
backgroundColor: '#0b112a',
tooltip: {
trigger: 'axis',
},
legend: {
align: 'left',
right: '30px',
type: 'plain',
top:'10px',
textStyle: {
color: '#7ec7ff',
fontSize: 12,
},
itemGap: 25,
itemWidth: 18,
// icon:'path://M0 2a2 2 0 0 1 2 -2h14a2 2 0 0 1 2 2v0a2 2 0 0 1 -2 2h-14a2 2 0 0 1 -2 -2z',
},
grid: {
top: '50px',
left: '80px',
right: '40px',
bottom: '15%',
// containLabel: true
},
xAxis: [
{
type: 'category',
boundaryGap: false,
axisLine: {
//坐标轴轴线相关设置。数学上的x轴
show: true,
lineStyle: {
color: '#233653',
},
},
axisLabel: {
//坐标轴刻度标签的相关设置
textStyle: {
color: '#7ec7ff',
padding: 10,
fontSize: 12,
},
formatter: function (data) {
return data;
},
},
splitLine: {
show: true,
lineStyle: {
color: '#192a44',
},
},
axisTick: {
show: false,
},
data: xLabel,
},
],
yAxis: [
{
name: '利用率',
nameTextStyle: {
color: '#7ec7ff',
fontSize: 12,
padding: 10,
},
min: 0,
splitLine: {
show: true,
lineStyle: {
color: '#192a44',
},
},
axisLine: {
show: true,
lineStyle: {
color: '#233653',
},
},
axisLabel: {
show: true,
textStyle: {
color: '#7ec7ff',
padding: 10,
},
formatter: function (value) {
if (value === 0) {
return value;
}
return value+'%';
},
},
axisTick: {
show: false,
},
},
],
series: [
{
name: 'L0',
type: 'line',
symbol: 'circle', // 默认是空心圆（中间是白色的），改成实心圆
showAllSymbol: true,
symbolSize: 0,
smooth: true,
lineStyle: {
normal: {
width: 2,
color: 'rgba(84,131,255,1)', // 线条颜色
},
borderColor: 'rgba(0,0,0,.4)',
},
itemStyle: {
color: 'rgba(84,131,255,1)',
},
tooltip: {
show: true,
},
areaStyle: {
//区域填充样式
normal: {
//线性渐变，前4个参数分别是x0,y0,x2,y2(范围0~1);相当于图形包围盒中的百分比。如果最后一个参数是‘true’，则该四个值是绝对像素位置。
color: new echarts.graphic.LinearGradient(
0,
0,
0,
1,
[
{
offset: 0,
color: 'rgba(84,131,255,.3)',
},
{
offset: 1,
color: 'rgba(84,131,255, 0)',
},
],
false
),
shadowColor: 'rgba(25,163,223, 0.5)', //阴影颜色
shadowBlur: 20, //shadowBlur设图形阴影的模糊大小。配合shadowColor,shadowOffsetX/Y, 设置图形的阴影效果。
},
},
data: L0,
},
{
name: 'L1',
type: 'line',
symbol: 'circle', // 默认是空心圆（中间是白色的），改成实心圆
showAllSymbol: true,
symbolSize: 0,
smooth: true,
lineStyle: {
normal: {
width: 2,
color: 'rgba(77,192,36,1)', // 线条颜色
},
},
itemStyle: {
color: 'rgba(77,192,36,1)',
},
tooltip: {
show: true,
},
areaStyle: {
//区域填充样式
normal: {
//线性渐变，前4个参数分别是x0,y0,x2,y2(范围0~1);相当于图形包围盒中的百分比。如果最后一个参数是‘true’，则该四个值是绝对像素位置。
color: new echarts.graphic.LinearGradient(
0,
0,
0,
1,
[
{
offset: 0,
color: 'rgba(77,192,36,.3)',
},
{
offset: 1,
color: 'rgba(77,192,36, 0)',
},
],
false
),
shadowColor: 'rgba(10,219,250, 0.5)', //阴影颜色
shadowBlur: 20, //shadowBlur设图形阴影的模糊大小。配合shadowColor,shadowOffsetX/Y, 设置图形的阴影效果。
},
},
data: L1,
},
{
name: 'L3',
type: 'line',
symbol: 'circle', // 默认是空心圆（中间是白色的），改成实心圆
showAllSymbol: true,
symbolSize: 0,
smooth: true,
lineStyle: {
normal: {
width: 2,
color: 'rgba(248,172,6,1)', // 线条颜色
},
},
itemStyle: {
color: 'rgba(248,172,6,1)',
},
tooltip: {
show: true,
},
areaStyle: {
//区域填充样式
normal: {
//线性渐变，前4个参数分别是x0,y0,x2,y2(范围0~1);相当于图形包围盒中的百分比。如果最后一个参数是‘true’，则该四个值是绝对像素位置。
color: new echarts.graphic.LinearGradient(
0,
0,
0,
1,
[
{
offset: 0,
color: 'rgba(248,172,6,.3)',
},
{
offset: 1,
color: 'rgba(248,172,6, 0)',
},
],
false
),
shadowColor: 'rgba(10,219,250, 0.5)', //阴影颜色
shadowBlur: 20, //shadowBlur设图形阴影的模糊大小。配合shadowColor,shadowOffsetX/Y, 设置图形的阴影效果。
},
},
data: L3,
},
],
};
// let len = 0;
// setInterval(() => {
// if (len === xLabel.length) {
// len = 0;
// }
// myChart.dispatchAction({
// type: 'showTip',
// seriesIndex: 0,
// dataIndex: len,
// });
// len++;
// }, 1000);
chart_b859ef36a1b245b2b1eb24efe9b62146.setOption(option);
</script>
</div>
</body>
</html>
取样报告图
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>Title</title>
<script src="https://assets.pyecharts.org/assets/echarts.min.js"></script>
</head>
<body>
<div id="garps" class="container" style="width: 800px;height: 600px">
<script>
var chart_b859ef36a1b245b2b1eb24efe9b62146 = echarts.init(
document.getElementById('garps'), 'white', {
renderer: 'canvas'});
var value = 0.45;
var value1 = 0.76;
var data = [value];
option = {
legend: {
top:'5%'},
tooltip: {
},
dataset: {
source: [
['日期', '自己', '医艾康旗舰店',
'华大基因旗舰店', '都安全医疗服务专营店',
'华大基因HPV自检分型基因检测宫颈女性筛查自助取样卡报告解读'],
['12/1',3.3,5.22,2.31,2.25,0.9],
['12/2',0.38,4.26,1.85,1.56,0.81],
['12/3',0.5,4.4,0,2.9,2.19],
['12/4',0,4.32,1.71,3.33,0.9],
['12/5',1.24,3.14,2.46,8.62,0.81],
['12/6',0,4.06,0.96,5,0],
['12/7',0.61,4.33,4,2.65,0],
['12/8',0,3.27,0.59,2.17,0.8],
['12/9',0,2.2,2.86,2.7,0],
['12/10',0.68,2.5,1.09,1.83,0],
['12/11',1.01,3,0,1.98,0.55],
['12/12',12.18,8.29,6.93,10.74,7.41],
['12/13',4.03,3.31,2.65,4.72,3.74],
['12/14',3.52,4.6,1.29,1.77,1.05],
['12/15',0.77,6.21,2.4,4.12,3.23],
['12/16',0,5.65,3.92,2.73,1.95],
['12/17',0,2.61,1.98,3.33,3.92],
['12/18',0,3.48,2.32,0,0],
['12/19',1.54,3.41,0.78,0,0],
['12/20',0,1.75,0.19,0,1.12],
['12/21',1.37,4,1.13,4.44,1.95],
['12/22',0,3.64,0.96,1.64,1.19],
['12/23',0,3.64,0.94,0,1.19],
['12/24',2.56,4.8,1.06,0,2.84],
['12/25',2.38,3.96,0.69,0,3.33],
['12/26',0,3.3,1.65,0,1.74],
['12/27',0,6.32,0.64,2.94,0.86],
['12/28',0,3.09,1.07,4.35,0],
['12/29',2.19,2.75,0,9.68,1.32],
['12/30',1.09,4.62,1.53,0,3.62],
['12/31',3.39,7.37,3.15,0,2.08],
]
},
xAxis: {
type: 'category' },
yAxis: {
},
// Declare several bar series, each will be mapped
// to a column of dataset.source by default.
series: [{
type:'line'},{
type:'bar'},{
type:'bar'},{
type:'bar'},{
type:'bar'}]
};
chart_b859ef36a1b245b2b1eb24efe9b62146.setOption(option);
</script>
</div>
</body>
</html>
双色叠加象形图
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>Title</title>
<script src="https://assets.pyecharts.org/assets/echarts.min.js"></script>
<script src="https://assets.pyecharts.org/assets/main.js"></script>
</head>
<body>
<div id="garps" class="container" style="width: 800px;height: 600px">
<script>
var chart_b859ef36a1b245b2b1eb24efe9b62146 = echarts.init(
document.getElementById('garps'), 'white', {
renderer: 'canvas'});
option = {
backgroundColor:'#031d33',
legend: {
top: "20",
x: "center",
textStyle: {
fontSize: 16,
color: "rgba(101, 213, 255, 1)"
},
icon:
"path://M512 881.777778 512 881.777778C716.222629 881.777778 881.777778 716.222629 881.777778 512 881.777778 307.777371 716.222629 142.222222 512 142.222222 307.777373 142.222222 142.222222 307.777371 142.222222 512 142.222222 716.222629 307.777373 881.777778 512 881.777778L512 881.777778ZM512 1024 512 1024C229.230208 1024 0 794.769789 0 512 0 229.230211 229.230208 0 512 0 794.769789 0 1024 229.230211 1024 512 1024 794.769789 794.769789 1024 512 1024L512 1024Z",
itemWidth:8, // 设置宽度
itemHeight:8, // 设置高度、
itemGap: 10 // 设置间距
},
tooltip: {
show: true,
trigger: "axis", //axis , item
backgroundColor: "RGBA(0, 49, 85, 1)",
borderColor: "rgba(0, 151, 251, 1)",
borderWidth: 1,
borderRadius: 0,
textStyle: {
color: "#BCE9FC",
fontSize: 16,
align: "left"
}
},
grid: {
right: "5%",
top: "20%",
left: "5%",
bottom: "5%",
containLabel: true
},
xAxis: {
type: "category",
boundaryGap: true,
data: ["服务器","交换机",'路由器','数据库','中间件','数据库','中间件'],
axisLabel: {
//坐标轴刻度标签的相关设置。
interval: 0, //设置为 1，表示『隔一个标签显示一个标签』
// margin:15,
textStyle: {
color: "#65D5FF",
fontStyle: "normal",
fontSize: 16
}
},
axisTick: {
//坐标轴刻度相关设置。
show: false
},
axisLine: {
//坐标轴轴线相关设置
lineStyle: {
color: "rgba(77, 128, 254, 0.2)"
}
},
splitLine: {
//坐标轴在 grid 区域中的分隔线。
show: true,
lineStyle: {
color: "rgba(77, 128, 254, 0.2)"
}
}
},
yAxis: [
{
type: "value",
splitNumber: 3,
axisLabel: {
textStyle: {
color: "#65D5FF",
fontStyle: "normal",
fontSize: 16
}
},
axisLine: {
show: false
},
axisTick: {
show: false
},
splitLine: {
show: true,
lineStyle: {
color: "rgba(77, 128, 254, 0.2)"
}
}
}
],
series: [
{
name: '正常',
type: "pictorialBar",
barWidth: "120%",
stack: "数量",
label: {
normal: {
show: false
}
},
itemStyle: {
normal: {
color: {
type: "linear",
x: 0,
y: 0,
x2: 0,
y2: 1,
colorStops: [
{
offset: 0,
color: "#18705E" // 0% 处的颜色
},
{
offset: 1,
color: "rgba(255, 255, 255, .1)" // 100% 处的颜色
}
],
globalCoord: false // 缺省为 false
} //渐变颜色
}
},
symbol:
"path://M12.000,-0.000 C12.000,-0.000 16.074,60.121 22.731,60.121 C26.173,60.121 -3.234,60.121 0.511,60.121 C7.072,60.121 12.000,-0.000 12.000,-0.000 Z",
data: [23,84,101,74,87,45,22]
}, {
name: '异常',
type: "pictorialBar",
barWidth: "120%",
stack: "数量",
label: {
normal: {
show: false
}
},
itemStyle: {
normal: {
color: {
type: "linear",
x: 0,
y: 0,
x2: 0,
y2: 1,
colorStops: [
{
offset: 0,
color: "#795351" // 0% 处的颜色
},
{
offset: 1,
color: "rgba(255, 255, 255, .1)" // 100% 处的颜色
}
],
globalCoord: false // 缺省为 false
} //渐变颜色
}
},
symbol:
"path://M12.000,-0.000 C12.000,-0.000 16.074,60.121 22.731,60.121 C26.173,60.121 -3.234,60.121 0.511,60.121 C7.072,60.121 12.000,-0.000 12.000,-0.000 Z",
data: [13,54,71,24,57,33,45]
}],
};
chart_b859ef36a1b245b2b1eb24efe9b62146.setOption(option);
</script>
</div>
</body>
</html>

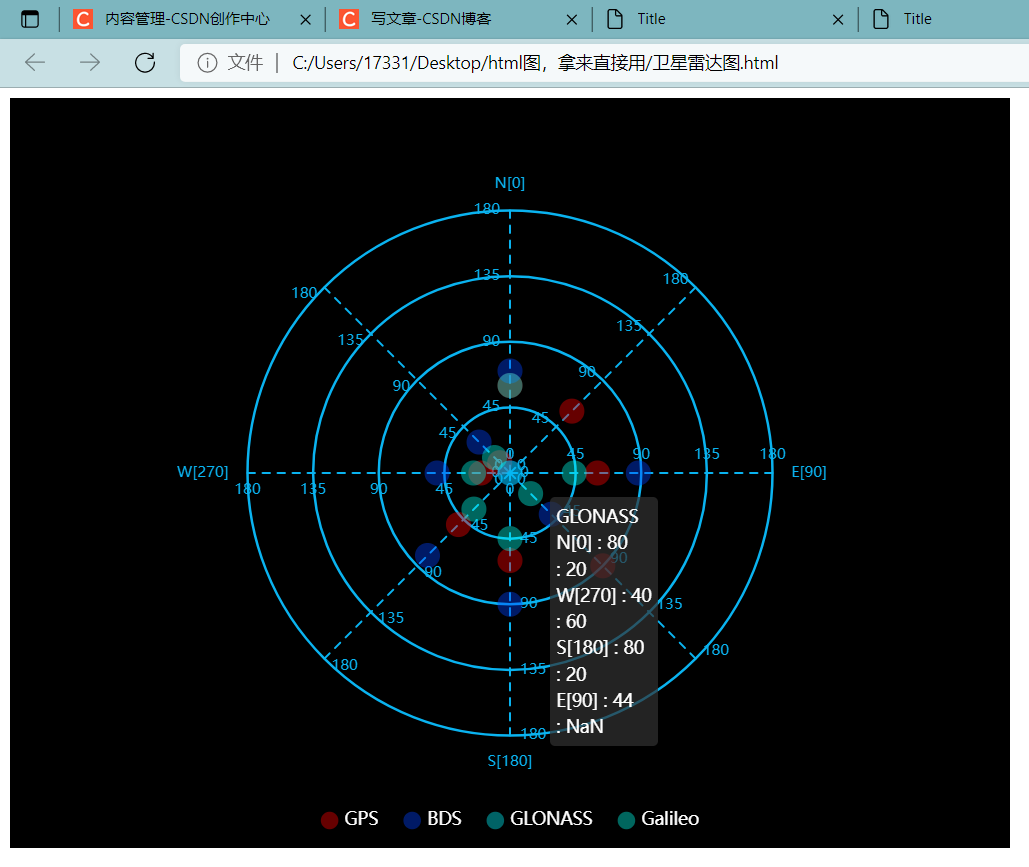

卫星雷达图
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>Title</title>
<script src="https://assets.pyecharts.org/assets/echarts.min.js"></script>
<script src="https://assets.pyecharts.org/assets/main.js"></script>
</head>
<body>
<div id="garps" class="container" style="width: 800px;height: 600px">
<script>
var chart_b859ef36a1b245b2b1eb24efe9b62146 = echarts.init(
document.getElementById('garps'), 'white', {
renderer: 'canvas'});
option = {
backgroundColor: '#000',
"normal": {
"top": 200,
"left": 300,
"width": 500,
"height": 400,
"zIndex": 6,
"backgroundColor": ""
},
"color": ["rgba(245, 166, 35, 1)", "rgba(19, 173, 255, 1)"],
"title": {
"show": true,
"left": "40%",
"top": "1%",
"textStyle": {
"fontSize": 18,
"color": "#fff",
"fontStyle": "normal",
"fontWeight": "normal"
}
},
"tooltip": {
"show": true,
"trigger": "item"
},
"radar": {
"center": ["50%", "50%"],
"radius": "70%",
"startAngle": 90,
"splitNumber": 4,
"shape": "circle",
"splitArea": {
"show":false,
"areaStyle": {
"color": ["transparent"]
}
},
"axisLabel": {
"show": true,
"fontSize": 12,
"color": "#0ab3f0"
},
"axisLine": {
"show": true,
"lineStyle": {
"type": "dashed",
"color": "#0ab3f0",
"width":1.5//
}
},
"splitLine": {
"show": true,
"lineStyle": {
"color": "#0ab3f0",
"width":2//
}
},
"indicator": [{
"name": "N[0]",
"max": 180
}, {
"name": "",
"max": 180
}, {
"name": "W[270]",
"max": 180
}, {
"name": "",
"max": 180
},{
"name": "S[180]",
"max": 180
}, {
"name": "",
"max": 180
}, {
"name": "E[90]",
"max": 180
}, {
"name": "",
"max": 180
}]
},
legend: {
icon: 'circle',
bottom:'10',
textStyle: {
fontSize: 14, color: '#fff' },
itemGap: 20,
itemWidth: 14,
data: ['GPS', 'BDS', 'GLONASS', 'Galileo']
},
"series": [
{
"name": "GPS",
"type": "radar",
"symbol": "circle",
"symbolSize": 20,
"itemStyle": {
"normal": {
"color":'rgba(255, 0, 0, 0.4)',
}
},
"areaStyle": {
"normal": {
"color": "rgba(19, 173, 255, 0)"
}
},
"lineStyle": {
"normal": {
"color": "rgba(19, 173, 255, 0)",
"width": 2,
"type": "dashed"
}
},
"data": [
[60, 10, 20, 50,60,90,60,60]
]
},
{
"name": "BDS",
"type": "radar",
"symbol": "circle",
"symbolSize": 20,
"itemStyle": {
"normal": {
"color":'rgb(0,64,255,0.4)',
}
},
"areaStyle": {
"normal": {
"color": "rgba(19, 173, 255, 0)"
}
},
"lineStyle": {
"normal": {
"color": "rgba(19, 173, 255, 0)",
"width": 2,
"type": "dashed"
}
},
"data": [
[70, 30, 50, 80,90,40,88]
]
},
{
"name": "GLONASS",
"type": "radar",
"symbol": "circle",
"symbolSize": 20,
"itemStyle": {
"normal": {
"color":'rgb(0,247,255,0.4)',
}
},
"areaStyle": {
"normal": {
"color": "rgba(19, 173, 255, 0)"
}
},
"lineStyle": {
"normal": {
"color": "rgba(19, 173, 255, 0)",
"width": 2,
"type": "dashed"
}
},
"data": [
[80, 20, 40, 60,80,20,44]
]
},
{
"name": "Galileo",
"type": "radar",
"symbol": "circle",
"symbolSize": 20,
"itemStyle": {
"normal": {
"color":'rgb(0,255,234,0.4)',
}
},
"areaStyle": {
"normal": {
"color": "rgba(19, 173, 255, 0)"
}
},
"lineStyle": {
"normal": {
"color": "rgba(19, 173, 255, 0)",
"width": 2,
"type": "dashed"
}
},
"data": [
[60, 15, 25, 35,45,20,44]
]
},
]
};
chart_b859ef36a1b245b2b1eb24efe9b62146.setOption(option);
</script>
</div>
</body>
</html>
线图
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>Title</title>
<script src="https://assets.pyecharts.org/assets/echarts.min.js"></script>
<script src="https://assets.pyecharts.org/assets/main.js"></script>
</head>
<body>
<div id="garps" class="container" style="width: 800px;height: 600px">
<script>
var chart_b859ef36a1b245b2b1eb24efe9b62146 = echarts.init(
document.getElementById('garps'), 'white', {
renderer: 'canvas'});
var geoJson = {
type: 'FeatureCollection', features: [{
type: 'Feature', id: 'xin_jiang', properties: {
name: '新疆', cp: [84.9023, 41.748], childNum: 18 }, geometry: {
type: 'Polygon', coordinates: [[[96.416, 42.7588], [96.416, 42.7148], [95.9766, 42.4951], [96.0645, 42.3193], [96.2402, 42.2314], [95.9766, 41.9238], [95.2734, 41.6162], [95.1855, 41.792], [94.5703, 41.4844], [94.043, 41.0889], [93.8672, 40.6934], [93.0762, 40.6494], [92.6367, 39.6387], [92.373, 39.3311], [92.373, 39.1113], [92.373, 39.0234], [90.1758, 38.4961], [90.3516, 38.2324], [90.6152, 38.3203], [90.5273, 37.8369], [91.0547, 37.4414], [91.3184, 37.0898], [90.7031, 36.7822], [90.791, 36.6064], [91.0547, 36.5186], [91.0547, 36.0791], [90.8789, 36.0352], [90, 36.2549], [89.9121, 36.0791], [89.7363, 36.0791], [89.209, 36.2988], [88.7695, 36.3428], [88.5938, 36.4746], [87.3633, 36.4307], [86.2207, 36.167], [86.1328, 35.8594], [85.6055, 35.6836], [85.0781, 35.7275], [84.1992, 35.376], [83.1445, 35.4199], [82.8809, 35.6836], [82.4414, 35.7275], [82.002, 35.332], [81.6504, 35.2441], [80.4199, 35.4199], [80.2441, 35.2881], [80.332, 35.1563], [80.2441, 35.2002], [79.8926, 34.8047], [79.8047, 34.4971], [79.1016, 34.4531], [79.0137, 34.3213], [78.2227, 34.7168], [78.0469, 35.2441], [78.0469, 35.5078], [77.4316, 35.4639], [76.8164, 35.6396], [76.5527, 35.8594], [76.2012, 35.8154], [75.9375, 36.0352], [76.0254, 36.4746], [75.8496, 36.6943], [75.498, 36.7383], [75.4102, 36.958], [75.0586, 37.002], [74.8828, 36.9141], [74.7949, 37.0459], [74.5313, 37.0898], [74.5313, 37.2217], [74.8828, 37.2217], [75.1465, 37.4414], [74.8828, 37.5732], [74.9707, 37.749], [74.8828, 38.4521], [74.3555, 38.6719], [74.1797, 38.6719], [74.0918, 38.54], [73.8281, 38.584], [73.7402, 38.8477], [73.8281, 38.9795], [73.4766, 39.375], [73.916, 39.5068], [73.916, 39.6826], [73.8281, 39.7705], [74.0039, 40.0342], [74.8828, 40.3418], [74.7949, 40.5176], [75.2344, 40.4297], [75.5859, 40.6494], [75.7617, 40.2979], [76.377, 40.3857], [76.9043, 41.001], [77.6074, 41.001], [78.1348, 41.2207], [78.1348, 41.3965], [80.1563, 42.0557], [80.2441, 42.2754], [80.1563, 42.627], [80.2441, 42.8467], [80.5078, 42.8906], [80.4199, 43.0664], [80.7715, 43.1982], [80.4199, 44.165], [80.4199, 44.6045], [79.9805, 44.8242], [79.9805, 44.9561], [81.7383, 45.3955], [82.0898, 45.2197], [82.5293, 45.2197], [82.2656, 45.6592], [83.0566, 47.2412], [83.6719, 47.0215], [84.7266, 47.0215], [84.9023, 46.8896], [85.5176, 47.0654], [85.6934, 47.2852], [85.5176, 48.1201], [85.7813, 48.4277], [86.5723, 48.5596], [86.8359, 48.8232], [86.748, 48.9551], [86.8359, 49.1309], [87.8027, 49.1748], [87.8906, 48.999], [87.7148, 48.9111], [88.0664, 48.7354], [87.9785, 48.6035], [88.5059, 48.3838], [88.6816, 48.1641], [89.1211, 47.9883], [89.5605, 48.0322], [89.7363, 47.8564], [90.0879, 47.8564], [90.3516, 47.6807], [90.5273, 47.2412], [90.8789, 46.9775], [91.0547, 46.582], [90.8789, 46.3184], [91.0547, 46.0107], [90.7031, 45.7471], [90.7031, 45.5273], [90.8789, 45.2197], [91.582, 45.0879], [93.5156, 44.9561], [94.7461, 44.3408], [95.3613, 44.2969], [95.3613, 44.0332], [95.5371, 43.9014], [95.8887, 43.2422], [96.3281, 42.9346], [96.416, 42.7588]]] } }, {
type: 'Feature', id: 'xi_zang', properties: {
name: '西藏', cp: [88.7695, 31.6846], childNum: 7 }, geometry: {
type: 'Polygon', coordinates: [[[79.0137, 34.3213], [79.1016, 34.4531], [79.8047, 34.4971], [79.8926, 34.8047], [80.2441, 35.2002], [80.332, 35.1563], [80.2441, 35.2881], [80.4199, 35.4199], [81.6504, 35.2441], [82.002, 35.332], [82.4414, 35.7275], [82.8809, 35.6836], [83.1445, 35.4199], [84.1992, 35.376], [85.0781, 35.7275], [85.6055, 35.6836], [86.1328, 35.8594], [86.2207, 36.167], [87.3633, 36.4307], [88.5938, 36.4746], [88.7695, 36.3428], [89.209, 36.2988], [89.7363, 36.0791], [89.3848, 36.0352], [89.4727, 35.9033], [89.7363, 35.7715], [89.7363, 35.4199], [89.4727, 35.376], [89.4727, 35.2441], [89.5605, 34.8926], [89.8242, 34.8486], [89.7363, 34.6729], [89.8242, 34.3652], [89.6484, 34.0137], [90.0879, 33.4863], [90.7031, 33.1348], [91.4063, 33.1348], [91.9336, 32.8271], [92.1973, 32.8271], [92.2852, 32.7393], [92.9883, 32.7393], [93.5156, 32.4756], [93.7793, 32.5635], [94.1309, 32.4316], [94.6582, 32.6074], [95.1855, 32.4316], [95.0098, 32.2998], [95.1855, 32.3438], [95.2734, 32.2119], [95.3613, 32.168], [95.3613, 31.9922], [95.4492, 31.8164], [95.8008, 31.6846], [95.9766, 31.8164], [96.1523, 31.5967], [96.2402, 31.9482], [96.5039, 31.7285], [96.8555, 31.6846], [96.7676, 31.9922], [97.2949, 32.0801], [97.3828, 32.5635], [97.7344, 32.5195], [98.1738, 32.3438], [98.4375, 31.8604], [98.877, 31.4209], [98.6133, 31.2012], [98.9648, 30.7617], [99.1406, 29.2676], [98.9648, 29.1357], [98.9648, 28.8281], [98.7891, 28.8721], [98.7891, 29.0039], [98.7012, 28.916], [98.6133, 28.5205], [98.7891, 28.3447], [98.7012, 28.2129], [98.3496, 28.125], [98.2617, 28.3887], [98.1738, 28.125], [97.5586, 28.5205], [97.2949, 28.0811], [97.3828, 27.9053], [97.0313, 27.7295], [96.5039, 28.125], [95.7129, 28.2568], [95.3613, 28.125], [95.2734, 27.9492], [94.2188, 27.5537], [93.8672, 27.0264], [93.6035, 26.9385], [92.1094, 26.8506], [92.0215, 27.4658], [91.582, 27.5537], [91.582, 27.9053], [91.4063, 28.0371], [91.0547, 27.8613], [90.7031, 28.0811], [89.8242, 28.2129], [89.6484, 28.1689], [89.1211, 27.5977], [89.1211, 27.334], [89.0332, 27.2021], [88.7695, 27.4219], [88.8574, 27.9932], [88.6816, 28.125], [88.1543, 27.9053], [87.8906, 27.9492], [87.7148, 27.8174], [87.0996, 27.8174], [86.748, 28.125], [86.5723, 28.125], [86.4844, 27.9053], [86.1328, 28.125], [86.0449, 27.9053], [85.6934, 28.3447], [85.6055, 28.2568], [85.166, 28.3447], [85.166, 28.6523], [84.9023, 28.5645], [84.4629, 28.7402], [84.2871, 28.8721], [84.1992, 29.2236], [84.1113, 29.2676], [83.584, 29.1797], [83.2324, 29.5752], [82.1777, 30.0586], [82.0898, 30.3223], [81.3867, 30.3662], [81.2109, 30.0146], [81.0352, 30.2344], [80.0684, 30.5859], [79.7168, 30.9375], [79.0137, 31.0693], [78.75, 31.333], [78.8379, 31.5967], [78.6621, 31.8164], [78.75, 31.9043], [78.4863, 32.124], [78.3984, 32.5195], [78.75, 32.6953], [78.9258, 32.3438], [79.2773, 32.5635], [79.1016, 33.1787], [78.6621, 33.6621], [78.6621, 34.1016], [78.9258, 34.1455], [79.0137, 34.3213]]] } }, {
type: 'Feature', id: 'nei_meng_gu', properties: {
name: '内蒙古', cp: [117.5977, 44.3408], childNum: 12 }, geometry: {
type: 'Polygon', coordinates: [[[97.207, 42.8027], [99.4922, 42.583], [100.8105, 42.6709], [101.7773, 42.4951], [102.041, 42.2314], [102.7441, 42.1436], [103.3594, 41.8799], [103.8867, 41.792], [104.502, 41.8799], [104.502, 41.6602], [105.0293, 41.5723], [105.7324, 41.9238], [107.4023, 42.4512], [109.4238, 42.4512], [110.3906, 42.7588], [111.0059, 43.3301], [111.9727, 43.6816], [111.9727, 43.8135], [111.4453, 44.3848], [111.7969, 45], [111.9727, 45.0879], [113.6426, 44.7363], [114.1699, 44.9561], [114.5215, 45.3955], [115.6641, 45.4395], [116.1914, 45.7031], [116.2793, 45.9668], [116.543, 46.2744], [117.334, 46.3623], [117.4219, 46.582], [117.7734, 46.5381], [118.3008, 46.7578], [118.7402, 46.7139], [118.916, 46.7578], [119.0918, 46.6699], [119.707, 46.626], [119.9707, 46.7139], [119.707, 47.1973], [118.4766, 47.9883], [117.8613, 48.0322], [117.334, 47.6807], [116.8066, 47.9004], [116.1914, 47.8564], [115.9277, 47.6807], [115.5762, 47.9004], [115.4883, 48.1641], [115.8398, 48.252], [115.8398, 48.5596], [116.7188, 49.834], [117.7734, 49.5264], [118.5645, 49.9219], [119.2676, 50.0977], [119.3555, 50.3174], [119.1797, 50.3613], [119.5313, 50.7568], [119.5313, 50.8887], [119.707, 51.0645], [120.1465, 51.6797], [120.6738, 51.9434], [120.7617, 52.1191], [120.7617, 52.251], [120.5859, 52.3389], [120.6738, 52.5146], [120.4102, 52.6465], [120.0586, 52.6025], [120.0586, 52.7344], [120.8496, 53.2617], [121.4648, 53.3496], [121.8164, 53.042], [121.2012, 52.5586], [121.6406, 52.4268], [121.7285, 52.2949], [121.9922, 52.2949], [122.168, 52.5146], [122.6953, 52.251], [122.6074, 52.0752], [122.959, 51.3281], [123.3105, 51.2402], [123.6621, 51.3721], [124.3652, 51.2842], [124.541, 51.3721], [124.8926, 51.3721], [125.0684, 51.6357], [125.332, 51.6357], [126.0352, 51.0205], [125.7715, 50.7568], [125.7715, 50.5371], [125.332, 50.1416], [125.1563, 49.834], [125.2441, 49.1748], [124.8047, 49.1309], [124.4531, 48.1201], [124.2773, 48.5156], [122.4316, 47.373], [123.0469, 46.7139], [123.3984, 46.8896], [123.3984, 46.9775], [123.4863, 46.9775], [123.5742, 46.8457], [123.5742, 46.8896], [123.5742, 46.6699], [123.0469, 46.582], [123.2227, 46.2305], [122.7832, 46.0107], [122.6953, 45.7031], [122.4316, 45.8789], [122.2559, 45.791], [121.8164, 46.0107], [121.7285, 45.7471], [121.9043, 45.7031], [122.2559, 45.2637], [122.0801, 44.8682], [122.3438, 44.2529], [123.1348, 44.4727], [123.4863, 43.7256], [123.3105, 43.5059], [123.6621, 43.374], [123.5742, 43.0225], [123.3105, 42.9785], [123.1348, 42.8027], [122.7832, 42.7148], [122.3438, 42.8467], [122.3438, 42.6709], [121.9922, 42.7148], [121.7285, 42.4512], [121.4648, 42.4951], [120.498, 42.0996], [120.1465, 41.7041], [119.8828, 42.1875], [119.5313, 42.3633], [119.3555, 42.2754], [119.2676, 41.7041], [119.4434, 41.6162], [119.2676, 41.3086], [118.3887, 41.3086], [118.125, 41.748], [118.3008, 41.792], [118.3008, 42.0996], [118.125, 42.0557], [117.9492, 42.2314], [118.0371, 42.4072], [117.7734, 42.627], [117.5098, 42.583], [117.334, 42.4512], [116.8945, 42.4072], [116.8066, 42.0117], [116.2793, 42.0117], [116.0156, 41.792], [115.9277, 41.9238], [115.2246, 41.5723], [114.9609, 41.6162], [114.873, 42.0996], [114.5215, 42.1436], [114.1699, 41.792], [114.2578, 41.5723], [113.9063, 41.4404], [113.9941, 41.2207], [113.9063, 41.1328], [114.082, 40.7373], [114.082, 40.5176], [113.8184, 40.5176], [113.5547, 40.3418], [113.2031, 40.3857], [112.7637, 40.166], [112.3242, 40.2539], [111.9727, 39.5947], [111.4453, 39.6387], [111.3574, 39.4189], [111.0938, 39.375], [111.0938, 39.5947], [110.6543, 39.2871], [110.127, 39.4629], [110.2148, 39.2871], [109.8633, 39.2432], [109.9512, 39.1553], [108.9844, 38.3203], [109.0723, 38.0127], [108.8965, 37.9688], [108.8086, 38.0127], [108.7207, 37.7051], [108.1934, 37.6172], [107.666, 37.8809], [107.3145, 38.1006], [106.7871, 38.1885], [106.5234, 38.3203], [106.9629, 38.9795], [106.7871, 39.375], [106.3477, 39.2871], [105.9082, 38.7158], [105.8203, 37.793], [104.3262, 37.4414], [103.4473, 37.8369], [103.3594, 38.0127], [103.5352, 38.1445], [103.4473, 38.3643], [104.2383, 38.9795], [104.0625, 39.4189], [103.3594, 39.3311], [103.0078, 39.1113], [102.4805, 39.2432], [101.8652, 39.1113], [102.041, 38.8916], [101.7773, 38.6719], [101.3379, 38.7598], [101.25, 39.0234], [100.9863, 38.9355], [100.8105, 39.4189], [100.5469, 39.4189], [100.0195, 39.7705], [99.4922, 39.8584], [100.1074, 40.2539], [100.1953, 40.6494], [99.9316, 41.001], [99.2285, 40.8691], [99.0527, 40.6934], [98.9648, 40.7813], [98.7891, 40.6055], [98.5254, 40.7373], [98.6133, 40.6494], [98.3496, 40.5615], [98.3496, 40.9131], [97.4707, 41.4844], [97.8223, 41.6162], [97.8223, 41.748], [97.207, 42.8027]]] } }, {
type: 'Feature', id: 'qing_hai', properties: {
name: '青海', cp: [96.2402, 35.4199], childNum: 8 }, geometry: {
type: 'Polygon', coordinates: [[[89.7363, 36.0791], [89.9121, 36.0791], [90, 36.2549], [90.8789, 36.0352], [91.0547, 36.0791], [91.0547, 36.5186], [90.791, 36.6064], [90.7031, 36.7822], [91.3184, 37.0898], [91.0547, 37.4414], [90.5273, 37.8369], [90.6152, 38.3203], [90.3516, 38.2324], [90.1758, 38.4961], [92.373, 39.0234], [92.373, 39.1113], [93.1641, 39.1992], [93.1641, 38.9795], [93.6914, 38.9355], [93.8672, 38.7158], [94.3066, 38.7598], [94.5703, 38.3643], [95.0098, 38.4082], [95.4492, 38.2764], [95.7129, 38.3643], [96.2402, 38.1006], [96.416, 38.2324], [96.6797, 38.1885], [96.6797, 38.4521], [97.1191, 38.584], [97.0313, 39.1992], [98.1738, 38.8037], [98.3496, 39.0234], [98.6133, 38.9355], [98.7891, 39.0674], [99.1406, 38.9355], [99.8438, 38.3643], [100.1953, 38.2764], [100.0195, 38.4521], [100.1074, 38.4961], [100.459, 38.2764], [100.7227, 38.2324], [101.1621, 37.8369], [101.5137, 37.8809], [101.7773, 37.6172], [101.9531, 37.7051], [102.1289, 37.4414], [102.5684, 37.1777], [102.4805, 36.958], [102.6563, 36.8262], [102.5684, 36.7383], [102.832, 36.3428], [103.0078, 36.2549], [102.9199, 36.0791], [102.9199, 35.9033], [102.6563, 35.7715], [102.832, 35.5957], [102.4805, 35.5957], [102.3047, 35.4199], [102.3926, 35.2002], [101.9531, 34.8486], [101.9531, 34.6289], [102.2168, 34.4092], [102.1289, 34.2773], [101.6895, 34.1016], [100.9863, 34.3652], [100.8105, 34.2773], [101.25, 33.6621], [101.5137, 33.7061], [101.6016, 33.5303], [101.7773, 33.5303], [101.6895, 33.3105], [101.7773, 33.2227], [101.6016, 33.1348], [101.1621, 33.2227], [101.25, 32.6953], [100.7227, 32.6514], [100.7227, 32.5195], [100.3711, 32.7393], [100.1074, 32.6514], [100.1074, 32.8711], [99.8438, 33.0029], [99.7559, 32.7393], [99.2285, 32.915], [99.2285, 33.0469], [98.877, 33.1787], [98.4375, 34.0576], [97.8223, 34.1895], [97.6465, 34.1016], [97.7344, 33.9258], [97.3828, 33.8818], [97.4707, 33.5742], [97.7344, 33.3984], [97.3828, 32.8711], [97.4707, 32.6953], [97.7344, 32.5195], [97.3828, 32.5635], [97.2949, 32.0801], [96.7676, 31.9922], [96.8555, 31.6846], [96.5039, 31.7285], [96.2402, 31.9482], [96.1523, 31.5967], [95.9766, 31.8164], [95.8008, 31.6846], [95.4492, 31.8164], [95.3613, 31.9922], [95.3613, 32.168], [95.2734, 32.2119], [95.1855, 32.3438], [95.0098, 32.2998], [95.1855, 32.4316], [94.6582, 32.6074], [94.1309, 32.4316], [93.7793, 32.5635], [93.5156, 32.4756], [92.9883, 32.7393], [92.2852, 32.7393], [92.1973, 32.8271], [91.9336, 32.8271], [91.4063, 33.1348], [90.7031, 33.1348], [90.0879, 33.4863], [89.6484, 34.0137], [89.8242, 34.3652], [89.7363, 34.6729], [89.8242, 34.8486], [89.5605, 34.8926], [89.4727, 35.2441], [89.4727, 35.376], [89.7363, 35.4199], [89.7363, 35.7715], [89.4727, 35.9033], [89.3848, 36.0352], [89.7363, 36.0791]]] } }, {
type: 'Feature', id: 'si_chuan', properties: {
name: '四川', cp: [102.9199, 30.1904], childNum: 21 }, geometry: {
type: 'Polygon', coordinates: [[[101.7773, 33.5303], [101.8652, 33.5742], [101.9531, 33.4424], [101.8652, 33.0908], [102.4805, 33.4424], [102.2168, 33.9258], [102.9199, 34.3213], [103.0957, 34.1895], [103.1836, 33.7939], [104.1504, 33.6182], [104.2383, 33.3984], [104.4141, 33.3105], [104.3262, 33.2227], [104.4141, 33.0469], [104.3262, 32.8711], [104.4141, 32.7393], [105.2051, 32.6074], [105.3809, 32.7393], [105.3809, 32.8711], [105.4688, 32.915], [105.5566, 32.7393], [106.084, 32.8711], [106.084, 32.7393], [106.3477, 32.6514], [107.0508, 32.6953], [107.1387, 32.4756], [107.2266, 32.4316], [107.4023, 32.5195], [108.0176, 32.168], [108.2813, 32.2559], [108.5449, 32.2119], [108.3691, 32.168], [108.2813, 31.9043], [108.5449, 31.6846], [108.1934, 31.5088], [107.9297, 30.8496], [107.4902, 30.8496], [107.4023, 30.7617], [107.4902, 30.6299], [107.0508, 30.0146], [106.7871, 30.0146], [106.6113, 30.3223], [106.2598, 30.1904], [105.8203, 30.4541], [105.6445, 30.2783], [105.5566, 30.1025], [105.7324, 29.8828], [105.293, 29.5313], [105.4688, 29.3115], [105.7324, 29.2676], [105.8203, 28.96], [106.2598, 28.8721], [106.3477, 28.5205], [105.9961, 28.7402], [105.6445, 28.4326], [105.9082, 28.125], [106.1719, 28.125], [106.3477, 27.8174], [105.6445, 27.6416], [105.5566, 27.7734], [105.293, 27.7295], [105.2051, 27.9932], [105.0293, 28.0811], [104.8535, 27.9053], [104.4141, 27.9492], [104.3262, 28.0371], [104.4141, 28.125], [104.4141, 28.2568], [104.2383, 28.4326], [104.4141, 28.6084], [103.8867, 28.6523], [103.7988, 28.3008], [103.4473, 28.125], [103.4473, 27.7734], [102.9199, 27.29], [103.0078, 26.3672], [102.6563, 26.1914], [102.5684, 26.3672], [102.1289, 26.1035], [101.8652, 26.0596], [101.6016, 26.2354], [101.6895, 26.3672], [101.4258, 26.5869], [101.4258, 26.8066], [101.4258, 26.7188], [101.1621, 27.0264], [101.1621, 27.1582], [100.7227, 27.8613], [100.3711, 27.8174], [100.2832, 27.7295], [100.0195, 28.125], [100.1953, 28.3447], [99.668, 28.8281], [99.4043, 28.5205], [99.4043, 28.1689], [99.2285, 28.3008], [99.1406, 29.2676], [98.9648, 30.7617], [98.6133, 31.2012], [98.877, 31.4209], [98.4375, 31.8604], [98.1738, 32.3438], [97.7344, 32.5195], [97.4707, 32.6953], [97.3828, 32.8711], [97.7344, 33.3984], [97.4707, 33.5742], [97.3828, 33.8818], [97.7344, 33.9258], [97.6465, 34.1016], [97.8223, 34.1895], [98.4375, 34.0576], [98.877, 33.1787], [99.2285, 33.0469], [99.2285, 32.915], [99.7559, 32.7393], [99.8438, 33.0029], [100.1074, 32.8711], [100.1074, 32.6514], [100.3711, 32.7393], [100.7227, 32.5195], [100.7227, 32.6514], [101.25, 32.6953], [101.1621, 33.2227], [101.6016, 33.1348], [101.7773, 33.2227], [101.6895, 33.3105], [101.7773, 33.5303]]] } }, {
type: 'Feature', id: 'hei_long_jiang', properties: {
name: '黑龙江', cp: [128.1445, 48.5156], childNum: 13 }, geometry: {
type: 'Polygon', coordinates: [[[121.4648, 53.3496], [123.6621, 53.5693], [124.8926, 53.0859], [125.0684, 53.2178], [125.5957, 53.0859], [125.6836, 52.9102], [126.123, 52.7783], [126.0352, 52.6025], [126.2109, 52.5146], [126.3867, 52.2949], [126.3867, 52.207], [126.5625, 52.1631], [126.4746, 51.9434], [126.9141, 51.3721], [126.8262, 51.2842], [127.002, 51.3281], [126.9141, 51.1084], [127.2656, 50.7568], [127.3535, 50.2734], [127.6172, 50.2295], [127.5293, 49.8779], [127.793, 49.6143], [128.7598, 49.5703], [129.1113, 49.3506], [129.4629, 49.4385], [130.2539, 48.8672], [130.6934, 48.8672], [130.5176, 48.6475], [130.8691, 48.2959], [130.6934, 48.1201], [131.0449, 47.6807], [132.5391, 47.7246], [132.627, 47.9443], [133.0664, 48.1201], [133.5059, 48.1201], [134.209, 48.3838], [135.0879, 48.4277], [134.7363, 48.252], [134.5605, 47.9883], [134.7363, 47.6807], [134.5605, 47.4609], [134.3848, 47.4609], [134.209, 47.2852], [134.209, 47.1533], [133.8574, 46.5381], [133.9453, 46.2744], [133.5059, 45.835], [133.418, 45.5713], [133.2422, 45.5273], [133.0664, 45.1318], [132.8906, 45.0439], [131.9238, 45.3516], [131.5723, 45.0439], [131.0449, 44.8682], [131.3086, 44.0771], [131.2207, 43.7256], [131.3086, 43.4619], [130.8691, 43.418], [130.5176, 43.6377], [130.3418, 43.9893], [129.9902, 43.8574], [129.9023, 44.0332], [129.8145, 43.9014], [129.2871, 43.8135], [129.1992, 43.5938], [128.8477, 43.5498], [128.4961, 44.165], [128.4082, 44.4727], [128.0566, 44.3408], [128.0566, 44.1211], [127.7051, 44.1211], [127.5293, 44.6045], [127.0898, 44.6045], [127.002, 44.7803], [127.0898, 45], [126.9141, 45.1318], [126.5625, 45.2637], [126.0352, 45.1758], [125.7715, 45.3076], [125.6836, 45.5273], [125.0684, 45.3955], [124.8926, 45.5273], [124.3652, 45.4395], [124.0137, 45.7471], [123.9258, 46.2305], [123.2227, 46.2305], [123.0469, 46.582], [123.5742, 46.6699], [123.5742, 46.8896], [123.5742, 46.8457], [123.4863, 46.9775], [123.3984, 46.9775], [123.3984, 46.8896], [123.0469, 46.7139], [122.4316, 47.373], [124.2773, 48.5156], [124.4531, 48.1201], [124.8047, 49.1309], [125.2441, 49.1748], [125.1563, 49.834], [125.332, 50.1416], [125.7715, 50.5371], [125.7715, 50.7568], [126.0352, 51.0205], [125.332, 51.6357], [125.0684, 51.6357], [124.8926, 51.3721], [124.541, 51.3721], [124.3652, 51.2842], [123.6621, 51.3721], [123.3105, 51.2402], [122.959, 51.3281], [122.6074, 52.0752], [122.6953, 52.251], [122.168, 52.5146], [121.9922, 52.2949], [121.7285, 52.2949], [121.6406, 52.4268], [121.2012, 52.5586], [121.8164, 53.042], [121.4648, 53.3496]]] } }, {
type: 'Feature', id: 'gan_su', properties: {
name: '甘肃', cp: [95.7129, 40.166], childNum: 14 }, geometry: {
type: 'Polygon', coordinates: [[[96.416, 42.7148], [97.207, 42.8027], [97.8223, 41.748], [97.8223, 41.6162], [97.4707, 41.4844], [98.3496, 40.9131], [98.3496, 40.5615], [98.6133, 40.6494], [98.5254, 40.7373], [98.7891, 40.6055], [98.9648, 40.7813], [99.0527, 40.6934], [99.2285, 40.8691], [99.9316, 41.001], [100.1953, 40.6494], [100.1074, 40.2539], [99.4922, 39.8584], [100.0195, 39.7705], [100.5469, 39.4189], [100.8105, 39.4189], [100.9863, 38.9355], [101.25, 39.0234], [101.3379, 38.7598], [101.7773, 38.6719], [102.041, 38.8916], [101.8652, 39.1113], [102.4805, 39.2432], [103.0078, 39.1113], [103.3594, 39.3311], [104.0625, 39.4189], [104.2383, 38.9795], [103.4473, 38.3643], [103.5352, 38.1445], [103.3594, 38.0127], [103.4473, 37.8369], [104.3262, 37.4414], [104.5898, 37.4414], [104.5898, 37.2217], [104.8535, 37.2217], [105.293, 36.8262], [105.2051, 36.6943], [105.4688, 36.123], [105.293, 35.9912], [105.3809, 35.7715], [105.7324, 35.7275], [105.8203, 35.5518], [105.9961, 35.4639], [105.9082, 35.4199], [105.9961, 35.4199], [106.084, 35.376], [106.2598, 35.4199], [106.3477, 35.2441], [106.5234, 35.332], [106.4355, 35.6836], [106.6992, 35.6836], [106.9629, 35.8154], [106.875, 36.123], [106.5234, 36.2549], [106.5234, 36.4746], [106.4355, 36.5625], [106.6113, 36.7822], [106.6113, 37.0898], [107.3145, 37.0898], [107.3145, 36.9141], [108.7207, 36.3428], [108.6328, 35.9912], [108.5449, 35.8594], [108.6328, 35.5518], [108.5449, 35.2881], [107.7539, 35.2881], [107.7539, 35.1123], [107.8418, 35.0244], [107.666, 34.9365], [107.2266, 34.8926], [106.9629, 35.0684], [106.6113, 35.0684], [106.5234, 34.7607], [106.3477, 34.585], [106.6992, 34.3213], [106.5234, 34.2773], [106.6113, 34.1455], [106.4355, 33.9258], [106.5234, 33.5303], [105.9961, 33.6182], [105.7324, 33.3984], [105.9961, 33.1787], [105.9082, 33.0029], [105.4688, 32.915], [105.3809, 32.8711], [105.3809, 32.7393], [105.2051, 32.6074], [104.4141, 32.7393], [104.3262, 32.8711], [104.4141, 33.0469], [104.3262, 33.2227], [104.4141, 33.3105], [104.2383, 33.3984], [104.1504, 33.6182], [103.1836, 33.7939], [103.0957, 34.1895], [102.9199, 34.3213], [102.2168, 33.9258], [102.4805, 33.4424], [101.8652, 33.0908], [101.9531, 33.4424], [101.8652, 33.5742], [101.7773, 33.5303], [101.6016, 33.5303], [101.5137, 33.7061], [101.25, 33.6621], [100.8105, 34.2773], [100.9863, 34.3652], [101.6895, 34.1016], [102.1289, 34.2773], [102.2168, 34.4092], [101.9531, 34.6289], [101.9531, 34.8486], [102.3926, 35.2002], [102.3047, 35.4199], [102.4805, 35.5957], [102.832, 35.5957], [102.6563, 35.7715], [102.9199, 35.9033], [102.9199, 36.0791], [103.0078, 36.2549], [102.832, 36.3428], [102.5684, 36.7383], [102.6563, 36.8262], [102.4805, 36.958], [102.5684, 37.1777], [102.1289, 37.4414], [101.9531, 37.7051], [101.7773, 37.6172], [101.5137, 37.8809], [101.1621, 37.8369], [100.7227, 38.2324], [100.459, 38.2764], [100.1074, 38.4961], [100.0195, 38.4521], [100.1953, 38.2764], [99.8438, 38.3643], [99.1406, 38.9355], [98.7891, 39.0674], [98.6133, 38.9355], [98.3496, 39.0234], [98.1738, 38.8037], [97.0313, 39.1992], [97.1191, 38.584], [96.6797, 38.4521], [96.6797, 38.1885], [96.416, 38.2324], [96.2402, 38.1006], [95.7129, 38.3643], [95.4492, 38.2764], [95.0098, 38.4082], [94.5703, 38.3643], [94.3066, 38.7598], [93.8672, 38.7158], [93.6914, 38.9355], [93.1641, 38.9795], [93.1641, 39.1992], [92.373, 39.1113], [92.373, 39.3311], [92.6367, 39.6387], [93.0762, 40.6494], [93.8672, 40.6934], [94.043, 41.0889], [94.5703, 41.4844], [95.1855, 41.792], [95.2734, 41.6162], [95.9766, 41.9238], [96.2402, 42.2314], [96.0645, 42.3193], [95.9766, 42.4951], [96.416, 42.7148]]] } }, {
type: 'Feature', id: 'yun_nan', properties: {
name: '云南', cp: [101.8652, 25.1807], childNum: 16 }, geometry: {
type: 'Polygon', coordinates: [[[98.1738, 28.125], [98.2617, 28.3887], [98.3496, 28.125], [98.7012, 28.2129], [98.7891, 28.3447], [98.6133, 28.5205], [98.7012, 28.916], [98.7891, 29.0039], [98.7891, 28.8721], [98.9648, 28.8281], [98.9648, 29.1357], [99.1406, 29.2676], [99.2285, 28.3008], [99.4043, 28.1689], [99.4043, 28.5205], [99.668, 28.8281], [100.1953, 28.3447], [100.0195, 28.125], [100.2832, 27.7295], [100.3711, 27.8174], [100.7227, 27.8613], [101.1621, 27.1582], [101.1621, 27.0264], [101.4258, 26.7188], [101.4258, 26.8066], [101.4258, 26.5869], [101.6895, 26.3672], [101.6016, 26.2354], [101.8652, 26.0596], [102.1289, 26.1035], [102.5684, 26.3672], [102.6563, 26.1914], [103.0078, 26.3672], [102.9199, 27.29], [103.4473, 27.7734], [103.4473, 28.125], [103.7988, 28.3008], [103.8867, 28.6523], [104.4141, 28.6084], [104.2383, 28.4326], [104.4141, 28.2568], [104.4141, 28.125], [104.3262, 28.0371], [104.4141, 27.9492], [104.8535, 27.9053], [105.0293, 28.0811], [105.2051, 27.9932], [105.293, 27.7295], [105.2051, 27.3779], [104.5898, 27.334], [104.4141, 27.4658], [104.1504, 27.2461], [103.8867, 27.4219], [103.623, 27.0264], [103.7109, 26.9824], [103.7109, 26.7627], [103.8867, 26.543], [104.4141, 26.6748], [104.6777, 26.4111], [104.3262, 25.708], [104.8535, 25.2246], [104.5898, 25.0488], [104.6777, 24.9609], [104.502, 24.7412], [104.6777, 24.3457], [104.7656, 24.4775], [105.0293, 24.4336], [105.2051, 24.082], [105.4688, 24.0381], [105.5566, 24.126], [105.9961, 24.126], [106.1719, 23.8184], [106.1719, 23.5547], [105.6445, 23.4229], [105.5566, 23.2031], [105.293, 23.3789], [104.8535, 23.1592], [104.7656, 22.8516], [104.3262, 22.6758], [104.1504, 22.8076], [103.9746, 22.5439], [103.623, 22.7637], [103.5352, 22.5879], [103.3594, 22.8076], [103.0957, 22.4561], [102.4805, 22.7637], [102.3047, 22.4121], [101.8652, 22.3682], [101.7773, 22.5], [101.6016, 22.1924], [101.8652, 21.6211], [101.7773, 21.1377], [101.6016, 21.2256], [101.25, 21.1816], [101.1621, 21.7529], [100.6348, 21.4453], [100.1074, 21.4893], [99.9316, 22.0605], [99.2285, 22.1484], [99.4043, 22.5879], [99.3164, 22.7197], [99.4922, 23.0713], [98.877, 23.2031], [98.7012, 23.9502], [98.877, 24.126], [98.1738, 24.082], [97.7344, 23.8623], [97.5586, 23.9063], [97.7344, 24.126], [97.6465, 24.4336], [97.5586, 24.4336], [97.5586, 24.7412], [97.7344, 24.8291], [97.8223, 25.2686], [98.1738, 25.4004], [98.1738, 25.6201], [98.3496, 25.5762], [98.5254, 25.8398], [98.7012, 25.8838], [98.6133, 26.0596], [98.7012, 26.1475], [98.7891, 26.5869], [98.7012, 27.5098], [98.5254, 27.6416], [98.3496, 27.5098], [98.1738, 28.125]]] } }, {
type: 'Feature', id: 'guang_xi', properties: {
name: '广西', cp: [108.2813, 23.6426], childNum: 14 }, geometry: {
type: 'Polygon', coordinates: [[[104.502, 24.7412], [104.6777, 24.6094], [105.2051, 24.9609], [105.9961, 24.6533], [106.1719, 24.7852], [106.1719, 24.9609], [106.875, 25.1807], [107.0508, 25.2686], [106.9629, 25.4883], [107.2266, 25.6201], [107.4902, 25.2246], [107.7539, 25.2246], [107.8418, 25.1367], [108.1055, 25.2246], [108.1934, 25.4443], [108.3691, 25.5322], [108.6328, 25.3125], [108.6328, 25.5762], [109.0723, 25.5322], [108.9844, 25.752], [109.3359, 25.708], [109.5117, 26.0156], [109.7754, 25.8838], [109.9512, 26.1914], [110.2148, 25.9717], [110.5664, 26.3232], [111.1816, 26.3232], [111.2695, 26.2354], [111.2695, 25.8838], [111.4453, 25.8398], [111.0059, 25.0049], [111.0938, 24.9609], [111.3574, 25.1367], [111.5332, 24.6533], [111.709, 24.7852], [112.0605, 24.7412], [111.8848, 24.6533], [112.0605, 24.3457], [111.8848, 24.2139], [111.8848, 23.9941], [111.7969, 23.8184], [111.6211, 23.8184], [111.6211, 23.6865], [111.3574, 23.4668], [111.4453, 23.0273], [111.2695, 22.8076], [110.7422, 22.5439], [110.7422, 22.2803], [110.6543, 22.1484], [110.3027, 22.1484], [110.3027, 21.8848], [109.9512, 21.8408], [109.8633, 21.665], [109.7754, 21.6211], [109.7754, 21.4014], [109.5996, 21.4453], [109.1602, 21.3574], [109.248, 20.874], [109.0723, 20.9619], [109.0723, 21.5332], [108.7207, 21.5332], [108.6328, 21.665], [108.2813, 21.4893], [107.8418, 21.6211], [107.4023, 21.6211], [107.0508, 21.7969], [107.0508, 21.9287], [106.6992, 22.0166], [106.6113, 22.4121], [106.7871, 22.7637], [106.6992, 22.8955], [105.9082, 22.9395], [105.5566, 23.0713], [105.5566, 23.2031], [105.6445, 23.4229], [106.1719, 23.5547], [106.1719, 23.8184], [105.9961, 24.126], [105.5566, 24.126], [105.4688, 24.0381], [105.2051, 24.082], [105.0293, 24.4336], [104.7656, 24.4775], [104.6777, 24.3457], [104.502, 24.7412]]] } }, {
type: 'Feature', id: 'hu_nan', properties: {
name: '湖南', cp: [111.5332, 27.3779], childNum: 14 }, geometry: {
type: 'Polygon', coordinates: [[[109.248, 28.4766], [109.248, 29.1357], [109.5117, 29.6191], [109.6875, 29.6191], [109.7754, 29.751], [110.4785, 29.6631], [110.6543, 29.751], [110.4785, 30.0146], [110.8301, 30.1465], [111.7969, 29.9268], [112.2363, 29.5313], [112.5, 29.6191], [112.6758, 29.5752], [112.9395, 29.7949], [113.0273, 29.751], [112.9395, 29.4873], [113.0273, 29.4434], [113.5547, 29.8389], [113.5547, 29.707], [113.7305, 29.5752], [113.6426, 29.3115], [113.7305, 29.0918], [113.9063, 29.0479], [114.1699, 28.8281], [114.082, 28.5645], [114.2578, 28.3447], [113.7305, 27.9492], [113.6426, 27.5977], [113.6426, 27.3779], [113.8184, 27.29], [113.7305, 27.1143], [113.9063, 26.9385], [113.9063, 26.6309], [114.082, 26.5869], [113.9941, 26.1914], [114.2578, 26.1475], [113.9941, 26.0596], [113.9063, 25.4443], [113.6426, 25.3125], [113.2031, 25.5322], [112.8516, 25.3564], [113.0273, 25.2246], [113.0273, 24.9609], [112.8516, 24.917], [112.5879, 25.1367], [112.2363, 25.1807], [112.1484, 24.873], [112.0605, 24.7412], [111.709, 24.7852], [111.5332, 24.6533], [111.3574, 25.1367], [111.0938, 24.9609], [111.0059, 25.0049], [111.4453, 25.8398], [111.2695, 25.8838], [111.2695, 26.2354], [111.1816, 26.3232], [110.5664, 26.3232], [110.2148, 25.9717], [109.9512, 26.1914], [109.7754, 25.8838], [109.5117, 26.0156], [109.4238, 26.2793], [109.248, 26.3232], [109.4238, 26.5869], [109.3359, 26.7188], [109.5117, 26.8066], [109.5117, 27.0264], [109.3359, 27.1582], [108.8965, 27.0264], [108.8086, 27.1143], [109.4238, 27.5977], [109.3359, 27.9053], [109.3359, 28.2568], [109.248, 28.4766]]] } }, {
type: 'Feature', id: 'shan_xi_1', properties: {
name: '陕西', cp: [109.5996, 35.6396], childNum: 10 }, geometry: {
type: 'Polygon', coordinates: [[[105.4688, 32.915], [105.9082, 33.0029], [105.9961, 33.1787], [105.7324, 33.3984], [105.9961, 33.6182], [106.5234, 33.5303], [106.4355, 33.9258], [106.6113, 34.1455], [106.5234, 34.2773], [106.6992, 34.3213], [106.3477, 34.585], [106.5234, 34.7607], [106.6113, 35.0684], [106.9629, 35.0684], [107.2266, 34.8926], [107.666, 34.9365], [107.8418, 35.0244], [107.7539, 35.1123], [107.7539, 35.2881], [108.5449, 35.2881], [108.6328, 35.5518], [108.5449, 35.8594], [108.6328, 35.9912], [108.7207, 36.3428], [107.3145, 36.9141], [107.3145, 37.0898], [107.3145, 37.6172], [107.666, 37.8809], [108.1934, 37.6172], [108.7207, 37.7051], [108.8086, 38.0127], [108.8965, 37.9688], [109.0723, 38.0127], [108.9844, 38.3203], [109.9512, 39.1553], [109.8633, 39.2432], [110.2148, 39.2871], [110.127, 39.4629], [110.6543, 39.2871], [111.0938, 39.5947], [111.0938, 39.375], [111.1816, 39.2432], [110.918, 38.7158], [110.8301, 38.4961], [110.4785, 38.1885], [110.4785, 37.9688], [110.8301, 37.6611], [110.3906, 37.002], [110.4785, 36.123], [110.5664, 35.6396], [110.2148, 34.8926], [110.2148, 34.6729], [110.3906, 34.585], [110.4785, 34.2334], [110.6543, 34.1455], [110.6543, 33.8379], [111.0059, 33.5303], [111.0059, 33.2666], [110.7422, 33.1348], [110.5664, 33.2666], [110.3027, 33.1787], [109.5996, 33.2666], [109.4238, 33.1348], [109.7754, 33.0469], [109.7754, 32.915], [110.127, 32.7393], [110.127, 32.6074], [109.6875, 32.6074], [109.5117, 32.4316], [109.5996, 31.7285], [109.248, 31.7285], [109.0723, 31.9482], [108.5449, 32.2119], [108.2813, 32.2559], [108.0176, 32.168], [107.4023, 32.5195], [107.2266, 32.4316], [107.1387, 32.4756], [107.0508, 32.6953], [106.3477, 32.6514], [106.084, 32.7393], [106.084, 32.8711], [105.5566, 32.7393], [105.4688, 32.915]]] } }, {
type: 'Feature', id: 'guang_dong', properties: {
name: '广东', cp: [113.4668, 22.8076], childNum: 21 }, geometry: {
type: 'Polygon', coordinates: [[[109.7754, 21.4014], [109.7754, 21.6211], [109.8633, 21.665], [109.9512, 21.8408], [110.3027, 21.8848], [110.3027, 22.1484], [110.6543, 22.1484], [110.7422, 22.2803], [110.7422, 22.5439], [111.2695, 22.8076], [111.4453, 23.0273], [111.3574, 23.4668], [111.6211, 23.6865], [111.6211, 23.8184], [111.7969, 23.8184], [111.8848, 23.9941], [111.8848, 24.2139], [112.0605, 24.3457], [111.8848, 24.6533], [112.0605, 24.7412], [112.1484, 24.873], [112.2363, 25.1807], [112.5879, 25.1367], [112.8516, 24.917], [113.0273, 24.9609], [113.0273, 25.2246], [112.8516, 25.3564], [113.2031, 25.5322], [113.6426, 25.3125], [113.9063, 25.4443], [113.9941, 25.2686], [114.6094, 25.4004], [114.7852, 25.2686], [114.6973, 25.1367], [114.4336, 24.9609], [114.1699, 24.6973], [114.4336, 24.5215], [115.4004, 24.7852], [115.8398, 24.5654], [115.752, 24.7852], [115.9277, 24.917], [116.2793, 24.7852], [116.3672, 24.873], [116.543, 24.6094], [116.7188, 24.6533], [116.9824, 24.1699], [116.9824, 23.9063], [117.1582, 23.5547], [117.334, 23.2471], [116.8945, 23.3789], [116.6309, 23.1152], [116.543, 22.8516], [115.9277, 22.7197], [115.6641, 22.7637], [115.5762, 22.6318], [115.0488, 22.6758], [114.6094, 22.3682], [114.3457, 22.5439], [113.9941, 22.5], [113.8184, 22.1924], [114.3457, 22.1484], [114.4336, 22.0166], [114.082, 21.9287], [113.9941, 21.7969], [113.5547, 22.0166], [113.1152, 21.8408], [112.9395, 21.5771], [112.4121, 21.4453], [112.2363, 21.5332], [111.5332, 21.4893], [111.2695, 21.3574], [110.7422, 21.3574], [110.6543, 21.2256], [110.7422, 20.918], [110.4785, 20.874], [110.6543, 20.2588], [110.5664, 20.2588], [110.3906, 20.127], [110.0391, 20.127], [109.8633, 20.127], [109.8633, 20.3027], [109.5996, 20.918], [109.7754, 21.4014], [109.7754, 21.4014]], [[113.5986, 22.1649], [113.6096, 22.1265], [113.5547, 22.11], [113.5437, 22.2034], [113.5767, 22.2034], [113.5986, 22.1649]]] } }, {
type: 'Feature', id: 'ji_lin', properties: {
name: '吉林', cp: [126.4746, 43.5938], childNum: 9 }, geometry: {
type: 'Polygon', coordinates: [[[123.2227, 46.2305], [123.9258, 46.2305], [124.0137, 45.7471], [124.3652, 45.4395], [124.8926, 45.5273], [125.0684, 45.3955], [125.6836, 45.5273], [125.7715, 45.3076], [126.0352, 45.1758], [126.5625, 45.2637], [126.9141, 45.1318], [127.0898, 45], [127.002, 44.7803], [127.0898, 44.6045], [127.5293, 44.6045], [127.7051, 44.1211], [128.0566, 44.1211], [128.0566, 44.3408], [128.4082, 44.4727], [128.4961, 44.165], [128.8477, 43.5498], [129.1992, 43.5938], [129.2871, 43.8135], [129.8145, 43.9014], [129.9023, 44.0332], [129.9902, 43.8574], [130.3418, 43.9893], [130.5176, 43.6377], [130.8691, 43.418], [131.3086, 43.4619], [131.3086, 43.3301], [131.1328, 42.9346], [130.4297, 42.7148], [130.6055, 42.6709], [130.6055, 42.4512], [130.2539, 42.7588], [130.2539, 42.8906], [130.166, 42.9785], [129.9023, 43.0225], [129.7266, 42.4951], [129.375, 42.4512], [128.9355, 42.0117], [128.0566, 42.0117], [128.3203, 41.5723], [128.1445, 41.3525], [127.0898, 41.5283], [127.1777, 41.5723], [126.9141, 41.792], [126.6504, 41.6602], [126.4746, 41.3965], [126.123, 40.957], [125.6836, 40.8691], [125.5957, 40.9131], [125.7715, 41.2207], [125.332, 41.6602], [125.332, 41.9678], [125.4199, 42.0996], [125.332, 42.1436], [124.8926, 42.8027], [124.8926, 43.0664], [124.7168, 43.0664], [124.4531, 42.8467], [124.2773, 43.2422], [123.8379, 43.4619], [123.6621, 43.374], [123.3105, 43.5059], [123.4863, 43.7256], [123.1348, 44.4727], [122.3438, 44.2529], [122.0801, 44.8682], [122.2559, 45.2637], [121.9043, 45.7031], [121.7285, 45.7471], [121.8164, 46.0107], [122.2559, 45.791], [122.4316, 45.8789], [122.6953, 45.7031], [122.7832, 46.0107], [123.2227, 46.2305]]] } }, {
type: 'Feature', id: 'he_bei', properties: {
name: '河北', cp: [115.4004, 37.9688], childNum: 11 }, geometry: {
type: 'MultiPolygon', coordinates: [[[[114.5215, 39.5068], [114.3457, 39.8584], [113.9941, 39.9902], [114.5215, 40.3418], [114.3457, 40.3857], [114.2578, 40.6055], [114.082, 40.7373], [113.9063, 41.1328], [113.9941, 41.2207], [113.9063, 41.4404], [114.2578, 41.5723], [114.1699, 41.792], [114.5215, 42.1436], [114.873, 42.0996], [114.9609, 41.6162], [115.2246, 41.5723], [115.9277, 41.9238], [116.0156, 41.792], [116.2793, 42.0117], [116.8066, 42.0117], [116.8945, 42.4072], [117.334, 42.4512], [117.5098, 42.583], [117.7734, 42.627], [118.0371, 42.4072], [117.9492, 42.2314], [118.125, 42.0557], [118.3008, 42.0996], [118.3008, 41.792], [118.125, 41.748], [118.3887, 41.3086], [119.2676, 41.3086], [118.8281, 40.8252], [119.2676, 40.5176], [119.5313, 40.5615], [119.707, 40.1221], [119.8828, 39.9463], [119.5313, 39.6826], [119.4434, 39.4189], [118.916, 39.0674], [118.4766, 38.9355], [118.125, 39.0234], [118.0371, 39.1992], [118.0371, 39.2432], [117.8613, 39.4189], [117.9492, 39.5947], [117.6855, 39.5947], [117.5098, 39.7705], [117.5098, 39.9902], [117.6855, 39.9902], [117.6855, 40.0781], [117.4219, 40.21], [117.2461, 40.5176], [117.4219, 40.6494], [116.9824, 40.6934], [116.6309, 41.0449], [116.3672, 40.9131], [116.4551, 40.7813], [116.1914, 40.7813], [116.1035, 40.6055], [115.752, 40.5615], [115.9277, 40.2539], [115.4004, 39.9463], [115.4883, 39.6387], [115.752, 39.5068], [116.1914, 39.5947], [116.3672, 39.4629], [116.543, 39.5947], [116.8066, 39.5947], [116.8945, 39.1113], [116.7188, 38.9355], [116.7188, 38.8037], [117.2461, 38.54], [117.5977, 38.6279], [117.9492, 38.3203], [117.4219, 37.8369], [116.8066, 37.8369], [116.4551, 37.4854], [116.2793, 37.5732], [116.2793, 37.3535], [116.0156, 37.3535], [115.752, 36.9141], [115.3125, 36.5186], [115.4883, 36.167], [115.3125, 36.0791], [115.1367, 36.2109], [114.9609, 36.0791], [114.873, 36.123], [113.7305, 36.3428], [113.4668, 36.6504], [113.7305, 36.8701], [113.7305, 37.1338], [114.1699, 37.6611], [113.9941, 37.7051], [113.8184, 38.1445], [113.5547, 38.2764], [113.5547, 38.54], [113.8184, 38.8037], [113.8184, 38.9355], [113.9063, 39.0234], [114.3457, 39.0674], [114.5215, 39.5068]]], [[[117.2461, 40.0781], [117.1582, 39.8145], [117.1582, 39.6387], [116.8945, 39.6826], [116.8945, 39.8145], [116.8066, 39.9902], [117.2461, 40.0781]]]] } }, {
type: 'Feature', id: 'hu_bei', properties: {
name: '湖北', cp: [112.2363, 31.1572], childNum: 17 }, geometry: {
type: 'Polygon', coordinates: [[[110.2148, 31.1572], [110.127, 31.377], [109.6875, 31.5527], [109.7754, 31.6846], [109.5996, 31.7285], [109.5117, 32.4316], [109.6875, 32.6074], [110.127, 32.6074], [110.127, 32.7393], [109.7754, 32.915], [109.7754, 33.0469], [109.4238, 33.1348], [109.5996, 33.2666], [110.3027, 33.1787], [110.5664, 33.2666], [110.7422, 33.1348], [111.0059, 33.2666], [111.5332, 32.6074], [112.3242, 32.3438], [113.2031, 32.4316], [113.4668, 32.2998], [113.7305, 32.4316], [113.8184, 31.8604], [113.9941, 31.7725], [114.1699, 31.8604], [114.5215, 31.7725], [114.6094, 31.5527], [114.7852, 31.4648], [115.1367, 31.5967], [115.2246, 31.4209], [115.4004, 31.4209], [115.5762, 31.2012], [116.0156, 31.0254], [115.752, 30.6738], [116.1035, 30.1904], [116.1035, 29.8389], [115.9277, 29.707], [115.4883, 29.7949], [114.873, 29.3994], [114.2578, 29.3555], [113.9063, 29.0479], [113.7305, 29.0918], [113.6426, 29.3115], [113.7305, 29.5752], [113.5547, 29.707], [113.5547, 29.8389], [113.0273, 29.4434], [112.9395, 29.4873], [113.0273, 29.751], [112.9395, 29.7949], [112.6758, 29.5752], [112.5, 29.6191], [112.2363, 29.5313], [111.7969, 29.9268], [110.8301, 30.1465], [110.4785, 30.0146], [110.6543, 29.751], [110.4785, 29.6631], [109.7754, 29.751], [109.6875, 29.6191], [109.5117, 29.6191], [109.248, 29.1357], [109.0723, 29.3555], [108.9844, 29.3115], [108.6328, 29.8389], [108.457, 29.7949], [108.5449, 30.2344], [108.457, 30.4102], [108.6328, 30.5859], [108.8086, 30.498], [109.0723, 30.6299], [109.1602, 30.542], [109.248, 30.6299], [109.4238, 30.542], [109.8633, 30.8936], [110.0391, 30.8057], [110.2148, 31.1572]]] } }, {
type: 'Feature', id: 'gui_zhou', properties: {
name: '贵州', cp: [106.6113, 26.9385], childNum: 9 }, geometry: {
type: 'Polygon', coordinates: [[[104.1504, 27.2461], [104.4141, 27.4658], [104.5898, 27.334], [105.2051, 27.3779], [105.293, 27.7295], [105.5566, 27.7734], [105.6445, 27.6416], [106.3477, 27.8174], [106.1719, 28.125], [105.9082, 28.125], [105.6445, 28.4326], [105.9961, 28.7402], [106.3477, 28.5205], [106.5234, 28.5645], [106.4355, 28.7842], [106.5234, 28.7842], [106.6113, 28.6523], [106.6113, 28.5205], [106.6992, 28.4766], [106.875, 28.7842], [107.4023, 28.8721], [107.4023, 29.1797], [107.5781, 29.2236], [107.8418, 29.1357], [107.8418, 29.0039], [108.2813, 29.0918], [108.3691, 28.6523], [108.5449, 28.6523], [108.5449, 28.3887], [108.7207, 28.4766], [108.7207, 28.2129], [109.0723, 28.2129], [109.248, 28.4766], [109.3359, 28.2568], [109.3359, 27.9053], [109.4238, 27.5977], [108.8086, 27.1143], [108.8965, 27.0264], [109.3359, 27.1582], [109.5117, 27.0264], [109.5117, 26.8066], [109.3359, 26.7188], [109.4238, 26.5869], [109.248, 26.3232], [109.4238, 26.2793], [109.5117, 26.0156], [109.3359, 25.708], [108.9844, 25.752], [109.0723, 25.5322], [108.6328, 25.5762], [108.6328, 25.3125], [108.3691, 25.5322], [108.1934, 25.4443], [108.1055, 25.2246], [107.8418, 25.1367], [107.7539, 25.2246], [107.4902, 25.2246], [107.2266, 25.6201], [106.9629, 25.4883], [107.0508, 25.2686], [106.875, 25.1807], [106.1719, 24.9609], [106.1719, 24.7852], [105.9961, 24.6533], [105.2051, 24.9609], [104.6777, 24.6094], [104.502, 24.7412], [104.6777, 24.9609], [104.5898, 25.0488], [104.8535, 25.2246], [104.3262, 25.708], [104.6777, 26.4111], [104.4141, 26.6748], [103.8867, 26.543], [103.7109, 26.7627], [103.7109, 26.9824], [103.623, 27.0264], [103.8867, 27.4219], [104.1504, 27.2461]]] } }, {
type: 'Feature', id: 'shan_dong', properties: {
name: '山东', cp: [118.7402, 36.4307], childNum: 17 }, geometry: {
type: 'Polygon', coordinates: [[[115.4883, 36.167], [115.3125, 36.5186], [115.752, 36.9141], [116.0156, 37.3535], [116.2793, 37.3535], [116.2793, 37.5732], [116.4551, 37.4854], [116.8066, 37.8369], [117.4219, 37.8369], [117.9492, 38.3203], [118.125, 38.1445], [118.916, 38.1445], [119.3555, 37.6611], [119.0039, 37.5293], [119.0039, 37.3535], [119.3555, 37.1338], [119.707, 37.1338], [119.8828, 37.3975], [120.498, 37.8369], [120.5859, 38.1445], [120.9375, 38.4521], [121.0254, 37.8369], [121.2012, 37.6611], [121.9043, 37.4854], [122.168, 37.6172], [122.2559, 37.4854], [122.6074, 37.4854], [122.6953, 37.3535], [122.6074, 36.9141], [122.4316, 36.7822], [121.8164, 36.8701], [121.7285, 36.6943], [121.1133, 36.6064], [121.1133, 36.4307], [121.377, 36.2549], [120.7617, 36.167], [120.9375, 35.8594], [120.6738, 36.0352], [119.707, 35.4639], [119.9707, 34.9805], [119.3555, 35.0244], [119.2676, 35.1123], [118.916, 35.0244], [118.7402, 34.7168], [118.4766, 34.6729], [118.3887, 34.4092], [118.2129, 34.4092], [118.125, 34.6289], [117.9492, 34.6729], [117.5977, 34.4531], [117.334, 34.585], [117.2461, 34.4531], [116.8066, 34.9365], [116.4551, 34.8926], [116.3672, 34.6289], [116.1914, 34.585], [115.5762, 34.585], [115.4004, 34.8486], [114.7852, 35.0684], [115.0488, 35.376], [115.2246, 35.4199], [115.4883, 35.7275], [116.1035, 36.0791], [115.3125, 35.8154], [115.4883, 36.167]]] } }, {
type: 'Feature', id: 'jiang_xi', properties: {
name: '江西', cp: [116.0156, 27.29], childNum: 11 }, geometry: {
type: 'Polygon', coordinates: [[[114.2578, 28.3447], [114.082, 28.5645], [114.1699, 28.8281], [113.9063, 29.0479], [114.2578, 29.3555], [114.873, 29.3994], [115.4883, 29.7949], [115.9277, 29.707], [116.1035, 29.8389], [116.2793, 29.7949], [116.7188, 30.0586], [116.8945, 29.9268], [116.7188, 29.751], [116.7188, 29.6191], [117.1582, 29.707], [117.0703, 29.8389], [117.1582, 29.9268], [117.5098, 29.6191], [118.0371, 29.5752], [118.2129, 29.3994], [118.0371, 29.1797], [118.0371, 29.0479], [118.3887, 28.7842], [118.4766, 28.3447], [118.4766, 28.3008], [118.3008, 28.0811], [117.7734, 27.8174], [117.5098, 27.9932], [116.9824, 27.6416], [117.1582, 27.29], [117.0703, 27.1143], [116.543, 26.8066], [116.6309, 26.4551], [116.3672, 26.2354], [116.4551, 26.1035], [116.1914, 25.8838], [116.0156, 25.2686], [115.8398, 25.2246], [115.9277, 24.917], [115.752, 24.7852], [115.8398, 24.5654], [115.4004, 24.7852], [114.4336, 24.5215], [114.1699, 24.6973], [114.4336, 24.9609], [114.6973, 25.1367], [114.7852, 25.2686], [114.6094, 25.4004], [113.9941, 25.2686], [113.9063, 25.4443], [113.9941, 26.0596], [114.2578, 26.1475], [113.9941, 26.1914], [114.082, 26.5869], [113.9063, 26.6309], [113.9063, 26.9385], [113.7305, 27.1143], [113.8184, 27.29], [113.6426, 27.3779], [113.6426, 27.5977], [113.7305, 27.9492], [114.2578, 28.3447]]] } }, {
type: 'Feature', id: 'he_nan', properties: {
name: '河南', cp: [113.4668, 33.8818], childNum: 17 }, geometry: {
type: 'Polygon', coordinates: [[[110.3906, 34.585], [110.8301, 34.6289], [111.1816, 34.8047], [111.5332, 34.8486], [111.7969, 35.0684], [112.0605, 35.0684], [112.0605, 35.2881], [112.7637, 35.2002], [113.1152, 35.332], [113.6426, 35.6836], [113.7305, 36.3428], [114.873, 36.123], [114.9609, 36.0791], [115.1367, 36.2109], [115.3125, 36.0791], [115.4883, 36.167], [115.3125, 35.8154], [116.1035, 36.0791], [115.4883, 35.7275], [115.2246, 35.4199], [115.0488, 35.376], [114.7852, 35.0684], [115.4004, 34.8486], [115.5762, 34.585], [116.1914, 34.585], [116.1914, 34.4092], [116.543, 34.2773], [116.6309, 33.9258], [116.1914, 33.7061], [116.0156, 33.9697], [115.6641, 34.0576], [115.5762, 33.9258], [115.5762, 33.6621], [115.4004, 33.5303], [115.3125, 33.1787], [114.873, 33.1348], [114.873, 33.0029], [115.1367, 32.8711], [115.2246, 32.6074], [115.5762, 32.4316], [115.8398, 32.5195], [115.9277, 31.7725], [115.4883, 31.6846], [115.4004, 31.4209], [115.2246, 31.4209], [115.1367, 31.5967], [114.7852, 31.4648], [114.6094, 31.5527], [114.5215, 31.7725], [114.1699, 31.8604], [113.9941, 31.7725], [113.8184, 31.8604], [113.7305, 32.4316], [113.4668, 32.2998], [113.2031, 32.4316], [112.3242, 32.3438], [111.5332, 32.6074], [111.0059, 33.2666], [111.0059, 33.5303], [110.6543, 33.8379], [110.6543, 34.1455], [110.4785, 34.2334], [110.3906, 34.585]]] } }, {
type: 'Feature', id: 'liao_ning', properties: {
name: '辽宁', cp: [122.3438, 41.0889], childNum: 14 }, geometry: {
type: 'Polygon', coordinates: [[[119.2676, 41.3086], [119.4434, 41.6162], [119.2676, 41.7041], [119.3555, 42.2754], [119.5313, 42.3633], [119.8828, 42.1875], [120.1465, 41.7041], [120.498, 42.0996], [121.4648, 42.4951], [121.7285, 42.4512], [121.9922, 42.7148], [122.3438, 42.6709], [122.3438, 42.8467], [122.7832, 42.7148], [123.1348, 42.8027], [123.3105, 42.9785], [123.5742, 43.0225], [123.6621, 43.374], [123.8379, 43.4619], [124.2773, 43.2422], [124.4531, 42.8467], [124.7168, 43.0664], [124.8926, 43.0664], [124.8926, 42.8027], [125.332, 42.1436], [125.4199, 42.0996], [125.332, 41.9678], [125.332, 41.6602], [125.7715, 41.2207], [125.5957, 40.9131], [125.6836, 40.8691], [124.541, 40.21], [124.1016, 39.6826], [123.3984, 39.6826], [123.1348, 39.4189], [123.1348, 39.0234], [122.0801, 39.0234], [121.5527, 38.7158], [121.1133, 38.6719], [120.9375, 38.9795], [121.377, 39.1992], [121.2012, 39.5508], [122.0801, 40.3857], [121.9922, 40.6934], [121.7285, 40.8252], [121.2012, 40.8252], [120.5859, 40.21], [119.8828, 39.9463], [119.707, 40.1221], [119.5313, 40.5615], [119.2676, 40.5176], [118.8281, 40.8252], [119.2676, 41.3086]]] } }, {
type: 'Feature', id: 'shan_xi_2', properties: {
name: '山西', cp: [112.4121, 37.6611], childNum: 11 }, geometry: {
type: 'Polygon', coordinates: [[[110.918, 38.7158], [111.1816, 39.2432], [111.0938, 39.375], [111.3574, 39.4189], [111.4453, 39.6387], [111.9727, 39.5947], [112.3242, 40.2539], [112.7637, 40.166], [113.2031, 40.3857], [113.5547, 40.3418], [113.8184, 40.5176], [114.082, 40.5176], [114.082, 40.7373], [114.2578, 40.6055], [114.3457, 40.3857], [114.5215, 40.3418], [113.9941, 39.9902], [114.3457, 39.8584], [114.5215, 39.5068], [114.3457, 39.0674], [113.9063, 39.0234], [113.8184, 38.9355], [113.8184, 38.8037], [113.5547, 38.54], [113.5547, 38.2764], [113.8184, 38.1445], [113.9941, 37.7051], [114.1699, 37.6611], [113.7305, 37.1338], [113.7305, 36.8701], [113.4668, 36.6504], [113.7305, 36.3428], [113.6426, 35.6836], [113.1152, 35.332], [112.7637, 35.2002], [112.0605, 35.2881], [112.0605, 35.0684], [111.7969, 35.0684], [111.5332, 34.8486], [111.1816, 34.8047], [110.8301, 34.6289], [110.3906, 34.585], [110.2148, 34.6729], [110.2148, 34.8926], [110.5664, 35.6396], [110.4785, 36.123], [110.3906, 37.002], [110.8301, 37.6611], [110.4785, 37.9688], [110.4785, 38.1885], [110.8301, 38.4961], [110.918, 38.7158]]] } }, {
type: 'Feature', id: 'an_hui', properties: {
name: '安徽', cp: [117.2461, 32.0361], childNum: 17 }, geometry: {
type: 'Polygon', coordinates: [[[116.6309, 33.9258], [116.543, 34.2773], [116.1914, 34.4092], [116.1914, 34.585], [116.3672, 34.6289], [116.8945, 34.4092], [117.1582, 34.0576], [117.5977, 34.0137], [117.7734, 33.7061], [118.125, 33.75], [117.9492, 33.2227], [118.0371, 33.1348], [118.2129, 33.2227], [118.3008, 32.7832], [118.7402, 32.7393], [118.916, 32.959], [119.1797, 32.8271], [119.1797, 32.4756], [118.5645, 32.5635], [118.6523, 32.2119], [118.4766, 32.168], [118.3887, 31.9482], [118.916, 31.5527], [118.7402, 31.377], [118.8281, 31.2451], [119.3555, 31.2891], [119.4434, 31.1572], [119.6191, 31.1133], [119.6191, 31.0693], [119.4434, 30.6738], [119.2676, 30.6299], [119.3555, 30.4102], [118.916, 30.3223], [118.916, 29.9707], [118.7402, 29.707], [118.2129, 29.3994], [118.0371, 29.5752], [117.5098, 29.6191], [117.1582, 29.9268], [117.0703, 29.8389], [117.1582, 29.707], [116.7188, 29.6191], [116.7188, 29.751], [116.8945, 29.9268], [116.7188, 30.0586], [116.2793, 29.7949], [116.1035, 29.8389], [116.1035, 30.1904], [115.752, 30.6738], [116.0156, 31.0254], [115.5762, 31.2012], [115.4004, 31.4209], [115.4883, 31.6846], [115.9277, 31.7725], [115.8398, 32.5195], [115.5762, 32.4316], [115.2246, 32.6074], [115.1367, 32.8711], [114.873, 33.0029], [114.873, 33.1348], [115.3125, 33.1787], [115.4004, 33.5303], [115.5762, 33.6621], [115.5762, 33.9258], [115.6641, 34.0576], [116.0156, 33.9697], [116.1914, 33.7061], [116.6309, 33.9258]]] } }, {
type: 'Feature', id: 'fu_jian', properties: {
name: '福建', cp: [118.3008, 25.9277], childNum: 9 }, geometry: {
type: 'Polygon', coordinates: [[[118.4766, 28.3008], [118.8281, 28.2568], [118.7402, 28.0371], [118.916, 27.4658], [119.2676, 27.4219], [119.6191, 27.6855], [119.7949, 27.29], [120.2344, 27.4219], [120.4102, 27.1582], [120.7617, 27.0264], [120.6738, 26.8945], [120.2344, 26.8506], [120.2344, 26.7188], [120.4102, 26.6748], [120.498, 26.3672], [120.2344, 26.2793], [120.4102, 26.1475], [120.0586, 26.1914], [119.9707, 25.9277], [119.7949, 25.9277], [119.9707, 25.4004], [119.7949, 25.2686], [119.5313, 25.1367], [119.4434, 25.0049], [119.2676, 25.0928], [118.916, 24.8291], [118.6523, 24.5215], [118.4766, 24.5215], [118.4766, 24.4336], [118.2129, 24.3457], [118.2129, 24.1699], [117.8613, 23.9941], [117.7734, 23.7744], [117.5098, 23.5986], [117.1582, 23.5547], [116.9824, 23.9063], [116.9824, 24.1699], [116.7188, 24.6533], [116.543, 24.6094], [116.3672, 24.873], [116.2793, 24.7852], [115.9277, 24.917], [115.8398, 25.2246], [116.0156, 25.2686], [116.1914, 25.8838], [116.4551, 26.1035], [116.3672, 26.2354], [116.6309, 26.4551], [116.543, 26.8066], [117.0703, 27.1143], [117.1582, 27.29], [116.9824, 27.6416], [117.5098, 27.9932], [117.7734, 27.8174], [118.3008, 28.0811], [118.4766, 28.3008]]] } }, {
type: 'Feature', id: 'zhe_jiang', properties: {
name: '浙江', cp: [120.498, 29.0918], childNum: 11 }, geometry: {
type: 'Polygon', coordinates: [[[118.2129, 29.3994], [118.7402, 29.707], [118.916, 29.9707], [118.916, 30.3223], [119.3555, 30.4102], [119.2676, 30.6299], [119.4434, 30.6738], [119.6191, 31.0693], [119.6191, 31.1133], [119.9707, 31.1572], [120.498, 30.8057], [120.9375, 31.0254], [121.2891, 30.6738], [121.9922, 30.8057], [122.6953, 30.8936], [122.8711, 30.7178], [122.959, 30.1465], [122.6074, 30.1025], [122.6074, 29.9268], [122.168, 29.5313], [122.3438, 28.8721], [121.9922, 28.8721], [121.9922, 28.4326], [121.7285, 28.3447], [121.7285, 28.2129], [121.4648, 28.2129], [121.5527, 28.0371], [121.2891, 27.9492], [121.1133, 27.4219], [120.6738, 27.334], [120.6738, 27.1582], [120.9375, 27.0264], [120.7617, 27.0264], [120.4102, 27.1582], [120.2344, 27.4219], [119.7949, 27.29], [119.6191, 27.6855], [119.2676, 27.4219], [118.916, 27.4658], [118.7402, 28.0371], [118.8281, 28.2568], [118.4766, 28.3008], [118.4766, 28.3447], [118.3887, 28.7842], [118.0371, 29.0479], [118.0371, 29.1797], [118.2129, 29.3994]]] } }, {
type: 'Feature', id: 'jiang_su', properties: {
name: '江苏', cp: [120.0586, 32.915], childNum: 13 }, geometry: {
type: 'Polygon', coordinates: [[[116.3672, 34.6289], [116.4551, 34.8926], [116.8066, 34.9365], [117.2461, 34.4531], [117.334, 34.585], [117.5977, 34.4531], [117.9492, 34.6729], [118.125, 34.6289], [118.2129, 34.4092], [118.3887, 34.4092], [118.4766, 34.6729], [118.7402, 34.7168], [118.916, 35.0244], [119.2676, 35.1123], [119.3555, 35.0244], [119.3555, 34.8486], [119.707, 34.585], [120.3223, 34.3652], [120.9375, 33.0469], [121.0254, 32.6514], [121.377, 32.4756], [121.4648, 32.168], [121.9043, 31.9922], [121.9922, 31.6846], [121.9922, 31.5967], [121.2012, 31.8604], [121.1133, 31.7285], [121.377, 31.5088], [121.2012, 31.4648], [120.9375, 31.0254], [120.498, 30.8057], [119.9707, 31.1572], [119.6191, 31.1133], [119.4434, 31.1572], [119.3555, 31.2891], [118.8281, 31.2451], [118.7402, 31.377], [118.916, 31.5527], [118.3887, 31.9482], [118.4766, 32.168], [118.6523, 32.2119], [118.5645, 32.5635], [119.1797, 32.4756], [119.1797, 32.8271], [118.916, 32.959], [118.7402, 32.7393], [118.3008, 32.7832], [118.2129, 33.2227], [118.0371, 33.1348], [117.9492, 33.2227], [118.125, 33.75], [117.7734, 33.7061], [117.5977, 34.0137], [117.1582, 34.0576], [116.8945, 34.4092], [116.3672, 34.6289]]] } }, {
type: 'Feature', id: 'chong_qing', properties: {
name: '重庆', cp: [107.7539, 30.1904], childNum: 40 }, geometry: {
type: 'Polygon', coordinates: [[[108.5449, 31.6846], [108.2813, 31.9043], [108.3691, 32.168], [108.5449, 32.2119], [109.0723, 31.9482], [109.248, 31.7285], [109.5996, 31.7285], [109.7754, 31.6846], [109.6875, 31.5527], [110.127, 31.377], [110.2148, 31.1572], [110.0391, 30.8057], [109.8633, 30.8936], [109.4238, 30.542], [109.248, 30.6299], [109.1602, 30.542], [109.0723, 30.6299], [108.8086, 30.498], [108.6328, 30.5859], [108.457, 30.4102], [108.5449, 30.2344], [108.457, 29.7949], [108.6328, 29.8389], [108.9844, 29.3115], [109.0723, 29.3555], [109.248, 29.1357], [109.248, 28.4766], [109.0723, 28.2129], [108.7207, 28.2129], [108.7207, 28.4766], [108.5449, 28.3887], [108.5449, 28.6523], [108.3691, 28.6523], [108.2813, 29.0918], [107.8418, 29.0039], [107.8418, 29.1357], [107.5781, 29.2236], [107.4023, 29.1797], [107.4023, 28.8721], [106.875, 28.7842], [106.6992, 28.4766], [106.6113, 28.5205], [106.6113, 28.6523], [106.5234, 28.7842], [106.4355, 28.7842], [106.5234, 28.5645], [106.3477, 28.5205], [106.2598, 28.8721], [105.8203, 28.96], [105.7324, 29.2676], [105.4688, 29.3115], [105.293, 29.5313], [105.7324, 29.8828], [105.5566, 30.1025], [105.6445, 30.2783], [105.8203, 30.4541], [106.2598, 30.1904], [106.6113, 30.3223], [106.7871, 30.0146], [107.0508, 30.0146], [107.4902, 30.6299], [107.4023, 30.7617], [107.4902, 30.8496], [107.9297, 30.8496], [108.1934, 31.5088], [108.5449, 31.6846]]] } }, {
type: 'Feature', id: 'ning_xia', properties: {
name: '宁夏', cp: [105.9961, 37.3096], childNum: 5 }, geometry: {
type: 'Polygon', coordinates: [[[104.3262, 37.4414], [105.8203, 37.793], [105.9082, 38.7158], [106.3477, 39.2871], [106.7871, 39.375], [106.9629, 38.9795], [106.5234, 38.3203], [106.7871, 38.1885], [107.3145, 38.1006], [107.666, 37.8809], [107.3145, 37.6172], [107.3145, 37.0898], [106.6113, 37.0898], [106.6113, 36.7822], [106.4355, 36.5625], [106.5234, 36.4746], [106.5234, 36.2549], [106.875, 36.123], [106.9629, 35.8154], [106.6992, 35.6836], [106.4355, 35.6836], [106.5234, 35.332], [106.3477, 35.2441], [106.2598, 35.4199], [106.084, 35.376], [105.9961, 35.4199], [106.084, 35.4639], [105.9961, 35.4639], [105.8203, 35.5518], [105.7324, 35.7275], [105.3809, 35.7715], [105.293, 35.9912], [105.4688, 36.123], [105.2051, 36.6943], [105.293, 36.8262], [104.8535, 37.2217], [104.5898, 37.2217], [104.5898, 37.4414], [104.3262, 37.4414]]] } }, {
type: 'Feature', id: 'hai_nan', properties: {
name: '海南', cp: [109.9512, 19.2041], childNum: 18 }, geometry: {
type: 'Polygon', coordinates: [[[108.6328, 19.3799], [109.0723, 19.6436], [109.248, 19.9512], [109.5996, 20.0391], [110.0391, 20.127], [110.3906, 20.127], [110.5664, 20.2588], [110.6543, 20.2588], [111.0938, 19.9512], [111.2695, 19.9951], [110.6543, 19.1602], [110.5664, 18.6768], [110.2148, 18.5889], [110.0391, 18.3691], [109.8633, 18.3691], [109.6875, 18.1055], [108.9844, 18.2813], [108.6328, 18.457], [108.6328, 19.3799]]] } }, {
type: 'Feature', id: 'tai_wan', properties: {
name: '台湾', cp: [121.0254, 23.5986], childNum: 1 }, geometry: {
type: 'Polygon', coordinates: [[[121.9043, 25.0488], [121.9922, 25.0049], [121.8164, 24.7412], [121.9043, 24.5654], [121.6406, 24.0381], [121.377, 23.1152], [121.0254, 22.6758], [120.8496, 22.0605], [120.7617, 21.9287], [120.6738, 22.3242], [120.2344, 22.5879], [120.0586, 23.0713], [120.1465, 23.6865], [121.0254, 25.0488], [121.5527, 25.3125], [121.9043, 25.0488]]] } }, {
type: 'Feature', id: 'bei_jing', properties: {
name: '北京', cp: [116.4551, 40.2539], childNum: 19 }, geometry: {
type: 'Polygon', coordinates: [[[117.4219, 40.21], [117.334, 40.1221], [117.2461, 40.0781], [116.8066, 39.9902], [116.8945, 39.8145], [116.8945, 39.6826], [116.8066, 39.5947], [116.543, 39.5947], [116.3672, 39.4629], [116.1914, 39.5947], [115.752, 39.5068], [115.4883, 39.6387], [115.4004, 39.9463], [115.9277, 40.2539], [115.752, 40.5615], [116.1035, 40.6055], [116.1914, 40.7813], [116.4551, 40.7813], [116.3672, 40.9131], [116.6309, 41.0449], [116.9824, 40.6934], [117.4219, 40.6494], [117.2461, 40.5176], [117.4219, 40.21]]] } }, {
type: 'Feature', id: 'tian_jin', properties: {
name: '天津', cp: [117.4219, 39.4189], childNum: 18 }, geometry: {
type: 'Polygon', coordinates: [[[116.8066, 39.5947], [116.8945, 39.6826], [117.1582, 39.6387], [117.1582, 39.8145], [117.2461, 40.0781], [117.334, 40.1221], [117.4219, 40.21], [117.6855, 40.0781], [117.6855, 39.9902], [117.5098, 39.9902], [117.5098, 39.7705], [117.6855, 39.5947], [117.9492, 39.5947], [117.8613, 39.4189], [118.0371, 39.2432], [118.0371, 39.1992], [117.8613, 39.1113], [117.5977, 38.6279], [117.2461, 38.54], [116.7188, 38.8037], [116.7188, 38.9355], [116.8945, 39.1113], [116.8066, 39.5947]]] } }, {
type: 'Feature', id: 'shang_hai', properties: {
name: '上海', cp: [121.4648, 31.2891], childNum: 19 }, geometry: {
type: 'Polygon', coordinates: [[[120.9375, 31.0254], [121.2012, 31.4648], [121.377, 31.5088], [121.1133, 31.7285], [121.2012, 31.8604], [121.9922, 31.5967], [121.9043, 31.1572], [121.9922, 30.8057], [121.2891, 30.6738], [120.9375, 31.0254]]] } }, {
type: 'Feature', id: 'xiang_gang', properties: {
name: '香港', cp: [114.2578, 22.3242], childNum: 1 }, geometry: {
type: 'Polygon', coordinates: [[[114.6094, 22.4121], [114.5215, 22.1484], [114.3457, 22.1484], [113.9063, 22.1484], [113.8184, 22.1924], [113.9063, 22.4121], [114.1699, 22.5439], [114.3457, 22.5439], [114.4336, 22.5439], [114.4336, 22.4121], [114.6094, 22.4121]]] } }, {
type: 'Feature', id: 'ao_men', properties: {
name: '澳门', cp: [113.5547, 22.1484], childNum: 1 }, geometry: {
type: 'Polygon', coordinates: [[[113.5986, 22.1649], [113.6096, 22.1265], [113.5547, 22.11], [113.5437, 22.2034], [113.5767, 22.2034], [113.5986, 22.1649]]] } }] };
var geoGpsMap = [116.4551, 40.2539];
var geoCoordMap = {
江苏: [118.8062, 31.9208],
黑龙江: [127.9688, 45.368],
内蒙古: [110.3467, 41.4899],
吉林: [125.8154, 44.2584],
北京: [116.4551, 40.2539],
辽宁: [123.1238, 42.1216],
河北: [114.4995, 38.1006],
天津: [117.4219, 39.4189],
山西: [112.3352, 37.9413],
陕西: [109.1162, 34.2004],
甘肃: [103.5901, 36.3043],
宁夏: [106.3586, 38.1775],
青海: [101.4038, 36.8207],
新疆: [87.9236, 43.5883],
四川: [103.9526, 30.7617],
重庆: [108.384366, 30.439702],
山东: [117.1582, 36.8701],
河南: [113.4668, 34.6234],
安徽: [117.29, 32.0581],
湖北: [114.3896, 30.6628],
浙江: [119.5313, 29.8773],
福建: [119.4543, 25.9222],
江西: [116.0046, 28.6633],
湖南: [113.0823, 28.2568],
贵州: [106.6992, 26.7682],
云南: [102.9199, 25.4663],
广东: [113.12244, 23.009505],
广西: [108.479, 23.1152],
海南: [110.3893, 19.8516],
上海: [121.4648, 31.2891],
西藏: [91.141017, 29.668461]
};
var data = [{
name: '山西省',
value: 123321
},{
name: '北京市',
value: 999999111
},{
name: '辽宁省',
value: 123
},{
name: '河北省',
value: 3211
},{
name: '山东省',
value: 998231
},{
name: '广西省',
value: 3122222222
},{
name: '云南省',
value: 312
},{
name: '浙江省',
value: 321
},{
name: '上海市',
value: 312
},{
name: '江苏省',
value: 3112
},{
name: '湖北省',
value: 3121
},{
name: '湖南省',
value: 321321
},{
name: '西藏',
valie: 321321
},{
name: '内蒙古',
value: 321
},{
name: '黑龙江省',
value: 321
},{
name: '吉林省',
value: 44412
},{
name: '天津市',
value: 312
},{
name: '广州省',
value: 321
},{
name: '重庆市',
value: 312
}];
var mapData = [];
for (var key in geoCoordMap) {
if (name.includes(key)) {
geoGpsMap = geoCoordMap[key];
}
const keys = key;
const filters = data.filter(item => {
return item.name.includes(keys);
})[0];
mapData.push({
name: key,
value: filters ? filters.value : 0
});
}
mapData.sort((a, b) => {
return a.value - b.value;
});
const colors = ['rgb(209,211,187)', 'rgb(180,198,155)', 'rgb(83,156,158)', 'rgb(58,127,174)', 'rgb(38,88,146)', 'rgb(31,53,117)', 'rgb(26,50,114)', 'rgb(29,73,188)', 'rgb(11,28,77)', 'rgb(10,22,57)'];
echarts.registerMap('china', geoJson);
var convertData = function (data) {
var res = [];
for (var i = 0; i < data.length; i++) {
var geoCoord = geoCoordMap[data[i].name];
if (geoCoord) {
res.push({
name: data[i].name,
value: geoCoord.concat(data[i].value)
});
}
}
return res;
};
var convertToLineData = function (data, gps) {
var res = [];
for (var i = 0; i < data.length; i++) {
var dataItem = data[i];
var toCoord = geoCoordMap[dataItem.name];
var fromCoord = gps;// gps：‘中心点’
if (fromCoord && toCoord) {
res.push({
fromName: gps,
toName: dataItem.name,
coords: [
fromCoord,
toCoord
]
});
}
}
return res;
};
option = {
backgroundColor: 'rgba(0,0,0,0)',
series: [
// 地图线的动画效果
{
name: '',
type: 'lines',
zlevel: 2,
effect: {
show: true,
period: 6,
// symbol: planePath,
trailLength: 0,
symbolSize: 4
},
lineStyle: {
normal: {
type: 'dotted',
color: '#ABE2FF',
width: 2,
opacity: 1,
curveness: 0.3
}
},
tooltip: {
show: false
},
data: convertToLineData(mapData, geoGpsMap)
},
// 地图点的动画效果
{
name: '供需占比',
type: 'effectScatter',
coordinateSystem: 'geo',
data: convertData(mapData).map(item => {
return {
name: item.name,
value: item.value.splice(0, 2)
};
}),
symbolSize: 3,
showEffectOn: 'render',
rippleEffect: {
scale: 5,
brushType: 'stroke'
},
hoverAnimation: true,
itemStyle: {
normal: {
color: '#fff',
shadowBlur: 20,
shadowColor: '#333'
}
}
},
// 地图？
{
type: 'map',
mapType: 'china',
top: '2%',
// left: '30%',
label: {
// 地图上的文字
normal: {
show: true,
textStyle: {
color: '#1DE9B6'
}
}
},
itemStyle: {
emphasis: {
// 高亮时区域颜色
areaColor: 'rgb(180,198,155)'
}
},
data: convertData(mapData).map((item, index) => {
const length = mapData.length;
const percent = Math.floor(length / colors.length);
let active = Math.floor(index / percent);
if (active === colors.length) {
active = colors.length - 1;
}
return {
name: item.name,
value: item.value[2],
itemStyle: {
areaColor: item.value[2] ? colors[active] : colors[0]
}
};
})
// geoIndex: 0,
// zlevel: 1,
}
],
geo: {
map: 'china',
top: '2%',
aspectScale: 0.75, // 长宽比
// left: '30%',
// zoom: 1.1,
roam: false,
itemStyle: {
normal: {
shadowColor: 'rgb(58,115,192)',
shadowOffsetX: 4,
shadowOffsetY: 6
}
},
regions: [{
name: '南海诸岛',
itemStyle: {
normal: {
opacity: 0,
label: {
show: false
}
}
}
}]
},
tooltip: {
trigger: 'item',
backgroundColor: 'rgba(0,0,0,0)',
padding: 0,
formatter: function (params) {
var name = params.name || params.seriesName;
var value = params.data.value || 0;
// 实际来源地**
// 最终目的地规模**人
var content = `<div class="info_box">
<div class="info_box_marker"></div>
<div class="info_box_box">
<span class="name">${
name}</span>
<span class="value">${
value}</span>
<span class="company">人</span>
</div>
</div>`;
return content;
}
}
};
chart_b859ef36a1b245b2b1eb24efe9b62146.setOption(option);
</script>
</div>
</body>
</html>
收藏不吃亏，收藏不上当，在今后的学习和工作中肯定有用到的地方
觉得有用的可以给个三连，关注一波！！！带你了解更多的Java小知识
