一、类的加载机制

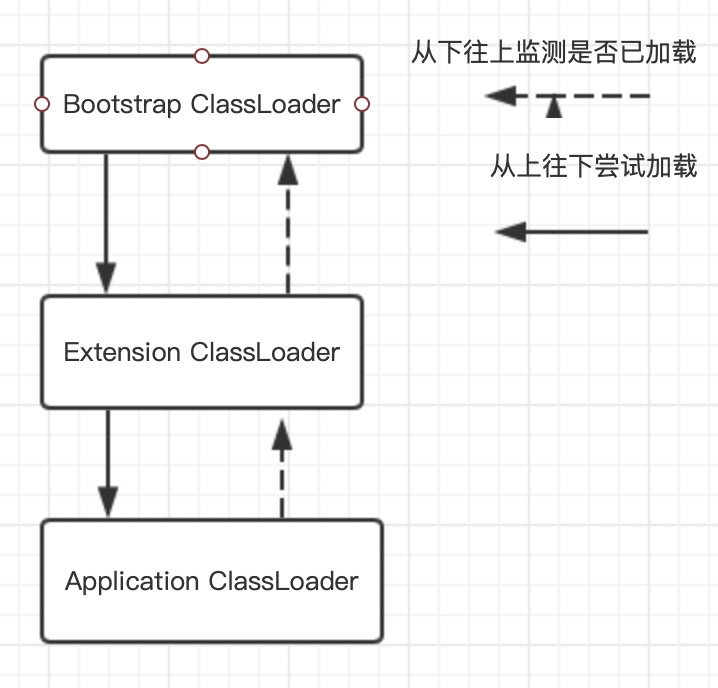

java中的类的加载器加载来自于文件、网络、源文件等。jvm的类加载器默认使用的是双亲委派机制，Bootstrap ClassLoader、Extension ClassLoader、Appcation ClassLoader(System ClassLoader)，每个类加载器加载指定位置的文件。可继承java.lang.classloader自定义类加载器。
Bootstrap ClassLoader：负责加载JDK自带的rt.jar包中的类文件，是所有类加载的父类
Extension ClassLoader：负责加载java的扩展类库从jre/lib/ect目录或者java.ext.dirs系统属性指定的目录下加载类，是System ClassLoader的父类加载器
System ClassLoader(Application ClassLoader)：负责从classpath环境变量中加载类文文件
protected Class<?> loadClass(String name, boolean resolve)
throws ClassNotFoundException
{
synchronized (getClassLoadingLock(name)) {
// 检验是否已加载
Class<?> c = findLoadedClass(name);
if (c == null) {
long t0 = System.nanoTime();
try {
//双亲委派机制体现
if (parent != null) {
c = parent.loadClass(name, false);
} else {
c = findBootstrapClassOrNull(name);
}
} catch (ClassNotFoundException e) {
// ClassNotFoundException thrown if class not found
// from the non-null parent class loader
}
if (c == null) {
// If still not found, then invoke findClass in order
// to find the class.
long t1 = System.nanoTime();
//自己实现玩
c = findClass(name);
// this is the defining class loader; record the stats
sun.misc.PerfCounter.getParentDelegationTime().addTime(t1 - t0);
sun.misc.PerfCounter.getFindClassTime().addElapsedTimeFrom(t1);
sun.misc.PerfCounter.getFindClasses().increment();
}
}
if (resolve) {
resolveClass(c);
}
return c;
}
}
-------------------------------------NB的分割线-----------------------------------
public Enumeration<URL> getResources(String name) throws IOException {
@SuppressWarnings("unchecked")
Enumeration<URL>[] tmp = (Enumeration<URL>[]) new Enumeration<?>[2];
//通过classLoader获取资源
if (parent != null) {
tmp[0] = parent.getResources(name);
} else {
tmp[0] = getBootstrapResources(name);
}
tmp[1] = findResources(name);
return new CompoundEnumeration<>(tmp);
}可以通过Thread.currentThread().getClassLoader()和Thread.currentThread().getContextClassLoader()获取线程上下文类加载器。线程默认是AppClassLoader。
二、SPI
破坏双亲委派模型，jdk最为基础类为用户的api调用，也存在相反的情况被api用户调用，如spi。
SPI机制简介 SPI的全名为Service Provider Interface，主要是应用于厂商自定义组件或插件中。在java.util.ServiceLoader的文档里有比较详细的介绍。简单的总结下java SPI机制的思想：我们系统里抽象的各个模块，往往有很多不同的实现方案，比如日志模块、xml解析模块、jdbc模块等方案。面向的对象的设计里，我们一般推荐模块之间基于接口编程，模块之间不对实现类进行硬编码。一旦代码里涉及具体的实现类，就违反了可拔插的原则，如果需要替换一种实现，就需要修改代码。为了实现在模块装配的时候能不在程序里动态指明，这就需要一种服务发现机制。Java SPI就是提供这样的一个机制：为某个接口寻找服务实现的机制。有点类似IOC的思想，就是将装配的控制权移到程序之外，在模块化设计中这个机制尤其重要。
1.JDK实现
在classpath下新建META-INF/services/ 配置文件。文件名接口类的reference，内容为接口的实现类的reference。
@Test
public void testSpi() throws IOException {
//通ServiceLoader获取
ServiceLoader<SpiDemo> loader=ServiceLoader.load(SpiDemo.class);
for(SpiDemo demo:loader){
System.out.println(demo.getName());
}
}
------------------------------NB的分割线-----------------------------------------
public final class ServiceLoader<S>
implements Iterable<S>
{
//默认指定的路径META-INF/services/
private static final String PREFIX = "META-INF/services/";
......NB的省略号...............
public static <S> ServiceLoader<S> load(Class<S> service) {
ClassLoader cl = Thread.currentThread().getContextClassLoader();
return ServiceLoader.load(service, cl);
}
public static <S> ServiceLoader<S> load(Class<S> service,
ClassLoader loader)
{
return new ServiceLoader<>(service, loader);
}
private ServiceLoader(Class<S> svc, ClassLoader cl) {
service = Objects.requireNonNull(svc, "Service interface cannot be null");
loader = (cl == null) ? ClassLoader.getSystemClassLoader() : cl;
acc = (System.getSecurityManager() != null) ? AccessController.getContext() : null;
reload();
}
public void reload() {
providers.clear();
lookupIterator = new LazyIterator(service, loader);
}
..................NB的省略号.............
while ((pending == null) || !pending.hasNext()) {
if (!configs.hasMoreElements()) {
return false;
}
//读取配置文件内容然后通过reference，然后在通过class.forname()实例他。
pending = parse(service, configs.nextElement());
}
nextName = pending.next();
..................NB的省略号.............2.spring中的spi
在springboot自动装载的过程中会加载classpath下的所有jar中搜索META-INF/spring.factories。然后通过SpringFactoriesLoader加载，加载后进入装载bean的流程。
public final class SpringFactoriesLoader {
//指定的路径
public static final String FACTORIES_RESOURCE_LOCATION = "META-INF/spring.factories";
private static final Map<ClassLoader, MultiValueMap<String, String>> cache = new ConcurrentReferenceHashMap();
..........................NB的省略号.............................
private static Map<String, List<String>> loadSpringFactories(@Nullable ClassLoader classLoader) {
MultiValueMap<String, String> result = (MultiValueMap)cache.get(classLoader);
if (result != null) {
return result;
} else {
try {
Enumeration<URL> urls = classLoader != null ? classLoader.getResources("META-INF/spring.factories") : ClassLoader.getSystemResources("META-INF/spring.factories");
LinkedMultiValueMap result = new LinkedMultiValueMap();
while(urls.hasMoreElements()) {
URL url = (URL)urls.nextElement();
UrlResource resource = new UrlResource(url);
//解析spring.factories文件(key/value形式)
Properties properties = PropertiesLoaderUtils.loadProperties(resource);
Iterator var6 = properties.entrySet().iterator();
while(var6.hasNext()) {
Entry<?, ?> entry = (Entry)var6.next();
String factoryTypeName = ((String)entry.getKey()).trim();
String[] var9 = StringUtils.commaDelimitedListToStringArray((String)entry.getValue());
int var10 = var9.length;
for(int var11 = 0; var11 < var10; ++var11) {
String factoryImplementationName = var9[var11];
//将文件中的reference放到map里
result.add(factoryTypeName, factoryImplementationName.trim());
}
}
}
cache.put(classLoader, result);
return result;
} catch (IOException var13) {
throw new IllegalArgumentException("Unable to load factories from location [META-INF/spring.factories]", var13);
}
}
}
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
public static List<String> loadFactoryNames(Class<?> factoryType, @Nullable ClassLoader classLoader) {
String factoryTypeName = factoryType.getName();
return (List)loadSpringFactories(classLoader).getOrDefault(factoryTypeName, Collections.emptyList());
}
public static <T> List<T> loadFactories(Class<T> factoryType, @Nullable ClassLoader classLoader) {
Assert.notNull(factoryType, "'factoryType' must not be null");
ClassLoader classLoaderToUse = classLoader;
if (classLoader == null) {
classLoaderToUse = SpringFactoriesLoader.class.getClassLoader();
}
List<String> factoryImplementationNames = loadFactoryNames(factoryType, classLoaderToUse);
if (logger.isTraceEnabled()) {
logger.trace("Loaded [" + factoryType.getName() + "] names: " + factoryImplementationNames);
}
List<T> result = new ArrayList(factoryImplementationNames.size());
Iterator var5 = factoryImplementationNames.iterator();
while(var5.hasNext()) {
String factoryImplementationName = (String)var5.next();
result.add(instantiateFactory(factoryImplementationName, factoryType, classLoaderToUse));
}
AnnotationAwareOrderComparator.sort(result);
return result;
}最终都会在AutoConfigurationImportSelector类中去加载。
/**
* AutoConfigurationImportSelector实现了BeanClassLoaderAware/ResourceLoaderAware/BeanFactoryAware/EnvironmentAware/DeferredImportSelector
* 这些东东。
* DeferredImportSelector
*/
public class AutoConfigurationImportSelector implements , BeanClassLoaderAware,
ResourceLoaderAware, BeanFactoryAware, EnvironmentAware, Ordered {
private static final AutoConfigurationEntry EMPTY_ENTRY = new AutoConfigurationEntry();
private static final String[] NO_IMPORTS = {};
private static final Log logger = LogFactory.getLog(AutoConfigurationImportSelector.class);
private static final String PROPERTY_NAME_AUTOCONFIGURE_EXCLUDE = "spring.autoconfigure.exclude";
//通过实现BeanFactoryAware 可获取beanFactory
private ConfigurableListableBeanFactory beanFactory;
//通过实现EnvironmentAware 可获取Environment
private Environment environment;
//实现BeanClassLoaderAware 可获取ClassLoader
private ClassLoader beanClassLoader;
//ResourceLoaderAware 可获取ResourceLoader
private ResourceLoader resourceLoader;
@Override
public String[] selectImports(AnnotationMetadata annotationMetadata) {
if (!isEnabled(annotationMetadata)) {
return NO_IMPORTS;
}
//加载"META-INF/" + "spring-autoconfigure-metadata.properties"
AutoConfigurationMetadata autoConfigurationMetadata = AutoConfigurationMetadataLoader
.loadMetadata(this.beanClassLoader);
//加载
AutoConfigurationEntry autoConfigurationEntry = getAutoConfigurationEntry(autoConfigurationMetadata,
annotationMetadata);
return StringUtils.toStringArray(autoConfigurationEntry.getConfigurations());
}
protected AutoConfigurationEntry getAutoConfigurationEntry(AutoConfigurationMetadata autoConfigurationMetadata,
AnnotationMetadata annotationMetadata) {
if (!isEnabled(annotationMetadata)) {
return EMPTY_ENTRY;
}
AnnotationAttributes attributes = getAttributes(annotationMetadata);
List<String> configurations = getCandidateConfigurations(annotationMetadata, attributes);
configurations = removeDuplicates(configurations);
Set<String> exclusions = getExclusions(annotationMetadata, attributes);
checkExcludedClasses(configurations, exclusions);
configurations.removeAll(exclusions);
configurations = filter(configurations, autoConfigurationMetadata);
fireAutoConfigurationImportEvents(configurations, exclusions);
return new AutoConfigurationEntry(configurations, exclusions);
}
....................NB.................................
public void process(AnnotationMetadata annotationMetadata, DeferredImportSelector deferredImportSelector) {
Assert.state(deferredImportSelector instanceof AutoConfigurationImportSelector,
() -> String.format("Only %s implementations are supported, got %s",
AutoConfigurationImportSelector.class.getSimpleName(),
deferredImportSelector.getClass().getName()));
AutoConfigurationEntry autoConfigurationEntry = ((AutoConfigurationImportSelector) deferredImportSelector)
.getAutoConfigurationEntry(getAutoConfigurationMetadata(), annotationMetadata);
this.autoConfigurationEntries.add(autoConfigurationEntry);
for (String importClassName : autoConfigurationEntry.getConfigurations()) {
this.entries.putIfAbsent(importClassName, annotationMetadata);
}
}
