otsu自适应阈值方法实现

otsu方法

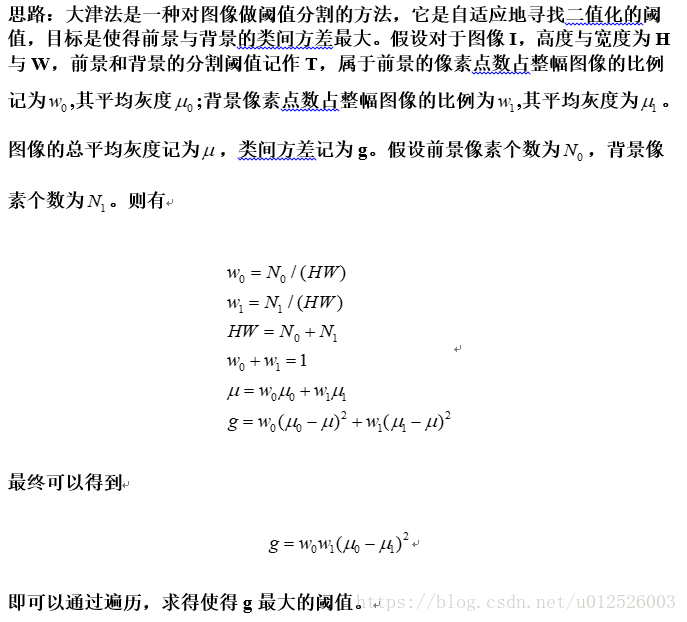

讲解

C++实现

#include <iostream>
#include <vector>
#include <opencv2\opencv.hpp>
#include <opencv2\highgui.hpp>

using namespace std;
using namespace cv;

// get threshold by otsu
int GetOtsuThreshold(Mat& input_img)
{
    int thres_val = 1;
    vector<int> ihist(256, 0);
    int n = 0, n1, n2, Color = 0;
    double m1, m2, sum, csum, fmax, sb;

    for (int h = 0; h < input_img.rows; ++h)
    {
        for (int w = 0; w < input_img.cols; ++w)
        {
            ++ihist[input_img.ptr<uchar>(h)[w]];
        }
    }
    sum = csum = 0.0;
    for (int k = 0; k <= 255; k++)
    {
        sum += (double)k* (double)ihist[k];
        n += ihist[k];
    }

    // find otsu threshold
    fmax = -1.0;
    n1 = 0;
    for (int k = 0; k<255; k++)
    {
        n1 += ihist[k];
        if (n1 == 0) // prevent n1 from 0 (compute m1)
            continue;
        n2 = n - n1;
        if (n2 == 0)
            break;
        csum += (double)k*ihist[k];
        m1 = csum / n1;
        m2 = (sum - csum) / n2;
        // compute current g
        sb = (double)n1* (double)n2* (m1 - m2) * (m1 - m2);

        // update threshold
        if (sb > fmax)
        {
            fmax = sb;
            thres_val = k;
        }
    }
    return thres_val;
}

// binarize image with threshold
void BinarizeImageByThreshold( Mat& input, Mat& output, int threshold )
{
    assert( !input.empty() );
    output = Mat::zeros( input.size(), CV_8UC1 );
    for (int h = 0; h < output.rows; ++h)
    {
        for (int w = 0; w < output.cols; ++w)
        {
            if (input.ptr<uchar>(h)[w] > threshold)
            {
                output.ptr<uchar>(h)[w] = 255;
            }
        }
    }
}

// read image with opencv
bool ReadImage(string fp, Mat& img)
{
    img = imread( fp, IMREAD_GRAYSCALE );
    return !img.empty();
}

int main(int argc, char**argv)
{
    string img_fp = "img/11.png";
    Mat input_img;
    if ( !ReadImage( img_fp, input_img ) )
    {
        cout << "can not read image, exit!" << endl;
        return -1;
    }

    int thres = GetOtsuThreshold( input_img );

    Mat bw_img;
    BinarizeImageByThreshold(input_img, bw_img, thres);

    imshow("input", input_img);
    imshow("output", bw_img);
    waitKey();
    destroyAllWindows();

    return 0;
}

python实现

import cv2
import matplotlib.pyplot as plt
import numpy as np
%matplotlib inline
def ReadImage( fp ):
    return cv2.imread( fp, cv2.IMREAD_GRAYSCALE )
def Otsu( img ):
    thres = 0
    m1 = 0
    m2 = 0
    h_sum = 0
    csum = 0
    n1 = 0
    n2 = 0
    fmax = 0
    curr_f = 0
    ihist = [0] * 256
    height, width = img.shape
    n = height * width
    for ii in range( height ):
        for jj in range(width):
            ihist[ img[ii,jj] ] += 1

    for ii in range( 256 ):
        h_sum += ii * ihist[ii]

    n1 = 0
    for k in range( 255 ):
        n1 += ihist[k]
        n2 = n - n1
        if n1 == 0:
            continue
        n2 = n - n1
        if n2 == 0:
            break

        csum += k*ihist[k];
        m1 = csum / n1;
        m2 = (h_sum - csum)
        curr_f = 1.0 * n1 * n2 * (m1-m2)**2
        if( curr_f > fmax ):
            fmax = curr_f
            thres = k
    return thres

def Binarize( img, thres ):
    return img > thres

img = ReadImage( "test01.png" )
thres = Otsu( img )
bw = Binarize( img, thres )
print( thres )
plt.imshow( bw )
plt.show()
