简单上手,直接照搬,就可搭建微服务(Hoxton.SR8) 2020.8.28发布,SpringCloud搭建的文章正在整理,干货不要错过哦
https://spring.io/blog/2020/08/28/spring-cloud-hoxton-sr8-has-been-released
-
SpringCloud微服务小白也能搭(Hoxton.SR8)(一)Eureka|服务的注册与发现
-
SpringCloud微服务小白也能搭(Hoxton.SR8)(七)Gateway|服务网关
-
SpringCloud微服务小白也能搭(Hoxton.SR8)(八)Sleuth|服务链路跟踪
-
开发工具:ideaj社区版
-
jar管理:maven
- 聚合构建
1.创建父pom项目
注意:
- Spring Assistant是一个插件,需要自己安装,安装教程参考
- 第三幅图,以前是不用强制选择的组件的,应该是ideaj的版本问题,没关系,我们先选一个,创建完后删除就好了
- 我们使用的springboot版本是2.2.10

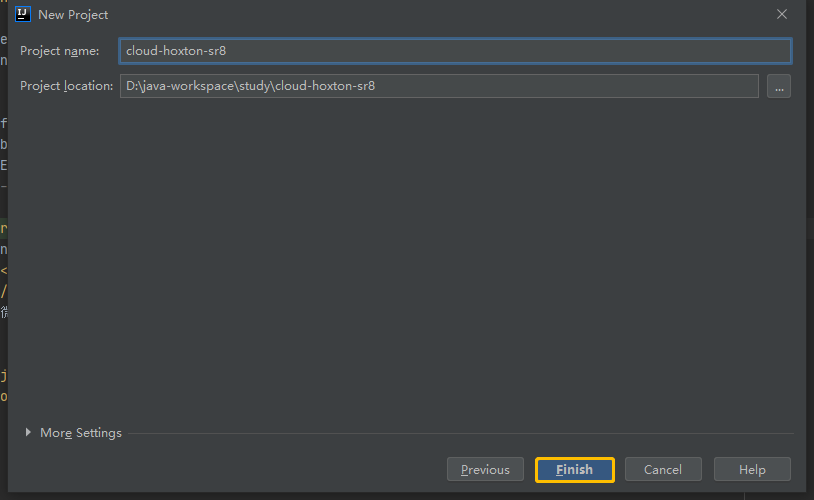

- 最后选择你的项目名以及项目位置
1.1 当前阶段父 pom.xml 内容
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<packaging>pom</packaging>
<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>2.2.10.RELEASE</version>
<relativePath/>
</parent>
<groupId>com.zqh.www</groupId>
<artifactId>cloud-hoxton-sr8</artifactId>
<version>0.0.1-SNAPSHOT</version>
<name>cloud-hoxton-sr8</name>
<description>Hoxton.SR8微服务</description>
<properties>
<java.version>1.8</java.version>
<spring-cloud.version>Hoxton.SR8</spring-cloud.version>
</properties>
<dependencies>
</dependencies>
<!-- https://spring.io/blog/2020/08/28/spring-cloud-hoxton-sr8-has-been-released -->
<dependencyManagement>
<dependencies>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-dependencies</artifactId>
<version>${spring-cloud.version}</version>
<type>pom</type>
<scope>import</scope>
</dependency>
</dependencies>
</dependencyManagement>
<build>
<plugins>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
</plugin>
</plugins>
</build>
</project>
2.创建 Eureka 注册中心
注意:
- 右击项目创建module,选择Maven,点击next,然后填写你的项目名称
2.1 当前阶段 eureka-server 项目 pom.xml 内容
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<parent>
<artifactId>cloud-hoxton-sr8</artifactId>
<groupId>com.zqh.www</groupId>
<version>0.0.1-SNAPSHOT</version>
</parent>
<modelVersion>4.0.0</modelVersion>
<artifactId>eureka-server</artifactId>
<dependencies>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-netflix-eureka-server</artifactId>
</dependency>
<!-- 给Eureka注册中心添加认证 -->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-security</artifactId>
</dependency>
</dependencies>
<build>
<plugins>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
</plugin>
</plugins>
</build>
</project>
2.2 配置 EurekaServerApplication 以及 application.yml
注意:
- ideaj没有帮我生成包路径,Application文件,以及application.yml,所以这里是我自己创建
package com.zqh.www;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.server.EnableEurekaServer;
import org.springframework.core.env.Environment;
/**
* 开启eureka服务
*/
@EnableEurekaServer
@SpringBootApplication
public class EurekaServerApplication {
private final static Logger logger = LoggerFactory.getLogger(EurekaServerApplication.class);
public static void main(String[] args) {
Environment env = SpringApplication.run(EurekaServerApplication.class, args).getEnvironment();
logger.info(
"\n----------------------------------------------------------\n\t"
+ "Application '{}' is running! Access URLs:\n\t"
+ "Local: \t\thttp://localhost:{}{}"
+ "\n----------------------------------------------------------",
env.getProperty("spring.application.name"), env.getProperty("server.port"),
env.getProperty("server.servlet.context-path") != null ? env.getProperty("server.servlet.context-path") : "");
}
}
server:
port: 8081
spring:
application:
name: eureka-server
security:
user:
# 配置spring security登录用户名和密码
name: root
password: root
eureka:
client:
# 让自己不需要注册在上面禁止客户端注册,表明自己是一个eureka server
register-with-eureka: false
fetch-registry: false
service-url:
defaultZone: http://${eureka.instance.hostname}:${server.port}/eureka/
instance:
hostname: localhost
package com.zqh.www.config;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
/**
* 默认情况下添加SpringSecurity依赖的应用每个请求都需要添加CSRF token才能访问,Eureka客户端注册时并不会添加,所以需要配置/eureka/**路径不需要CSRF token。
*/
@EnableWebSecurity
public class WebSecurityConfig extends WebSecurityConfigurerAdapter {
@Override
protected void configure(HttpSecurity http) throws Exception {
http.csrf().ignoringAntMatchers("/eureka/**");
super.configure(http);
}
}

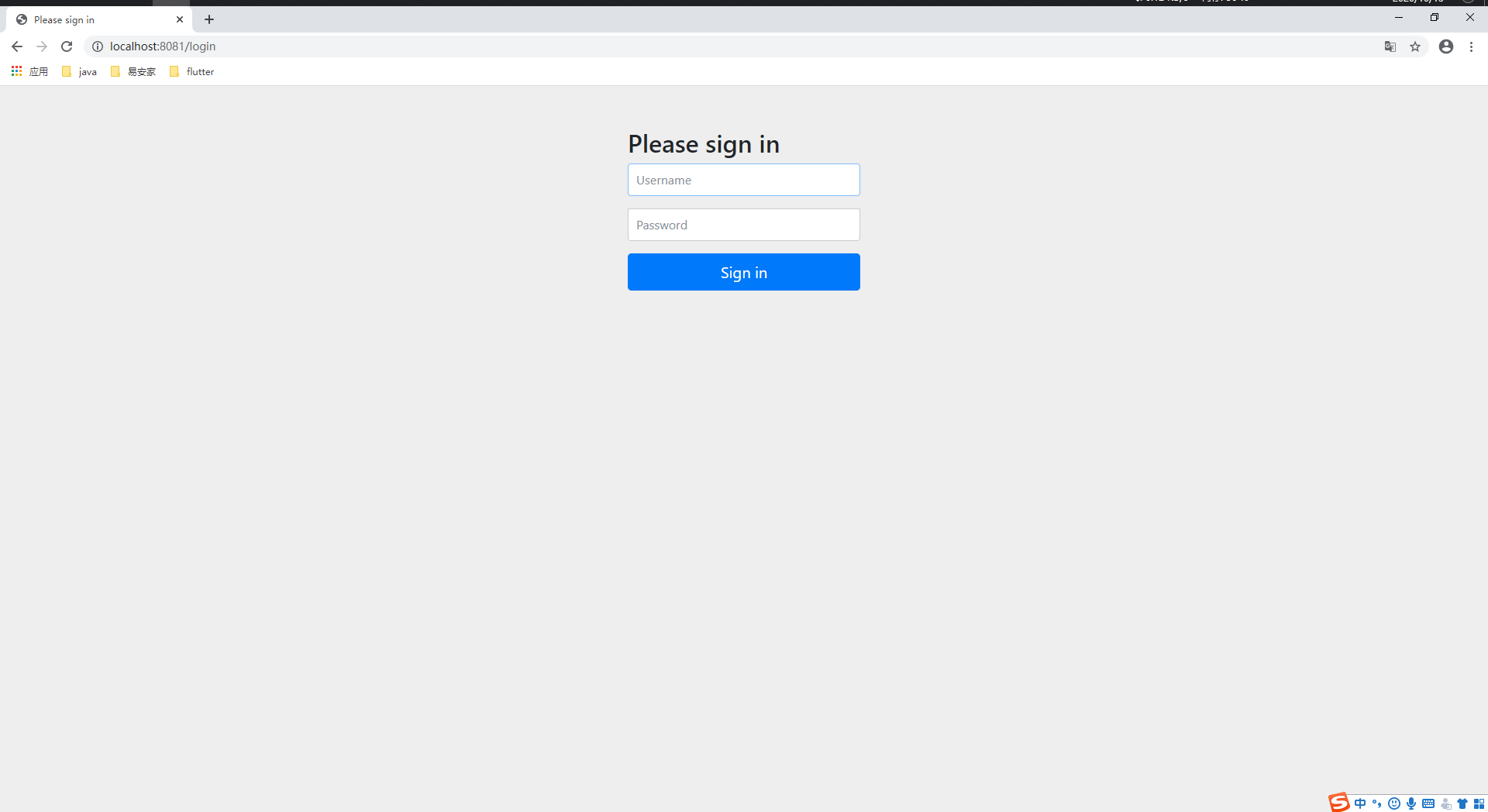

2.3 浏览器访问 eureka 服务页面
注意:点击访问 http://localhost:8081 账户:root 密码:root
3.创建客户端并注册
注意:
- 右击项目创建module,选择Maven,点击next,然后填写你的项目名称

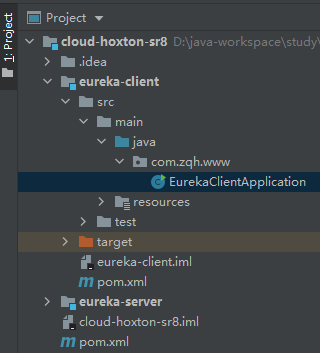

- 按照2.2的步骤创建包路径,EurekaClientApplication 和 application.yml
3.1 当前阶段 eureka-client 项目 pom.xml 内容
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<parent>
<artifactId>cloud-hoxton-sr8</artifactId>
<groupId>com.zqh.www</groupId>
<version>0.0.1-SNAPSHOT</version>
</parent>
<modelVersion>4.0.0</modelVersion>
<artifactId>eureka-client</artifactId>
<dependencies>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
</dependencies>
<build>
<plugins>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
</plugin>
</plugins>
</build>
</project>
3.2 EurekaClientApplication 和 application.yml
package com.zqh.www;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.EnableEurekaClient;
import org.springframework.core.env.Environment;
/**
* 开启eureka客户端
*/
@EnableEurekaClient
@SpringBootApplication
public class EurekaClientApplication {
private final static Logger logger = LoggerFactory.getLogger(EurekaClientApplication.class);
public static void main(String[] args) {
Environment env = SpringApplication.run(EurekaClientApplication.class, args).getEnvironment();
logger.info(
"\n----------------------------------------------------------\n\t"
+ "Application '{}' is running! Access URLs:\n\t"
+ "Local: \t\thttp://localhost:{}{}"
+ "\n----------------------------------------------------------",
env.getProperty("spring.application.name"), env.getProperty("server.port"),
env.getProperty("server.servlet.context-path") != null ? env.getProperty("server.servlet.context-path") : "");
}
}
server:
port: 8083
spring:
application:
name: eureka-client
eureka:
client:
service-url:
#注册地址
defaultZone: http://root:root@localhost:8081/eureka/
#显示服务器IP加端口
instance:
hostname: localhost
prefer-ip-address: true
instance-id: ${spring.cloud.client.ip-address}:${server.port}
4.刷新浏览器eureka服务页面,服务注册完成
5. 总结
- 完成eureka 服务的启动,并添加security授权验证
- 完成 client 注册 eureka
