（Ansible）（4）角色

---

1.ansible 角色简介

• Ansible roles 是为了层次化，结构化的组织Playbook
• roles就是通过分别将变量、文件、任务、模块及处理器放置于单独的目录中，并可以便捷地include它们
• roles一般用于基于主机构建服务的场景中，在企业复杂业务场景中应用的频率很高
• 以特定的层级目录结构进行组织的tasks、variables、handlers、templates、files等；相当于函数的调用把各个功能切割成片段来执行。

2.roles目录结构

目录	含义
files	##存放copy或script等模块调用的函数
tasks	##定义各种task，要有main.yml，其他文件include包含调用
handlers	##定义各种handlers，要有main.yml，其他文件include包含调用
vars	##定义variables，要有main.yml，其他文件include包含调用
templates	##存储由template模块调用的模板文本
meta	##定义当前角色的特殊设定及其依赖关系，要有main.yml的文件 defaults ##要有main.yml的文件，用于设定默认变量
tests	##用于测试角色

3.角色变量

[devops@server1 ansible]$ pwd
/home/devops/ansible
[devops@server1 ansible]$ mkdir roles
[devops@server1 ansible]$ vim ansible.cfg #添加角色路径

1)Apache角色

[devops@server1 ansible]$ ansible-galaxy list
# /home/devops/ansible/roles
[devops@server1 ansible]$ cd roles/
[devops@server1 roles]$ ansible-galaxy role init apache  #初始化角色
- Role apache was created successfully
[devops@server1 roles]$ ls
apache
[devops@server1 roles]$ tree apache/
apache/
├── defaults
│   └── main.yml
├── files
├── handlers
│   └── main.yml
├── meta
│   └── main.yml
├── README.md
├── tasks
│   └── main.yml
├── templates
├── tests
│   ├── inventory
│   └── test.yml
└── vars
    └── main.yml

%写任务
[devops@server1 apache]$ vim tasks/main.yml
[devops@server1 apache]$ cat tasks/main.yml
---
# tasks file for apache
---
- name: install httpd
  dnf:
    name: httpd
    state: present

- name: start httpd
  service:
    name: httpd
    state: started
    enabled: yes

- name: create index.html
  copy:
    content: "{

   { ansible_hostname }}\n"
    dest: /var/www/html/index.html

- name: config httpd
  template:
    src: httpd.conf.j2
    dest: /etc/httpd/conf/httpd.conf
  notify: restart httpd

- name: accept httpd
  firewalld:
    service: http
    permanent: yes
    immediate: yes
    state: enabled

- name: accept 8080
  firewalld:
    port: 8080/tcp
    permanent: yes
    immediate: yes
    state: enabled

%写模板
[devops@server1 apache]$ cp /home/devops/ansible/httpd.conf.j2 templates/
[devops@server1 apache]$ ls templates/
httpd.conf.j2
%写触发器
[devops@server1 apache]$ vim handlers/main.yml
[devops@server1 apache]$ cat handlers/main.yml
---
# handlers file for apache
- name: restart httpd
  service:
    name: httpd
    state: restarted

2)haproxy角色

%haproxy角色
[devops@server1 roles]$ ansible-galaxy role init haproxy
[devops@server1 haproxy]$ vim tasks/main.yml
[devops@server1 haproxy]$ cat tasks/main.yml
---
# tasks file for haproxy
- name: install haproxy
  dnf:
    name: haproxy
    state: present

- name: configure haproxy
  template:
    src: haproxy.cfg.j2
    dest: /etc/haproxy/haproxy.cfg
  notify: restart haproxy

- name: start haproxy
  service:
    name: haproxy
    state: started

- name: accept haproxy
  firewalld:
    service: http
    permanent: yes
    immediate: yes
    state: enabled

[devops@server1 haproxy]$ vim tasks/main.yml
[devops@server1 haproxy]$ cd templates/
[devops@server1 templates]$ ls
[devops@server1 templates]$ cp /home/devops/ansible/haproxy.cfg.j2 .
[devops@server1 templates]$ ls
haproxy.cfg.j2
[devops@server1 haproxy]$ vim handlers/main.yml
[devops@server1 haproxy]$ cat handlers/main.yml
---
# handlers file for haproxy
- name: restart haproxy
  service:
    name: haproxy
    state: restarted

3）调用角色

%角色中的变量优先于主机变量，优先于组变量

[devops@server1 ansible]$ cat playbook5.yml
---
- hosts: all
  roles:
    - role: apache
      when: ansible_default_ipv4.address in groups['webserver']
    - role: haproxy
      when: ansible_hostname == "server1"

[devops@node1 ansible]$ ansible-playbook playbook5.yml

４)官网的nginx角色模板

https://galaxy.ansible.com/geerlingguy/nginx
[devops@server1 ansible]$ ansible-galaxy search geerlingguy.nginx
[devops@server1 ansible]$ ansible-galaxy install geerlingguy.nginx

[devops@server1 ansible]$ ansible-galaxy list
# /home/devops/ansible/roles
- apache, (unknown version)
- haproxy, (unknown version)
- geerlingguy.nginx, 2.8.0
[devops@server1 ansible]$ cd roles/
[devops@server1 roles]$ ls
apache  geerlingguy.nginx  haproxy
[devops@server1 roles]$ tree geerlingguy.nginx/
geerlingguy.nginx/
├── defaults
│   └── main.yml
├── handlers
│   └── main.yml
├── LICENSE
├── meta
│   └── main.yml
├── molecule
│   └── default
│       ├── converge.yml
│       └── molecule.yml
├── README.md
├── tasks
│   ├── main.yml
│   ├── setup-Archlinux.yml
│   ├── setup-Debian.yml
│   ├── setup-FreeBSD.yml
│   ├── setup-OpenBSD.yml
│   ├── setup-RedHat.yml
│   ├── setup-Ubuntu.yml
│   └── vhosts.yml
├── templates
│   ├── nginx.conf.j2
│   ├── nginx.repo.j2
│   └── vhost.j2
└── vars
    ├── Archlinux.yml
    ├── Debian.yml
    ├── FreeBSD.yml
    ├── OpenBSD.yml
    └── RedHat.yml
[devops@server1 roles]$ ls
apache  geerlingguy.nginx  haproxy
[devops@server1 roles]$ vim /home/devops/ansible/playbook5.yml
[devops@server1 roles]$ cat /home/devops/ansible/playbook5.yml
---
- hosts: 172.25.3.2
  roles:
    - geerlingguy.nginx
[devops@server1 ansible]$ ansible-playbook playbook5.yml

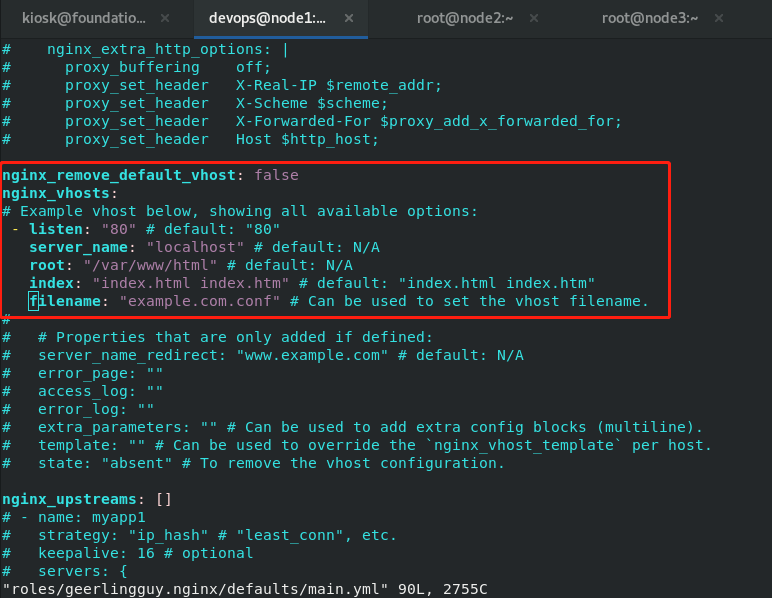

[devops@server1 defaults]$ pwd
/home/devops/ansible/roles/geerlingguy.nginx/defaults
[devops@server1 defaults]$ vim main.yml

4.维护状态

#serial每次更新一个,一个一个滚动更新，保证始终有可用的后端

[devops@server1 ansible]$ cat  group_vars/webserver/vars
http_port: 80
[devops@server1 ansible]$ vim /etc/haproxy/haproxy.cfg
添加：level admin
    stats socket /var/lib/haproxy/stats level admin

[devops@server1 ansible]$ cat playbook5.yml
---
- hosts: webserver
  serial: 1
  pre_tasks:
  - name: disable the server in haproxy
    haproxy: 'state=disabled backend=app host={

   { inventory_hostname }} socket=/var/lib/haproxy/stats'
    delegate_to: "{

   { item }}"
    loop: "{

   { groups.lb }}"
  roles:
  - role: apache
    #      when: inventory_hostname in groups['webserver']
  post_tasks:
  - name: wait for webserver to come up
    wait_for: 'host={

   { inventory_hostname }} port=80 state=started timeout=80'

  - name: enable the server in haproxy
    haproxy: 'state=enabled backend=app host={

   { inventory_hostname }} socket=/var/lib/haproxy/stats'
    delegate_to: "{

   { item }}"
    loop: "{

   { groups.lb }}"

[devops@server1 ansible]$ ansible-playbook playbook5.yml
#边跑边刷新网页172.25.3.1/status 会看到网页上循环维护

5.时间同步

宿主机指向172。25。254。250；虚拟机指向宿主机172。25。3。250
%真机作
[root@zhenji images]# vim /etc/chrony.conf
# Allow NTP client access from local network.
#allow 192.168/16
allow 172.25/16
[root@zhenji images]# systemctl  restart chronyd
%server1
[root@node1~]$ dnf install rhel-system-roles.noarch
[devops@node1 ansible]$ vim ansible.cfg

[devops@server1 timesync]$ pwd
/usr/share/doc/rhel-system-roles/timesync
[devops@server1 timesync]$ cp example-timesync-playbook.yml /home/devops/ansible/
[devops@server1 ansible]$ vim example-timesync-playbook.yml
---
- hosts: webserver
  vars:
    timesync_ntp_servers:
      - hostname: 172.25.3.250
        iburst: yes
  roles:
    - rhel-system-roles.timesync

[devops@server1 ansible]$ ansible-playbook example-timesync-playbook.yml
#server2和server3里查看
[root@node2 ~]# chronyc sources -v

6.selinux

[devops@server1 selinux]$ pwd
[devops@server1 selinux]$ /usr/share/doc/rhel-system-roles/selinux
cp example-selinux-playbook.yml /home/devops/ansible/
[devops@server1 ansible]$ vim example-selinux-playbook.yml
[devops@server1 ansible]$ cat example-selinux-playbook.yml
---
- hosts: server4
  vars:
    selinux_policy: targeted
    selinux_state: enforcing
    selinux_booleans:
      - { name: 'samba_enable_home_dirs', state: 'on' }
    selinux_fcontexts:
      - { target: '/samba(/.*)?', setype: 'samba_share_t', ftype: 'd' }
    selinux_restore_dirs:
      - /samba
    selinux_ports:
      - { ports: '82', proto: 'tcp', setype: 'http_port_t', state: 'present' }
  tasks:
    - name: Creates directory
      file:
        path: /samba
        state: directory
    - name: execute the role and catch errors
      block:
        - include_role:
            name: rhel-system-roles.selinux
      rescue:
        # Fail if failed for a different reason than selinux_reboot_required.
        - name: handle errors
          fail:
            msg: "role failed"

%server3里的selinux关掉
[root@server3 ~]# vim /etc/selinux/config
SELINUX=disabled
[root@server3 selinux]# reboot
[devops@server1 ansible]$ ansible-playbook example-selinux-playbook.yml
%在server4里查看
%在server4里查看
[devops@server4 .ssh]$ cd /samba/
[devops@server4 samba]$ ls
[devops@server4 samba]$ ll -Zd .
drwxr-xr-x. 2 root root unconfined_u:object_r:samba_share_t:s0 6 Jan  3 15:27 .
[devops@server4 samba]$ vim /etc/httpd/conf/httpd.conf
改成Listen: 82
[root@server4 ~]# systemctl restart httpd
[root@server4 ~]# netstat -antlp

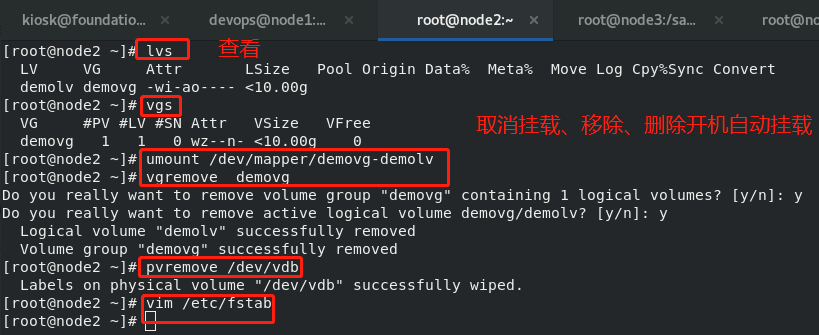

7.逻辑卷

[root@server1 ~]# ansible-doc filrsystem

[devops@server1 ansible]$ cat lvs.yml
---
- hosts: server4
  tasks:
    - name: create vg
      lvg:
        vg: demovg
        pvs: /dev/vdb
    - name: create lv
      lvol:
        vg: demovg
        lv: "{

   {item}}"
        size: 100%FREE
      loop:
        - demolv
      when: item not in ansible_lvm['lvs']
    - name: create xfs filesystem
      filesystem:
        fstype: xfs
        dev: /dev/demovg/demolv
    - name: mount lv
      mount:
        path: /mnt/app
        src: /dev/demovg/demolv
        fstype: xfs
        opts: noatime
        state: mounted

[devops@server1 ansible]$ ansible-playbook lvs.yml

8.分区

[root@server1 ~]# ansible-doc part
[devops@server1 ansible]$ cp lvs.yml parted.yml
[devops@server1 ansible]$ vim p
parted.yml     playbook2.yml  playbook3.yml  playbook4.yml  playbook5.yml  playbook.yml
[devops@server1 ansible]$ vim parted.yml
---
- hosts: server3
  tasks:
    - name: Create a new primary
      parted:
        device: /dev/vdb
        number: 1
        state: present
        part_end: 1GiB

    - name: create xfs filesystem
      filesystem:
        fstype: xfs
        dev: /dev/vdb1
        force: yes

    - name: mount lv
      mount:
        path: /mnt/app
        src: /dev/vdb1
        fstype: xfs
        opts: noatime
        state: mounted

[devops@server1 ansible]$ ansible-playbook parted.yml
