1. 简介

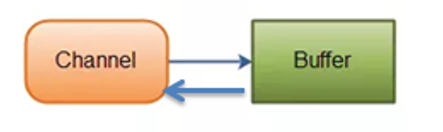

1.1 Channel

Channel 称为通道，可以异步读写数据，可以从 Buffer（缓冲区）读写数据
在这里插入图片描述

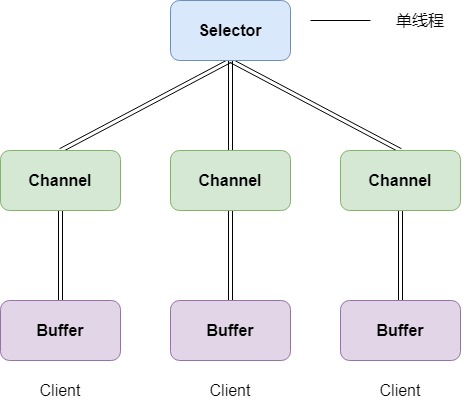

1.1 Selector

Selector 能够检测多个 Channel（通道）是否有事件发生。如果有事件发生，可以取到事件的Channel进行处理。如果没有事件，就持续阻塞等待。

在这里插入图片描述
NIO基础知识这里就不过多介绍了，下面直接上实例

2. 群聊通讯

2.1 实现目标

搭建服务端，接收客户端连接，接收客户端消息并进行消息转发
搭建客户端，启动后连接服务端，可以发送消息，也可以接受其他客户端的消息（服务端转发的消息）

2.2 服务端Server

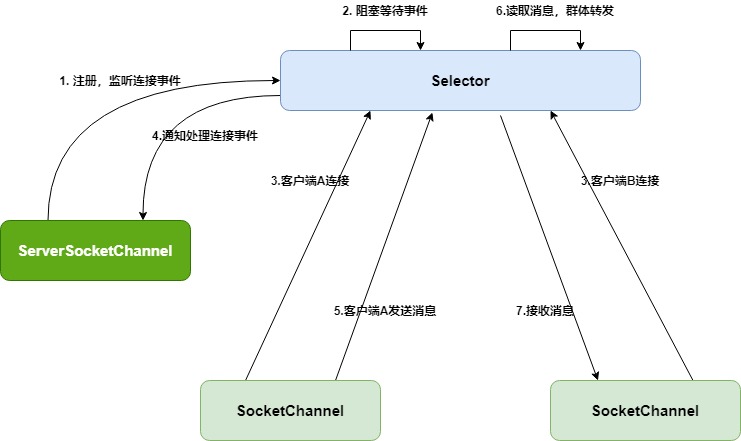

2.2.1 流程图

在这里插入图片描述

2.2.2 服务端源码

public class MultiChatServer {



    private Selector selector;
    private ServerSocketChannel serverSocketChannel;
    private static final int PORT = 6666;

    public static void main(String[] args) {


        MultiChatServer server = new MultiChatServer();
        server.start();
    }

    public MultiChatServer(){


        try {


        	//创建Selector
            selector = Selector.open();

			//创建ServerSocketChannel
            serverSocketChannel = ServerSocketChannel.open();
            serverSocketChannel.socket().bind(new InetSocketAddress(PORT));
            serverSocketChannel.configureBlocking(false);

            //ServerSocketChannel注册到Selector，并监听连接事件
            serverSocketChannel.register(selector, SelectionKey.OP_ACCEPT);
        } catch (IOException e) {


            e.printStackTrace();
        }
    }

	//服务开始
    public void start(){


        System.out.println("服务已启动，等待连接...");
        try {


            while (true) {


            	//Selector获取连接，如果当前没连接，会一直阻塞等待
                selector.select();
                //获取触发事件的SelectionKey，遍历KEY，其实也相当于遍历事件
                Iterator<SelectionKey> iterator = selector.selectedKeys().iterator();
                while (iterator.hasNext()){


                    SelectionKey selKey = iterator.next();
                    //处理事件
                    handleEvent(selKey);
                    //此处要将SelectionKey移除，否则事件会一直存在
                    iterator.remove();
                }
            }
        } catch (IOException e) {


            e.printStackTrace();
        }
    }

    //处理事件
    public void handleEvent(SelectionKey selKey){


       try {


           //连接事件
           if (selKey.isAcceptable()){


           	   //获取连接的客户端SocketChannel，并注册到Selector，监听读取数据事件
               SocketChannel socketChannel = serverSocketChannel.accept();
               socketChannel.configureBlocking(false);
               socketChannel.register(selector,  SelectionKey.OP_READ);
               System.out.println(socketChannel.getRemoteAddress() + " 已连接");
           }
           //读取数据事件
           if (selKey.isReadable()){


           		//通过SelectionKey可以取到对应的SocketChannel，然后也就可以取到ByteBuffer的数据
               SocketChannel socketChannel = (SocketChannel) selKey.channel();
               try {


                   ByteBuffer buffer = ByteBuffer.allocate(1024);
                   while (socketChannel.read(buffer) > 0){


                       String message = new String(buffer.array());
                       System.out.println("服务器接收到消息：" + message);

                       transferToOthers(message, selKey);  //消息转发
                   }
               }
               catch (IOException e){


                   selKey.cancel();
                   socketChannel.close();
               }
           }
       }
       catch (Exception e){


           e.printStackTrace();
       }
    }

    //转发消息给其他客户端
    public void transferToOthers(String message, SelectionKey srcKey) throws IOException {


        Set<SelectionKey> allClients = selector.keys();
        for (SelectionKey clientKey : allClients) {


            SelectableChannel channel = clientKey.channel();
            //排除服务端（ServerSocketChannel）
            if (!(channel instanceof SocketChannel)){


                continue;
            }
            //排除发送该消息的客户端自己
            if (clientKey == srcKey){


                continue;
            }
            SocketChannel socketChannel = (SocketChannel) channel;
            socketChannel.write(ByteBuffer.wrap(message.getBytes()));

        }
    }
}

2.3 客户端Client

2.3.1 客户端源码

public class MultiChatClient {



    private Selector selector;
    private SocketChannel socketChannel;
    private static final String SERVER = "127.0.0.1";
    private static final int PORT = 6666;

    public MultiChatClient(){


        try {


        	//创建Selector
            selector = Selector.open();

			//创建SocketChannel，连接ServerSocketChannel，并注册到Selector
            socketChannel = SocketChannel.open(new InetSocketAddress(SERVER, PORT));
            socketChannel.configureBlocking(false);
            socketChannel.register(selector, SelectionKey.OP_READ);
        } catch (IOException e) {


            e.printStackTrace();
        }
    }

    public static void main(String[] args) {


        MultiChatClient client = new MultiChatClient();
        new Thread(() -> {


            client.start();
        }, "ReceiveMsgThread").start();

        try {


            Scanner scanner = new Scanner(System.in);
            while (scanner.hasNextLine()){


                String message = scanner.nextLine();
                client.sendMessage(message);
            }
        }
        catch (Exception e){


            e.printStackTrace();
        }
    }

    public void start(){


        try {


            //selector 不断监听事件
            while (selector.select() > 0){


                //遍历事件
                Iterator<SelectionKey> iterator = selector.selectedKeys().iterator();
                while (iterator.hasNext()){


                    SelectionKey selKey = iterator.next();
                    handle(selKey);
                    iterator.remove();
                }
            }
        }
        catch (Exception e){


            e.printStackTrace();
        }
    }

    //处理事件
    public void handle(SelectionKey selKey) throws IOException {


        if (selKey.isReadable()){


            SocketChannel channel = (SocketChannel) selKey.channel();
            ByteBuffer buffer = ByteBuffer.allocate(1024);
            channel.read(buffer);
            String message = new String(buffer.array());
            System.out.println(message);
        }
    }

	//发送消息
    public void sendMessage(String message) throws IOException {


        if (message.equals("quit")){


            socketChannel.close();
            socketChannel = null;
            return;
        }
        String sendMsg = socketChannel.getLocalAddress() + "：" + message;
        socketChannel.write(ByteBuffer.wrap(sendMsg.getBytes()));
    }
}
