从源码分析SpringMVC核心处理流程

引言

之前我们都是从一些官方文档或者是博客中了解了springMVC的整个处理流程，并且在前面博客我们也自己动手模拟了一个简单的springMVC容器，那么今天我们就对照流程图从源码分析一下S pringMVC的核心处理流程。

一、SpringMVC处理流程图



这张图已经非常清楚的画除了整个SpringMVC的处理流程，里面还写出了每个处理环节当中的类，当然如果没有 分析过源码，那么上面的图看起来会非常的乱。尤其是里面的一些核心类，所以如果想很愉快的欣赏上面的 流程图，就需要我们看过几遍源码。

二、DispatcherServlet 核心处理流程

DispatcherServlet  其实就是一个普通的servlet，所以当一个请求来到servlet的时候，肯定首先会进入service()方法，所以我们的入口方法肯定是service()方法：

进入DispatcherServlet方法：

public class DispatcherServlet extends FrameworkServlet

我们在DispatcherServlet方法中我们没有发现service方法，所以肯定在父类的FrameworkServlet类中

@Override
	protected void service(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {

		HttpMethod httpMethod = HttpMethod.resolve(request.getMethod());
		if (httpMethod == HttpMethod.PATCH || httpMethod == null) {
			processRequest(request, response);
		}
		else {
			super.service(request, response);
		}
	}

从上面代码中我们会发现它继续调用了父类的service方法，所以我们继续进入到HttpServlet类中，在这个类中会见到我们非常熟悉的代码，也就是处理我们常见的几种处理方法：GET  HEAD DELETE POST PUT等。

  protected void service(HttpServletRequest req, HttpServletResponse resp)
        throws ServletException, IOException
    {
        String method = req.getMethod();

        if (method.equals(METHOD_GET)) {
            long lastModified = getLastModified(req);
            if (lastModified == -1) {
                // servlet doesn't support if-modified-since, no reason
                // to go through further expensive logic
                doGet(req, resp);
            } else {
                long ifModifiedSince = req.getDateHeader(HEADER_IFMODSINCE);
                if (ifModifiedSince < lastModified) {
                    // If the servlet mod time is later, call doGet()
                    // Round down to the nearest second for a proper compare
                    // A ifModifiedSince of -1 will always be less
                    maybeSetLastModified(resp, lastModified);
                    doGet(req, resp);
                } else {
                    resp.setStatus(HttpServletResponse.SC_NOT_MODIFIED);
                }
            }

        }
。。。。。。。。。。。
}

这里我们分析Get请求，当我们进入到源码以后会发现，get方法比其他的方法复杂一点，这是因为在get 和 head 方法里面处理一个缓存，也就是这个 lastModified，这在我们前后端分离之前会用到，也就是提高get请求的性能，类似时间戳的作用。这个东西在现在的前后端分离的架构中不是很重要了。

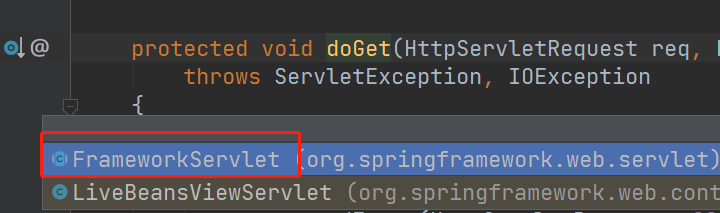

下面我们就开始进入找到get请求的主要实现里面：

这样我们进入到一个processRequest方法，在doservice() 方法之前都是完成一些属性赋值。doservice()就是我们的核心方法

protected final void processRequest(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {

		long startTime = System.currentTimeMillis();
		Throwable failureCause = null;

		LocaleContext previousLocaleContext = LocaleContextHolder.getLocaleContext();
		LocaleContext localeContext = buildLocaleContext(request);

        //赋值一些属性 RequestAttributes  非常熟悉哈
		RequestAttributes previousAttributes = RequestContextHolder.getRequestAttributes();
		ServletRequestAttributes requestAttributes = buildRequestAttributes(request, response, previousAttributes);

		WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);
		asyncManager.registerCallableInterceptor(FrameworkServlet.class.getName(), new RequestBindingInterceptor());

		initContextHolders(request, localeContext, requestAttributes);

		try {
            //核心方法
			doService(request, response);
		}
		catch (ServletException | IOException ex) {
			failureCause = ex;
			throw ex;
		}
		catch (Throwable ex) {
			failureCause = ex;
			throw new NestedServletException("Request processing failed", ex);
		}

		finally {
			resetContextHolders(request, previousLocaleContext, previousAttributes);
			if (requestAttributes != null) {
				requestAttributes.requestCompleted();
			}
			logResult(request, response, failureCause, asyncManager);
			publishRequestHandledEvent(request, response, startTime, failureCause);
		}
	}

进入doService()核心方法：

@Override
	protected void doService(HttpServletRequest request, HttpServletResponse response) throws Exception {
		logRequest(request);

		。。。。。。。。。。
		//省略的代码主要是往request对象中赋值属性
		try {
			//核心代码
			doDispatch(request, response);
		}

	}

三、doDispatch()核心方法

核心执行流程图：



开始分析doDispatch()核心方法，这里面完成核心流程，先来总体分析一下里面的几个核心方法，我都已经添加了注释，其实就是我们自己手写框架的时候实现的几个步骤。

protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
		HttpServletRequest processedRequest = request;
		HandlerExecutionChain mappedHandler = null;
		boolean multipartRequestParsed = false;

		WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);

		try {
			ModelAndView mv = null;
			Exception dispatchException = null;

			try {
				//检查文件上传
				processedRequest = checkMultipart(request);
				multipartRequestParsed = (processedRequest != request);

				// Determine handler for the current request.
				//获得处理器HandlerMapping，这里返回的不在单个的HandlerMapping，而是HandlerExecutionChain 处理器+拦截器链
				mappedHandler = getHandler(processedRequest);
				if (mappedHandler == null) {
					noHandlerFound(processedRequest, response);
					return;
				}

				// Determine handler adapter for the current request.
				//获得对应的 适配器
				HandlerAdapter ha = getHandlerAdapter(mappedHandler.getHandler());

				// Process last-modified header, if supported by the handler.
				String method = request.getMethod();
				boolean isGet = "GET".equals(method);
				if (isGet || "HEAD".equals(method)) {
					long lastModified = ha.getLastModified(request, mappedHandler.getHandler());
					if (new ServletWebRequest(request, response).checkNotModified(lastModified) && isGet) {
						return;
					}
				}

				//执行拦截器前
				if (!mappedHandler.applyPreHandle(processedRequest, response)) {
					return;
				}

				// Actually invoke the handler.
				//执行具体的处理器逻辑
				mv = ha.handle(processedRequest, response, mappedHandler.getHandler());

				if (asyncManager.isConcurrentHandlingStarted()) {
					return;
				}

				applyDefaultViewName(processedRequest, mv);
				//执行拦截器中方法
				mappedHandler.applyPostHandle(processedRequest, response, mv);
			}
			catch (Exception ex) {
				dispatchException = ex;
			}
			catch (Throwable err) {
				// As of 4.3, we're processing Errors thrown from handler methods as well,
				// making them available for @ExceptionHandler methods and other scenarios.
				dispatchException = new NestedServletException("Handler dispatch failed", err);
			}
			// 处理返回结果和视图
			processDispatchResult(processedRequest, response, mappedHandler, mv, dispatchException);
		}
		catch (Exception ex) {
			triggerAfterCompletion(processedRequest, response, mappedHandler, ex);
		}
		catch (Throwable err) {
			triggerAfterCompletion(processedRequest, response, mappedHandler,
					new NestedServletException("Handler processing failed", err));
		}
		finally {
			if (asyncManager.isConcurrentHandlingStarted()) {
				// Instead of postHandle and afterCompletion
				if (mappedHandler != null) {
					mappedHandler.applyAfterConcurrentHandlingStarted(processedRequest, response);
				}
			}
			else {
				// Clean up any resources used by a multipart request.
				if (multipartRequestParsed) {
					cleanupMultipart(processedRequest);
				}
			}
		}
	}

1） 首先我们进入到 mappedHandler = getHandler(processedRequest); 这个方法，也就是完成根据URI获得处理器映射器的流程：

//这个代码是不是非常的熟悉，和我们手写框架中的代码几乎一样
@Nullable
	protected HandlerExecutionChain getHandler(HttpServletRequest request) throws Exception {
		if (this.handlerMappings != null) {
			for (HandlerMapping mapping : this.handlerMappings) {
                //获得对应的处理器+拦截器链
				HandlerExecutionChain handler = mapping.getHandler(request);
				if (handler != null) {
					return handler;
				}
			}
		}
		return null;
	}

2、mapping.getHandler(request)；具体实现逻辑在模板类AbstractHandlerMapping 实现

@Override
	@Nullable
	public final HandlerExecutionChain getHandler(HttpServletRequest request) throws Exception {
		//获得框架内置的处理器和拦截器链
		Object handler = getHandlerInternal(request);
		if (handler == null) {
			handler = getDefaultHandler();
		}
		if (handler == null) {
			return null;
		}
		// Bean name or resolved handler?
		if (handler instanceof String) {
			String handlerName = (String) handler;
			handler = obtainApplicationContext().getBean(handlerName);
		}
		//获得完整的链 核心方法
		HandlerExecutionChain executionChain = getHandlerExecutionChain(handler, request);

		if (logger.isTraceEnabled()) {
			logger.trace("Mapped to " + handler);
		}
		else if (logger.isDebugEnabled() && !request.getDispatcherType().equals(DispatcherType.ASYNC)) {
			logger.debug("Mapped to " + executionChain.getHandler());
		}

		if (hasCorsConfigurationSource(handler) || CorsUtils.isPreFlightRequest(request)) {
			CorsConfiguration config = (this.corsConfigurationSource != null ? this.corsConfigurationSource.getCorsConfiguration(request) : null);
			CorsConfiguration handlerConfig = getCorsConfiguration(handler, request);
			config = (config != null ? config.combine(handlerConfig) : handlerConfig);
			executionChain = getCorsHandlerExecutionChain(request, executionChain, config);
		}

		return executionChain;
	}

3、getHandlerExecutionChain(handler, request);

protected HandlerExecutionChain getHandlerExecutionChain(Object handler, HttpServletRequest request) {
		//获得HandlerExecutionChain对象，HandlerExecutionChain构造器方法合并interceptors到interceptorList
		HandlerExecutionChain chain = (handler instanceof HandlerExecutionChain ?
				(HandlerExecutionChain) handler : new HandlerExecutionChain(handler));

		String lookupPath = this.urlPathHelper.getLookupPathForRequest(request, LOOKUP_PATH);
		// 将adaptedInterceptors添加到chain中，并存入到initInterceptorList中
		for (HandlerInterceptor interceptor : this.adaptedInterceptors) {
			if (interceptor instanceof MappedInterceptor) {
				MappedInterceptor mappedInterceptor = (MappedInterceptor) interceptor;
				if (mappedInterceptor.matches(lookupPath, this.pathMatcher)) {
					chain.addInterceptor(mappedInterceptor.getInterceptor());
				}
			}
			else {
				chain.addInterceptor(interceptor);
			}
		}
		return chain;
	}

 上面几个核心方法我们获得了处理器，下面我们需要根据 处理器获得对应的适配器。

4、getHandlerAdapter(mappedHandler.getHandler());获得适配器

protected HandlerAdapter getHandlerAdapter(Object handler) throws ServletException {
		if (this.handlerAdapters != null) {
			for (HandlerAdapter adapter : this.handlerAdapters) {
				if (adapter.supports(handler)) {
					return adapter;
				}
			}
		}
		throw new ServletException("No adapter for handler [" + handler +
				"]: The DispatcherServlet configuration needs to include a HandlerAdapter that supports this handler");
	}

上面的方法我们就会非常的熟悉，获得适配器的代码和我们自己手写的框架中的代码是一样的。

5、mappedHandler.applyPreHandle(processedRequest, response)；执行拦截器前方法，在执行具体的处理逻辑之前执行

boolean applyPreHandle(HttpServletRequest request, HttpServletResponse response) throws Exception {
		//获得拦截器
		HandlerInterceptor[] interceptors = getInterceptors();
		if (!ObjectUtils.isEmpty(interceptors)) {
			for (int i = 0; i < interceptors.length; i++) {
				HandlerInterceptor interceptor = interceptors[i];
				//执行拦截器前方法，
				if (!interceptor.preHandle(request, response, this.handler)) {
					//执行拦截器后方法，规范上有规定，拦截器后的方法必须执行一次
					triggerAfterCompletion(request, response, null);
					return false;
				}
				this.interceptorIndex = i;
			}
		}
		return true;
	}

6、mv = ha.handle(processedRequest, response, mappedHandler.getHandler()); 执行具体业务逻辑

7、处理以后逻辑

//渲染视图
applyDefaultViewName(processedRequest, mv);
//执行拦截中的方法
mappedHandler.applyPostHandle(processedRequest, response, mv);
//处理返回值逻辑
rocessDispatchResult(processedRequest, response, mappedHandler, mv, dispatchException);

四、小结

本文从源码分析了springmvc的执行流程，通过这次分析，对于整个执行流程有了更深入的了解， 重要的是培养我们阅读源码的习惯。
