Linux操作系统学习笔记（二十二）网络通信之发包

一. 简介

  本文将分析网络协议栈发包的整个流程，根据顺序我们将依次介绍套接字文件系统、传输层、网络层、数据链路层、硬件设备层的相关发包处理流程，内容较多较复杂，主要掌握整个流程即可。

二. 套接字文件系统

  在前文中已经介绍了套接字socket和文件描述符fd以及对应的文件file的关系。在用户态使用网络编程的时候，我们可以采用write()和read()的方式通过文件描述符写入。套接字文件系统的操作定义如下，读对应的是sock_read_iter()，写对应的是sock_read_iter()

static const struct file_operations socket_file_ops = {


    .owner =  THIS_MODULE,
    .llseek =  no_llseek,
    .read_iter =  sock_read_iter,
    .write_iter =  sock_write_iter,
    .poll =    sock_poll,
    .unlocked_ioctl = sock_ioctl,
    .mmap =    sock_mmap,
    .release =  sock_close,
    .fasync =  sock_fasync,
    .sendpage =  sock_sendpage,
    .splice_write = generic_splice_sendpage,
    .splice_read =  sock_splice_read,
};

  sock_write_iter()首先从文件file中取的对应的套接字sock，接着调用sock_sendmsg()发送消息。sock_sendmsg()则调用定义在inet_stream_ops中的sendmsg()函数，即inet_sendmsg()。inet_sendmsg()会获取协议对应的sendmsg()函数并调用，对于TCP来说则是tcp_sendmsg()。

static ssize_t sock_write_iter(struct kiocb *iocb, struct iov_iter *from)
{


	struct file *file = iocb->ki_filp;
	struct socket *sock = file->private_data;
	struct msghdr msg = {

    .msg_iter = *from,
			     .msg_iocb = iocb};
	ssize_t res;
......
	res = sock_sendmsg(sock, &msg);
	*from = msg.msg_iter;
	return res;
}

static inline int sock_sendmsg_nosec(struct socket *sock, struct msghdr *msg)
{


    int ret = sock->ops->sendmsg(sock, msg, msg_data_left(msg));
    ......
}

int inet_sendmsg(struct socket *sock, struct msghdr *msg, size_t size)
{


	struct sock *sk = sock->sk;
......
	return sk->sk_prot->sendmsg(sk, msg, size);
}

三. TCP层

  通过前文分析我们知道sk_buff存放了所有需要发送的数据包，因此来自于用户态的msg也需要填写至其中。tcp_sendmsg()需要首先要分配空闲的sk_buff并拷贝msg，接着需要将该消息发送出去。其中消息的拷贝考虑到可能较长需要分片，因此会循环分配，循环主要逻辑为：

• 调用tcp_send_mss()计算MSS大小，
• 调用tcp_write_queue_tail()获取sk_buff链表最后一项，因为可能还有剩余空间。
• copy小于0说明当前sk_buff并无可用空间，因此需要调用 sk_stream_alloc_skb()重新分配 sk_buff，然后调用 skb_entail()将新分配的 sk_buff 放到队列尾部，copy赋值为size_goal
• 由于sk_buff存在连续数据区域和离散的数据区skb_shared_info，因此需要分别讨论。调用 skb_add_data_nocache()可以 将数据拷贝到连续的数据区域。调用skb_copy_to_page_nocache() 则将数据拷贝到 struct skb_shared_info 结构指向的不需要连续的页面区域。
• 根据上面得到的sk_buff进行发送。如果累积了较多的数据包，则调用__tcp_push_pending_frames()发送，如果是第一个包则调用tcp_push_one()。二者最后均会调用tcp_write_xmit发送。

int tcp_sendmsg(struct sock *sk, struct msghdr *msg, size_t size)
{


	int ret;
	lock_sock(sk);
	ret = tcp_sendmsg_locked(sk, msg, size);
	release_sock(sk);
	return ret;
}

int tcp_sendmsg_locked(struct sock *sk, struct msghdr *msg, size_t size)
{


	struct tcp_sock *tp = tcp_sk(sk);
	struct ubuf_info *uarg = NULL;
	struct sk_buff *skb;
	struct sockcm_cookie sockc;
	int flags, err, copied = 0;
	int mss_now = 0, size_goal, copied_syn = 0;
	bool process_backlog = false;
	bool zc = false;
	long timeo;
......
	/* Ok commence sending. */
	copied = 0;
restart:
	mss_now = tcp_send_mss(sk, &size_goal, flags);
	err = -EPIPE;
	if (sk->sk_err || (sk->sk_shutdown & SEND_SHUTDOWN))
		goto do_error;
	while (msg_data_left(msg)) {


		int copy = 0;
		skb = tcp_write_queue_tail(sk);
		if (skb)
			copy = size_goal - skb->len;
		if (copy <= 0 || !tcp_skb_can_collapse_to(skb)) {


			bool first_skb;
			int linear;
......
			first_skb = tcp_rtx_and_write_queues_empty(sk);
			linear = select_size(first_skb, zc);
			skb = sk_stream_alloc_skb(sk, linear, sk->sk_allocation,
						  first_skb);
......
			skb_entail(sk, skb);
			copy = size_goal;
......
		}
		/* Try to append data to the end of skb. */
		if (copy > msg_data_left(msg))
			copy = msg_data_left(msg);
		/* Where to copy to? */
		if (skb_availroom(skb) > 0 && !zc) {


			/* We have some space in skb head. Superb! */
			copy = min_t(int, copy, skb_availroom(skb));
			err = skb_add_data_nocache(sk, skb, &msg->msg_iter, copy);
......
		} else if (!zc) {


......
			err = skb_copy_to_page_nocache(sk, &msg->msg_iter, skb,
						       pfrag->page,
						       pfrag->offset,
						       copy);
......
			/* Update the skb. */
			if (merge) {


				skb_frag_size_add(&skb_shinfo(skb)->frags[i - 1], copy);
			} else {


				skb_fill_page_desc(skb, i, pfrag->page,
						   pfrag->offset, copy);
				page_ref_inc(pfrag->page);
			}
			pfrag->offset += copy;
......
		if (!copied)
			TCP_SKB_CB(skb)->tcp_flags &= ~TCPHDR_PSH;
		tp->write_seq += copy;
		TCP_SKB_CB(skb)->end_seq += copy;
		tcp_skb_pcount_set(skb, 0);
		copied += copy;
		if (!msg_data_left(msg)) {


			if (unlikely(flags & MSG_EOR))
				TCP_SKB_CB(skb)->eor = 1;
			goto out;
		}
		if (skb->len < size_goal || (flags & MSG_OOB) || unlikely(tp->repair))
			continue;
		if (forced_push(tp)) {


			tcp_mark_push(tp, skb);
			__tcp_push_pending_frames(sk, mss_now, TCP_NAGLE_PUSH);
		} else if (skb == tcp_send_head(sk))
			tcp_push_one(sk, mss_now);
......
		mss_now = tcp_send_mss(sk, &size_goal, flags);
	}
......
}

  tcp_write_xmit()的核心部分为一个循环，每次调用tcp_send_head()获取头部sk_buff，若已经读完则退出循环。循环内逻辑为：

• 调用tcp_init_tso_segs()进行TSO（TCP Segmentation Offload）相关工作。当需要发送较大的网络包的时候，我们可以选择在协议栈中进行分段，也可以选择延迟到硬件网卡去进行自动分段以降低CPU负载。
• 调用tcp_cwnd_test()检查现在拥塞窗口是否允许发包，如果允许，返回可以发送多少个sk_buff。
• 调用tcp_snd_wnd_test()检测当前第一个sk_buff的序列号是否满足要求： sk_buff 中的 end_seq 和 tcp_wnd_end(tp) 之间的关系，也即这个 sk_buff 是否在滑动窗口的允许范围之内。
• tso_segs为1可能是nagle协议导致，需要进行判断。其次需要判断TSO是否延迟到硬件网卡进行。
• 调用tcp_mss_split_point()判断是否会因为超出 mss 而分段，还会判断另一个条件，就是是否在滑动窗口的运行范围之内，如果小于窗口的大小，也需要分段，也即需要调用 tso_fragment()。
• 调用tcp_small_queue_check()检查是否需要采取小队列：TCP小队列对每个TCP数据流中，能够同时参与排队的字节数做出了限制，这个限制是通过net.ipv4.tcp_limit_output_bytes内核选项实现的。当TCP发送的数据超过这个限制时，多余的数据会被放入另外一个队列中，再通过tastlet机制择机发送。由于该限制的存在，TCP通过一味增大缓冲区的方式是无法发出更多的数据包的。
• 调用tcp_transmit_skb()完成sk_buff的真正发送工作。

static bool tcp_write_xmit(struct sock *sk, unsigned int mss_now, int nonagle,
			   int push_one, gfp_t gfp)
{


	struct tcp_sock *tp = tcp_sk(sk);
	struct sk_buff *skb;
	unsigned int tso_segs, sent_pkts;
	int cwnd_quota;
......
	max_segs = tcp_tso_segs(sk, mss_now);
	while ((skb = tcp_send_head(sk))) {


		unsigned int limit;
......
		tso_segs = tcp_init_tso_segs(skb, mss_now);
......
		cwnd_quota = tcp_cwnd_test(tp, skb);
......
		if (unlikely(!tcp_snd_wnd_test(tp, skb, mss_now))) {


			is_rwnd_limited = true;
			break;
		}
		if (tso_segs == 1) {


			if (unlikely(!tcp_nagle_test(tp, skb, mss_now,
						     (tcp_skb_is_last(sk, skb) ?
						      nonagle : TCP_NAGLE_PUSH))))
				break;
		} else {


			if (!push_one &&
			    tcp_tso_should_defer(sk, skb, &is_cwnd_limited,
						 &is_rwnd_limited, max_segs))
				break;
		}
		limit = mss_now;
		if (tso_segs > 1 && !tcp_urg_mode(tp))
			limit = tcp_mss_split_point(sk, skb, mss_now,
						    min_t(unsigned int, cwnd_quota, max_segs), nonagle);
		if (skb->len > limit &&
		    unlikely(tso_fragment(sk, skb, limit, mss_now, gfp)))
			break;
		if (tcp_small_queue_check(sk, skb, 0))
			break;
		if (unlikely(tcp_transmit_skb(sk, skb, 1, gfp)))
			break;
repair:
		/* Advance the send_head.  This one is sent out.
		 * This call will increment packets_out.
		 */
		tcp_event_new_data_sent(sk, skb);
		tcp_minshall_update(tp, mss_now, skb);
		sent_pkts += tcp_skb_pcount(skb);
		if (push_one)
			break;
	}
......
}

  tcp_transmit_skb()函数主要完成TCP头部的填充。这里面有源端口，设置为 inet_sport，有目标端口，设置为 inet_dport；有序列号，设置为 tcb->seq；有确认序列号，设置为 tp->rcv_nxt。所有的 flags 设置为 tcb->tcp_flags。设置选项为 opts。设置窗口大小为 tp->rcv_wnd。完成之后调用 icsk_af_ops 的 queue_xmit() 方法，icsk_af_ops 指向 ipv4_specific，也即调用的是 ip_queue_xmit() 函数，进入IP层。

static int tcp_transmit_skb(struct sock *sk, struct sk_buff *skb, int clone_it,
                gfp_t gfp_mask)
{


    const struct inet_connection_sock *icsk = inet_csk(sk);
    struct inet_sock *inet;
    struct tcp_sock *tp;
    struct tcp_skb_cb *tcb;
    struct tcphdr *th;
    int err;

    tp = tcp_sk(sk);

    skb->skb_mstamp = tp->tcp_mstamp;
    inet = inet_sk(sk);
    tcb = TCP_SKB_CB(skb);
    memset(&opts, 0, sizeof(opts));

    tcp_header_size = tcp_options_size + sizeof(struct tcphdr);
    skb_push(skb, tcp_header_size);

    /* Build TCP header and checksum it. */
    th = (struct tcphdr *)skb->data;
    th->source      = inet->inet_sport;
    th->dest        = inet->inet_dport;
    th->seq         = htonl(tcb->seq);
    th->ack_seq     = htonl(tp->rcv_nxt);
    *(((__be16 *)th) + 6)   = htons(((tcp_header_size >> 2) << 12) |
                    tcb->tcp_flags);

    th->check       = 0;
    th->urg_ptr     = 0;
......
    tcp_options_write((__be32 *)(th + 1), tp, &opts);
    th->window  = htons(min(tp->rcv_wnd, 65535U));
......
    err = icsk->icsk_af_ops->queue_xmit(sk, skb, &inet->cork.fl);
......
}

四. IP层

  ip_queue_xmit()实际调用__ip_queue_xmit()，其逻辑为

• 调用ip_route_output_ports()选取路由，也即我要发送这个包应该从哪个网卡出去
• 填充IP层头部。在这里面，服务类型设置为 tos，标识位里面设置是否允许分片 frag_off。如果不允许，而遇到 MTU 太小过不去的情况，就发送 ICMP 报错。TTL 是这个包的存活时间，为了防止一个 IP 包迷路以后一直存活下去，每经过一个路由器 TTL 都减一，减为零则“死去”。设置 protocol，指的是更上层的协议，这里是 TCP。源地址和目标地址由 ip_copy_addrs() 设置。最后设置 options。
• 调用ip_local_out()发送IP包

/* Note: skb->sk can be different from sk, in case of tunnels */
int __ip_queue_xmit(struct sock *sk, struct sk_buff *skb, struct flowi *fl,
		    __u8 tos)
{


	struct inet_sock *inet = inet_sk(sk);
	struct net *net = sock_net(sk);
	struct ip_options_rcu *inet_opt;
	struct flowi4 *fl4;
	struct rtable *rt;
	struct iphdr *iph;
	int res;
......
	inet_opt = rcu_dereference(inet->inet_opt);
	fl4 = &fl->u.ip4;
	rt = skb_rtable(skb);
	if (rt)
		goto packet_routed;
	/* Make sure we can route this packet. */
	rt = (struct rtable *)__sk_dst_check(sk, 0);
	if (!rt) {


		__be32 daddr;
		/* Use correct destination address if we have options. */
		daddr = inet->inet_daddr;
......
		rt = ip_route_output_ports(net, fl4, sk,
					   daddr, inet->inet_saddr,
					   inet->inet_dport,
					   inet->inet_sport,
					   sk->sk_protocol,
					   RT_CONN_FLAGS_TOS(sk, tos),
					   sk->sk_bound_dev_if);
		if (IS_ERR(rt))
			goto no_route;
		sk_setup_caps(sk, &rt->dst);
	}
	skb_dst_set_noref(skb, &rt->dst);
packet_routed:
	if (inet_opt && inet_opt->opt.is_strictroute && rt->rt_uses_gateway)
		goto no_route;
	/* OK, we know where to send it, allocate and build IP header. */
	skb_push(skb, sizeof(struct iphdr) + (inet_opt ? inet_opt->opt.optlen : 0));
	skb_reset_network_header(skb);
	iph = ip_hdr(skb);
	*((__be16 *)iph) = htons((4 << 12) | (5 << 8) | (tos & 0xff));
	if (ip_dont_fragment(sk, &rt->dst) && !skb->ignore_df)
		iph->frag_off = htons(IP_DF);
	else
		iph->frag_off = 0;
	iph->ttl      = ip_select_ttl(inet, &rt->dst);
	iph->protocol = sk->sk_protocol;
	ip_copy_addrs(iph, fl4);
	/* Transport layer set skb->h.foo itself. */
	if (inet_opt && inet_opt->opt.optlen) {


		iph->ihl += inet_opt->opt.optlen >> 2;
		ip_options_build(skb, &inet_opt->opt, inet->inet_daddr, rt, 0);
	}
	ip_select_ident_segs(net, skb, sk,
			     skb_shinfo(skb)->gso_segs ?: 1);
	/* TODO : should we use skb->sk here instead of sk ? */
	skb->priority = sk->sk_priority;
	skb->mark = sk->sk_mark;
	res = ip_local_out(net, sk, skb);
	rcu_read_unlock();
......
}

  下面看看选取路由的部分，其调用链为ip_route_output_ports()->ip_route_output_flow()->__ip_route_output_key()->ip_route_output_key_hash()->ip_route_output_key_hash_rcu()。最终会先调用fib_lookup()进行路由查找，接着会调用__mkroute_output()创建rtable结构体实例rth表示找到的路由表项并返回。

struct rtable *ip_route_output_key_hash_rcu(struct net *net, struct flowi4 *fl4, struct fib_result *res, const struct sk_buff *skb)
{


    struct net_device *dev_out = NULL;
    int orig_oif = fl4->flowi4_oif;
    unsigned int flags = 0;
    struct rtable *rth;
......
     err = fib_lookup(net, fl4, res, 0);
......
make_route:
    rth = __mkroute_output(res, fl4, orig_oif, dev_out, flags);
......
}

  fib_lookup()首先调用fib_get_table()获取对应的路由表，接着调用fib_table_lookup()在路由表中找寻对应的路由。由于IP本身是点分十进制的数，所以在路由表中实际采取的是Trie树结构体进行存储以便于查找匹配。通过Trie树可以完美契合IP地址的分类方式，迅速找到符合的路由。

static inline int fib_lookup(struct net *net, const struct flowi4 *flp, struct fib_result *res, unsigned int flags)
{


    struct fib_table *tb;
......
    tb = fib_get_table(net, RT_TABLE_MAIN);
    if (tb)
        err = fib_table_lookup(tb, flp, res, flags | FIB_LOOKUP_NOREF);
......
}

 ip_local_out()首先调用__ip_local_out()，实际调用nf_hook()，nf_hook()是大名鼎鼎的netfilter在IP层注册的钩子函数的位置。接着会调用dst_output()进行数据发送。

int ip_local_out(struct net *net, struct sock *sk, struct sk_buff *skb)
{


  int err;

  err = __ip_local_out(net, sk, skb);
  if (likely(err == 1))
    err = dst_output(net, sk, skb);

  return err;
}

int __ip_local_out(struct net *net, struct sock *sk, struct sk_buff *skb)
{


  struct iphdr *iph = ip_hdr(skb);
  iph->tot_len = htons(skb->len);
  skb->protocol = htons(ETH_P_IP);

  return nf_hook(NFPROTO_IPV4, NF_INET_LOCAL_OUT,
           net, sk, skb, NULL, skb_dst(skb)->dev,
           dst_output);
}

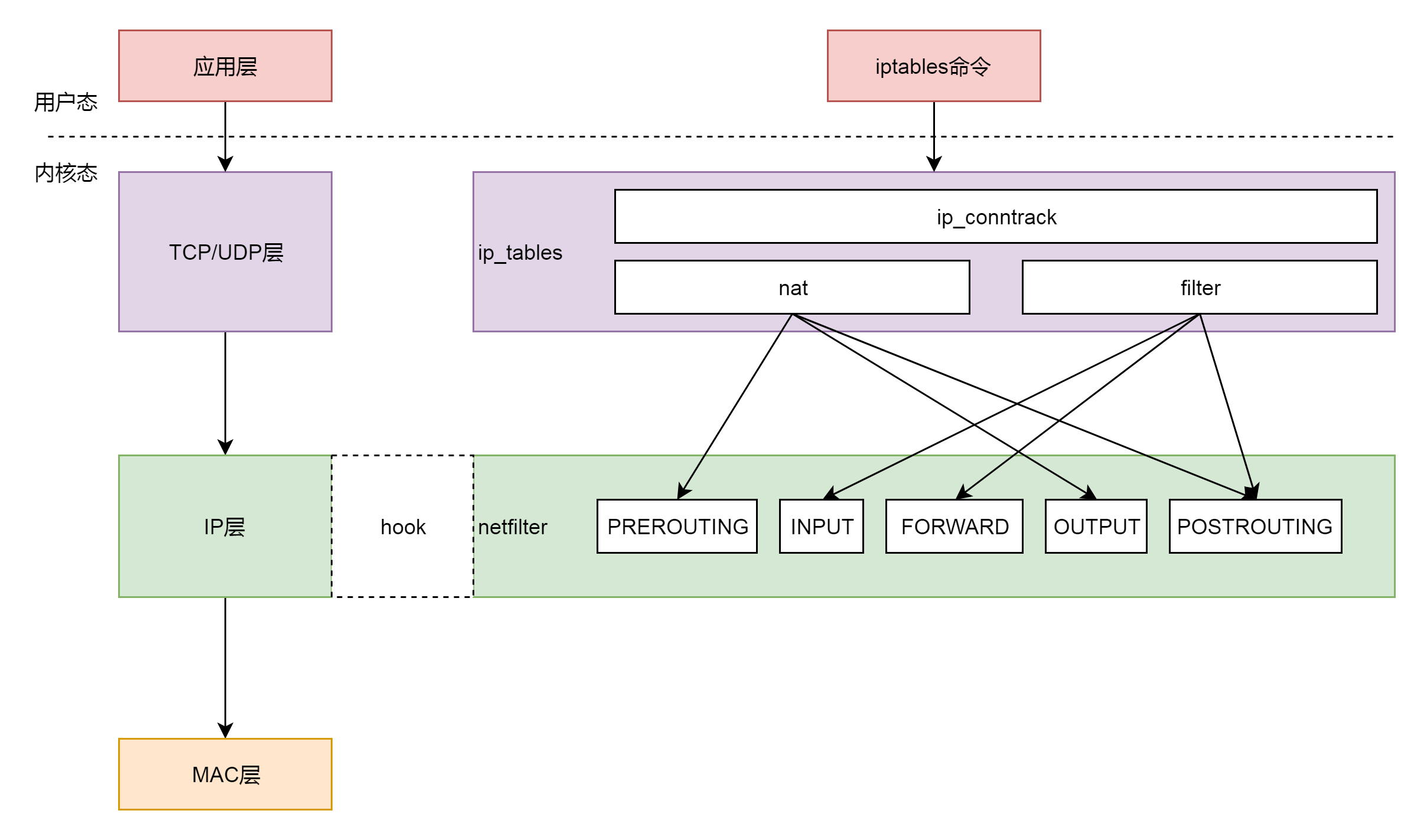

  关于Netfilter，我打算在后面单独开一篇文章详细介绍，因为的确很复杂而且具有研究价值。这里先简单介绍一下。下图是Netfilter和对应的iptables, ip_tables的关系示意图。由此可见，我们可以在用户态通过iptables命令操作，而实际上则是在IP层通过五个挂载点实现控制。

  五个挂载点实际工作位置如下图所示

filter 表处理过滤功能，主要包含以下三个链。

• INPUT 链：过滤所有目标地址是本机的数据包
• FORWARD 链：过滤所有路过本机的数据包
• OUTPUT 链：过滤所有由本机产生的数据包

nat 表主要处理网络地址转换，可以进行 SNAT（改变源地址）、DNAT（改变目标地址），包含以下三个链。

• PREROUTING 链：可以在数据包到达时改变目标地址
• OUTPUT 链：可以改变本地产生的数据包的目标地址
• POSTROUTING 链：在数据包离开时改变数据包的源地址

  在这里，网络包马上就要发出去了，因而是 NF_INET_LOCAL_OUT，也即 ouput 链，如果用户曾经在 iptables 里面写过某些规则，就会在 nf_hook 这个函数里面起作用。

  dst_output()实际调用的就是 struct rtable 成员 dst 的 ouput() 函数。在 rt_dst_alloc() 中，我们可以看到，output() 函数指向的是 ip_output()。

/* Output packet to network from transport.  */
static inline int dst_output(struct net *net, struct sock *sk, struct sk_buff *skb)
{


    return skb_dst(skb)->output(net, sk, skb);
}

int ip_output(struct net *net, struct sock *sk, struct sk_buff *skb)
{


    struct net_device *dev = skb_dst(skb)->dev;
    skb->dev = dev;
    skb->protocol = htons(ETH_P_IP);

    return NF_HOOK_COND(NFPROTO_IPV4, NF_INET_POST_ROUTING,
          net, sk, skb, NULL, dev,
          ip_finish_output,
          !(IPCB(skb)->flags & IPSKB_REROUTED));
}

  在 ip_output 里面我们又看到了熟悉的 NF_HOOK。这一次是 NF_INET_POST_ROUTING，也即 POSTROUTING 链，处理完之后调用 ip_finish_output()进入MAC层。

五. MAC层

  ip_finish_output()实际调用ip_finish_output2()，其主要逻辑为：

• 找到 struct rtable 路由表里面的下一跳，下一跳一定和本机在同一个局域网中，可以通过二层进行通信，因而通过 __ipv4_neigh_lookup_noref()，查找如何通过二层访问下一跳。
• 如果没有找到，则调用__neigh_create()进行创建
• 调用neigh_output()发送网络报

static int ip_finish_output(struct net *net, struct sock *sk, struct sk_buff *skb)
{


......
	return ip_finish_output2(net, sk, skb);
}

static int ip_finish_output2(struct net *net, struct sock *sk, struct sk_buff *skb)
{


	struct dst_entry *dst = skb_dst(skb);
	struct rtable *rt = (struct rtable *)dst;
	struct net_device *dev = dst->dev;
	unsigned int hh_len = LL_RESERVED_SPACE(dev);
	struct neighbour *neigh;
	u32 nexthop;
......
	nexthop = (__force u32) rt_nexthop(rt, ip_hdr(skb)->daddr);
	neigh = __ipv4_neigh_lookup_noref(dev, nexthop);
	if (unlikely(!neigh))
		neigh = __neigh_create(&arp_tbl, &nexthop, dev, false);
	if (!IS_ERR(neigh)) {


		int res;
		sock_confirm_neigh(skb, neigh);
		res = neigh_output(neigh, skb);
		rcu_read_unlock_bh();
		return res;
	}
	rcu_read_unlock_bh();
	net_dbg_ratelimited("%s: No header cache and no neighbour!\n",
			    __func__);
	kfree_skb(skb);
	return -EINVAL;
}

  __ipv4_neigh_lookup_noref()实际调用___neigh_lookup_noref()从本地的 ARP 表中查找下一跳的 MAC 地址，具体做法为获取下一跳哈希值，并在哈希表中找取对应的节点neighbour

static inline struct neighbour *__ipv4_neigh_lookup_noref(struct net_device *dev, u32 key)
{


......
	return ___neigh_lookup_noref(&arp_tbl, neigh_key_eq32, arp_hashfn, &key, dev);
}

static inline struct neighbour *___neigh_lookup_noref( struct neigh_table *tbl,
	bool (*key_eq)(const struct neighbour *n, const void *pkey),
	__u32 (*hash)(const void *pkey, const struct net_device *dev, __u32 *hash_rnd),
	const void *pkey, struct net_device *dev)
{


	struct neigh_hash_table *nht = rcu_dereference_bh(tbl->nht);
	struct neighbour *n;
	u32 hash_val;
	hash_val = hash(pkey, dev, nht->hash_rnd) >> (32 - nht->hash_shift);
	for (n = rcu_dereference_bh(nht->hash_buckets[hash_val]);
	     n != NULL;
	     n = rcu_dereference_bh(n->next)) {


		if (n->dev == dev && key_eq(n, pkey))
			return n;
	}
	return NULL;
}

  其中ARP表neigh_table *arp_tbl定义为

struct neigh_table arp_tbl = {


    .family     = AF_INET,
    .key_len    = 4,
    .protocol   = cpu_to_be16(ETH_P_IP),
    .hash       = arp_hash,
    .key_eq     = arp_key_eq,
    .constructor    = arp_constructor,
    .proxy_redo = parp_redo,
    .id     = "arp_cache",
......
    .gc_interval    = 30 * HZ,
    .gc_thresh1 = 128,
    .gc_thresh2 = 512,
    .gc_thresh3 = 1024,
};

  __neigh_create()逻辑为

• 调用neigh_alloc()创建neighbour结构体用于维护MAC地址和ARP相关的信息
• 调用了 arp_tbl 的 constructor 函数，也即调用了 arp_constructor，在这里面定义了 ARP 的操作 arp_hh_ops
• 将创建的 struct neighbour 结构放入一个哈希表，这是一个数组加链表的链式哈希表，先计算出哈希值 hash_val得到相应的链表，然后循环这个链表找到对应的项，如果找不到就在最后插入一项

struct neighbour *__neigh_create(struct neigh_table *tbl, const void *pkey,
				 struct net_device *dev, bool want_ref)
{


	return ___neigh_create(tbl, pkey, dev, false, want_ref);
}

static struct neighbour *___neigh_create(struct neigh_table *tbl,
					 const void *pkey, struct net_device *dev,
					 bool exempt_from_gc, bool want_ref)
{


	struct neighbour *n1, *rc, *n = neigh_alloc(tbl, dev, exempt_from_gc);
	u32 hash_val;
	unsigned int key_len = tbl->key_len;
	int error;
	struct neigh_hash_table *nht;
......
	/* Protocol specific setup. */
	if (tbl->constructor &&	(error = tbl->constructor(n)) < 0) {


		rc = ERR_PTR(error);
		goto out_neigh_release;
	}
......
	if (atomic_read(&tbl->entries) > (1 << nht->hash_shift))
		nht = neigh_hash_grow(tbl, nht->hash_shift + 1);
	hash_val = tbl->hash(n->primary_key, dev, nht->hash_rnd) >> (32 - nht->hash_shift);
......
	n->dead = 0;
	if (!exempt_from_gc)
		list_add_tail(&n->gc_list, &n->tbl->gc_list);
	if (want_ref)
		neigh_hold(n);
	rcu_assign_pointer(n->next,
			   rcu_dereference_protected(nht->hash_buckets[hash_val],
						     lockdep_is_held(&tbl->lock)));
	rcu_assign_pointer(nht->hash_buckets[hash_val], n);
......
}

static const struct neigh_ops arp_hh_ops = {


    .family = AF_INET,
    .solicit = arp_solicit,
    .error_report = arp_error_report,
    .output = neigh_resolve_output,
    .connected_output = neigh_resolve_output,
};

  在 neigh_alloc() 中，比较重要的有两个成员，一个是 arp_queue，上层想通过 ARP 获取 MAC 地址的任务都放在这个队列里面。另一个是 timer 定时器，设置成过一段时间就调用 neigh_timer_handler()来处理这些 ARP 任务。

static struct neighbour *neigh_alloc(struct neigh_table *tbl, struct net_device *dev)
{


    struct neighbour *n = NULL;
    unsigned long now = jiffies;
    int entries;
......
    n = kzalloc(tbl->entry_size + dev->neigh_priv_len, GFP_ATOMIC);
    if (!n)
        goto out_entries;

    __skb_queue_head_init(&n->arp_queue);
    rwlock_init(&n->lock);
    seqlock_init(&n->ha_lock);
    n->updated    = n->used = now;
    n->nud_state    = NUD_NONE;
    n->output    = neigh_blackhole;
    seqlock_init(&n->hh.hh_lock);
    n->parms    = neigh_parms_clone(&tbl->parms);
    setup_timer(&n->timer, neigh_timer_handler, (unsigned long)n);

    NEIGH_CACHE_STAT_INC(tbl, allocs);
    n->tbl      = tbl;
    refcount_set(&n->refcnt, 1);
    n->dead      = 1;
......
}

  完成了__neigh_create()后，ip_finish_output2()就会调用neigh_output()发送网络包。按照上面对于 struct neighbour 的操作函数 arp_hh_ops 的定义，output 调用的是 neigh_resolve_output()。 neigh_resolve_output() 逻辑为

• 调用 neigh_event_send() 触发一个事件，看能否激活 ARP
• 当 ARP 发送完毕，就可以调用 dev_queue_xmit() 发送二层网络包了。

int neigh_resolve_output(struct neighbour *neigh, struct sk_buff *skb)
{


    if (!neigh_event_send(neigh, skb)) {


......
        rc = dev_queue_xmit(skb);
    }
......
}

  在 __neigh_event_send() 中，激活 ARP 分两种情况，第一种情况是马上激活，也即 immediate_probe()。另一种情况是延迟激活则仅仅设置一个 timer。然后将 ARP 包放在 arp_queue() 上。如果马上激活，就直接调用 neigh_probe()；如果延迟激活，则定时器到了就会触发 neigh_timer_handler()，在这里面还是会调用 neigh_probe()。

static inline int neigh_event_send(struct neighbour *neigh, struct sk_buff *skb)
{


	unsigned long now = jiffies;

	if (neigh->used != now)
		neigh->used = now;
	if (!(neigh->nud_state&(NUD_CONNECTED|NUD_DELAY|NUD_PROBE)))
		return __neigh_event_send(neigh, skb);
	return 0;
}

int __neigh_event_send(struct neighbour *neigh, struct sk_buff *skb)
{


	int rc;
	bool immediate_probe = false;
......
	if (!(neigh->nud_state & (NUD_STALE | NUD_INCOMPLETE))) {


		if (NEIGH_VAR(neigh->parms, MCAST_PROBES) +
		    NEIGH_VAR(neigh->parms, APP_PROBES)) {


			unsigned long next, now = jiffies;
			atomic_set(&neigh->probes, NEIGH_VAR(neigh->parms, UCAST_PROBES));
			neigh->nud_state     = NUD_INCOMPLETE;
			neigh->updated = now;
			next = now + max(NEIGH_VAR(neigh->parms, RETRANS_TIME), HZ/2);
			neigh_add_timer(neigh, next);
			immediate_probe = true;
		} else {


			neigh->nud_state = NUD_FAILED;
			neigh->updated = jiffies;
			write_unlock_bh(&neigh->lock);
			kfree_skb(skb);
			return 1;
		}
	} else if (neigh->nud_state & NUD_STALE) {


		neigh_dbg(2, "neigh %p is delayed\n", neigh);
		neigh->nud_state = NUD_DELAY;
		neigh->updated = jiffies;
		neigh_add_timer(neigh, jiffies +
				NEIGH_VAR(neigh->parms, DELAY_PROBE_TIME));
	}
	if (neigh->nud_state == NUD_INCOMPLETE) {


		if (skb) {


			while (neigh->arp_queue_len_bytes + skb->truesize >
			       NEIGH_VAR(neigh->parms, QUEUE_LEN_BYTES)) {


				struct sk_buff *buff;
				buff = __skb_dequeue(&neigh->arp_queue);
				if (!buff)
					break;
				neigh->arp_queue_len_bytes -= buff->truesize;
				kfree_skb(buff);
				NEIGH_CACHE_STAT_INC(neigh->tbl, unres_discards);
			}
			skb_dst_force(skb);
			__skb_queue_tail(&neigh->arp_queue, skb);
			neigh->arp_queue_len_bytes += skb->truesize;
		}
		rc = 1;
	}
out_unlock_bh:
	if (immediate_probe)
		neigh_probe(neigh);
	else
		write_unlock(&neigh->lock);
......
}

  neigh_probe()会从 arp_queue 中拿出 ARP 包来，然后调用 struct neighbour 的 solicit 操作，即arp_solicit()，最终调用arp_send_dst()创建并发送ARP包，并将结果放在struct dst_entry中。

static void neigh_probe(struct neighbour *neigh)
        __releases(neigh->lock)
{


    struct sk_buff *skb = skb_peek_tail(&neigh->arp_queue);
......
    if (neigh->ops->solicit)
        neigh->ops->solicit(neigh, skb);
......
}

static void arp_send_dst(int type, int ptype, __be32 dest_ip,
                         struct net_device *dev, __be32 src_ip,
                         const unsigned char *dest_hw,
                         const unsigned char *src_hw,
                         const unsigned char *target_hw,
                         struct dst_entry *dst)
{


    struct sk_buff *skb;
......
    skb = arp_create(type, ptype, dest_ip, dev, src_ip,
                         dest_hw, src_hw, target_hw);
......
    skb_dst_set(skb, dst_clone(dst));
    arp_xmit(skb);
}

  当 ARP 发送完毕，就可以调用 dev_queue_xmit() 发送二层网络包了，实际调用__dev_queue_xmit()。

/**
 *  __dev_queue_xmit - transmit a buffer
 *  @skb: buffer to transmit
 *  @accel_priv: private data used for L2 forwarding offload
 *
 *  Queue a buffer for transmission to a network device.
 */
static int __dev_queue_xmit(struct sk_buff *skb, void *accel_priv)
{


    struct net_device *dev = skb->dev;
    struct netdev_queue *txq;
    struct Qdisc *q;
......
    txq = netdev_pick_tx(dev, skb, accel_priv);
    q = rcu_dereference_bh(txq->qdisc);

    if (q->enqueue) {


        rc = __dev_xmit_skb(skb, q, dev, txq);
        goto out;
    }
......
}

  每个块设备都有队列，用于将内核的数据放到队列里面，然后设备驱动从队列里面取出后，将数据根据具体设备的特性发送给设备。网络设备也是类似的，对于发送来说，有一个发送队列 struct netdev_queue *txq。这里还有另一个变量叫做 struct Qdisc，该队列就是大名鼎鼎的流控队列了。经过流控许可发送，最终就会调用__dev_xmit_skb()进行发送。

  __dev_xmit_skb() 会将请求放入队列，然后调用 __qdisc_run() 处理队列中的数据。qdisc_restart 用于数据的发送。qdisc 的另一个功能是用于控制网络包的发送速度，因而如果超过速度，就需要重新调度，则会调用 __netif_schedule()。

static inline int __dev_xmit_skb(struct sk_buff *skb, struct Qdisc *q,
                 struct net_device *dev,
                 struct netdev_queue *txq)
{


......
    rc = q->enqueue(skb, q, &to_free) & NET_XMIT_MASK;
    if (qdisc_run_begin(q)) {


......
        __qdisc_run(q);
    }
......
}

void __qdisc_run(struct Qdisc *q)
{


    int quota = dev_tx_weight;
    int packets;
        while (qdisc_restart(q, &packets)) {


            /*
             * Ordered by possible occurrence: Postpone processing if
             * 1. we've exceeded packet quota
             * 2. another process needs the CPU;
             */
            quota -= packets;
            if (quota <= 0 || need_resched()) {


                __netif_schedule(q);
                break;
            }
        }
    qdisc_run_end(q);
}

  __netif_schedule() 会调用 __netif_reschedule()发起一个软中断 NET_TX_SOFTIRQ。设备驱动程序处理中断分两个过程，一个是屏蔽中断的关键处理逻辑，一个是延迟处理逻辑。工作队列是延迟处理逻辑的处理方案，软中断也是一种方案。在系统初始化的时候，我们会定义软中断的处理函数。例如，NET_TX_SOFTIRQ 的处理函数是 net_tx_action()，用于发送网络包。还有一个 NET_RX_SOFTIRQ 的处理函数是 net_rx_action()，用于接收网络包。

static void __netif_reschedule(struct Qdisc *q)
{


    struct softnet_data *sd;
    unsigned long flags;
    local_irq_save(flags);
    sd = this_cpu_ptr(&softnet_data);
    q->next_sched = NULL;
    *sd->output_queue_tailp = q;
    sd->output_queue_tailp = &q->next_sched;
    raise_softirq_irqoff(NET_TX_SOFTIRQ);
    local_irq_restore(flags);
}

  net_tx_action() 调用了 qdisc_run()，最终和__dev_xmit_skb()一样调用 __qdisc_run()，通过qdisc_restart()完成发包。

static __latent_entropy void net_tx_action(struct softirq_action *h)
{


    struct softnet_data *sd = this_cpu_ptr(&softnet_data);
......
    if (sd->output_queue) {


        struct Qdisc *head;

        local_irq_disable();
        head = sd->output_queue;
        sd->output_queue = NULL;
        sd->output_queue_tailp = &sd->output_queue;
        local_irq_enable();

        while (head) {


            struct Qdisc *q = head;
            spinlock_t *root_lock;

            head = head->next_sched;
......
            qdisc_run(q);
        }
    }
}

  qdisc_restart() 将网络包从 Qdisc 的队列中拿下来，然后调用 sch_direct_xmit() 进行发送。

static inline int qdisc_restart(struct Qdisc *q, int *packets)
{


    struct netdev_queue *txq;
    struct net_device *dev;
    spinlock_t *root_lock;
    struct sk_buff *skb;
    bool validate;

    /* Dequeue packet */
    skb = dequeue_skb(q, &validate, packets);
    if (unlikely(!skb))
        return 0;

    root_lock = qdisc_lock(q);
    dev = qdisc_dev(q);
    txq = skb_get_tx_queue(dev, skb);

    return sch_direct_xmit(skb, q, dev, txq, root_lock, validate);
}

   sch_direct_xmit() 调用 dev_hard_start_xmit() 进行发送，如果发送不成功，会返回 NETDEV_TX_BUSY。这说明网络卡很忙，于是就调用 dev_requeue_skb()，重新放入队列。

int sch_direct_xmit(struct sk_buff *skb, struct Qdisc *q,
            struct net_device *dev, struct netdev_queue *txq,
            spinlock_t *root_lock, bool validate)
{


    int ret = NETDEV_TX_BUSY;

    if (likely(skb)) {


        if (!netif_xmit_frozen_or_stopped(txq))
            skb = dev_hard_start_xmit(skb, dev, txq, &ret);
    }
......
    if (dev_xmit_complete(ret)) {


        /* Driver sent out skb successfully or skb was consumed */
        ret = qdisc_qlen(q);
    } else {


        /* Driver returned NETDEV_TX_BUSY - requeue skb */
        ret = dev_requeue_skb(skb, q);
    }
......
}

   dev_hard_start_xmit() 通过一个 while 循环每次在队列中取出一个 sk_buff，调用 xmit_one() 发送。接下来的调用链为：xmit_one()->netdev_start_xmit()->__netdev_start_xmit()。

struct sk_buff *dev_hard_start_xmit(struct sk_buff *first, struct net_device *dev,
                                    struct netdev_queue *txq, int *ret)
{


    struct sk_buff *skb = first;
    int rc = NETDEV_TX_OK;

    while (skb) {


        struct sk_buff *next = skb->next;
        rc = xmit_one(skb, dev, txq, next != NULL);
        skb = next;
        if (netif_xmit_stopped(txq) && skb) {


            rc = NETDEV_TX_BUSY;
            break;
        }
    }
......
}


static inline netdev_tx_t __netdev_start_xmit(const struct net_device_ops *ops,
               struct sk_buff *skb, struct net_device *dev, bool more)
{


    skb->xmit_more = more ? 1 : 0;
    return ops->ndo_start_xmit(skb, dev);
}

  这个时候，已经到了设备驱动层了。我们能看到，drivers/net/ethernet/intel/ixgbe/ixgbe_main.c里面有对于这个网卡的操作的定义（英特尔网卡有多种不同的型号，对应于intel目录下不同的驱动，这里我们仅挑选其中的一种来做分析）。在这里面，我们可以找到对于 ndo_start_xmit() 的定义，实际会调用 ixgb_xmit_frame()。在 ixgb_xmit_frame() 中，我们会得到这个网卡对应的适配器，然后将其放入硬件网卡的队列中。至此，整个发送才算结束。

static const struct net_device_ops ixgbe_netdev_ops = {


        .ndo_open               = ixgbe_open,
        .ndo_stop               = ixgbe_close,
        .ndo_start_xmit         = ixgbe_xmit_frame,
......
};

static netdev_tx_t ixgbe_xmit_frame(struct sk_buff *skb,
				    struct net_device *netdev)
{


	return __ixgbe_xmit_frame(skb, netdev, NULL);
}

static netdev_tx_t
ixgbe_xmit_frame(struct sk_buff *skb, struct net_device *netdev)
{


	struct ixgbe_adapter *adapter = netdev_priv(netdev);
	struct ixgbe_ring *tx_ring;
	/*
	 * The minimum packet size for olinfo paylen is 17 so pad the skb
	 * in order to meet this minimum size requirement.
	 */
	if (skb_put_padto(skb, 17))
		return NETDEV_TX_OK;
	tx_ring = ring ? ring : adapter->tx_ring[skb->queue_mapping];
	if (unlikely(test_bit(__IXGBE_TX_DISABLED, &tx_ring->state)))
		return NETDEV_TX_BUSY;
	return ixgbe_xmit_frame_ring(skb, adapter, tx_ring);
}

总结

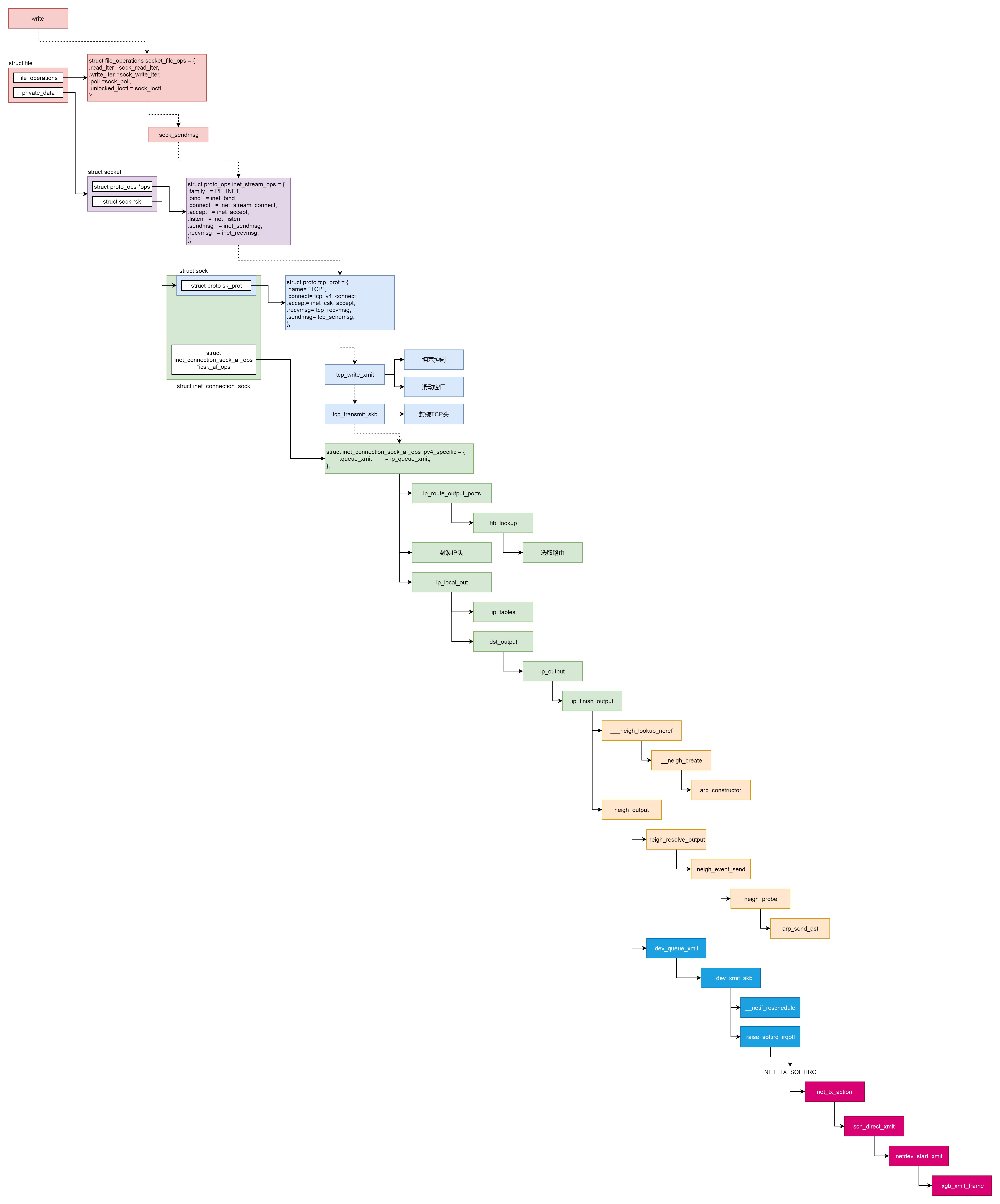

  整个网络协议栈的发送流程很长，中间也有不少关键步骤值得注意，值得仔细研究。

源码资料

[1] socket_file_ops

[2] tcp_sendmsg()

[3] tcp_write_xmit()

[4] ip_queue_xmit()

[5] ip_finish_output()

[6] neigh_resolve_output()

参考资料

[1] wiki

[2] elixir.bootlin.com/linux

[3] woboq

[4] Linux-insides

[5] 深入理解Linux内核

[6] Linux内核设计的艺术

[7] 极客时间 趣谈Linux操作系统

[8] 深入理解Linux网络技术内幕
