HTML5Canvas游戏开发实战 目录
文章目录
前言
- 本文为进阶,旨在为个人记录和学习,如有需要,请阅读原书
主要介绍内容:
- 准备
- 基础知识
- 开发实战
- 提高效率
推荐阅读
- 《HTML5 Canvas游戏开发实战》
准备工作
H5新特性
- 地理位置引入:
Geolocation API
- 本地数据库:
WebSQL
存储数据,web storage API
实现离线缓存
1. video标签播放动画
<video width="640" height="360" preload="auto" poster="hoge.png" controls autoplay>
<!-- webm type -->
<source src="hoge.webm" type='video/webm; codecs="vp8, vorbis"'>
<!-- ogv -->
<source src="hoge.ogv" type='video/ogg; codecs="theora, vorbis"'>
<!-- mp4 -->
<source src="hoge.mp4" type='video/mp4; codecs="avc1.42E01E, mp4a.40.2"'>
<!-- 无法使用video -->
<p>无法播放动画<a href="#">推荐环境请看这里</a></p>
</video>
2. audio
<audio controls loop>
<!-- only ogg -->
<source src="hoge.ogg">
<!-- only wav -->
<source src="hoge.wav">
<!-- only mp3 -->
<source src="hoge.mp3">
<!-- can't use audio tag -->
<p>Can't use audio tag.<a href="#">Click there.</a></p>
</audio>
3. Canvas
<canvas id="canvas" width="640" height="360"></canvas>
<script>
let canvas = document.getElementById("canvas");
if(canvas.getContext){
let context = canvas.getContext('2d');
// color
context.fillStyle = 'rgb(255, 0, 0)';
// potray 64x36 matrix from (20, 30)
context.fillRect(20,30,64,36);
}
</script>
效果:

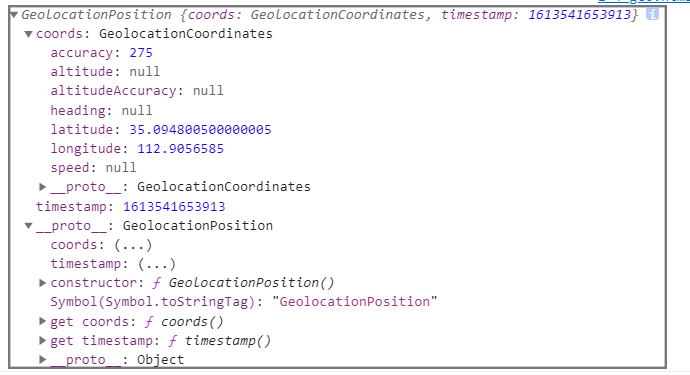

4. 获取当前位置
<script>
window.addEventListener('load', () => {
// 判断可否使用geolocation
if(navigator.geolocation){
// regular get location
navigator.geolocation.watchPosition(position => {
console.log(position);
// 纬度
let lat = position.coords.latitude;
// 经度
let lng = position.coords.longitude;
// performance
document.write(`lattitude: ${
lat}, longitude: ${
lng}`);
}, err => {
console.log("error, can't use");
});
}
}, false);
</script>
效果:
5. 大量数据保存在客户端
LocalStorage
保存大量的数据
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>Document</title>
</head>
<body>
<script>
// 用localstorage来保存数据
localStorage.key = 'wantted data';
// 取出来localstorage的值
let hoge = localStorage.key;
// 显示
document.write(hoge);
localStorage.setItem("fwx", "xwf");
</script>
</body>
</html>
6. form强化
form
常用功能
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>Document</title>
</head>
<body>
<!-- verify type -->
<input name="email" type="email">
<!-- require -->
<input name="text" type="text" required>
<!-- focus -->
<input name="text" type="text" placeholder="name">
</body>
</html>
canvas
绘图
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>Document</title>
</head>
<body>
<canvas id="canvas" width="200" height="100"></canvas>
<script>
onload = () => {
// find canvas based id
let canvas = document.getElementById('canvas');
// verify
if(!canvas || !canvas.getContext) return false;
// create context object
let ctx = canvas.getContext('2d');
// potray
ctx.fillStyle = '#FF0000';
ctx.fillRect(0, 0, 150, 75);
};
</script>
</body>
</html>
解释
- 获取
<canvas>
标签,一般是通过id/name
获得 - 要使用
canvas
元素,必须判断浏览器是否支持使用 getContext
方法中传递一个2d
参数,从而可以得到二维对象,并实现二维图像描画fillStyle
画笔颜色
canvas实现三维的推荐
如果要实现三维效果,需要借助第三方类库:
three.js
Papervision3D
JS实现继承
- 创建两个构造函数
- 使用apply方法,将父对象的构造函数绑定在子对象上
- 方法的继承:循环使用父对象的
prototype
进行复制,即可达到继承的目的
function PeopleClass() {
this.type = "human";
}
PeopleClass.prototype = {
getType: function() {
alert("this is a man.");
}
};
function StudentClass(name, sex) {
PeopleClass.apply(this, arguments);
let prop;
for (prop in PeopleClass.prototype){
let proto = this.constructor.prototype;
if(!proto[prop]) proto[prop] = PeopleClass.prototype[prop];
proto[prop]["super"] = PeopleClass.prototype;
}
this.name = name;
this.sex = sex;
}
let stu = new StudentClass("lufy", "man");
alert(stu.type);
stu.getType();
第二部分:基础知识
canvas基本功能
1. 画直线
- 获取
canvas
对象 - 返回环境后,选择
canvasRenderingContext2D
对象,制作二维图像 - 设置线条宽度:
xx.lineWidth
- 设置画笔颜色:
xx.strokeStyle = "red"
- 创建一个新的路径:
xx.beginPath()
- 画笔光标位置移动到指定坐标:
xx.moveTo(x,y)
- 从当前坐标开始,移动画笔到指定坐标,并绘制线:
xx.lineTo(x,y)
- 开始绘制:
xx.stroke()
- 定义线帽的样式:
xx.lineCap = "butt";
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>Document</title>
</head>
<body>
<canvas id="canvas" width="200" height="200"></canvas>
<script>
let c = document.getElementById('canvas');
let ctx = c.getContext('2d');
ctx.lineWidth = 10;
ctx.strokeStyle = "red";
ctx.beginPath();
ctx.moveTo(10, 10);
ctx.lineTo(150, 50);
ctx.stroke();
</script>
</body>
</html>
效果图:
线帽:
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>Document</title>
</head>
<body>
<canvas id="canvas"></canvas>
<script>
let c = document.getElementById("canvas");
let ctx = c.getContext('2d');
ctx.lineWidth = 10;
ctx.strokeStyle = "blue";
ctx.lineCap = "butt";
ctx.beginPath();
ctx.moveTo(10,10);
ctx.lineTo(150,10);
ctx.stroke();
ctx.lineCap = "round";
ctx.beginPath();
ctx.moveTo(10,40);
ctx.lineTo(150,40);
ctx.stroke();
ctx.lineCap = "square";
ctx.beginPath();
ctx.moveTo(10,70);
ctx.lineTo(150,70);
ctx.stroke();
</script>
</body>
</html>
效果图:
2. 画矩形
xx.strokeRect()
可以替换为xx.rect();xx.stroke();
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>Document</title>
</head>
<body>
<canvas id="canvas"></canvas>
<script type="text/javascript">
let c = document.getElementById('canvas');
let ctx = c.getContext('2d');
ctx.lineWidth = 5;
ctx.strokeStyle = "blue";
ctx.beginPath();
ctx.strokeRect(10, 10, 70, 40);
</script>
</body>
</html>
结果:
实心矩阵
- 替换为
fillRect()
- 也可以换做
ctx.rect();ctx.fill();
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>Document</title>
</head>
<body>
<canvas id="canvas"></canvas>
<script type="text/javascript">
let c = document.getElementById('canvas');
let ctx = c.getContext('2d');
ctx.lineWidth = 5;
ctx.fillStyle = "red";
ctx.beginPath();
ctx.fillRect(10, 10, 70, 40);
</script>
</body>
</html>
结果:
3. 圆形
arc(x,y,r,rid,endrid,yy)
xx.fill()
填充实心圆
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>Document</title>
</head>
<body>
<canvas id="canvas"></canvas>
<script>
let c = document.getElementById('canvas');
let ctx = c.getContext('2d');
ctx.lineWidth = 5;
ctx.strokeStyle = 'red';
ctx.beginPath();
ctx.arc(100, 100, 70, 0, 130*Math.PI/100, true);
ctx.stroke();
</script>
</body>
</html>
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>Document</title>
</head>
<body>
<canvas id="canvas"></canvas>
<script>
let c = document.getElementById('canvas');
let ctx = c.getContext('2d');
ctx.lineWidth = 5;
ctx.fillStyle = 'red';
ctx.beginPath();
ctx.arc(100, 100, 70, 0, 130*Math.PI/100, true);
ctx.fill();
</script>
</body>
</html>
4. 画圆角矩形
- 圆角:
arcTo(x,y,x,y,r)
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>Document</title>
</head>
<body>
<canvas id="canvas"></canvas>
<script>
let c = document.getElementById('canvas');
let ctx = c.getContext('2d');
ctx.beginPath();
ctx.strokeStyle = "red";
ctx.moveTo(20, 20);
ctx.lineTo(70, 20);
ctx.arcTo(120, 30, 120, 70, 50);
ctx.lineTo(120, 120);
ctx.stroke();
</script>
</body>
</html>
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>Document</title>
</head>
<body>
<canvas id="canvas"></canvas>
<script>
let c = document.getElementById('canvas');
let ctx = c.getContext('2d');
ctx.beginPath();
ctx.strokeStyle = "red";
ctx.moveTo(40, 20);
ctx.lineTo(120, 20);
ctx.arcTo(120, 20, 120, 40, 20);
ctx.lineTo(120, 70);
ctx.arcTo(120,90,100,90,20);
ctx.lineTo(40,90);
ctx.arcTo(20,90,20,70,20);
ctx.lineTo(20, 40);
ctx.arcTo(20,20,40,20,20);
ctx.stroke();
</script>
</body>
</html>
5. 擦除Canvas画板
- 擦除矩形区域:
clerRect(x,y,long,width)
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>Document</title>
</head>
<body>
<canvas id="canvas"></canvas>
<script>
let c = document.getElementById('canvas');
let ctx = c.getContext('2d');
ctx.fillStyle = 'red';
ctx.beginPath();
ctx.fillRect(10,10,200,100);
ctx.clearRect(30,30,50,50);
</script>
</body>
</html>
复杂图形
1. 曲线
- 又名贝塞尔曲线,贝兹曲线或贝济埃曲线,应用于二维图形的数学曲线

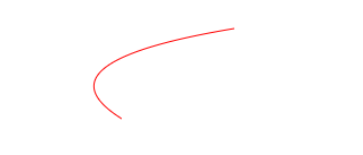

1. 二次贝塞尔曲线
- 存在一个控制点
quadraticCurveTo(cpx, cpy, x, y)
- cpx,cpy 控制点的坐标
- x,y 终点坐标
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>Document</title>
</head>
<body>
<canvas id="canvas"></canvas>
<script>
let c = document.getElementById('canvas');
let ctx = c.getContext('2d');
ctx.strokeStyle = 'red';
ctx.beginPath();
ctx.moveTo(100, 100);
ctx.quadraticCurveTo(20, 50, 200, 20);
ctx.stroke();
</script>
</body>
</html>
2. 三次贝塞尔曲线
- 三次贝塞尔又两个控制点
bezierCurveTo(cx1,cy1,cx2,cy2,endx,endy)
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>Document</title>
</head>
<body>
<canvas id="canvas"></canvas>
<script>
let c = document.getElementById('canvas');
let ctx = c.getContext('2d');
ctx.strokeStyle = 'red';
ctx.beginPath();
ctx.moveTo(68, 130);
ctx.bezierCurveTo(20,10,268,10,268,170);
ctx.stroke();
</script>
</body>
</html>
2. clip在指定区域绘图
clip
使用当前路径作为连续绘制操作的剪切区域- 无论画板上绘制了多大的图形,最后的图形只能由
clip
这扇窗户决定 - 先绘制一个圆,
clip
函数把这个圆作为绘制操作的区域,之后的图形只能显示在这个区域离
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>Document</title>
</head>
<body>
<canvas id="canvas"></canvas>
<script>
let c = document.getElementById('canvas');
let ctx = c.getContext('2d');
ctx.arc(100,100,40,0,360*Math.PI/180,true);
ctx.clip();
ctx.beginPath();
ctx.fillStyle = "lightblue";
ctx.fillRect(0,0,300,150);
</script>
</body>
</html>
对比

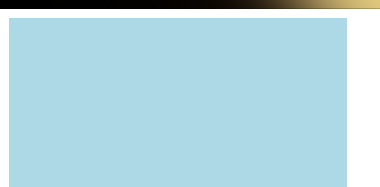

前:
后:
