继承关系映射

一：需求分析

  • 现要为某公司开发一个员工信息管理系统，已经了解到该公司的员工中有按小时记薪和按月记薪两种方式，这种情况下系统中该如何维护员工的基本信息呢？
  • 包含域模型设计：
    在这里插入图片描述
    因为域模型就有一种，所以每种方式的域模型都是一样的，只是数据库关系不一样。

二：每个具体类对应一张表（Table per concrete class）

  • 数据库创建时，按时薪计算的员工创建一张表，按月薪计算的员工创建一张表。

时薪员工数据表结构：
在这里插入图片描述
月薪员工数据表结构：
在这里插入图片描述

1.使用xml的方式配置

员工类：

public class Employee {


	private Integer id;
	private String name;

	public Integer getId() {


		return id;
	}

	public void setId(Integer id) {


		this.id = id;
	}

	@Override
	public String toString() {


		return "Employee [id=" + id + ", name=" + name + "]";
	}

	public String getName() {


		return name;
	}

	public void setName(String name) {


		this.name = name;
	}
}

时薪员工类：

public class HourlyEmployee extends Employee {



	private double rate;

	public double getRate() {


		return rate;
	}

	public void setRate(double rate) {


		this.rate = rate;
	}

	@Override
	public String toString() {


		return "HourlyEmployee [rate=" + rate + ", getId()=" + getId() + ", toString()=" + super.toString()
				+ ", getName()=" + getName() + "]";
	}

}

时薪员工类xml配置文件：

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE hibernate-mapping PUBLIC "-//Hibernate/Hibernate Mapping DTD 3.0//EN"
"http://hibernate.sourceforge.net/hibernate-mapping-3.0.dtd">
<hibernate-mapping package="com.hibernate.entity">
	<class name="HourlyEmployee" table="hourly_employee">
		<id name="id" type="int">
			<column name="id"></column>
			<generator class="native"></generator>
		</id>
		<property name="name" type="java.lang.String">

		</property>
		<property name="rate" type="double" />

	</class>
</hibernate-mapping>

月薪员工类：

public class SalariedEmployee extends Employee {


	private double salay;

	public double getSalay() {


		return salay;
	}

	public void setSalay(double salay) {


		this.salay = salay;
	}

	@Override
	public String toString() {


		return "SalariedEmployee [salay=" + salay + ", toString()=" + super.toString() + "]";
	}

}

月薪员工类xml配置文件：

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE hibernate-mapping PUBLIC "-//Hibernate/Hibernate Mapping DTD 3.0//EN"
"http://hibernate.sourceforge.net/hibernate-mapping-3.0.dtd">
<hibernate-mapping package="com.hibernate.entity">
	<class name="SalariedEmployee" table="salaied_employee">
		<id name="id" type="int">
			<column name="id"></column>
			<generator class="increment"></generator>
		</id>
		<property name="name" type="java.lang.String">

		</property>
		<property name="salay" type="double" column="salary"></property>

	</class>
</hibernate-mapping>

hibernate.cfg.xml:

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE hibernate-configuration PUBLIC "-//Hibernate/Hibernate Configuration DTD 3.0//EN" "http://www.hibernate.org/dtd/hibernate-configuration-3.0.dtd">
<hibernate-configuration>
	<session-factory>
		<property name="hibernate.dialect">org.hibernate.dialect.MySQLDialect</property>
		<property name="hibernate.connection.driver_class">com.mysql.jdbc.Driver</property>
		<property name="hibernate.connection.url">jdbc:mysql://localhost:3306/test1?useUnicode=true&amp;characterEncoding=UTF-8</property>
		<property name="hibernate.connection.username">root</property>
		<property name="hibernate.connection.password"></property>
		<property name="hibernate.show_sql">true</property>
		<property name="hibernate.format_sql">true</property>
		<mapping resource="com/hibernate/entity/HourlyEmployee.hbm.xml" />
		<mapping resource="com/hibernate/entity/SalariedEmployee.hbm.xml" />

	</session-factory>
</hibernate-configuration>

测试类：

public class Test {


	public static void main(String[] args) {


		// 1.测试员工是否能成功入库
		HourlyEmployee hourlyEmployee = new HourlyEmployee();
		hourlyEmployee.setName("20");
		hourlyEmployee.setRate(50);
		SalariedEmployee salariedEmployee = new SalariedEmployee();
		salariedEmployee.setName("888");
		salariedEmployee.setSalay(30);
		// 保存按小时记新员工信息
		// saveEmployee(salariedEmployee);
		findEmployee();
	}

	private static void saveEmployee(Employee e) {


		// 1.获取session
		Session session = HibernateUtil.openSession();
		Transaction tx = session.beginTransaction();
		session.save(e);
		tx.commit();
		// 关闭session
		session.close();

	}

	private static void findEmployee() {


		// 1.获取session
		Session session = HibernateUtil.openSession();
		Transaction tx = session.beginTransaction();
		HourlyEmployee he = session.get(HourlyEmployee.class, new Integer(1));
		System.out.println(he);
		SalariedEmployee se = session.get(SalariedEmployee.class, new Integer(1));
		System.out.println(se);
	}
}

2.使用注解的方式配置

员工类：

@MappedSuperclass
public class Employee {


	private Integer id;
	private String name;

	@Id
	@GeneratedValue(generator = "my_increment")
	@GenericGenerator(name = "my_increment", strategy = "native")
	public Integer getId() {


		return id;
	}

	public void setId(Integer id) {


		this.id = id;
	}

	@Override
	public String toString() {


		return "Employee [id=" + id + ", name=" + name + "]";
	}

	public String getName() {


		return name;
	}

	public void setName(String name) {


		this.name = name;
	}
}

时薪员工类：

@Entity
@Table(name = "hourly_employee")
public class HourlyEmployee extends Employee {



	private double rate;

	public double getRate() {


		return rate;
	}

	public void setRate(double rate) {


		this.rate = rate;
	}

	@Override
	public String toString() {


		return "HourlyEmployee [rate=" + rate + ", getId()=" + getId() + ", toString()=" + super.toString()
				+ ", getName()=" + getName() + "]";
	}

}

月薪员工类：

@Entity
@Table(name = "salaied_employee")
public class SalariedEmployee extends Employee {


	private double salay;

	@Column(name = "salary")
	public double getSalay() {


		return salay;
	}

	public void setSalay(double salay) {


		this.salay = salay;
	}

	@Override
	public String toString() {


		return "SalariedEmployee [salay=" + salay + ", toString()=" + super.toString() + "]";
	}

}

hibernate.cfg.xml:

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE hibernate-configuration PUBLIC "-//Hibernate/Hibernate Configuration DTD 3.0//EN" "http://www.hibernate.org/dtd/hibernate-configuration-3.0.dtd">
<hibernate-configuration>
	<session-factory>
		<property name="hibernate.dialect">org.hibernate.dialect.MySQLDialect</property>
		<property name="hibernate.connection.driver_class">com.mysql.jdbc.Driver</property>
		<property name="hibernate.connection.url">jdbc:mysql://localhost:3306/test1?useUnicode=true&amp;characterEncoding=UTF-8</property>
		<property name="hibernate.connection.username">root</property>
		<property name="hibernate.connection.password"></property>
		<property name="hibernate.show_sql">true</property>
		<property name="hibernate.format_sql">true</property>
		<mapping class="com.hibernate.entity.Employee" />
		<mapping class="com.hibernate.entity.HourlyEmployee" />
		<mapping class="com.hibernate.entity.SalariedEmployee" />
	</session-factory>
</hibernate-configuration>

测试类：

public class Test {


	public static void main(String[] args) {


		// 1.测试员工是否能成功入库
		HourlyEmployee hourlyEmployee = new HourlyEmployee();
		hourlyEmployee.setName("20");
		hourlyEmployee.setRate(50);
		SalariedEmployee salariedEmployee = new SalariedEmployee();
		salariedEmployee.setName("888");
		salariedEmployee.setSalay(30);
		// 保存按小时记新员工信息
		// saveEmployee(salariedEmployee);
		findEmployee();
	}

	private static void saveEmployee(Employee e) {


		// 1.获取session
		Session session = HibernateUtil.openSession();
		Transaction tx = session.beginTransaction();
		session.save(e);
		tx.commit();
		// 关闭session
		session.close();

	}

	private static void findEmployee() {


		// 1.获取session
		Session session = HibernateUtil.openSession();
		Transaction tx = session.beginTransaction();
		HourlyEmployee he = session.get(HourlyEmployee.class, new Integer(1));
		System.out.println(he);
		SalariedEmployee se = session.get(SalariedEmployee.class, new Integer(1));
		System.out.println(se);
	}
}

三：父类对应一个表（Table per class hierarchy）

父类创建一个表，每个子类的字段都包含，再增加一个字段用来区别每个子类的类型。
数据表结构：
在这里插入图片描述

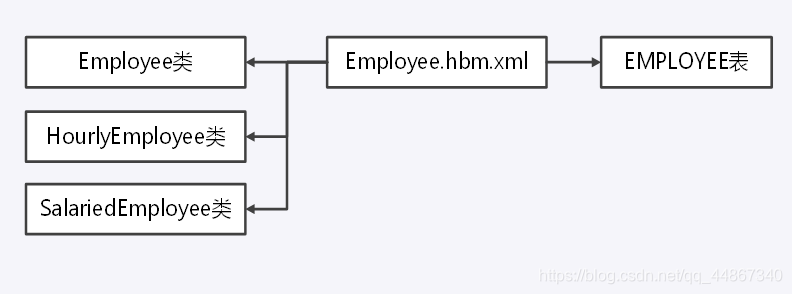

持久化类、映射文件和数据库表之间的关系：
在这里插入图片描述

1.使用xml的方式配置

员工类，时薪员工类，月薪员工类同上。
员工类配置文件：

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE hibernate-mapping PUBLIC "-//Hibernate/Hibernate Mapping DTD 3.0//EN"
"http://hibernate.sourceforge.net/hibernate-mapping-3.0.dtd">
<hibernate-mapping package="com.hibernate.entity">
	<class name="Employee" table="employee">
		<id name="id" type="int">
			<column name="id"></column>
			<generator class="native"></generator>
		</id>
		<discriminator column="employee_type"></discriminator>
		<property name="name" type="java.lang.String">

		</property>
		<subclass name="HourlyEmployee" discriminator-value="HE">
			<property name="rate"></property>
		</subclass>
		<subclass name="SalariedEmployee" discriminator-value="SE">
			<property name="salay"></property>
		</subclass>

	</class>
</hibernate-mapping>

hibernate.cfg.xml:

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE hibernate-configuration PUBLIC "-//Hibernate/Hibernate Configuration DTD 3.0//EN" "http://www.hibernate.org/dtd/hibernate-configuration-3.0.dtd">
<hibernate-configuration>
	<session-factory>
		<property name="hibernate.dialect">org.hibernate.dialect.MySQLDialect</property>
		<property name="hibernate.connection.driver_class">com.mysql.jdbc.Driver</property>
		<property name="hibernate.connection.url">jdbc:mysql://localhost:3306/test1?useUnicode=true&amp;characterEncoding=UTF-8</property>
		<property name="hibernate.connection.username">root</property>
		<property name="hibernate.connection.password"></property>
		<property name="hibernate.show_sql">true</property>
		<property name="hibernate.format_sql">true</property>
		<mapping resource="com/hibernate/entity/Employee.hbm.xml" />

	</session-factory>
</hibernate-configuration>

2.使用注解的方式配置

员工类：

@Entity
@Inheritance(strategy = InheritanceType.SINGLE_TABLE)
@DiscriminatorColumn(name = "employee_type")
public class Employee {


	private Integer id;
	private String name;

	@Id
	@GeneratedValue(generator = "my_increment")
	@GenericGenerator(name = "my_increment", strategy = "native")
	public Integer getId() {


		return id;
	}

	public void setId(Integer id) {


		this.id = id;
	}

	@Override
	public String toString() {


		return "Employee [id=" + id + ", name=" + name + "]";
	}

	public String getName() {


		return name;
	}

	public void setName(String name) {


		this.name = name;
	}
}

时薪员工类：

@Entity
@DiscriminatorValue(value = "HE")

public class HourlyEmployee extends Employee {



	private double rate;

	public double getRate() {


		return rate;
	}

	public void setRate(double rate) {


		this.rate = rate;
	}

	@Override
	public String toString() {


		return "HourlyEmployee [rate=" + rate + ", getId()=" + getId() + ", toString()=" + super.toString()
				+ ", getName()=" + getName() + "]";
	}

}

月薪员工类：


@Entity
@DiscriminatorValue(value = "SE")
public class SalariedEmployee extends Employee {


	private double salay;

	@Column(name = "salary")
	public double getSalay() {


		return salay;
	}

	public void setSalay(double salay) {


		this.salay = salay;
	}

	@Override
	public String toString() {


		return "SalariedEmployee [salay=" + salay + ", toString()=" + super.toString() + "]";
	}

}

hibernate.cfg.xml:


@Entity
@DiscriminatorValue(value = "SE")
public class SalariedEmployee extends Employee {


	private double salay;

	@Column(name = "salary")
	public double getSalay() {


		return salay;
	}

	public void setSalay(double salay) {


		this.salay = salay;
	}

	@Override
	public String toString() {


		return "SalariedEmployee [salay=" + salay + ", toString()=" + super.toString() + "]";
	}

}

三：每个类对应一个表（Table per class）

父类，子类都分别对应一张表，父类中包含共有的字段，子类用外键参照关系来表示继承关系。
数据表结构：
在这里插入图片描述
持久化类，数据库文件，映射表之间的关系：
在这里插入图片描述

加粗样式

1.使用xml的方式进行配置

配置文件：

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE hibernate-mapping PUBLIC "-//Hibernate/Hibernate Mapping DTD 3.0//EN"
"http://hibernate.sourceforge.net/hibernate-mapping-3.0.dtd">
<hibernate-mapping package="com.hibernate.entity">
	<class name="Employee" table="employee1">
		<id name="id" type="int">
			<column name="id"></column>
			<generator class="native"></generator>
		</id>
		<property name="name"></property>
		<joined-subclass name="HourlyEmployee"
			table="hourly_employee1">
			<key column="id"></key>
			<property name="rate"></property>
		</joined-subclass>
		<joined-subclass name="SalariedEmployee"
			table="salaried_employee1">
			<key column="id"></key>
			<property name="salay" column="salary"></property>
		</joined-subclass>

	</class>
</hibernate-mapping>

2.使用注解的方式配置

员工类：

@Entity
@Inheritance(strategy = InheritanceType.JOINED)
public class Employee {


	private Integer id;
	private String name;

	@Id
	@GeneratedValue(generator = "my_increment")
	@GenericGenerator(name = "my_increment", strategy = "native")
	public Integer getId() {


		return id;
	}

	public void setId(Integer id) {


		this.id = id;
	}

	@Override
	public String toString() {


		return "Employee [id=" + id + ", name=" + name + "]";
	}

	public String getName() {


		return name;
	}

	public void setName(String name) {


		this.name = name;
	}
}

时薪员工类：

@Entity
@Table(name="hourly_employee1")
@PrimaryKeyJoinColumn(name="id")
public class HourlyEmployee extends Employee {



	private double rate;

	public double getRate() {


		return rate;
	}

	public void setRate(double rate) {


		this.rate = rate;
	}

	@Override
	public String toString() {


		return "HourlyEmployee [rate=" + rate + ", getId()=" + getId() + ", toString()=" + super.toString()
				+ ", getName()=" + getName() + "]";
	}

}

月薪员工类：

@Entity
@Table(name="salaried_employee1")
@PrimaryKeyJoinColumn(name="id")
public class SalariedEmployee extends Employee {


	private double salay;

	@Column(name = "salary")
	public double getSalay() {


		return salay;
	}

	public void setSalay(double salay) {


		this.salay = salay;
	}

	@Override
	public String toString() {


		return "SalariedEmployee [salay=" + salay + ", toString()=" + super.toString() + "]";
	}

}

猜你喜欢

转载自blog.csdn.net/qq_44867340/article/details/115052896
今日推荐
《美国对全球网络空间安全与发展的威胁和破坏》报告发布
火速冲上 GitHub 热榜 —— 开源编程语言、框架哪有这么可爱？
北京人形机器人创新中心发布全球首个纯电驱拟人奔跑的全尺寸人形机器人“天工”
LFOSSA 源来如此公开课 | 掌握云原生未来：CNCF 认证全面攻略与备考秘籍
国产云输入法——仅华为无云端数据上传安全问题
周排行
Python环境安装与基础语法（1）——计算机基础知识
IMU预积分
ADAS中的LDW、FCW、BSD、LCA、ACC、AEB、APA、DMS代表的含义
B站笔试两道题
skyeye arm 硬件虚拟机环境的搭建
Web前端静态页面示例
数组-合并排序数组 II-简单
springcloud之版本问题启动报错
面向对象-------------匿名对象(六)
输入URL到页面呈现中间发生了什么？
每日归档
更多
2024-04-30(1)
2024-04-29(40)
2024-04-28(0)
2024-04-27(56)
2024-04-26(39)
2024-04-25(22)
2024-04-24(36)
2024-04-23(26)
2024-04-22(39)
2024-04-21(0)

代码天地 © 2018 codetd.com

境外服务器   最新电视剧2022
