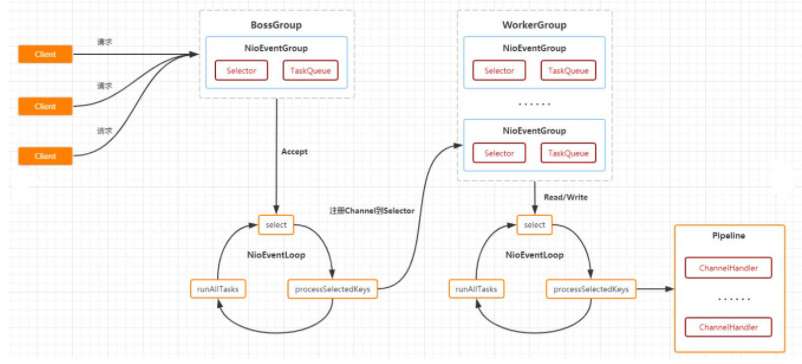

1 Netty模型
-
Netty抽象出两组线程池 BossGroup 专门负责接收客户端的连接, WorkerGroup 专门负责网络的读写
-
BossGroup 和 WorkerGroup 类型都是 NioEventLoopGroup
-
NioEventLoopGroup 相当于一个事件循环组, 这个组中含有多个事件循环 ,每一个事件循环是 NioEventLoop4) NioEventLoop 表示一个不断循环的执行处理任务的线程,每个 NioEventLoop 都有一个 selector , 用于监听绑定在其上的 socket的网络通讯
-
NioEventLoopGroup 可以有多个线程, 即可以含有多个 NioEventLoop
-
每个 Boss NioEventLoop 循环执行的步骤有 3步
- 轮询 accept 事件
- 处理 accept 事件 , 与 client建立连接 , 生成 NioScocketChannel , 并将其注册到某个 worker NIOEventLoop 上的 selector
- 处理任务队列的任务 , 即 runAllTasks
-
每个 Worker NIOEventLoop 循环执行的步骤
- 轮询 read, write 事件
- 处理 i/o事件,即 read , write 事件,在对应 NioScocketChannel 处理
- 处理任务队列的任务 , 即 runAllTasks
-
每个Worker NIOEventLoop 处理业务时,会使用pipeline(管道), pipeline 中包含了 channel , 即通过pipeline可以获取到对应通道, 管道中维护了很多的处理器
2 Netty实现HTTP服务的基本流程
3 代码实现
依赖:
<dependency>
<groupId>io.netty</groupId>
<artifactId>netty-all</artifactId>
<version>4.1.65.Final</version>
</dependency>
HttpServer.java
/**
* @desc: Http服务端
* @author: YanMingXin
* @create: 2021/8/11-10:10
**/
public class HttpServer extends ChannelInitializer<SocketChannel> {
/**
* 初始化管道,向管道加入处理器
*
* @param ch
*/
@Override
protected void initChannel(SocketChannel ch) {
//得到管道
ChannelPipeline pipeline = ch.pipeline();
//HttpServerCodec是 netty 默认提供的处理http的编解码器 作用:codec =>[coder - decoder]
pipeline.addLast("MyHttpServerCodec", new HttpServerCodec());
//增加一个自定义的 handler
pipeline.addLast("MyTestHttpServerHandler", new HttpServerHandler());
}
}
HttpServerHandler.java
/**
* @desc: Http请求处理器
* 1. SimpleChannelInboundHandler 是 ChannelInboundHandlerAdapter
* 2. HttpObject 客户端和服务器端相互通讯的数据被封装成 HttpObject
* @author: YanMingXin
* @create: 2021/8/11-10:11
**/
public class HttpServerHandler extends SimpleChannelInboundHandler<HttpObject> {
/**
* channelRead0 读取客户端数据
*
* @param ctx
* @param msg
*/
@Override
protected void channelRead0(ChannelHandlerContext ctx, HttpObject msg) {
//判断 msg 是不是 HttpRequest请求
if (msg instanceof HttpRequest) {
System.out.println("当前管道:" + ctx.pipeline().hashCode() + " 当前HTTP处理器:" + this.hashCode());
System.out.println("msg 类型:" + msg.getClass());
System.out.println("客户端IP:" + ctx.channel().remoteAddress());
//回复信息给浏览器
ByteBuf content = Unpooled.copiedBuffer("Hello, I am Netty Http Server!", CharsetUtil.UTF_8);
//构造一个 http的相应,即 HttpResponse
FullHttpResponse response = new DefaultFullHttpResponse(HttpVersion.HTTP_1_1,
HttpResponseStatus.OK, content);
response.headers().set(HttpHeaderNames.CONTENT_TYPE, "text/plain");
response.headers().set(HttpHeaderNames.CONTENT_LENGTH, content.readableBytes());
//将构建好 response返回
ctx.writeAndFlush(response);
}
}
}
TestServer.java
/**
* @desc: 开启HTTP服务
* @author: YanMingXin
* @create: 2021/8/11-10:11
**/
public class TestServer {
public static void main(String[] args) throws Exception {
//实例化BoosGroup,初始线程为1
EventLoopGroup bossGroup = new NioEventLoopGroup(1);
//实例化NioEventGroup
EventLoopGroup workerGroup = new NioEventLoopGroup();
try {
//实例化ServerBootstrap
ServerBootstrap serverBootstrap = new ServerBootstrap();
//加入Selector
serverBootstrap.group(bossGroup,
workerGroup).channel(NioServerSocketChannel.class).childHandler(new HttpServer());
//获取Channel并绑定8888端口开启异步
ChannelFuture channelFuture = serverBootstrap.bind(8888).sync();
channelFuture.channel().closeFuture().sync();
} finally {
//关闭操作
bossGroup.shutdownGracefully();
workerGroup.shutdownGracefully();
}
}
}
测试:
