Docker 基础 ( 二十 ) 部署Redis集群，问题记录

Docker 基础 ( 二十 ) 部署Redis集群 - 简书

以上为原文地址

一，问题

1. -bash: redis: command not found
2. Could not connect to Redis at 127.0.0.1:6379: Connection refused
3. 127.0.0.1:6379> cluster info
cluster_state:fail

方案1：

​​​​​(20200916 Solved)Docker||redis-cli Could not connect to Redis at 127.0.0.1:6379: Connection refused_漫步量化-CSDN博客

方案2：删除data目录下rdb aop node.conf文件，重新连接集群

4.关于容器的查看，关闭，启动

在Docker中重新启动已经停止的容器_weixin_34390996的博客-CSDN博客

1. 查看运行中的容器 docker ps
2. 查看所有的容器 docker ps -a
3. 进入容器 docker exec -it 容器ID /bin/bash
4. 停止所有的容器 docker stop $(docker ps -q)
5. 删除所有的容器 docker rm $(docker ps -aq)
6. 停止并删除全部 docker stop $(docker ps -q) & docker rm $(docker ps -aq)

启动容器，注意不是容器ID，是容器名称（这里是name，好像很多说容器ID，待解释）

Docker start/stop/restart 命令 | 菜鸟教程

docker start  容器name

停止容器运行

docker stop  容器name

 5.创建配置，无>符号

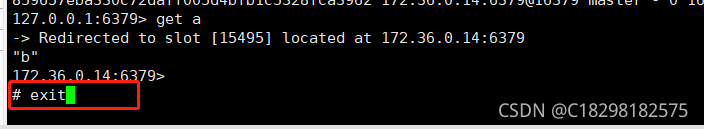

6. 退出# 页面，用命令exit，如下

 二，正文

下文为转载，请访问原文

• 创建网卡：docker network create redis --subnet 172.36.0.0/16

[root@VM-0-6-centos ~]# docker network create redis --subnet 172.36.0.0/16
19dd16ec85ca189a1a317c809969d93e84eaf43810556dd5510f4458318bd652

• 查看网络：docker network ls

[root@VM-0-6-centos ~]# docker network ls
NETWORK ID     NAME      DRIVER    SCOPE
cb59eddef222   bridge    bridge    local
c86310353602   host      host      local
8e8d25d2e62d   mynet     bridge    local
1ab8f2e4028d   none      null      local
19dd16ec85ca   redis     bridge    local    //  自定义网络

• 查看定义网络信息：docker network inspect redis

[root@VM-0-6-centos ~]# docker network inspect redis
[
    {
        "Name": "redis",
        "Id": "19dd16ec85ca189a1a317c809969d93e84eaf43810556dd5510f4458318bd652",
        "Created": "2021-07-04T17:04:27.961331931+08:00",
        "Scope": "local",
        "Driver": "bridge",
        "EnableIPv6": false,
        "IPAM": {
            "Driver": "default",
            "Options": {},
            "Config": [
                {
                    "Subnet": "172.36.0.0/16"
                }
            ]
        },
        "Internal": false,
        "Attachable": false,
        "Ingress": false,
        "ConfigFrom": {
            "Network": ""
        },
        "ConfigOnly": false,
        "Containers": {},
        "Options": {},
        "Labels": {}
    }
]

• 通过脚本创建六个 redis 配置
• 172.36.0.11

[root@VM-0-6-centos ~]# for port in $(seq 1 6);\
> do \
> mkdir -p /mydata/redis/node-${port}/conf
> cat << EOF >> /mydata/redis/node-${port}/conf/redis.conf
> port 6379
> bind 0.0.0.0
> cluster-enabled yes
> cluster-config-file nodes.conf
> cluster-node-timeout 5000
> cluster-announce-ip 172.36.0.1${port}
> cluster-announce-port 6379
> cluster-announce-bus-port 16379
> appendonly yes
> EOF
> done

• 查看目录：

[root@VM-0-6-centos ~]# cd /mydata/redis
[root@VM-0-6-centos redis]# ls
node-1  node-2  node-3  node-4  node-5  node-6

• 查看其中一个配置信息

[root@VM-0-6-centos redis]# cd node-1
[root@VM-0-6-centos node-1]# ls
conf
[root@VM-0-6-centos node-1]# cd conf
[root@VM-0-6-centos conf]# ls
redis.conf
[root@VM-0-6-centos conf]# cat redis.conf
port 6379
bind 0.0.0.0
cluster-enabled yes
cluster-config-file nodes.conf
cluster-node-timeout 5000
cluster-announce-ip 172.36.0.11
cluster-announce-port 6379
cluster-announce-bus-port 16379
appendonly yes

• 启动单个 redis 容器：

// 按格式直接复制，粘贴到命令符下
docker run -p 6371:6379 -p 16671:16379 --name redis-1 \
-v /mydata/redis/node-1/data:/data \
-v /mydata/redis/node-1/conf/redis.conf:/etc/redis/redis.conf \
-d --net redis --ip 172.36.0.11 redis redis-server /etc/redis/redis.conf

[root@VM-0-6-centos conf]# docker run -p 6371:6379 -p 16671:16379 --name redis-1 \
> -v /mydata/redis/node-1/data:/data \
> -v /mydata/redis/node-1/conf/redis.conf:/etc/redis/redis.conf \
> -d --net redis --ip 172.36.0.11 redis redis-server /etc/redis/redis.conf
Unable to find image 'redis:latest' locally
latest: Pulling from library/redis
b4d181a07f80: Pull complete
86e428f79bcb: Pull complete
ba0d0a025810: Pull complete
ba9292c6f77e: Pull complete
b96c0d1da602: Pull complete
5e4b46455da3: Pull complete
Digest: sha256:7c540ceff53f0522f6b1c264d8142df08316173d103586ddf51ed91ca49deec8
Status: Downloaded newer image for redis:latest
deb3b531684ceff216644460e5957031bce49bb728cb1f851f9f383a86a5fe66

• 或通过脚本运行六个 redis

// 按格式直接复制，粘贴到命令符下
for port in $(seq 1 6);\
do \
docker run -p 637${port}:6379 -p 1667${port}:16379 --name redis-${port} \
-v /mydata/redis/node-${port}/data:/data \
-v /mydata/redis/node-${port}/conf/redis.conf:/etc/redis/redis.conf \
-d --net redis --ip 172.36.0.1${port} redis redis-server /etc/redis/redis.conf
done

 注意，运行容器后，即使后面停止，删除容器了，容器依然存在，无法再次创建容器，报错如下

 怎么重启容器

[root@VM-0-6-centos ~]# for port in $(seq 1 6);\
> do \
> docker run -p 637${port}:6379 -p 1667${port}:16379 --name redis-${port} \
> -v /mydata/redis/node-${port}/data:/data \
> -v /mydata/redis/node-${port}/conf/redis.conf:/etc/redis/redis.conf \
> -d --net redis --ip 172.36.0.1${port} redis redis-server /etc/redis/redis.conf
> done
Unable to find image 'redis:latest' locally
latest: Pulling from library/redis
b4d181a07f80: Already exists
86e428f79bcb: Already exists
ba0d0a025810: Already exists
ba9292c6f77e: Already exists
b96c0d1da602: Already exists
5e4b46455da3: Already exists
Digest: sha256:7c540ceff53f0522f6b1c264d8142df08316173d103586ddf51ed91ca49deec8
Status: Downloaded newer image for redis:latest
ec6875b95a36c5226b02f4cf51e56211a534556d95e87a8010cd91c63304845c
933ea98b5d86e542b7ff5f2aad1ba02a2ee4f6645d734fb4b20e3c3483bd1035
fde579b61f2193550fd553c624cb3301fd2cd15c350b3e6bad5475d5db8f3cd6
ed76640673502954f7d31d13bcae3b2db646c4f2865f5033775d56702805a6eb
c63b8fa9b41548eb3607f9eb125e9f4d1873c5012b830c3fa3ab35ae8f7c99cd
7199b5bba12e0d5925dfc7026f4edc3e93b381464feb10752ec16d91dcc369fe

 说明：

bind 127.0.0.1 //127.0.0.1 限制只能本机访问 将其改为0.0.0.0 protected-mode no # 默认yes，开启保护模式，限制为本地访问 daemonize no 默认no，改为yes意为以守护进程方式启动，yes会使配置文件方式启动redis失败（一开启就退出）

运行指定镜像

1. $ docker run -itd --name redis-test -p 6379:6379 redis

2. $ docker run -itd -p 192.168.220.129:6379:6379 --name redis -v /usr/local/docker/redis.conf:/etc/redis/redis.conf -v /usr/local/docker/data:/data redis redis-server /etc/redis/redis.conf

-d 以守护线程的方式运行（后台运行）
-i 以交互模式运行容器
-t 为容器重新分配一个伪输入终端
-p 映射容器服务的 6379 端口到宿主机的 6379 端口。外部可以直接通过宿主机ip:6379 访问到 Redis 的服务。

 //未加-it可能会运行不起来因为，Docker容器后台运行,就必须有一个前台进程，容器运行的命令不是那些一直挂起的命令（比如运行top，tail），会自动退出

-v /usr/local/docker/redis.conf:/etc/redis/redis.conf //把宿主机配置好的redis.conf挂载到容器内的指定位置

-v /usr/local/docker/data:/data //把redis持久化的数据挂载到宿主机内，做数据备份

redis-server /etc/redis/redis.conf //使redis按照redis.conf的配置启动

–appendonly yes //redis启动后数据持久化

• 查看容器：docker ps

[root@VM-0-6-centos ~]# docker ps
CONTAINER ID   IMAGE     COMMAND                  CREATED          STATUS          PORTS                                                                                      NAMES
7199b5bba12e   redis     "docker-entrypoint.s…"   9 seconds ago    Up 8 seconds    0.0.0.0:6376->6379/tcp, :::6376->6379/tcp, 0.0.0.0:16676->16379/tcp, :::16676->16379/tcp   redis-6
c63b8fa9b415   redis     "docker-entrypoint.s…"   10 seconds ago   Up 9 seconds    0.0.0.0:6375->6379/tcp, :::6375->6379/tcp, 0.0.0.0:16675->16379/tcp, :::16675->16379/tcp   redis-5
ed7664067350   redis     "docker-entrypoint.s…"   10 seconds ago   Up 9 seconds    0.0.0.0:6374->6379/tcp, :::6374->6379/tcp, 0.0.0.0:16674->16379/tcp, :::16674->16379/tcp   redis-4
fde579b61f21   redis     "docker-entrypoint.s…"   11 seconds ago   Up 10 seconds   0.0.0.0:6373->6379/tcp, :::6373->6379/tcp, 0.0.0.0:16673->16379/tcp, :::16673->16379/tcp   redis-3
933ea98b5d86   redis     "docker-entrypoint.s…"   12 seconds ago   Up 11 seconds   0.0.0.0:6372->6379/tcp, :::6372->6379/tcp, 0.0.0.0:16672->16379/tcp, :::16672->16379/tcp   redis-2
ec6875b95a36   redis     "docker-entrypoint.s…"   13 seconds ago   Up 12 seconds   0.0.0.0:6371->6379/tcp, :::6371->6379/tcp, 0.0.0.0:16671->16379/tcp, :::16671->16379/tcp   redis-1

• 进入其中一个容器：docker exec -it redis-1 /bin/sh ( redis默认没有bash)

[root@VM-0-6-centos ~]# docker exec -it redis-1 /bin/sh
#

• 配置集群：
  redis-cli --cluster create 172.36.0.11:6379 172.36.0.12:6379 172.36.0.13:6379 172.36.0.14:6379 172.36.0.15:6379 172.36.0.16:6379 --cluster-replicas 1

[root@VM-0-6-centos ~]# docker exec -it redis-1 /bin/sh
# redis-cli --cluster create 172.36.0.11:6379 172.36.0.12:6379 172.36.0.13:6379 172.36.0.14:6379 172.36.0.15:6379 172.36.0.16:6379 --cluster-replicas 1
>>> Performing hash slots allocation on 6 nodes...
Master[0] -> Slots 0 - 5460
Master[1] -> Slots 5461 - 10922
Master[2] -> Slots 10923 - 16383
Adding replica 172.36.0.15:6379 to 172.36.0.11:6379
Adding replica 172.36.0.16:6379 to 172.36.0.12:6379
Adding replica 172.36.0.14:6379 to 172.36.0.13:6379
M: 38ea8512a00e8b738e058a808d8532f07b4974d5 172.36.0.11:6379
   slots:[0-5460] (5461 slots) master
M: 65c85251d291925afb607bdf93c2ac24e19affd7 172.36.0.12:6379
   slots:[5461-10922] (5462 slots) master
M: 8e51ddb832230925e3d559c8d3f83a87192759af 172.36.0.13:6379
   slots:[10923-16383] (5461 slots) master
S: 540ec67115eda524a78d329855d0288d106a54ab 172.36.0.14:6379
   replicates 8e51ddb832230925e3d559c8d3f83a87192759af
S: 58a78ca2ecf2d057f5b1dea4257dd71328ff68d1 172.36.0.15:6379
   replicates 38ea8512a00e8b738e058a808d8532f07b4974d5
S: 235d08a53a2a938f35af6dbf38ee9ce6b51ce4ae 172.36.0.16:6379
   replicates 65c85251d291925afb607bdf93c2ac24e19affd7
Can I set the above configuration? (type 'yes' to accept):

• 提示：是否按此配置，输入 yes 即可

Can I set the above configuration? (type 'yes' to accept): yes
>>> Nodes configuration updated
>>> Assign a different config epoch to each node
>>> Sending CLUSTER MEET messages to join the cluster
Waiting for the cluster to join
.
>>> Performing Cluster Check (using node 172.36.0.11:6379)
M: 38ea8512a00e8b738e058a808d8532f07b4974d5 172.36.0.11:6379
   slots:[0-5460] (5461 slots) master
   1 additional replica(s)
M: 8e51ddb832230925e3d559c8d3f83a87192759af 172.36.0.13:6379
   slots:[10923-16383] (5461 slots) master
   1 additional replica(s)
S: 58a78ca2ecf2d057f5b1dea4257dd71328ff68d1 172.36.0.15:6379
   slots: (0 slots) slave
   replicates 38ea8512a00e8b738e058a808d8532f07b4974d5
S: 540ec67115eda524a78d329855d0288d106a54ab 172.36.0.14:6379
   slots: (0 slots) slave
   replicates 8e51ddb832230925e3d559c8d3f83a87192759af
M: 65c85251d291925afb607bdf93c2ac24e19affd7 172.36.0.12:6379
   slots:[5461-10922] (5462 slots) master
   1 additional replica(s)
S: 235d08a53a2a938f35af6dbf38ee9ce6b51ce4ae 172.36.0.16:6379
   slots: (0 slots) slave
   replicates 65c85251d291925afb607bdf93c2ac24e19affd7
[OK] All nodes agree about slots configuration.
>>> Check for open slots...
>>> Check slots coverage...
[OK] All 16384 slots covered.
#

配置完成

测试集群：

# redis-cli -c      // redis-cli -c连接集群  redis-cli 连接单机
127.0.0.1:6379> cluster info        // 查看集群信息
cluster_state:ok
cluster_slots_assigned:16384
cluster_slots_ok:16384
cluster_slots_pfail:0
cluster_slots_fail:0
cluster_known_nodes:6
cluster_size:3
cluster_current_epoch:6
cluster_my_epoch:1
cluster_stats_messages_ping_sent:647
cluster_stats_messages_pong_sent:649
cluster_stats_messages_sent:1296
cluster_stats_messages_ping_received:644
cluster_stats_messages_pong_received:647
cluster_stats_messages_meet_received:5
cluster_stats_messages_received:1296
127.0.0.1:6379> cluster nodes      // 查看节点信息
8e51ddb832230925e3d559c8d3f83a87192759af 172.36.0.13:6379@16379 master - 0 1625397547555 3 connected 10923-16383
38ea8512a00e8b738e058a808d8532f07b4974d5 172.36.0.11:6379@16379 myself,master - 0 1625397548000 1 connected 0-5460
58a78ca2ecf2d057f5b1dea4257dd71328ff68d1 172.36.0.15:6379@16379 slave 38ea8512a00e8b738e058a808d8532f07b4974d5 0 1625397548056 1 connected
540ec67115eda524a78d329855d0288d106a54ab 172.36.0.14:6379@16379 slave 8e51ddb832230925e3d559c8d3f83a87192759af 0 1625397549561 3 connected
65c85251d291925afb607bdf93c2ac24e19affd7 172.36.0.12:6379@16379 master - 0 1625397549561 2 connected 5461-10922
235d08a53a2a938f35af6dbf38ee9ce6b51ce4ae 172.36.0.16:6379@16379 slave 65c85251d291925afb607bdf93c2ac24e19affd7 0 1625397549561 2 connected
127.0.0.1:6379>

• 设置一个值，查找对应的主机

127.0.0.1:6379> set a b
// 响应的主机为 172.36.0.13（redis-3），对应从机为 172.36.0.14（redis-4）
-> Redirected to slot [15495] located at 172.36.0.13:6379
OK

• 把 redis-3 容器停止

[root@VM-0-6-centos ~]# docker stop redis-3
redis-3

• 主机停止后，查看从机是否替换成功

# redis-cli -c        // 连接集群
127.0.0.1:6379> get a        // 获取之前输入的值
-> Redirected to slot [15495] located at 172.36.0.14:6379
"b"
172.36.0.14:6379> cluster nodes        // 查看节点信息
// 172.36.0.13（redis-3）被对应的从机 172.36.0.14（redis-4）自动替换成功
540ec67115eda524a78d329855d0288d106a54ab 172.36.0.14:6379@16379 myself,master - 0 1625406048000 7 connected 10923-16383
235d08a53a2a938f35af6dbf38ee9ce6b51ce4ae 172.36.0.16:6379@16379 slave 65c85251d291925afb607bdf93c2ac24e19affd7 0 1625406047146 2 connected
65c85251d291925afb607bdf93c2ac24e19affd7 172.36.0.12:6379@16379 master - 0 1625406048149 2 connected 5461-10922
58a78ca2ecf2d057f5b1dea4257dd71328ff68d1 172.36.0.15:6379@16379 slave 38ea8512a00e8b738e058a808d8532f07b4974d5 0 1625406049153 1 connected
38ea8512a00e8b738e058a808d8532f07b4974d5 172.36.0.11:6379@16379 master - 0 1625406047146 1 connected 0-5460
// 172.36.0.13（redis-3），故障
8e51ddb832230925e3d559c8d3f83a87192759af 172.36.0.13:6379@16379 master,fail - 1625405967351 1625405964842 3 connected
172.36.0.14:6379>

docker搭建redis集群完成，测试成功

三，卸载redis集群

1.编写删除shell脚本，先停止容器，再删除容器

redis_stop.sh

for port in $(seq 1 6); \
do \
  docker stop redis-${port}; \
  docker rm redis-${port}; \
done

2.赋权

chmod 755 stop.sh

3.执行脚本

./redis_stop.sh

四，springboot集成redis集群模式

1.对外提供ip怎么变成宿主机ip，需要改动哪里东西

配置文件，启动网段，集群配置

2.网络怎么联通容器，宿主机

3.密码怎么设置

尝试把配置ip改成宿主机ip

启动ip改成宿主机ip，报错如下，网段不一致

find / -name redis.conf
