一、问题描述
- 在上篇文章中,我们实现了多标签页,这些页面以标签的形式集成在同一个窗口显示,要想切换到某个页面或是关闭某个页面,用户只需要操作相应的标签即可,非常方便快捷。

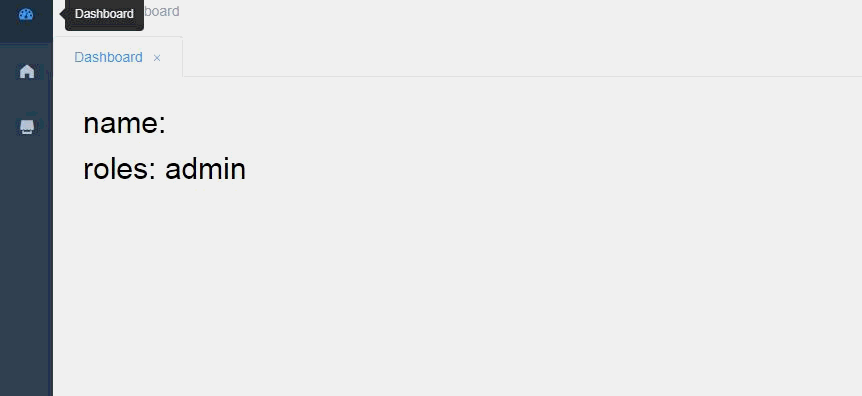

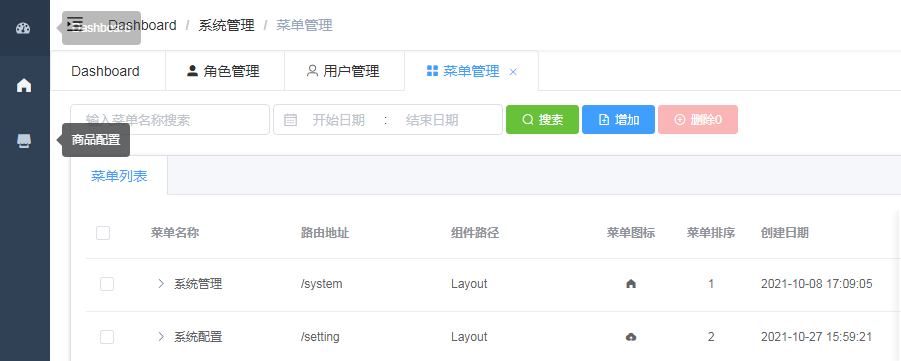

- 但实际使用过程中,却发现以下情况:我们打开角色管理查询出角色信息,又打开了用户管理,之后再次切换回角色管理,发现这个页面被重新加载刷新了。
二、页面缓存的实现方法
2.1 keep-alive组件
- 我们不希望组件被重新渲染影响用户体验;或者处于性能考虑,避免多次重复渲染降低性能。而是希望组件可以缓存下来,维持当前的状态,这时候就可以用到keep-alive组件。
keep-alive 包裹动态组件时,会缓存不活动的组件实例,而不是销毁它们。keep-alive 是一个抽象组件:它自身不会渲染一个 DOM 元素,也不会出现在组件的父组件链中。
- 用法:
<keep-alive>
<component :is="view"></component>
</keep-alive>
- 在vue 2.1.0后的版本中新增include 和 exclude prop 允许组件有条件地缓存。二者都可以用逗号分隔字符串、正则表达式或一个数组来表示:
– include - 字符串或正则表达,只有匹配的组件会被缓存
– exclude - 字符串或正则表达式,任何匹配的组件都不会被缓存
<keep-alive :include="['a', 'b']">
<component :is="view"></component>
</keep-alive>
2.1 配合router-view使用
router-view 组件是一个 functional 组件,渲染路径匹配到的视图组件。router-view渲染的组件还可以内嵌自己的 router-view,根据嵌套路径,渲染嵌套组件。
- 用法:
<transition>
<keep-alive>
<router-view></router-view>
</keep-alive>
</transition>
三、页面缓存的具体实现
- 创建一个存储用户打开的Tab页面的状态管理器,用来存放用户打开的且需要缓存的多个页面
// src/store/modules/tabbar.js
const state = {
cachedViews: []
}
const mutations = {
// 添加缓存页面
ADD_CACHED_VIEW: (state, view) => {
if (state.cachedViews.includes(view.name)) return
if (!view.meta.noCache) {
state.cachedViews.push(view.name)
}
},
// 删除缓存页面
DEL_CACHED_VIEW: (state, view) => {
for (const i of state.cachedViews) {
if (i === view.name) {
const index = state.cachedViews.indexOf(i)
state.cachedViews.splice(index, 1)
break
}
}
},
// 删除全部缓存页面
DEL_ALL_CACHED_VIEWS: state => {
state.cachedViews = []
}
}
const actions = {
addCachedView({
commit }, view) {
commit('ADD_CACHED_VIEW', view)
},
delCachedView({
commit, state }, view) {
return new Promise(resolve => {
commit('DEL_CACHED_VIEW', view)
resolve([...state.cachedViews])
})
},
delAllCachedViews({
commit, state }) {
return new Promise(resolve => {
commit('DEL_ALL_CACHED_VIEWS')
resolve([...state.cachedViews])
})
}
}
export default {
namespaced: true,
state,
mutations,
actions
}
- Tabbar组件中监控路由变化情况,将路由信息对应的页面与tabs panel列表进行绑定时,我们把该页面加入Tab状态管理器
watch: {
$route: {
handler(to, form = null) {
// 当路由改变时,检测该路由是否已经在打开的页面之中,如果不在,就添加进去
if (to.meta) {
this.pageCurrent = to.path
var index = this.pageList.findIndex(value => {
return value.name === to.path
})
if (index < 0) {
this.pageList.push({
name: to.path, label: to.meta.title, icon: to.meta.icon })
}
// 将需要缓存的页面放入状态管理器
const {
name, meta } = this.$route
if (name && meta !== undefined && meta.noCache !== undefined && !meta.noCache) {
this.$store.dispatch('tabbar/addCachedView', this.$route)
}
}
},
immediate: true
}
}
- Tabbar组件中用户移除tab页时,我们把该页面从Tab状态管理器中移除
removeTab(targetName) {
if (targetName === '/dashboard') return
const tabs = this.pageList
let activeName = this.pageCurrent
if (activeName === targetName) {
tabs.forEach((tab, index) => {
if (tab.name === targetName) {
const nextTab = tabs[index + 1] || tabs[index - 1]
if (nextTab) {
activeName = nextTab.name
}
}
})
}
this.pageCurrent = activeName
this.pageList = tabs.filter(tab => tab.name !== targetName)
// 将需要缓存页面从状态管理器中移除
this.$store.dispatch('tabbar/delCachedView', this.$route)
this.$router.push({
path: activeName })
}
- 修改主界面组件,实现有条件地对状态管理器中的页面进行缓存
<template>
<section class="app-main">
<!-- 有条件地对状态管理器的页面进行缓存v-->
<transition name="fade-transform" mode="out-in">
<keep-alive :include="this.$store.state.tabbar.cachedViews">
<router-view :key="key" />
</keep-alive>
</transition>
</section>
</template>
<script>
export default {
name: 'AppMain',
computed: {
// 页面缓存状态管理器
cachedViews() {
return this.$store.state.tabbar.cachedViews
},
key() {
return this.$route.path
}
}
}
</script>
<style scoped>
.app-main {
/*50 = navbar */
min-height: calc(100vh - 50px);
width: 100%;
position: relative;
overflow: hidden;
}
.fixed-header+.app-main {
padding-top: 50px;
}
</style>
<style lang="scss">
// fix css style bug in open el-dialog
.el-popup-parent--hidden {
.fixed-header {
padding-right: 15px;
}
}
</style>
