模式简介
原型模式通常用于克隆一个对象,当一个对象进行创建时需要传递许多参数,但是很多参数我们可以与之前的对象保持一致,那么就可以通过原型模式来实现对象克隆。

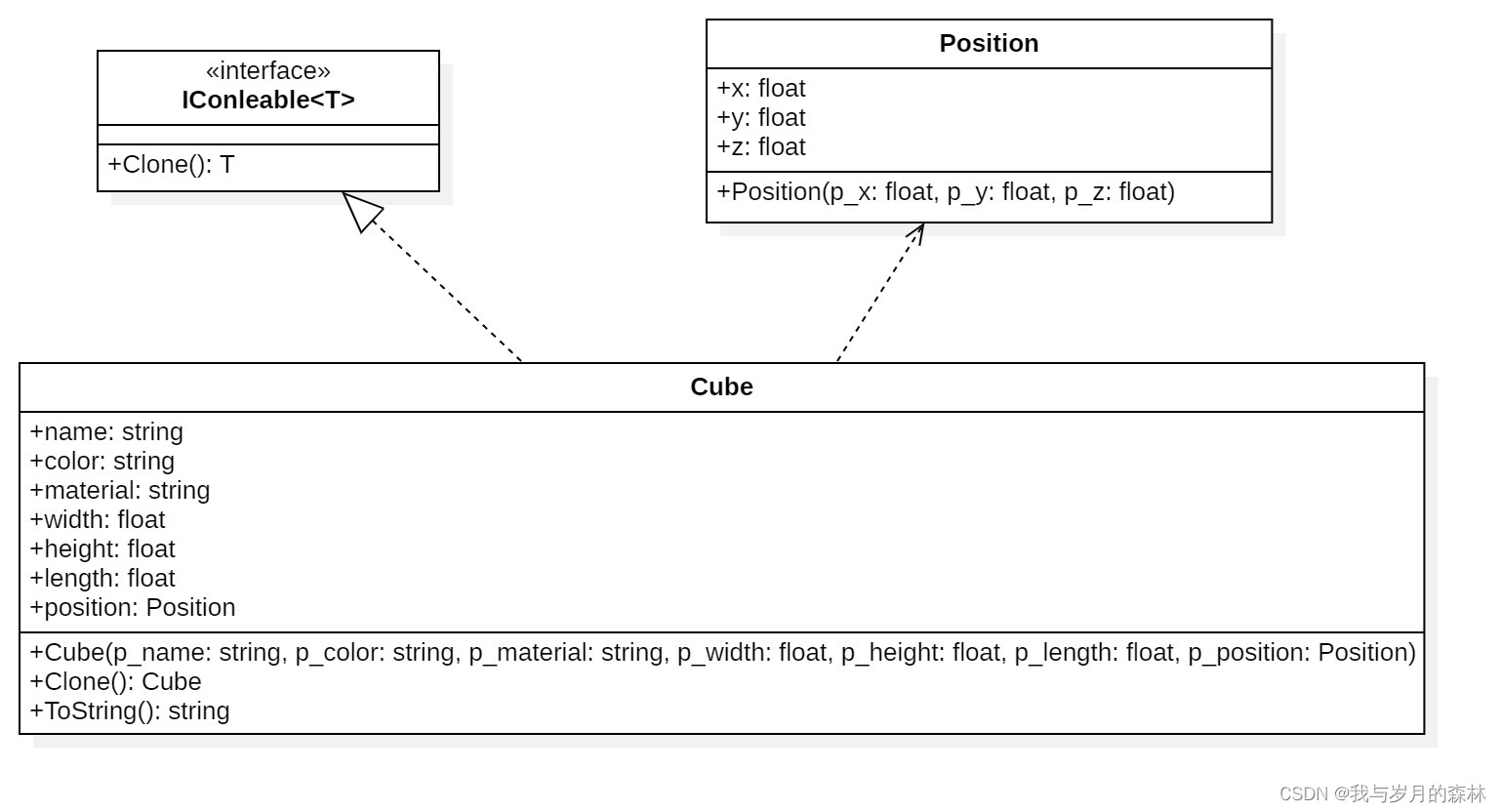

模式UML图
代码示例(C#)
提示:可在本栏目的资源篇“设计模式代码示例合集”下载所有完整代码资源。
public class Cube : IConleable<Cube>
{
public string name;
public string color;
public string material;
public float width;
public float height;
public float length;
public Position position;
public Cube(string p_name, string p_color, string p_material, float p_width, float p_height, float p_length, Position p_position)
{
name = p_name;
color = p_color;
material = p_material;
width = p_width;
height = p_height;
length = p_length;
position = p_position;
}
public Cube Clone()
{
Position v_position = new Position(position.x, position.y, position.z);
return new Cube(name, color, material, width, height, length, v_position);
}
public override string ToString()
{
string v_str = "";
v_str += "【Cube:" + name + "】\n";
v_str += "--------------------------\n";
v_str += "[Color]:" + color + "\n";
v_str += "[Material]:" + material + "\n";
v_str += "[Width]:" + width + "\n";
v_str += "[Height]:" + height + "\n";
v_str += "[Length]:" + length + "\n";
v_str += "--------------------------\n";
return v_str;
}
}
public class Position
{
public float x;
public float y;
public float z;
public Position(float p_x, float p_y, float p_z) { x = p_x; y = p_y; z = p_z; }
}
public interface IConleable<T>
{
public T Clone();
}
//测试代码
public void Test()
{
Cube cube1 = new Cube("cube1", "Blue", "Wood", 4, 4, 4, new Position(3.1f, 2.2f, 4.2f));
Cube cube2 = cube1.Clone();
cube1.color = "Black";
cube2.name = "cube2";
Console.WriteLine(cube1);
Console.WriteLine(cube2);
Console.WriteLine(cube1 == cube2);
}
代码解说
我们要求具备克隆功能的类实现ICloneable接口的Clone方法,在Clone方法中对所有参数进行默认赋值,然后返回一个对象,这样当我们需要克隆一个对象时,直接调用其Clone方法即可,如果想要对特定参数进行赋值,直接通过返回的对象直接进行赋值即可,这里需要注意的是,我们在编写Clone方法时,对于非数值类型的参数要注意其赋值,例如我们这里的Position类型参数,需要重新new一个Position对象并对其进行赋值,不能像值类型那样直接传递,引用类型传递的是引用,也就是如果我们把cube1的position直接当作参数传递给克隆对象cube2的话,则二者的position参数是指向的同一个内存地址,所以编写克隆方法时要注意这种浅拷贝和深拷贝的问题。
