Activty启动到显示的过程[一]

startActivity(Intent intent)启动一个Activity，然后会通过Instrumentaion和ActivityTaskManagerService通信，通过ActivityStarter执行启动流程。

流程图：

ActivityStarter在executeRequest()方法中实例化ActivityRecord, ActivityStack。

ActivityRecord，ActivityStack关系图

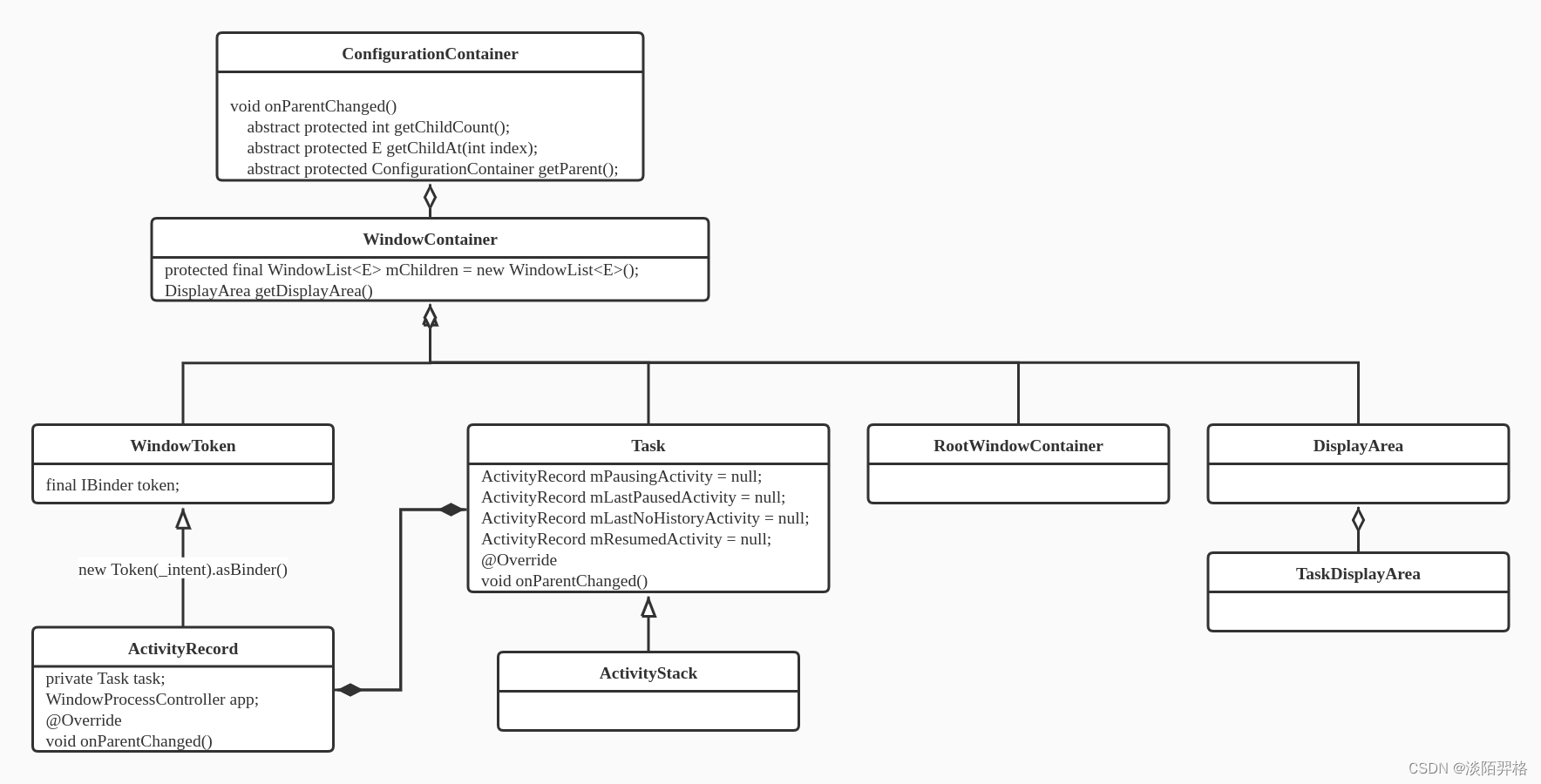

ActivityRecord，ActivityStack类关系图：

Token

ActivityRecord继承WindowToken类，在ActivityRecord构造函数中通过Intent参数初始化WindowToken的token变量，token是一个IBinder对象。

//WindowToken.java

class WindowToken extends WindowContainer<WindowState> {


    // The actual token.
    final IBinder token;
}

尽管ActivityRecord继承了WindowToken对象，但是它还是另外声明了一个自己的Token变量appToken，appToken和父类WindowToken的token变量都在ActivityRecord对象的构造方法中初始化，他们指向同一个实例化的对象，appToken是ActivityRecord的嵌套类ActivityRecord.Token，对比IBinder多实现了一些自己的方法attach(ActivityRecord activity)；tokenToActivityRecordLocked(Token token)；toString()等。

//ActivityRecord.java

final class ActivityRecord extends WindowToken implements WindowManagerService.AppFreezeListener {


    // TODO: rename to mActivityToken
    final ActivityRecord.Token appToken;

    ActivityRecord() {


        super(_service.mWindowManager, new Token(_intent).asBinder(), TYPE_APPLICATION, true,
                null /* displayContent */, false /* ownerCanManageAppTokens */);
        appToken = (Token) token;
    }

	static class Token extends IApplicationToken.Stub {


        private WeakReference<ActivityRecord> weakActivity;
        private final String name;
        private final String tokenString;

        Token(Intent intent) {


            name = intent.getComponent().flattenToShortString();
            tokenString = "Token{" + Integer.toHexString(System.identityHashCode(this)) + "}";
        }
    }
}


//IApplicationToken.aidl
    interface IApplicationToken
    {


      String getName();
    }

Token为什么是binder对象？

可以理解为Token的设计目的是为了唯一的指定一个Activity，在Activity启动到显示的过程中，Token在ActivityRecord实例化的同时被初始化，后面还有许多地方都需要Token对象：

ClientTransaction.obtain(next.app.getThread(), next.appToken); //next.appToken被赋值给Activity.mToken

addWindow()

在Android系统中，binder不仅仅用来跨进程通信，binder对象的一个有趣属性是，每个实例在系统中的所有进程中都维护一个惟一的标识，无论它跨越了多少进程边界或它去了哪里，这为系统的安全性做出了保证，不能被伪造，避免了安全漏洞，这不是String对象能够做到的。参考：https://www.androiddesignpatterns.com/2013/07/binders-window-tokens.html#footnote5

可以理解为Activity, ActivityRecord, Token都是一一对应的关系。

ActivityRecord，ActivityStack初始化

ActivityStack在ActivityStarter类的startActivityInner()方法中被实例化，赋值给其mTargetStack变量：

        if (mTargetStack == null) {


            mTargetStack = getLaunchStack(mStartActivity, mLaunchFlags, targetTask, mOptions);
        }

ActivityStack被实例化后，父类WindowContainer回调子类ActivityRecord和Task覆盖的onParentChanged(ConfigurationContainer newParent, ConfigurationContainer oldParent)方法，初始化ActivityRecord中的类变量task，Task中的类变量mResumedActivity。ActivityRecord类和Task类就这样相互关联起来了。父类WindowContainer的类变量mChildren也被更新，mChildren保存着当前WindowContainer实例的所有Task对象。

//ActivityRecord.java
	@Override
    void onParentChanged(ConfigurationContainer newParent, ConfigurationContainer oldParent) {


        final Task oldTask = oldParent != null ? (Task) oldParent : null;
        final Task newTask = onParentChanged != null ? (Task) newParent : null;
        this.task = newTask;
        ...
    }

//Task.java
	@Override
    void onParentChanged(ConfigurationContainer newParent, ConfigurationContainer oldParent) {


    		...
            if (newParent != null) {


                final Task newParentTask = ((WindowContainer) newParent).asTask();
                if (newParentTask != null) {


                    final ActivityRecord top = newParentTask.getTopNonFinishingActivity(
                            false /* includeOverlays */);
                    if (top != null && top.isState(RESUMED)) {


                        newParentTask.setResumedActivity(top, "addedToTask");
                    }
                }
                ...
       		}
       		...
    }

ActivityRecord和ActivityStack都被初始化后，RootWindowContainer通过父类WindowContainer的类变量mChildren判断当前需要被显示的ActivityStack，调用其resumeTopActivityUncheckedLocked()方法。

隐藏其他Activity

在一个Activity显示出来之前，需要隐藏之前显示的Activity，回调其onPause()方法。

ActivityStack对象resumeTopActivityInnerLocked()方法中，通过TaskDisplayArea.pauseBackStacks(userLeaving, next);，遍历mChildren中所有的Task对象，判断这些Task中是否存在mResumedActivity，如果存在，通过ClientLifecycleManager隐藏这个Activity。PauseActivityItem在execute()后，postExecute()方法会继续调用RootWindowContainer类的resumeFocusedStacksTopActivities()方法，执行对应Activity的显示操作。

进程，线程初始化

在一个Activity显示出来之前，需要确定进程和主线程是否已经准备好。

通过ActivityRecord类的attachedToProcess()方法判断当前ActivityRecord对象的进程和线程是否准备好，如果准备好了，通过ApplicationThread和appToken参数与应用进程通信，回调对应生命周期方法（onNewIntent()等），ClientLifecycleManager执行ResumeActivityItem事务，否则需要调用ActivityStackSupervisor类startSpecificActivity()方法进一步判断进程和线程状态，调用ActivityTaskManagerService.startProcessAsync()启动新进程。

//ActivityRecord.java
    boolean hasProcess() {


        return app != null;
    }

    boolean attachedToProcess() {


        return hasProcess() && app.hasThread();
    }

//ActivityStack.java

	@GuardedBy("mService")
    private boolean resumeTopActivityInnerLocked(ActivityRecord prev, ActivityOptions options) {


    	...
    	boolean pausing = taskDisplayArea.pauseBackStacks(userLeaving, next);
        if (mResumedActivity != null) {


            pausing |= startPausingLocked(userLeaving, false /* uiSleeping */, next);
        }
        if (pausing) {


        	...
        }

        if (next.attachedToProcess()) {


            try{



                final ClientTransaction transaction =
                        ClientTransaction.obtain(next.app.getThread(), next.appToken);	//ApplicationThread!
                // Deliver all pending results.
                ArrayList<ResultInfo> a = next.results;
                if (a != null) {


                    final int N = a.size();
                    if (!next.finishing && N > 0) {


                        if (DEBUG_RESULTS) Slog.v(TAG_RESULTS,
                                "Delivering results to " + next + ": " + a);
                        transaction.addCallback(ActivityResultItem.obtain(a));
                    }
                }

                if (next.newIntents != null) {


                    transaction.addCallback(
                            NewIntentItem.obtain(next.newIntents, true /* resume */));	//onNewIntent()
                }
                transaction.setLifecycleStateRequest(
                        ResumeActivityItem.obtain(next.app.getReportedProcState(),
                                dc.isNextTransitionForward()));
                mAtmService.getLifecycleManager().scheduleTransaction(transaction);
            } catch (Exception e) {


                mStackSupervisor.startSpecificActivity(next, true, false);
                return true;
            }
        } else {


            mStackSupervisor.startSpecificActivity(next, true, true);
        }
        return true;
    }

system_server进程和zygote进程通信后，zygote以“android.app.ActivityThread”为入点fork出一个新的进程，新进程启动首先调用ActivityThread的main()方法。其中Looper.prepareMainLooper(); Looper.loop();初始化主线程。

// ActivityThread.java

    @UnsupportedAppUsage
    final ApplicationThread mAppThread = new ApplicationThread();

	public static void main(String[] args) {


    	// Install selective syscall interception
    	AndroidOs.install();
    	...
    	Looper.prepareMainLooper();

        ActivityThread thread = new ActivityThread();
        thread.attach(false, startSeq);
    	if (sMainThreadHandler == null) {


            sMainThreadHandler = thread.getHandler();
        }
        Looper.loop();
	}

	@UnsupportedAppUsage
    private void attach(boolean system, long startSeq) {


        ...
        	final IActivityManager mgr = ActivityManager.getService();
            try {


                mgr.attachApplication(mAppThread, startSeq);
            } catch (RemoteException ex) {


                throw ex.rethrowFromSystemServer();
            }
        ...
    }

thread.attach(false, startSeq);获取系统服务AMS对象attachApplication()，传递的参数mAppThread是一个ApplicationThread对象，ApplicationThread是ActivityThread的内部类，也是一个Binder对象。在此处它是作为Activitythread和AMS通信的桥梁，ApplicationThread和ActivityThread二者间通过Handler

“H”通信。

//ActivityManagerService.java

	@GuardedBy("this")
    private boolean attachApplicationLocked(@NonNull IApplicationThread thread,
            int pid, int callingUid, long startSeq) {


        	...
            AppDeathRecipient adr = new AppDeathRecipient(
                    app, pid, thread);
            thread.asBinder().linkToDeath(adr, 0);
            app.deathRecipient = adr;
        	...
            thread.bindApplication(processName, appInfo, providerList,
                        instr2.mClass,
                        profilerInfo, instr2.mArguments,
                        instr2.mWatcher,
                        instr2.mUiAutomationConnection, testMode,
                        mBinderTransactionTrackingEnabled, enableTrackAllocation,
                        isRestrictedBackupMode || !normalMode, app.isPersistent(),
                        new Configuration(app.getWindowProcessController().getConfiguration()),
                        app.compat, getCommonServicesLocked(app.isolated),
                        mCoreSettingsObserver.getCoreSettingsLocked(),
                        buildSerial, autofillOptions, contentCaptureOptions,
                        app.mDisabledCompatChanges);
            ...
            app.makeActive(thread, mProcessStats);
            mProcessList.updateLruProcessLocked(app, false, null);
        	...
    }

attachApplicationLocked()创建app死亡通知AppDeathRecipient（进程被杀死后通知AMS），通过thread（IApplicationThread对象）与app进程通信bindApplication()，ActivityThread调用handleBindApplication()，最终会回调Application对象的onCreate()生命周期方法。

更新对应进程的LRU，OomAdj等相关属性，调用ProcessRecord对象makeActive(thread, mProcessStats);方法，将thread对象赋值给WindowProcessController类的mThread变量。

//WindowProcessController.java

	// The actual proc...  may be null only if 'persistent' is true (in which case we are in the
    // process of launching the app)
    private IApplicationThread mThread;

到这里进程和线程都已经准备好了，是时候真正启动Activity了。

realStartActivityLocked

//ActivityStackSupervisor.java
	boolean realStartActivityLocked(ActivityRecord r, WindowProcessController proc,
            boolean andResume, boolean checkConfig) throws RemoteException {


        ...
        final ClientTransaction clientTransaction = ClientTransaction.obtain(
                        proc.getThread(), r.appToken);
        clientTransaction.addCallback(LaunchActivityItem.obtain(new Intent(r.intent),
                        System.identityHashCode(r), r.info,
                        // TODO: Have this take the merged configuration instead of separate global
                        // and override configs.
                        mergedConfiguration.getGlobalConfiguration(),
                        mergedConfiguration.getOverrideConfiguration(), r.compat,
                        r.launchedFromPackage, task.voiceInteractor, proc.getReportedProcState(),
                        r.getSavedState(), r.getPersistentSavedState(), results, newIntents,
                        dc.isNextTransitionForward(), proc.createProfilerInfoIfNeeded(),
                        r.assistToken, r.createFixedRotationAdjustmentsIfNeeded()));
        lifecycleItem = ResumeActivityItem.obtain(dc.isNextTransitionForward());
        clientTransaction.setLifecycleStateRequest(lifecycleItem);

        // Schedule transaction.
        mService.getLifecycleManager().scheduleTransaction(clientTransaction);
   		...
    }

ClientTransaction对象添加LaunchActivityItem回调，LaunchActivityItem.execute()方法中会调用ActivityThread的handleLaunchActivity()方法，最后会调用Activity的生命周期方法onCreate()。

ClientTransaction对象setLifecycleStateRequest(ResumeActivityItem)，设置Activity的resume状态。

最终ActivityThread调用handleResumeActivity()方法通过系统服务WMS的addView()方法显示Activity界面。

//ActivityThread.java
	@Override
    public void handleResumeActivity(IBinder token, boolean finalStateRequest, boolean isForward,
            String reason) {


        ...
        final ActivityClientRecord r = performResumeActivity(token, finalStateRequest, reason);
        final Activity a = r.activity;
        if (r.window == null && !a.mFinished && willBeVisible) {


            if (a.mVisibleFromClient) {


                if (!a.mWindowAdded) {


                    a.mWindowAdded = true;
		            wm.addView(decor, l);
                } else {


                    // The activity will get a callback for this {@link LayoutParams} change
                    // earlier. However, at that time the decor will not be set (this is set
                    // in this method), so no action will be taken. This call ensures the
                    // callback occurs with the decor set.
                    a.onWindowAttributesChanged(l);
                }
            }
        }
        ...
    }

performResumeActivity()方法中会通过Instrumentation回调Activity中的onResume()和onPostResume()方法，然后才是addView()，可见在生命周期方法onResume()和onPostResume()被调用时，当前Activity对用户依然是不可见的。

Activity启动流程中可以看到system_server, zygote, app三个进程相互通信协作，ActivityTaskManagerService, ActivityManagerService, WindowManagerService等关键服务协同工作，token作为Activity的唯一标识贯穿其中。
