接口测试自动化框架--V1版本

版权声明：本文为博主原创文章，未经博主允许不得转载。 https://blog.csdn.net/sinat_34817187/article/details/85236016

框架主要技术：maven+java+testng+poi+ExtentReports等
主要实现思想：
数据驱动测试，用Excel来管理数据，‘Input’ Sheet中存放输入数据，读取数据后拼成request 调用service, 拿到response后写入 ‘Output’ Sheet 即实际结果, 实际结果在与期望结果作比较，写入结果表中，测试完成后生成测试报告
1.框架主要结构

2.项目目录

3.项目搭建过程
使用的接口示例地址：https://reqres.in/
3.1准备测试案例和配置文件
src/main/config：主要配置地址config.properties

#HOST = http://10.1.1.xxx:8080/xxxx/
HOST = https://reqres.in/

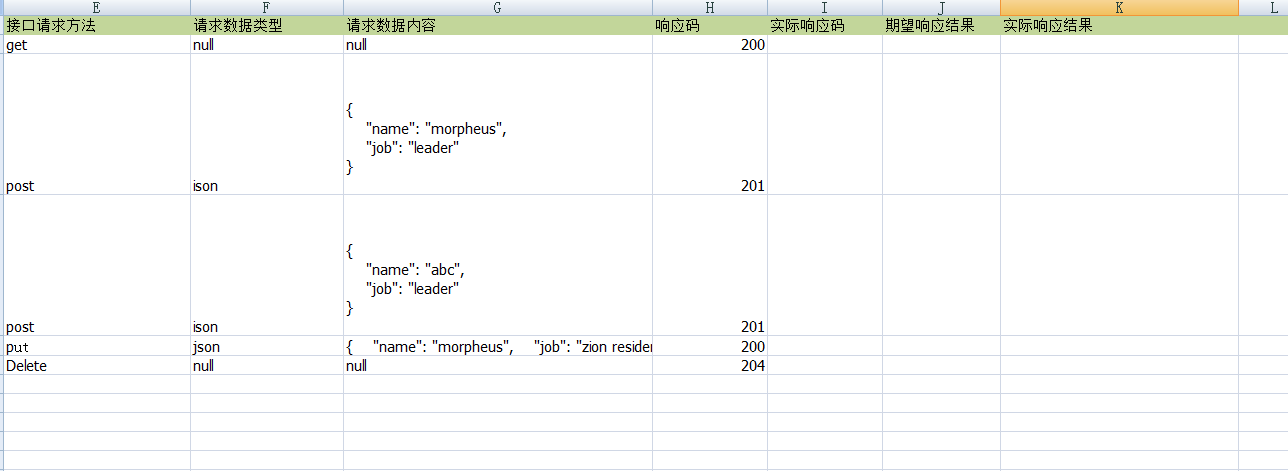

apidata文件夹下新建1.xls，为接口案例

3.2工具类：
com/qa/util:
testBase读取配置文件、
copyFile：复制apidata，生成结果表
Readexcle/writeexcle:读取与写入excle表

3.3RestClient:封装接口方法
RestClient：封装了基本的post、get、delete、put方法

public class RestClient{
	final static Logger Log = Logger.getLogger(RestClient.class);

	/**
	 * 不带请求头的get方法封装
	 * @param url
	 * @return 返回响应对象
	 * @throws ClientProtocolException
	 * @throws IOException
	 */
	public CloseableHttpResponse get (String url) throws ClientProtocolException, IOException {

		//创建一个可关闭的HttpClient对象
		CloseableHttpClient httpclient = HttpClients.createDefault();
		//创建一个HttpGet的请求对象
		HttpGet httpget = new HttpGet(url);
		//执行请求,相当于postman上点击发送按钮，然后赋值给HttpResponse对象接收
		Log.info("开始发送get请求...");
		CloseableHttpResponse httpResponse = httpclient.execute(httpget);
		return httpResponse;
	}

	/**
	 * 带请求头信息的get方法
	 * @param url
	 * @param headermap，键值对形式
	 * @return 返回响应对象
	 * @throws ClientProtocolException
	 * @throws IOException
	 */
	public CloseableHttpResponse get (String url,HashMap<String,String> headermap) throws ClientProtocolException, IOException {

		//创建一个可关闭的HttpClient对象
		CloseableHttpClient httpclient = HttpClients.createDefault();
		//创建一个HttpGet的请求对象
		HttpGet httpget = new HttpGet(url);
		//加载请求头到httpget对象
		for(Map.Entry<String, String> entry : headermap.entrySet()) {
			httpget.addHeader(entry.getKey(), entry.getValue());
		}
		//执行请求,相当于postman上点击发送按钮，然后赋值给HttpResponse对象接收
		CloseableHttpResponse httpResponse = httpclient.execute(httpget);
		Log.info("开始发送带请求头的get请求...");
		return httpResponse;
	}

	/**
	 * 封装post方法
	 * @param url
	 * @param entityString，其实就是设置请求json参数
	 * @param headermap，带请求头
	 * @return 返回响应对象
	 * @throws ClientProtocolException
	 * @throws IOException
	 */
	public CloseableHttpResponse post (String url, String entityString, HashMap<String,String> headermap) throws ClientProtocolException, IOException {
		//创建一个可关闭的HttpClient对象
		CloseableHttpClient httpclient = HttpClients.createDefault();
		//创建一个HttpPost的请求对象
		HttpPost httppost = new HttpPost(url);
		//设置payload
		httppost.setEntity(new StringEntity(entityString));

		//加载请求头到httppost对象
		for(Map.Entry<String, String> entry : headermap.entrySet()) {
			httppost.addHeader(entry.getKey(), entry.getValue());
		}
		//发送post请求
		CloseableHttpResponse httpResponse = httpclient.execute(httppost);
		Log.info("开始发送post请求");
		return httpResponse;
	}

	/**
	 * 封装 put请求方法，参数和post方法一样
	 * @param url
	 * @param entityString，这个主要是设置payload,一般来说就是json串
	 * @param headerMap，带请求的头信息，格式是键值对，所以这里使用hashmap
	 * @return 返回响应对象
	 * @throws ClientProtocolException
	 * @throws IOException
	 */
	public CloseableHttpResponse put(String url, String entityString, HashMap<String,String> headerMap) throws ClientProtocolException, IOException {

		CloseableHttpClient httpclient = HttpClients.createDefault();
		HttpPut httpput = new HttpPut(url);
		httpput.setEntity(new StringEntity(entityString));

		for(Map.Entry<String, String> entry : headerMap.entrySet()) {
			httpput.addHeader(entry.getKey(), entry.getValue());
		}
		//发送put请求
		CloseableHttpResponse httpResponse = httpclient.execute(httpput);
		return httpResponse;
	}

	/**
	 * 封装 delete请求方法，参数和get方法一样
	 * @param url， 接口url完整地址
	 * @return，返回一个response对象，方便进行得到状态码和json解析动作
	 * @throws ClientProtocolException
	 * @throws IOException
	 */
	public CloseableHttpResponse delete (String url) throws ClientProtocolException, IOException {

		CloseableHttpClient httpclient = HttpClients.createDefault();
		HttpDelete httpdel = new HttpDelete(url);

		//发送delete请求
		CloseableHttpResponse httpResponse = httpclient.execute(httpdel);
		return httpResponse;
	}

	/**
	 * 获取响应状态码，常用来和TestBase中定义的状态码常量去测试断言使用
	 * @param response
	 * @return 返回int类型状态码
	 */
	public int getStatusCode (CloseableHttpResponse response) {

		int statusCode = response.getStatusLine().getStatusCode();
		Log.info("解析，得到响应状态码:"+ statusCode);
		return statusCode;

	}

	/**
	 *
	 * @param response, 任何请求返回返回的响应对象
	 * @return， 返回响应体的json格式对象，方便接下来对JSON对象内容解析
	 * 接下来，一般会继续调用TestUtil类下的json解析方法得到某一个json对象的值
	 * @throws ParseException
	 * @throws IOException
	 */
	public JSONObject getResponseJson (CloseableHttpResponse response) throws ParseException, IOException {
		Log.info("得到响应对象的String格式");
		String responseString = EntityUtils.toString(response.getEntity(),"UTF-8");
		JSONObject responseJson = JSON.parseObject(responseString);
		Log.info("返回响应内容的JSON格式");
		return responseJson;
	}
	}

execute类：读取excle表，按需调用post、get等方法

public class Execut extends RestClient{
	String host;
	static String url;
	static RestClient restClient;
    static CloseableHttpResponse closeableHttpResponse;
	final static Logger Log = Logger.getLogger(Execut.class);
	//读取excle测试案例
	public  List read(File file){
		ReadExcel obj = new ReadExcel();
        List excelList = obj.readExcel(file);
		return excelList;
	}

	public List selectmethod(File file) throws ClientProtocolException, IOException{
			TestBase tb=new TestBase();
			restClient = new RestClient();
			List resList=new ArrayList();//存储响应后的数据
	        List excelList = read(file);
	        for (int i = 0; i < excelList.size(); i++) {
	            List list = (List) excelList.get(i);
	            url= tb.prop.getProperty("HOST")+list.get(3);
	            if(list.get(4).equals("get")){
	                System.out.print("调用get方法");
	                Log.info("开始执行用例...");
	         		closeableHttpResponse = restClient.get(url);

	             }else if(list.get(4).equals("post")){
	            	System.out.print("调用post方法");
	            	String data = (String) list.get(6);
	            	JSONObject object = JSONObject.fromObject(data);//String转为json对象
	            	String userJsonString = JSON.toJSONString(object);//json转json字符串
	            	Log.info("开始执行用例...");
	        		//准备请求头信息
	        		HashMap<String,String> headermap = new HashMap<String,String>();
	        		headermap.put("Content-Type", "application/json"); //这个在postman中可以查询到
	        		//调用post
	        		closeableHttpResponse = restClient.post(url, userJsonString, headermap);

	             }else if(list.get(4).equals("put")){

	            	 System.out.print("调用put方法");
		            	String data = (String) list.get(6);
		            	JSONObject object = JSONObject.fromObject(data);//String转为json对象
		            	String userJsonString = JSON.toJSONString(object);//json转json字符串

		            	Log.info("开始执行用例...");
		        		//准备请求头信息
		        		HashMap<String,String> headermap = new HashMap<String,String>();
		        		headermap.put("Content-Type", "application/json"); //这个在postman中可以查询到
		        		//调用post
		        		closeableHttpResponse = restClient.put(url, userJsonString, headermap);
	             }else if(list.get(4).equals("Delete")){
	            	 System.out.print("调用Delete方法");
		             Log.info("开始执行用例...");
		         	 closeableHttpResponse = restClient.delete(url);
	             }

	            System.out.println();
	            resList.add(closeableHttpResponse);
	        }
			return resList;

	}
}

3.4src/test/java
测试类：获取响应结果，写入result表中。

public class DemoTest extends Execut{

  @Test
  public void testA() throws ClientProtocolException, IOException {
	  String path="E:\\javaworkspace\\API_AutoFrame\\apidata\\1.xls";
	  Execut exe1=new Execut();
	  WriteExcel write=new WriteExcel();//excle写入
	  CopyFile copy=new CopyFile();//excle复制
	  copy.copyFiles(path,copy.path+"\\result.xls");
	  RestClient restClient = new RestClient();
	  File file = new File(path);
	  List response = exe1.selectmethod(file);
	  List excelList = read(file);
	  for(int i=0;i<response.size();i++){
		  List list = (List) excelList.get(i);
		  int liststatuscode =Integer.valueOf((String) list.get(7)) ;//响应码正确值,string转integer
		  String type=(String) list.get(4);//请求方法
		  CloseableHttpResponse res = (CloseableHttpResponse)response.get(i);
		  int statusCode = restClient.getStatusCode(res);//获取响应码
		  if(res.getEntity()!=null){
		  String responseString = EntityUtils.toString(res.getEntity(),"UTF-8"); ////获取响应实体把响应内容存储在字符串对象
		  write.writeExcel(responseString,i+1, 10, copy.path+"\\result.xls");
		  }
		  if(liststatuscode==statusCode){
			  write.writeExcel(String.valueOf(statusCode)+"pass",i+1, 8, copy.path+"\\result.xls");
			  System.out.println(type+"请求，"+"返回值正确");
		  }else{
			  write.writeExcel(String.valueOf(statusCode)+"fail",i+1, 8, copy.path+"\\result.xls");
			  System.out.println(type+"请求，"+"返回值错误");
		   }

  }
}
}

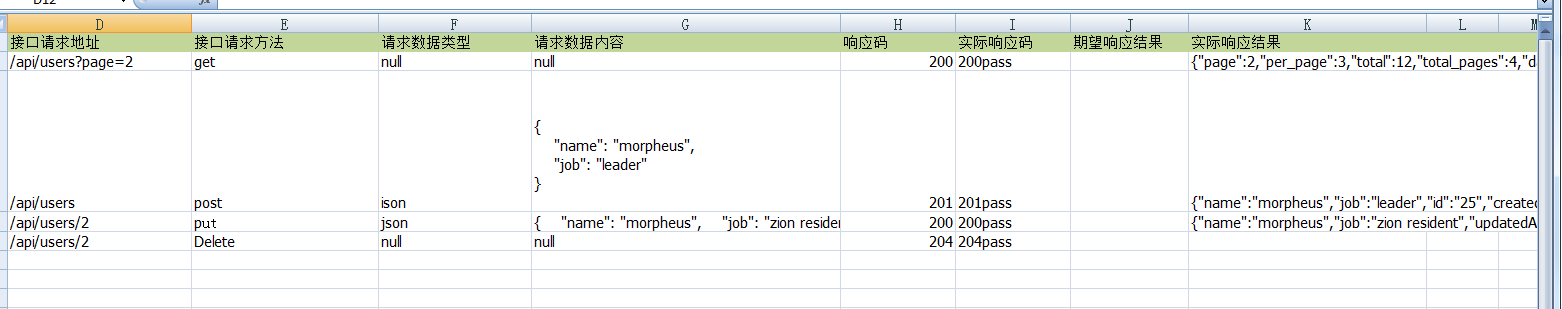

运行后会在result文件夹下生成result.xls结果

3.5日志生成
src/main/config配置log4j.properties

	final static Logger Log = Logger.getLogger(RestClient.class);
//需要打印的日志打印出来即可
	Log.info("开始发送get请求...");

3.6testng.xml配置测试用例
主要配置如下：

 <test verbose="2" preserve-order="true" name="Test1">
        <classes>
            <class name="com.qa.tests.DemoTest"/>
        </classes>
    </test>

3.7测试报告的优化：
testng自身的报告太丑，受不了。
具体参考：https://blog.csdn.net/zuozewei/article/details/85011217
在项目中的配置主要有以下：

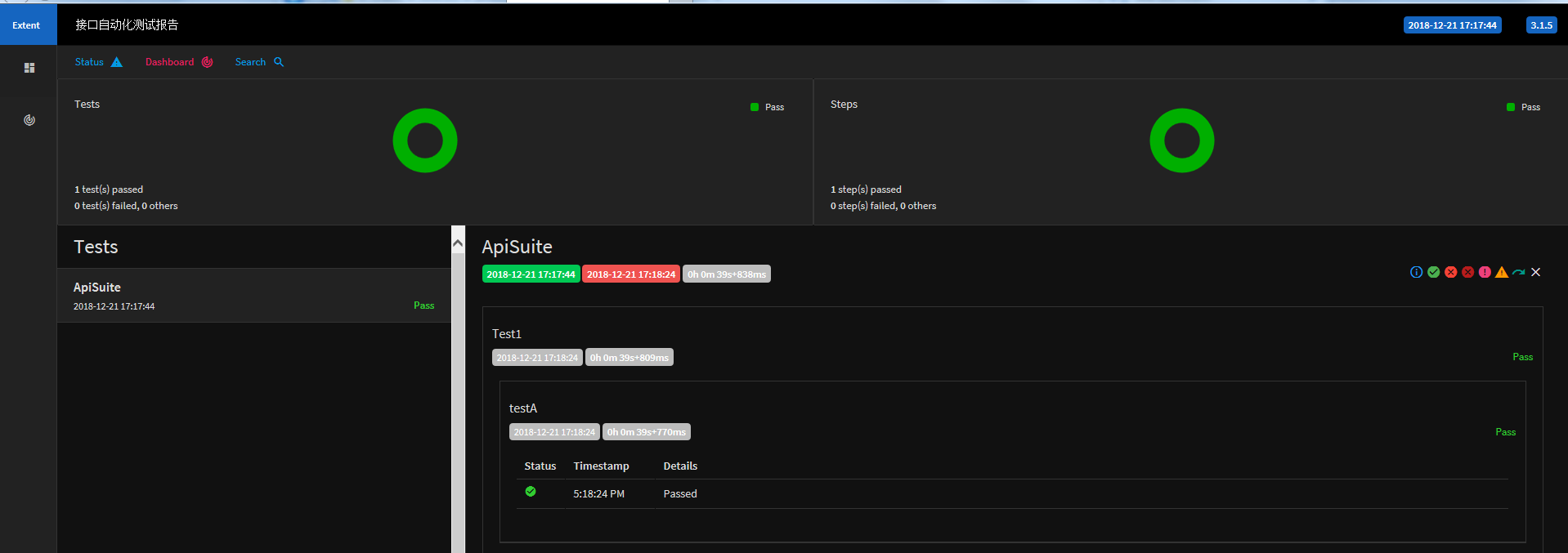

生成的报告如下：report.html

具体代码：
链接：https://pan.baidu.com/s/1p94K1A7Z_T34moiyQSUL7A
提取码：is51
