spring security入门demo

spring security一个能够为基于Spring的企业应用系统提供声明式的安全訪问控制解决方式的安全框架（简单说是对访问权限进行控制嘛），应用的安全性包括用户认证（Authentication）和用户授权（Authorization）两个部分。用户认证指的是验证某个用户是否为系统中的合法主体，也就是说用户能否访问该系统。用户认证一般要求用户提供用户名和密码。系统通过校验用户名和密码来完成认证过程。用户授权指的是验证某个用户是否有权限执行某个操作。在一个系统中，不同用户所具有的权限是不同的。比如对一个文件来说，有的用户只能进行读取，而有的用户可以进行修改。一般来说，系统会为不同的用户分配不同的角色，而每个角色则对应一系列的权限。   spring security的主要核心功能为 认证和授权，所有的架构也是基于这两个核心功能去实现的。

pom.xml

需要导入这个jar包

        <!-->spring-boot 整合security -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-security</artifactId>
        </dependency>

application.yml

# DataSource Config
spring:
  datasource:
    driver-class-name: com.mysql.jdbc.Driver
    p6spy: false
    username: root
    password: 123456
    url: jdbc:mysql://localhost:3306/rbca_db?characterEncoding=utf8&useSSL=false
  freemarker:
    allow-request-override: false
    cache: false
    check-template-location: true
    charset: UTF-8
    content-type: text/html; charset=utf-8
    expose-request-attributes: false
    expose-session-attributes: false
    expose-spring-macro-helpers: false
    suffix: .ftl
    template-loader-path: classpath:/templates
logging:
  level:
    com.wangtao.dao: error

mybatis-plus:
  mapper-locations: classpath:mapper/*.xml,classpath:mapper/*/*.xml

sql文件 5张表

/*
 Navicat MySQL Data Transfer

 Source Server         : localhost
 Source Server Type    : MySQL
 Source Server Version : 50712
 Source Host           : localhost:3306
 Source Schema         : rbca_db

 Target Server Type    : MySQL
 Target Server Version : 50712
 File Encoding         : 65001

 Date: 07/01/2020 14:39:02
*/

SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;

-- ----------------------------
-- Table structure for sys_permission
-- ----------------------------
DROP TABLE IF EXISTS `sys_permission`;
CREATE TABLE `sys_permission`  (
  `id` int(10) NOT NULL,
  `permName` varchar(50) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `permTag` varchar(50) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `url` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '请求url',
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of sys_permission
-- ----------------------------
INSERT INTO `sys_permission` VALUES (1, '查询订单', 'showOrder', '/showOrder');
INSERT INTO `sys_permission` VALUES (2, '添加订单', 'addOrder', '/addOrder');
INSERT INTO `sys_permission` VALUES (3, '修改订单', 'updateOrder', '/updateOrder');
INSERT INTO `sys_permission` VALUES (4, '删除订单', 'deleteOrder', '/deleteOrder');

-- ----------------------------
-- Table structure for sys_role
-- ----------------------------
DROP TABLE IF EXISTS `sys_role`;
CREATE TABLE `sys_role`  (
  `id` int(10) NOT NULL,
  `roleName` varchar(50) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `roleDesc` varchar(50) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of sys_role
-- ----------------------------
INSERT INTO `sys_role` VALUES (1, 'admin', '管理员');
INSERT INTO `sys_role` VALUES (2, 'add_user', '添加管理员');

-- ----------------------------
-- Table structure for sys_role_permission
-- ----------------------------
DROP TABLE IF EXISTS `sys_role_permission`;
CREATE TABLE `sys_role_permission`  (
  `role_id` int(10) NULL DEFAULT NULL,
  `perm_id` int(10) NULL DEFAULT NULL,
  INDEX `FK_Reference_3`(`role_id`) USING BTREE,
  INDEX `FK_Reference_4`(`perm_id`) USING BTREE,
  CONSTRAINT `FK_Reference_3` FOREIGN KEY (`role_id`) REFERENCES `sys_role` (`id`) ON DELETE RESTRICT ON UPDATE RESTRICT,
  CONSTRAINT `FK_Reference_4` FOREIGN KEY (`perm_id`) REFERENCES `sys_permission` (`id`) ON DELETE RESTRICT ON UPDATE RESTRICT
) ENGINE = InnoDB CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of sys_role_permission
-- ----------------------------
INSERT INTO `sys_role_permission` VALUES (1, 1);
INSERT INTO `sys_role_permission` VALUES (1, 2);
INSERT INTO `sys_role_permission` VALUES (1, 3);
INSERT INTO `sys_role_permission` VALUES (1, 4);
INSERT INTO `sys_role_permission` VALUES (2, 1);
INSERT INTO `sys_role_permission` VALUES (2, 2);

-- ----------------------------
-- Table structure for sys_user
-- ----------------------------
DROP TABLE IF EXISTS `sys_user`;
CREATE TABLE `sys_user`  (
  `id` int(10) NOT NULL,
  `username` varchar(50) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `realname` varchar(50) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `password` varchar(50) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `createDate` date NULL DEFAULT NULL,
  `lastLoginTime` date NULL DEFAULT NULL,
  `enabled` int(5) NULL DEFAULT NULL,
  `accountNonExpired` int(5) NULL DEFAULT NULL,
  `accountNonLocked` int(5) NULL DEFAULT NULL,
  `credentialsNonExpired` int(5) NULL DEFAULT NULL,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of sys_user
-- ----------------------------
INSERT INTO `sys_user` VALUES (1, 'admin', '张三', '15a013bcac0c50049356b322e955035e', '2018-11-13', '2018-11-13', 1, 1, 1, 1);
INSERT INTO `sys_user` VALUES (2, 'userAdd', '小余', '15a013bcac0c50049356b322e955035e', '2018-11-13', '2018-11-13', 1, 1, 1, 1);

-- ----------------------------
-- Table structure for sys_user_role
-- ----------------------------
DROP TABLE IF EXISTS `sys_user_role`;
CREATE TABLE `sys_user_role`  (
  `user_id` int(10) NULL DEFAULT NULL,
  `role_id` int(10) NULL DEFAULT NULL,
  INDEX `FK_Reference_1`(`user_id`) USING BTREE,
  INDEX `FK_Reference_2`(`role_id`) USING BTREE,
  CONSTRAINT `FK_Reference_1` FOREIGN KEY (`user_id`) REFERENCES `sys_user` (`id`) ON DELETE RESTRICT ON UPDATE RESTRICT,
  CONSTRAINT `FK_Reference_2` FOREIGN KEY (`role_id`) REFERENCES `sys_role` (`id`) ON DELETE RESTRICT ON UPDATE RESTRICT
) ENGINE = InnoDB CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of sys_user_role
-- ----------------------------
INSERT INTO `sys_user_role` VALUES (1, 1);
INSERT INTO `sys_user_role` VALUES (2, 2);

SET FOREIGN_KEY_CHECKS = 1;

下面是代码

实体类User

package com.wangtao.entity.security;

import java.util.ArrayList;
import java.util.Collection;
import java.util.Date;
import java.util.List;

import org.springframework.security.core.GrantedAuthority;
import org.springframework.security.core.userdetails.UserDetails;

import lombok.Data;

// 用户信息表
@Data
public class User implements UserDetails {

	private Integer id;
	private String username;
	private String realname;
	private String password;
	private Date createDate;
	private Date lastLoginTime;
	private boolean enabled;
	private boolean accountNonExpired;
	private boolean accountNonLocked;
	private boolean credentialsNonExpired;

	// 用户所有权限
	private List<GrantedAuthority> authorities=new ArrayList();

	@Override
	public Collection<? extends GrantedAuthority> getAuthorities() {
		return this.authorities;
	}

}

实体类Role

package com.wangtao.entity.security;

import lombok.Data;

// 角色信息表
@Data
public class Role {
	private Integer id;
	private String roleName;
	private String roleDesc;
}

实体类Permission

package com.wangtao.entity.security;

import lombok.Data;

@Data
public class Permission {
	private Integer id;
	// 权限名称
	private String permName;
	// 权限标识
	private String permTag;
	// 请求url
	private String url;
}

MyUserDetailService  为用户设置权限的地方

package com.wangtao.entity.security;


import com.wangtao.mapper.UserMappers;
import com.wangtao.util.JwtUtil;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.security.core.GrantedAuthority;
import org.springframework.security.core.authority.SimpleGrantedAuthority;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.core.userdetails.UsernameNotFoundException;
import org.springframework.stereotype.Component;

import java.util.ArrayList;
import java.util.List;

@Component
public class MyUserDetailService implements UserDetailsService{


    @Autowired
    private UserMappers userMapper;

    @Override
    public UserDetails loadUserByUsername(String username) throws UsernameNotFoundException {

        User user = userMapper.findByUsername(username);

        List<GrantedAuthority> list = new ArrayList<>();

        List<Permission> permissions = userMapper.findPermissionByUsername(username);
        if (permissions != null && permissions.size() > 0) {
            for (Permission permission : permissions) {
                list.add(new SimpleGrantedAuthority(permission.getPermTag()));
            }
        }
        user.setAuthorities(list);

        return user;
    }
}

mapper文件

UserMapper

package com.wangtao.mapper;

import java.util.List;

import com.wangtao.entity.security.Permission;
import com.wangtao.entity.security.User;
import org.apache.ibatis.annotations.Param;
import org.apache.ibatis.annotations.Select;

public interface UserMappers {
	// 查询用户信息
	@Select(" select * from sys_user where username = #{userName}")
	User findByUsername(@Param("userName") String userName);

	// 查询用户的权限
	@Select(" select permission.* from sys_user user" + " inner join sys_user_role user_role"
			+ " on user.id = user_role.user_id inner join "
			+ "sys_role_permission role_permission on user_role.role_id = role_permission.role_id "
			+ " inner join sys_permission permission on role_permission.perm_id = permission.id where user.username = #{userName};")
	List<Permission> findPermissionByUsername(@Param("userName") String userName);
}

PermissionMapper

package com.wangtao.mapper;

import java.util.List;

import com.wangtao.entity.security.Permission;
import org.apache.ibatis.annotations.Select;

public interface PermissionMapper {

	@Select(" select * from sys_permission ")
	List<Permission> findAllPermission();

}

Controller文件

OrderController

package com.wangtao.controller;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;

@Controller
public class OrderController {
	// 首页
	@RequestMapping("/")
	public String index() {
		return "index";
	}

	// 查询订单
	@RequestMapping("/showOrder")
	public String showOrder() {
		return "showOrder";
	}

	// 添加订单
	@RequestMapping("/addOrder")
	public String addOrder() {
		return "addOrder";
	}

	// 修改订单
	@RequestMapping("/updateOrder")
	public String updateOrder() {
		return "updateOrder";
	}

	// 删除订单
	@RequestMapping("/deleteOrder")
	public String deleteOrder() {
		return "deleteOrder";
	}

	// 自定义登陆页面
	@GetMapping("/login")
	public String login() {
		return "login";
	}

}

ErrorController

package com.wangtao.controller;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.GetMapping;

@Controller
public class ErrorController {

    @GetMapping("/error/403")
    public String error(){
        return "/error/403";
    }
}

用户验证授权配置类

SecurityConfig

package com.wangtao.config;

import com.wangtao.entity.security.MyUserDetailService;
import com.wangtao.entity.security.Permission;
import com.wangtao.handler.MyAuthenticationFailureHandler;
import com.wangtao.handler.MyAuthenticationSuccessHandler;
import com.wangtao.mapper.PermissionMapper;
import com.wangtao.util.MD5Util;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
import org.springframework.security.config.annotation.web.configurers.ExpressionUrlAuthorizationConfigurer;
import org.springframework.security.crypto.password.PasswordEncoder;
import org.springframework.stereotype.Component;

import java.util.List;

@Component
@EnableWebSecurity
public class SecurityConfig extends WebSecurityConfigurerAdapter{

    @Autowired
    private MyAuthenticationSuccessHandler successHandler;

    @Autowired
    private MyAuthenticationFailureHandler failureHandler;

    @Autowired
    private MyUserDetailService myUserDetailService;

    @Autowired
    private PermissionMapper permissionMapper;


    @Override
    protected void configure(AuthenticationManagerBuilder auth) throws Exception {
      /*  auth.inMemoryAuthentication().withUser("admin" ).password("123456").roles("admin");
        auth.inMemoryAuthentication().withUser("userAdd").password("123456").roles("userAdd");*/
        auth.userDetailsService(myUserDetailService).passwordEncoder(new PasswordEncoder() {
            @Override
            public String encode(CharSequence charSequence) {
                return MD5Util.encode((String) charSequence);
            }

            @Override
            public boolean matches(CharSequence charSequence, String s) {
                return encode(charSequence).equals(s.trim());
            }
        });
    }

    @Override
    protected void configure(HttpSecurity http) throws Exception {
     /*   http.authorizeRequests().
                antMatchers("/showOrder").hasAnyRole("admin","userAdd").
                antMatchers("/addOrder").hasAnyRole("admin","userAdd").
                antMatchers("/updateOrder").hasAnyRole("admin").
                antMatchers("/deleteOrder").hasAnyRole("admin").
                antMatchers("/**").fullyAuthenticated().and().formLogin().loginPage("/login").permitAll()
                .successHandler(successHandler).failureHandler(failureHandler)
                .and()
                .logout()
                .permitAll().and().csrf().disable();*/
        ExpressionUrlAuthorizationConfigurer<HttpSecurity>.ExpressionInterceptUrlRegistry authorizeRequests = http.authorizeRequests();
        List<Permission> permissions = permissionMapper.findAllPermission();

        for (Permission permission : permissions) {
            authorizeRequests.antMatchers(permission.getUrl()).hasAnyAuthority(permission.getPermTag());
        }
        authorizeRequests.antMatchers("/login").permitAll().antMatchers("/**").fullyAuthenticated().and()
                .formLogin().loginPage("/login").permitAll().and().logout().permitAll().and().csrf().disable();


    }

  /*  @Bean
    public static NoOpPasswordEncoder passwordEncoder() {
        return (NoOpPasswordEncoder) NoOpPasswordEncoder.getInstance();
    }*/
}

自定义错误页面

@Configuration
public class WebServerAutoConfiguration {
    @Bean
    public ConfigurableServletWebServerFactory webServerFactory() {
        TomcatServletWebServerFactory factory = new TomcatServletWebServerFactory();
        ErrorPage errorPage400 = new ErrorPage(HttpStatus.BAD_REQUEST, "/error/400");
        ErrorPage errorPage401 = new ErrorPage(HttpStatus.UNAUTHORIZED, "/error/401");
        ErrorPage errorPage403 = new ErrorPage(HttpStatus.FORBIDDEN, "/error/403");
        ErrorPage errorPage404 = new ErrorPage(HttpStatus.NOT_FOUND, "/error/404");
        ErrorPage errorPage415 = new ErrorPage(HttpStatus.UNSUPPORTED_MEDIA_TYPE, "/error/415");
        ErrorPage errorPage500 = new ErrorPage(HttpStatus.INTERNAL_SERVER_ERROR, "/error/500");
        factory.addErrorPages(errorPage400, errorPage401, errorPage403, errorPage404, errorPage415, errorPage500);
        return factory;
    }
}

认证成功和认证失败跳转的逻辑

package com.wangtao.handler;

import org.springframework.security.core.Authentication;
import org.springframework.security.web.authentication.AuthenticationSuccessHandler;
import org.springframework.stereotype.Component;

import javax.servlet.ServletException;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;

@Component
public class MyAuthenticationSuccessHandler implements AuthenticationSuccessHandler{
    @Override
    public void onAuthenticationSuccess(HttpServletRequest httpServletRequest, HttpServletResponse httpServletResponse, Authentication authentication) throws IOException, ServletException {
        System.out.println("认证成功!");
        httpServletResponse.sendRedirect("/");
    }
}

package com.wangtao.handler;

import org.springframework.security.core.AuthenticationException;
import org.springframework.security.web.authentication.AuthenticationFailureHandler;
import org.springframework.stereotype.Component;

import javax.servlet.ServletException;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;

@Component
public class MyAuthenticationFailureHandler implements AuthenticationFailureHandler{
    @Override
    public void onAuthenticationFailure(HttpServletRequest httpServletRequest, HttpServletResponse httpServletResponse, AuthenticationException e) throws IOException, ServletException {
        System.out.println("认证失败");
        httpServletResponse.sendRedirect("https://www.baidu.com");
    }
}

login.ftl

<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=ISO-8859-1">
<title>Insert title here</title>
</head>
<body>

	<h1>权限控制登陆系统</h1>
	<form action="/login" method="post">
		<span>用户名称</span><input type="text" name="username" /> <br>
		<span>用户密码</span><input type="password" name="password" /> <br>
		<input type="submit" value="登陆">

	</form>

<#if RequestParameters['error']??>
用户名称或者密码错误
</#if>




</body>
</html>

index.ftl

<h1>订单系统</h1>
<br>
<a href="showOrder">查询订单</a>
<br>
<a href="addOrder">添加订单</a>
<br>
<a href="deleteOrder">删除订单</a>
<br>
<a href="updateOrder">修改订单</a>

showOrder.ftl

<h1>查询订单</h1>

updateOrder.ftl

<h1>修改订单</h1>

addOrder.ftl

<h1>添加订单</h1>

deleteOrder.ftl

<h1>删除订单</h1>

403.ftl

您的权限不足!

logFail.ftl

登陆失败!

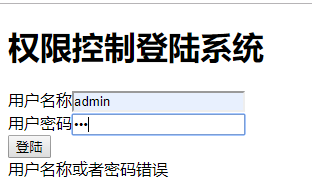

输入登录地址,输入错误的密码，点击登录

输入正确的，点击登录

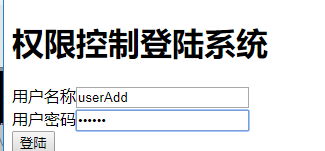

admin用户拥有所有权限，换个普通用户登录

userAdd用户拥有查看和添加权限，点击删除订单

其他操作大家可以自行探索，完毕
