导语
笔者之前虽然草草的读了关于Spring方面的源码,但也仅仅是草草的读了一下。并未作任何笔记,无奈记性太差,近些时间想起前人的话:好记性不如烂笔头。于是想着再重新阅读一下Spring方面的源码,顺便复习一下一些基础知识。接下来便开始Spring源码之旅了。
首先在Spring源码系列中,笔者所使用的是 spring-boot-starter-parent 2.1.6.RELEASE 版本,依赖的spring framework版本为 5.1.8.RELEASE。关于Spring入门示例代码如下:
1.实体类:
@Data
public class Student {
private String id;
private String Name;
private int age;
}
2.配置文件:
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd">
<bean id="student" class="com.zfy.spring.test.bean.Student" />
</beans>
3.测试类:
@Test
public void stringTest() {
BeanFactory bf = new XmlBeanFactory(new ClassPathResource("springTest.xml"));
Student st = (Student) bf.getBean("student");
System.out.println(st);
/*ApplicationContext ctx = new ClassPathXmlApplicationContext("springTest.xml");
Student student = (Student) ctx.getBean("student");
System.out.println(student);*/
}
一、Bean的核心类介绍
如果说到Bean 的核心类,那么是避不开 DefaultListableBeanFactory 和 XmlBeanDefinitionReader 这两个类的。那么我们就来先对着两个核心类分别进行介绍一下。先看一下 Bean的相关加载容器类图:
首先来说下DefaultListableBeanFactory ,从上面的类图中可以看出XmlBeanFactory是继承自DefaultListableBeanFactory的,但DefaultListableBeanFactory却是整个Bean容器的核心。从上图中我们还可以看出XmlBeanFactory类上划了一条横线,这代表着这个类已经过期,但这个并不影响我们阅读源码的精华所在。对于XmlBeanFactory和DefaultListableBeanFactory之间的区别,是因为XmlBeanFactory中使用了自定义的XML读取器XmlBeanDefinitionReader,实现了个性化的BeanDefinitionReader读取。DefaultListableBeanFactory继承自AbstractAutowireCapableBeanFactory类,且实现了ConfigurableListableBeanFactory、BeanDefinitionRegistry接口。
其实,从上面的类图中,是可以清晰的看出DefaultListableBeanFactory的脉络的,但是这里还是需要对每个类的作用进行介绍一下:
1.DefaultListableBeanFactory
- AliasRegistry:定义对Alias的简单的增删改查操作。
- SimpleAliasRegistry:主要是使用map对alias进行缓存,且实现了接口AliasRegistry。
- SingletonBeanRegistry:定义对单例的注册及获取。
- BeanFactory:定义获取Bean及Bean的各种属性。
- DefaultSingletonBeanRegistry:对接口SingletonBeanRegistry的实现。
- HierarchicalBeanFactory:继承自Beanfactory,且在Beanfactory所定义的功能的基础之上,增加了对parentFactory的支持。
- BeanDefinitionRegistry:定义了对BeanDefinition的增删改查操作。
- FactoryBeanRegistrySupport:在DefaultSingletonBeanRegistry基础上增加了对FactoryBean的特殊处理功能。
- ConfigurableBeanFactory:提供配置Factory的各种方法。
- ListableBeanFactory:根据各种条件获取Bean的配置清单。
- AbstractBeanFactory:综合FactoryBeanRegistrySupport和ConfigurableBeanFactory的功能。
- AutowireCapableBeanFactory:提供创建bean、自动注入、初始化以及应用Bean的后处理器。
- AbstractAutowireCapableBeanFactory:综合AbstractBeanFactory并对接口AutowireCapableBeanFactory进行实现。
- ConfigurableListableBeanFactory:BeanFactory配置清单,指定忽略类型及接口等。
- DefaultListableBeanFactory:综合上述所有功能,此类主要是对Bean注册后的处理。
2.XMLBeanDefinitionReader
XML配置文件的读取是Spring中的一个重要的功能,因为在Spring中大部分的功能都是以配置作为切入点,那么我们可以从XmlBeanDefinitionReader中梳理一下资源文件读取、解析及注册的大致脉络,首先介绍下各个类的功能:
- ResourceLoader:定义资源加载器,主要应用于根据给定的资源文件地址返回对应的Resource。
- BeanDefinitionReader:主要定义资源文件读取,并转换为BeanDefinition的各个功能。
- EnvironmentCapable:定义获取了Environment方法。
- DocumentLoader:定义从资源文件加载到转换为Document的功能。
- AbstractBeanDefinitionReader:对EnvironmentCapable、BeanDefinitionReader类定义的功能进行实现。
- BeanDefinitionDocumentReader:定义读取Document并注册BeanDefinition功能。
- BeanDefinitionParserDelegate:定义解析Element的各种方法。
从上面的梳理中,我们可以得知XMLBeanDefinitionReader的几个重要的处理流程如下:
- 通过继承AbstractBeanDefinitionReader的方法,来使用ResourceLoader把资源文件转换为对应 的Resource文件。
- 通过DocumentLoader对Resource文件进行转换,将Resource文件转换为Document文件。
- 通过实现接口BeanDefinitionDocumentReader的DefaultBeanDefinitionDocumentReader类对Document进行解析,并使用BeanDefinitionParserDelegate对Element进行解析。
基础的核心类的相关功能及作用都已介绍完了,接下来就开始源码的解析之旅吧!
二、XMLBeanFactory的基本原理
从开始的示例中,可以得知Spring对配置文件的读取,是通过ClassPathResource进行操作的。当调用完ClassPathResource时,会调用其构造函数来构造Resource资源文件的示例对象。这样在后续的操作中,便可以利用Resource提供的各种功能来进行操作了。当我们获得了Resource的实例对象后,便可以对XMLBeanFactory进行初始化了。
1.XmlBeanFactory的初始化
// 实现了自定义的XML读取器
private final XmlBeanDefinitionReader reader = new XmlBeanDefinitionReader(this);
public XmlBeanFactory(Resource resource) throws BeansException {
// 调用XmlBeanFactory(Resource,BeanFactory)构造方法
this(resource, null);
}
// parentBeanFactory为父类BeanFactory用于factory合并,可以为空
public XmlBeanFactory(Resource resource, BeanFactory parentBeanFactory) throws BeansException {
// 调用父类构造函数
super(parentBeanFactory);
this.reader.loadBeanDefinitions(resource);
}
从上述代码中可以得知,在XMLBeanFactory初始化时还需调用XmlBeanFactory(Resource,BeanFactory)构造方法,而在这个构造方法中this.reader.loadBeanDefinitions(resource)这一步才是资源加载的真正实现,XmlBeanDefinitionReader 加载数据就是在这里完成的。
3.Bean的加载
前面提到的在XMLFactory构造函数中调用了XMLDefinitionReader类中的loadBeanDefinitions(resource)方法,这句代码便是整个资源的切入点了。我们可以看下关于这个方法的时序图:

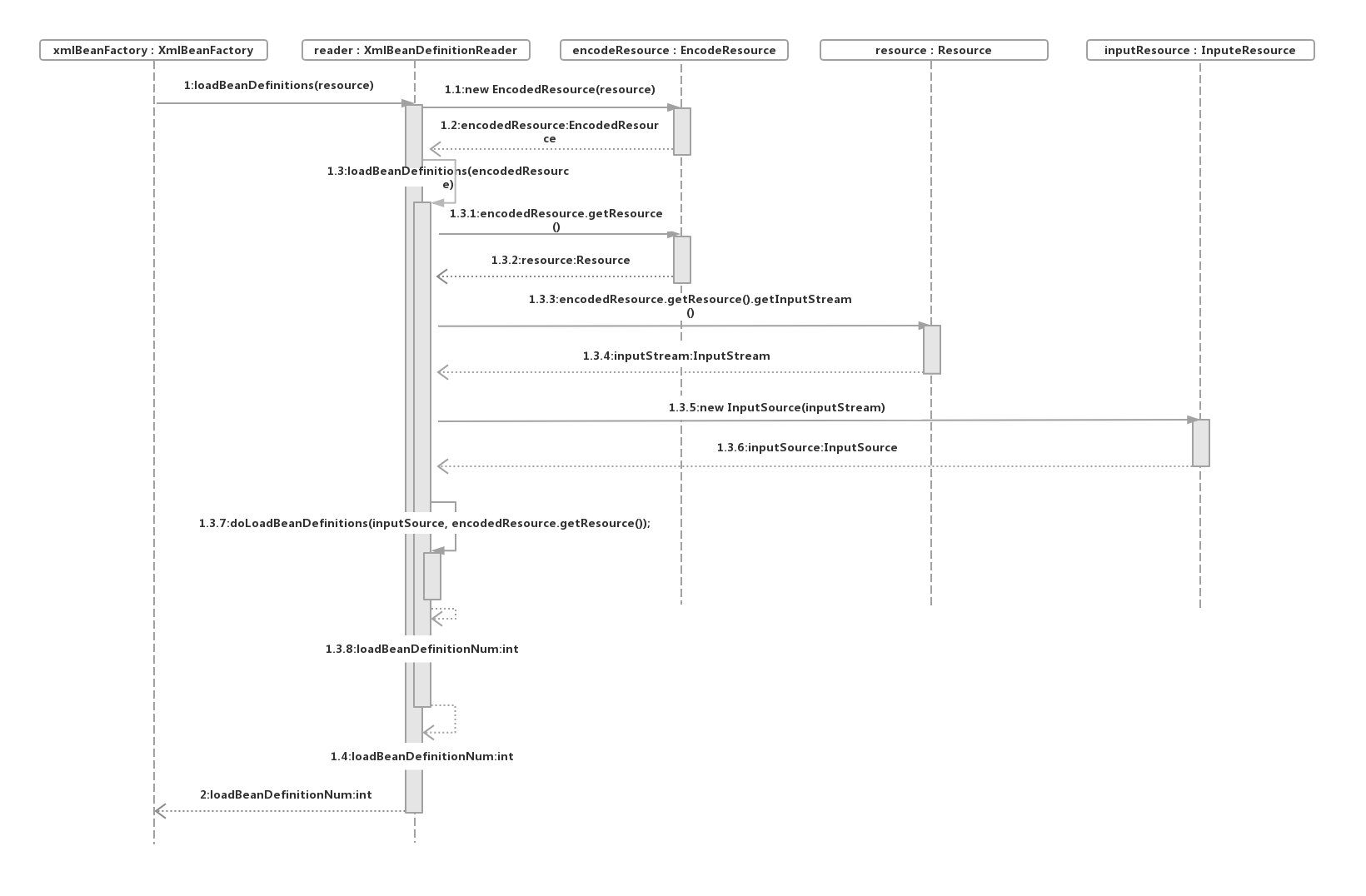

从上图中,可以看出处理的过程大概如下:
- 封装资源文件。当进入XmlBeanDefinitionReader后,首先对传入的参数Resource使用EncodedResource类进行封装。
- 获取输入流。从Resource中焯去对应的InputStream,并构造InputResource。
- 通过构造的InputSource实例和Resource实例,并继续调用函数doLoadBeanDefinitions。
接下来看看loadBeanDefinitions方法的具体实现:
public int loadBeanDefinitions(Resource resource) throws BeanDefinitionStoreException {
return loadBeanDefinitions(new EncodedResource(resource));
}
从上面的代码中,我们可以看出首先通过EncodedResource把传入的资源文件进行编码处理,这里面的主要核心逻辑是体现在getReader()方法中的,在设置了编码属性的时候,Spring会使用相应的编码作为输入流的编码,代码如下:
public Reader getReader() throws IOException {
if (this.charset != null) {
return new InputStreamReader(this.resource.getInputStream(), this.charset);
}
else if (this.encoding != null) {
return new InputStreamReader(this.resource.getInputStream(), this.encoding);
}
else {
return new InputStreamReader(this.resource.getInputStream());
}
}
上面的代码中构造了一个有编码的InputStreamReader,在构造好encodeResource对象后,再次转入了可复用的方法loadBeanDefinitions(new EncodedResource(resource))。这个方法便是真正的数据准备阶段,在时序图中也有所描述:
public int loadBeanDefinitions(EncodedResource encodedResource) throws BeanDefinitionStoreException {
Assert.notNull(encodedResource, "EncodedResource must not be null");
if (logger.isInfoEnabled()) {
logger.info("Loading XML bean definitions from " + encodedResource);
}
// 通过属性来记录已经加载的资源
Set<EncodedResource> currentResources = this.resourcesCurrentlyBeingLoaded.get();
if (currentResources == null) {
currentResources = new HashSet<>(4);
this.resourcesCurrentlyBeingLoaded.set(currentResources);
}
if (!currentResources.add(encodedResource)) {
throw new BeanDefinitionStoreException(
"Detected cyclic loading of " + encodedResource + " - check your import definitions!");
}
try {
// 从encodedResource中获取已经封装的Resource对象并再次从Resource中获取其中的inputStream
InputStream inputStream = encodedResource.getResource().getInputStream();
try {
// InputSource这个类并不是来自Spring,它的全路径是org.xml.sax.InputSource
InputSource inputSource = new InputSource(inputStream);
if (encodedResource.getEncoding() != null) {
inputSource.setEncoding(encodedResource.getEncoding());
}
// 真正进入了逻辑核心部分
return doLoadBeanDefinitions(inputSource, encodedResource.getResource());
}
finally {
// 关闭输入流
inputStream.close();
}
}
catch (IOException ex) {
throw new BeanDefinitionStoreException(
"IOException parsing XML document from " + encodedResource.getResource(), ex);
}
finally {
currentResources.remove(encodedResource);
if (currentResources.isEmpty()) {
this.resourcesCurrentlyBeingLoaded.remove();
}
}
}
这里首先对传入的resource参数进行封装,目的是考虑到Resource可能存在编码要求的情况,其次再通过SAX读取XML文件的方式来准备InputResource对象,最后将准备的数据通过把参数传入真正的核心部分doLoadBeanDefinitions(inputSource, encodedResource.getResource())。代码如下:
protected int doLoadBeanDefinitions(InputSource inputSource, Resource resource)
throws BeanDefinitionStoreException {
try {
/**
* 1.获取对XML文件的验证模式
* 2.加载XML文件,并得到对应的 Document
*/
Document doc = doLoadDocument(inputSource, resource);
// 根据返回的Document注册Bean信息
return registerBeanDefinitions(doc, resource);
}
catch (BeanDefinitionStoreException ex) {
throw ex;
}
catch (SAXParseException ex) {
throw new XmlBeanDefinitionStoreException(resource.getDescription(),
"Line " + ex.getLineNumber() + " in XML document from " + resource + " is invalid", ex);
}
catch (SAXException ex) {
throw new XmlBeanDefinitionStoreException(resource.getDescription(),
"XML document from " + resource + " is invalid", ex);
}
catch (ParserConfigurationException ex) {
throw new BeanDefinitionStoreException(resource.getDescription(),
"Parser configuration exception parsing XML from " + resource, ex);
}
catch (IOException ex) {
throw new BeanDefinitionStoreException(resource.getDescription(),
"IOException parsing XML document from " + resource, ex);
}
catch (Throwable ex) {
throw new BeanDefinitionStoreException(resource.getDescription(),
"Unexpected exception parsing XML document from " + resource, ex);
}
}
在这段冗长的代码中,如果不考虑解决异常的代码,也就只是做了三件事(代码中已注释)。
3.获取XML的验证模式
了解XML的,应该知道XML的验证模式是为了保证XML的正确性,而比较常用的验证模式有:DTD和XSD,对于这个两个模式的区别本文暂不做赘述了,有兴趣的小伙伴可以去自行了解一下。
在前面的代码中我们了解了,在 doLoadDocument(inputSource, resource) 方法中完成了,对获取对XML文件的验证模式和加载XML文件,并得到对应的 Document,那么我们来看下代码中是如何实现的:
protected Document doLoadDocument(InputSource inputSource, Resource resource) throws Exception {
return this.documentLoader.loadDocument(inputSource, getEntityResolver(), this.errorHandler,
getValidationModeForResource(resource), isNamespaceAware());
}
protected int getValidationModeForResource(Resource resource) {
int validationModeToUse = getValidationMode();
// 如果手动指定了验证模式,则使用指定的验证模式
if (validationModeToUse != VALIDATION_AUTO) {
return validationModeToUse;
}
int detectedMode = detectValidationMode(resource);
// 如果未指定则使用自动监测
if (detectedMode != VALIDATION_AUTO) {
return detectedMode;
}
return VALIDATION_XSD;
}
这里的代码的意思是说,如果已经设定了验证模式,就是用设定的验证模式(可以通过对调用XmlBeanDefinition中的setValidationMode方法进行设定),否则就会使用自动检测的方式。而自动检验模式的功能在函数detectValidationMode方法中实现的,在detectValidationMode方法中又将自动检测验证模式的工作专门委托给了专门的处理类XmlValidationModeDetector,调用了XmlValidationModeDetector的validationModeDetecto方法,具体实现如下:
protected int detectValidationMode(Resource resource) {
if (resource.isOpen()) {
throw new BeanDefinitionStoreException(
"Passed-in Resource [" + resource + "] contains an open stream: " +
"cannot determine validation mode automatically. Either pass in a Resource " +
"that is able to create fresh streams, or explicitly specify the validationMode " +
"on your XmlBeanDefinitionReader instance.");
}
InputStream inputStream;
try {
inputStream = resource.getInputStream();
}
catch (IOException ex) {
throw new BeanDefinitionStoreException(
"Unable to determine validation mode for [" + resource + "]: cannot open InputStream. " +
"Did you attempt to load directly from a SAX InputSource without specifying the " +
"validationMode on your XmlBeanDefinitionReader instance?", ex);
}
try {
// 主要调用
return this.validationModeDetector.detectValidationMode(inputStream);
}
catch (IOException ex) {
throw new BeanDefinitionStoreException("Unable to determine validation mode for [" +
resource + "]: an error occurred whilst reading from the InputStream.", ex);
}
}
XmlValidationModeDetector:
public int detectValidationMode(InputStream inputStream) throws IOException {
// Peek into the file to look for DOCTYPE.
BufferedReader reader = new BufferedReader(new InputStreamReader(inputStream));
try {
boolean isDtdValidated = false;
String content;
while ((content = reader.readLine()) != null) {
content = consumeCommentTokens(content);
// 如果读取的行是空,或者是注释则略过
if (this.inComment || !StringUtils.hasText(content)) {
continue;
}
if (hasDoctype(content)) {
isDtdValidated = true;
break;
}
// 读取到<开始符号,验证模式一定会在开始符号之前
if (hasOpeningTag(content)) {
// End of meaningful data...
break;
}
}
return (isDtdValidated ? VALIDATION_DTD : VALIDATION_XSD);
}
catch (CharConversionException ex) {
// Choked on some character encoding...
// Leave the decision up to the caller.
return VALIDATION_AUTO;
}
finally {
reader.close();
}
}
在理解XSD和DTD的使用方法后,理解上面的代码是没什么难点的。Spring用来检测验证模式的办法就是判断是否包含DOCTYPE,如果包含就是DTD,否则就是XSD。
4.获取Document
在经过验证模式准备的步骤后,就可以进行Document加载了。同样在这里XmlBeanFactoryReader类并没有自己去做这样的工作,而是委托给了DocumentLoader去执行了,这里的DocumentLoader其实只是个接口,其真正的实现还是DefaultDocumentLoader,代码如下:
public Document loadDocument(InputSource inputSource, EntityResolver entityResolver,
ErrorHandler errorHandler, int validationMode, boolean namespaceAware) throws Exception {
// 创建 DocumentBuilderFactory 对象
DocumentBuilderFactory factory = createDocumentBuilderFactory(validationMode, namespaceAware);
if (logger.isDebugEnabled()) {
logger.debug("Using JAXP provider [" + factory.getClass().getName() + "]");
}
// 再通过 DocumentBuilderFactory 创建 DocumentBuilder
DocumentBuilder builder = createDocumentBuilder(factory, entityResolver, errorHandler);
// 使用 DocumentBuilder 解析 inputSource
return builder.parse(inputSource);
}
这块的代码就如上面注释所说的那几个步骤,来完成相关的操作。
protected EntityResolver getEntityResolver() {
if (this.entityResolver == null) {
// Determine default EntityResolver to use.
ResourceLoader resourceLoader = getResourceLoader();
if (resourceLoader != null) {
this.entityResolver = new ResourceEntityResolver(resourceLoader);
}
else {
this.entityResolver = new DelegatingEntityResolver(getBeanClassLoader());
}
}
return this.entityResolver;
}
EntityResolver是项目提供的一个寻找DTD的声明方法,根据之前通过getEntityResolver()方法对EntityResolver的获取,我们知道在Spring中使用DelegatingEntityResolver为EntityResolver的实现类,实现如下:
public InputSource resolveEntity(@Nullable String publicId, @Nullable String systemId)
throws SAXException, IOException {
if (systemId != null) {
if (systemId.endsWith(DTD_SUFFIX)) {
// 如果是 dtd,从这里解析
return this.dtdResolver.resolveEntity(publicId, systemId);
}
else if (systemId.endsWith(XSD_SUFFIX)) {
// 通过调用META-INF/Spring.schemas解析
return this.schemaResolver.resolveEntity(publicId, systemId);
}
}
// Fall back to the parser's default behavior.
return null;
}
在这里可以看到,对于不同的验证模式,Spring使用了不同的解析器来解析。在这里比如加载DTD类型的BeanDtdResolver的resolverEntity是直接截取systemId最后的xx.dtd,然后在当前的路径下寻找,而加载XSD类型的PuggableSchemaResolver类的resolverEntity是默认到META-INF/Spring.schemas文件中找到systemid所对应的的XSD文件并加载。
BeansDtdResolver.java
public InputSource resolveEntity(@Nullable String publicId, @Nullable String systemId) throws IOException {
if (logger.isTraceEnabled()) {
logger.trace("Trying to resolve XML entity with public ID [" + publicId +
"] and system ID [" + systemId + "]");
}
// DTD_EXTENSION = ".dtd";
if (systemId != null && systemId.endsWith(DTD_EXTENSION)) {
int lastPathSeparator = systemId.lastIndexOf('/');
int dtdNameStart = systemId.indexOf(DTD_NAME, lastPathSeparator);
if (dtdNameStart != -1) {
String dtdFile = DTD_NAME + DTD_EXTENSION;
if (logger.isTraceEnabled()) {
logger.trace("Trying to locate [" + dtdFile + "] in Spring jar on classpath");
}
try {
Resource resource = new ClassPathResource(dtdFile, getClass());
InputSource source = new InputSource(resource.getInputStream());
source.setPublicId(publicId);
source.setSystemId(systemId);
if (logger.isDebugEnabled()) {
logger.debug("Found beans DTD [" + systemId + "] in classpath: " + dtdFile);
}
return source;
}
catch (FileNotFoundException ex) {
if (logger.isDebugEnabled()) {
logger.debug("Could not resolve beans DTD [" + systemId + "]: not found in classpath", ex);
}
}
}
}
// Fall back to the parser's default behavior.
return null;
}
5.解析及注册BeanDefinition
在文件转换为Document之后,接下来就是提取及注册Bean了,当得到XML文档的Document实例对象之后,就会引入下面这个方法:
public int registerBeanDefinitions(Document doc, Resource resource) throws BeanDefinitionStoreException {
// 使用 DefaultBeanDefinitionDocumentReader 实例化 BeanDefinitionDocumentReader
BeanDefinitionDocumentReader documentReader = createBeanDefinitionDocumentReader();
// 在实例化BeanDefinitionReader的时候会将BeanDefinitionRegistry传入,默认使用继承自DefaultListableBeanFactory
// 记录统计前BeanDefinition的加载个数
int countBefore = getRegistry().getBeanDefinitionCount();
// 加载及注册Bean
documentReader.registerBeanDefinitions(doc, createReaderContext(resource));
// 记录本次加载的BeanDefinition的个数
return getRegistry().getBeanDefinitionCount() - countBefore;
}
代码中的参数doc便是通过前面的loadDocument加载转换出来的,这个方法很好的使用了面向对象的单一职责的原则,将逻辑处理委托给单一的类进行处理,而这个逻辑处理类就是BeanDefinitionDocumentReader,但是BeanDefinitionDocumentReader只是一个接口,其实例化的工作是在createBeanDefinitionDocumentReader()方法中完成的。BeanDefinitionDocumentReader的真正的实现类是DefaultBeanDefinitionDocumentReader,在进入DefaultBeanDefinitionDocumentReader这个类之后,可以发现这个方法的重要目的就是提取root,以便于继续将root作为参数继续注册。
public void registerBeanDefinitions(Document doc, XmlReaderContext readerContext) {
this.readerContext = readerContext;
logger.debug("Loading bean definitions");
Element root = doc.getDocumentElement();
// 核心逻辑
doRegisterBeanDefinitions(root);
}
经过前面如此复杂的代码解析,终于达到了核心逻辑doRegisterBeanDefinitions(root),其实前面只是XML 的加载解析阶段,而doRegisterBeanDefinitions才算真正的开始解析,那我们继续开始吧!
protected void doRegisterBeanDefinitions(Element root) {
// 专门处理解析
BeanDefinitionParserDelegate parent = this.delegate;
this.delegate = createDelegate(getReaderContext(), root, parent);
if (this.delegate.isDefaultNamespace(root)) {
// 处理profile属性
String profileSpec = root.getAttribute(PROFILE_ATTRIBUTE);
if (StringUtils.hasText(profileSpec)) {
String[] specifiedProfiles = StringUtils.tokenizeToStringArray(
profileSpec, BeanDefinitionParserDelegate.MULTI_VALUE_ATTRIBUTE_DELIMITERS);
if (!getReaderContext().getEnvironment().acceptsProfiles(specifiedProfiles)) {
if (logger.isInfoEnabled()) {
logger.info("Skipped XML bean definition file due to specified profiles [" + profileSpec +
"] not matching: " + getReaderContext().getResource());
}
return;
}
}
}
// 解析前处理,留给子类去实现
preProcessXml(root);
parseBeanDefinitions(root, this.delegate);
// 解析后处理,留给子类去实现
postProcessXml(root);
this.delegate = parent;
}
上面代码中,首先对profile进行处理,然后才开始解析,但在preProcessXml(root)和postProcessXml(root)中是没有做任何实现的,那么这两个方法设计的目的是什么呢?其实这里就是我们所知道的设计模式中的模板方法模式,如果继承自DefaultBeanDefinitionDocumentReader的子类需要在Bean解析的前后做一些处理的话,那么只需要重写这两个方法就行了。
在处理完了profile之后,就可以进行XML的读取了,那我们继续来看下parseBeanDefinitions(root, this.delegate)方法中做了哪些操作:
protected void parseBeanDefinitions(Element root, BeanDefinitionParserDelegate delegate) {
// 对Bean的处理
if (delegate.isDefaultNamespace(root)) {
NodeList nl = root.getChildNodes();
for (int i = 0; i < nl.getLength(); i++) {
Node node = nl.item(i);
if (node instanceof Element) {
Element ele = (Element) node;
if (delegate.isDefaultNamespace(ele)) {
// 对Bean的处理
parseDefaultElement(ele, delegate);
}
else {
// 对Bean的处理
delegate.parseCustomElement(ele);
}
}
}
}
else {
delegate.parseCustomElement(root);
}
}
参考:Spring源码深度解析(第二版)(郝佳)
