tensorflow部分API总结及说明（一）

1.tf.nn.dynamic_rnn()

创建一个由RNNCell指定的递归神经网络cell。

tf.nn.dynamic_rnn(
    cell,
    inputs,
    sequence_length=None,
    initial_state=None,
    dtype=None,
    parallel_iterations=None,
    swap_memory=False,
    time_major=False,
    scope=None
)

• cell：RNNCell的实例。
• inputs：RNN输入。如果为time_major == False（默认值），则必须Tensor为shape： [batch_size, max_time, …]或此类元素的嵌套元组。如果为time_major == True，则必须Tensor为shape：[max_time, batch_size, …]或此类元素的嵌套元组。这也可能是满足此属性的张量（可能是嵌套的）元组。前两个维度必须在所有输入中都匹配，否则，等级和其他形状成分可能会有所不同。在这种情况下，cell每个时间步长的输入 都将复制这些元组的结构，时间维度除外（从中获取时间）。cell每个时间步长的输入将是一个Tensor或多个（可能是嵌套的）张量元组，每个元组具有维度[batch_size, …]。
• sequence_length：（可选）一个int32 / int64向量[batch_size]。超过批处理元素的序列长度时，用于复制状态和归零输出。此参数使用户能够提取最后一个有效状态并正确填充输出，因此提供此参数是为了确保正确性。
• initial_state：（可选）RNN的初始状态。如果cell.state_size 为整数，则必须Tensor为适当的type和shape [batch_size, cell.state_size]。如果cell.state_size是元组，则它应该是具有形状的张量的元组[batch_size, s] for s in cell.state_size。
• dtype：（可选）初始状态和预期输出的数据类型。如果未提供initial_state或RNN状态具有异构dtype，则为必需。
• parallel_iterations：（默认值：32）。要并行运行的迭代次数。那些没有任何时间依赖性并且可以并行运行的操作将是。此参数权衡时间与空间。值>> 1使用更多的内存，但是占用的时间更少，而较小的值使用的内存更少，但是计算需要的时间更长。
• swap_memory：透明地交换前向推理中产生的张量，但从GPU到CPU的反向支持需要张量。这允许训练RNN，这些RNN通常不适合单个GPU，并且性能损失很小（或没有）。
• time_major：inputs和outputs张量的形状格式。如果为真，则Tensors必须将其成形[max_time, batch_size, depth]。如果为假，则Tensors必须对它们进行整形[batch_size, max_time, depth]。使用 time_major = True会更有效率，因为它避免了RNN计算开始和结束时的转置。但是，大多数TensorFlow数据都是批量生产的，因此默认情况下此函数接受输入并以批量生产的形式发出输出。
• scope：创建子图的VariableScope；默认为“ rnn”。

2.tf.contrib.layers.fully_connected()

添加一个完全连接的层。

tf.contrib.layers.fully_connected(
    inputs,
    num_outputs,
    activation_fn=tf.nn.relu,
    normalizer_fn=None,
    normalizer_params=None,
    weights_initializer=initializers.xavier_initializer(),
    weights_regularizer=None,
    biases_initializer=tf.zeros_initializer(),
    biases_regularizer=None,
    reuse=None,
    variables_collections=None,
    outputs_collections=None,
    trainable=True,
    scope=None
)

• inputs：张量至少为2，并且最后一个维度的静态值；即[batch_size, depth]，[None, None, None, channels]。
• num_outputs：整数或长整数，表示图层中输出单位的数量。
• activation_fn：激活功能。默认值为ReLU函数。将其显式设置为None可以跳过它并保持线性激活。
• normalizer_fn：使用标准化函数代替biases。如果 normalizer_fn提供了，然后biases_initializer和 biases_regularizer被忽略，biases没有创造，也不能被添加。默认设置为无，因为没有规范化功能
• normalizer_params：归一化功能参数。
• weights_initializer：权重的初始值设定项。
• weights_regularizer：权重的可选正则化器。
• biases_initializer：用于偏差的初始化程序。如果为None，则跳过偏见。
• biases_regularizer：偏倚的可选正则化器。
• reuse：是否应重用图层及其变量。为了能够重用，必须给出层范围。
• variables_collections：所有变量的可选集合列表，或每个变量包含不同集合列表的字典。
• outputs_collections：集合以添加输出。
• trainable：如果True还向图集合添加变量 GraphKeys.TRAINABLE_VARIABLES（请参见tf.Variable）。
• scope：variable_scope的可选范围。

3.tf.losses.mean_squared_error()

首先我们可以看一下该函数的底层实现：

def mean_squared_error(
    labels, predictions, weights=1.0, scope=None,
    loss_collection=ops.GraphKeys.LOSSES,
    reduction=Reduction.SUM_BY_NONZERO_WEIGHTS):
  """Adds a Sum-of-Squares loss to the training procedure.
  `weights` acts as a coefficient for the loss. If a scalar is provided, then
  the loss is simply scaled by the given value. If `weights` is a tensor of size
  `[batch_size]`, then the total loss for each sample of the batch is rescaled
  by the corresponding element in the `weights` vector. If the shape of
  `weights` matches the shape of `predictions`, then the loss of each
  measurable element of `predictions` is scaled by the corresponding value of
  `weights`.
  Args:
    labels: The ground truth output tensor, same dimensions as 'predictions'.
    predictions: The predicted outputs.
    weights: Optional `Tensor` whose rank is either 0, or the same rank as
      `labels`, and must be broadcastable to `labels` (i.e., all dimensions must
      be either `1`, or the same as the corresponding `losses` dimension).
    scope: The scope for the operations performed in computing the loss.
    loss_collection: collection to which the loss will be added.
    reduction: Type of reduction to apply to loss.
  Returns:
    Weighted loss float `Tensor`. If `reduction` is `NONE`, this has the same
    shape as `labels`; otherwise, it is scalar.
  Raises:
    ValueError: If the shape of `predictions` doesn't match that of `labels` or
      if the shape of `weights` is invalid.  Also if `labels` or `predictions`
      is None.
  @compatibility(eager)
  The `loss_collection` argument is ignored when executing eagerly. Consider
  holding on to the return value or collecting losses via a `tf.keras.Model`.
  @end_compatibility
  """
  if labels is None:
    raise ValueError("labels must not be None.")
  if predictions is None:
    raise ValueError("predictions must not be None.")
  with ops.name_scope(scope, "mean_squared_error",
                      (predictions, labels, weights)) as scope:
    predictions = math_ops.cast(predictions, dtype=dtypes.float32)
    labels = math_ops.cast(labels, dtype=dtypes.float32)
    predictions.get_shape().assert_is_compatible_with(labels.get_shape())
    losses = math_ops.squared_difference(predictions, labels)
    return compute_weighted_loss(
        losses, weights, scope, loss_collection, reduction=reduction)

• labels：真实张量，与“预测”的尺寸相同。

• predictions：预测的输出。

通过底层代码我们发现losses实际上是通过调用squared_difference函数得到的
我们通过查看squared_difference函数的官方文档发现，该函数是计算两个张量的差的平方。

tf.math.squared_difference(
    x,
    y,
    name=None
)

但是mean_squared_error()函数最后的返回值是函数compute_weighted_loss()的返回值，也就是说最终的损失还需再通过调用compute_weighted_loss函数才能得到，通过查看底层源码我们发现compute_weighted_loss函数是根据所给权重weights来计算由squared_difference函数得到的预测值与真实值差的平方的加权平均数。

def compute_weighted_loss(
    losses, weights=1.0, scope=None, loss_collection=ops.GraphKeys.LOSSES,
    reduction=Reduction.SUM_BY_NONZERO_WEIGHTS):
  """Computes the weighted loss.
  Args:
    losses: `Tensor` of shape `[batch_size, d1, ... dN]`.
    weights: Optional `Tensor` whose rank is either 0, or the same rank as
      `losses`, and must be broadcastable to `losses` (i.e., all dimensions must
      be either `1`, or the same as the corresponding `losses` dimension).
    scope: the scope for the operations performed in computing the loss.
    loss_collection: the loss will be added to these collections.
    reduction: Type of reduction to apply to loss.
  Returns:
    Weighted loss `Tensor` of the same type as `losses`. If `reduction` is
    `NONE`, this has the same shape as `losses`; otherwise, it is scalar.
  Raises:
    ValueError: If `weights` is `None` or the shape is not compatible with
      `losses`, or if the number of dimensions (rank) of either `losses` or
      `weights` is missing.
  Note:
    When calculating the gradient of a weighted loss contributions from
    both `losses` and `weights` are considered. If your `weights` depend
    on some model parameters but you do not want this to affect the loss
    gradient, you need to apply `tf.stop_gradient` to `weights` before
    passing them to `compute_weighted_loss`.
  @compatibility(eager)
  The `loss_collection` argument is ignored when executing eagerly. Consider
  holding on to the return value or collecting losses via a `tf.keras.Model`.
  @end_compatibility
  """
  Reduction.validate(reduction)
  with ops.name_scope(scope, "weighted_loss", (losses, weights)):
    # Save the `reduction` argument for loss normalization when distributing
    # to multiple replicas. Used only for estimator + v1 optimizer flow.
    ops.get_default_graph()._last_loss_reduction = reduction  # pylint: disable=protected-access

    with ops.control_dependencies((
        weights_broadcast_ops.assert_broadcastable(weights, losses),)):
      losses = ops.convert_to_tensor(losses)
      input_dtype = losses.dtype
      losses = math_ops.cast(losses, dtype=dtypes.float32)
      weights = math_ops.cast(weights, dtype=dtypes.float32)
      weighted_losses = math_ops.multiply(losses, weights)
      if reduction == Reduction.NONE:
        loss = weighted_losses
      else:
        loss = math_ops.reduce_sum(weighted_losses)
        if reduction == Reduction.MEAN:
          loss = _safe_mean(
              loss, math_ops.reduce_sum(array_ops.ones_like(losses) * weights))
        elif (reduction == Reduction.SUM_BY_NONZERO_WEIGHTS or
              reduction == Reduction.SUM_OVER_NONZERO_WEIGHTS):
          loss = _safe_mean(loss, _num_present(losses, weights))
        elif reduction == Reduction.SUM_OVER_BATCH_SIZE:
          loss = _safe_mean(loss, _num_elements(losses))

      # Convert the result back to the input type.
      loss = math_ops.cast(loss, input_dtype)
      util.add_loss(loss, loss_collection)
      return loss

权重默认情况下是1.上述底层实现用到的_num_present和_safe_mean函数源代码如下，前者是计算损失张量中元素的个数，后者是通过个数计算平均值。

def _num_present(losses, weights, per_batch=False):
  """Computes the number of elements in the loss function induced by `weights`.
  A given weights tensor induces different numbers of usable elements in the
  `losses` tensor. The `weights` tensor is broadcast across `losses` for all
  possible dimensions. For example, if `losses` is a tensor of dimension
  `[4, 5, 6, 3]` and `weights` is a tensor of shape `[4, 5]`, then `weights` is,
  in effect, tiled to match the shape of `losses`. Following this effective
  tile, the total number of present elements is the number of non-zero weights.
  Args:
    losses: `Tensor` of shape `[batch_size, d1, ... dN]`.
    weights: `Tensor` of shape `[]`, `[batch_size]` or
      `[batch_size, d1, ... dK]`, where K < N.
    per_batch: Whether to return the number of elements per batch or as a sum
      total.
  Returns:
    The number of present (non-zero) elements in the losses tensor. If
      `per_batch` is `True`, the value is returned as a tensor of size
      `[batch_size]`. Otherwise, a single scalar tensor is returned.
  """
  if ((isinstance(weights, float) and weights != 0.0) or
      (context.executing_eagerly() and weights._rank() == 0  # pylint: disable=protected-access
       and not math_ops.equal(weights, 0.0))):
    return _num_elements(losses)
  with ops.name_scope(None, "num_present", (losses, weights)) as scope:
    weights = math_ops.cast(weights, dtype=dtypes.float32)
    present = array_ops.where(
        math_ops.equal(weights, 0.0),
        array_ops.zeros_like(weights),
        array_ops.ones_like(weights))
    present = weights_broadcast_ops.broadcast_weights(present, losses)
    if per_batch:
      return math_ops.reduce_sum(
          present,
          axis=math_ops.range(1, array_ops.rank(present)),
          keepdims=True,
          name=scope)
    return math_ops.reduce_sum(present, name=scope)

def _safe_mean(losses, num_present):
  """Computes a safe mean of the losses.
  Args:
    losses: `Tensor` whose elements contain individual loss measurements.
    num_present: The number of measurable elements in `losses`.
  Returns:
    A scalar representing the mean of `losses`. If `num_present` is zero,
      then zero is returned.
  """
  total_loss = math_ops.reduce_sum(losses)
  return math_ops.div_no_nan(total_loss, num_present, name="value")

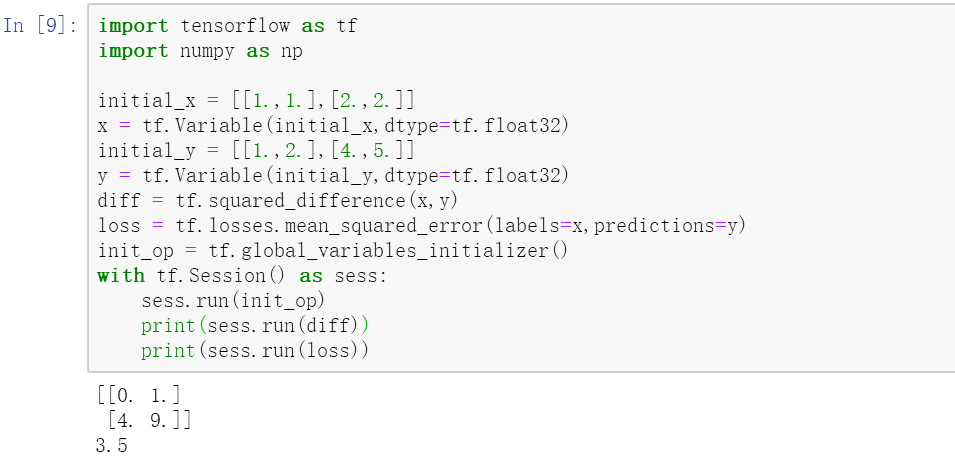

下面是上述方法的简单实现：

4.tf.contrib.layers.optimize_loss()

给定优化器的损失和参数后，返回训练操作。

tf.contrib.layers.optimize_loss(
    loss,
    global_step,
    learning_rate,
    optimizer,
    gradient_noise_scale=None,
    gradient_multipliers=None,
    clip_gradients=None,
    learning_rate_decay_fn=None,
    update_ops=None,
    variables=None,
    name=None,
    summaries=None,
    colocate_gradients_with_ops=False,
    increment_global_step=True
)

• loss：标量Tensor。
• global_step：标量int Tensor，步数计数器将更新每个步骤，除非 increment_global_step是False。如果未提供，它将从默认图表中获取（tf.compat.v1.train.get_global_step有关详细信息，请参见）。如果尚未创建，则每次重量更新不会增加任何步骤。learning_rate_decay_fn要求global_step。
• learning_rate：浮动或Tensor，每个训练步骤的更新幅度。可以None。
• optimizer：字符串，类或优化器实例，用作训练器。字符串应为优化程序的名称，例如“ SGD”，“ Adam”，“ Adagrad”。OPTIMIZER_CLS_NAMES常量中的完整列表。class应该是tf.Optimizer 该实现compute_gradients和apply_gradients功能的子类。优化器实例应该是tf.Optimizer子类的实例并且具有compute_gradientsand apply_gradients函数。
• gradient_noise_scale：浮点或无，添加按此值缩放的0均值正常噪声。
• gradient_multipliers：变量或变量名的字典，用于浮点数。如果存在，则将指定变量的梯度乘以给定常数。
• clip_gradients：float，callable或None。如果提供浮点数，则会应用全局裁剪，以防止梯度范数超过此值。可替代地，可以提供可呼叫的，例如 adaptive_clipping_fn()。此可调用对象获取(gradients, variables)元组列表，并返回相同的东西，并修改了渐变。
• learning_rate_decay_fn：函数，取learning_rate和global_step Tensor，返回Tensor。可用于实现任何学习速率衰减功能。例如：tf.compat.v1.train.exponential_decay。如果learning_rate未提供，则忽略。
• update_ops：Operation每个步骤要执行的更新列表。如果为None，则使用UPDATE_OPS集合的元素。update_ops和之间的执行顺序 loss是不确定的。
• variables：优化或None使用所有可训练变量的变量列表。
• name：此操作的名称用于范围操作和汇总。
• summaries：在张量板上可视化的内部数量列表。如果未设置，将报告梯度的损失，学习率和全局范数。可能值的完整列表在OPTIMIZER_SUMMARIES中。
• colocate_gradients_with_ops：如果为True，请尝试将渐变与相应的op并置。
• increment_global_step：是否增加global_step。如果您的模型在optimize_loss每个训练步骤中调用了多次（例如，优化模型的不同部分），请使用此arg避免增加 global_step不必要的次数。


  上图是几种optimizer优化器的学习效果，可以看出，Adagrad, Adadelta, RMSprop优化器几乎很快就找到了正确的方向并前进，收敛速度也相当快，而SGD的收敛速度较慢，Momentum和NAG优化器走了很多弯路才能找到全局最优值。几种优化器的具体详解可以看这篇论文梯度下降优化算法的概述。
