KEPServerEX 6 之lot Gateway REST Server配置与API使用方式

IoT Gateway即Internet of Things Gateway物联网网关。

Kepware以插件的形式提供了4种网关：

- MQTT客户端

- REST客户端

- REST服务器

- ThingWorx网关

各种网关形式的区别及说明就不聊了!!!

----------------------------------------------------------------------------------

编制：雲飛兄

===============================================

欢迎大家加入交流讨论QQ群: 905485143

扫描二维码关注公众号，回复： 12412720 查看本文章

===============================================

---------------------------------------------------------------------------------

# 测试示例

使用lot Gateway REST 服务端 API 方式开放第三方操作读写 Tag

-------------------------------

# 配置说明

KEPWare插件 : lot Gateway Trpe : REST Server API 方式: POST

-------------------------------

# URL 格式说明

127.0.0.1:39320/iotgateway/ -- API 说明主页
127.0.0.1:39320/iotgateway/browse --API 浏览 Tag
127.0.0.1:39320/iotgateway/read --API 读 TagID的值
127.0.0.1:39320/iotgateway/write --API 写 TagID的值

后面有格式详细说明

-------------------------------

# URL 前缀说明（HTTPS）(HTTP) 的设置

-------------------------------

KEPServerEX 6.6 lot Gateway 配置方式：

Lot Gateway Agent -常规

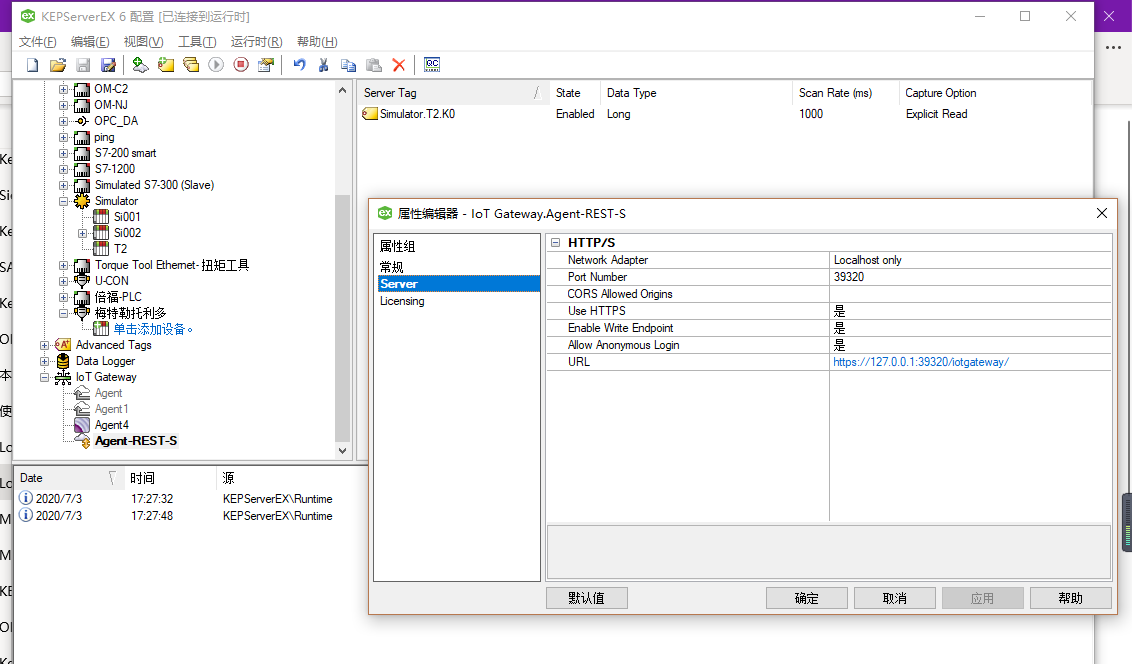

Lot Gateway Agent -Server

Lot Gateway Agent - 添加开放的Tag

-------------------------------

2. 启动测试（浏览） REST-S-R-POST JSON数组格式,测试OK

网页访问：

URL格式:

http://127.0.0.1:39320/iotgateway/browse

返回格式：

{"browseResults":[{"id":"Simulator.T2.5S"},{"id":"Simulator.T2.K0"}],"succeeded":true,"reason":""}

API 第三方工具访问：

3. 启动测试（读） REST-S-R-POST JSON数组格式,测试OK

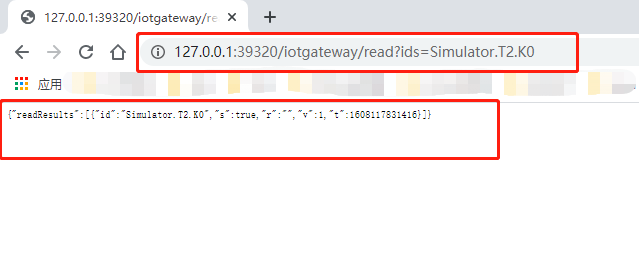

网页访问：

URL格式:

http://127.0.0.1:39320/iotgateway/read?ids=Simulator.T2.K0

返回格式：

{"readResults":[{"id":"Simulator.T2.K0","s":true,"r":"","v":1,"t":1608117831416}]}

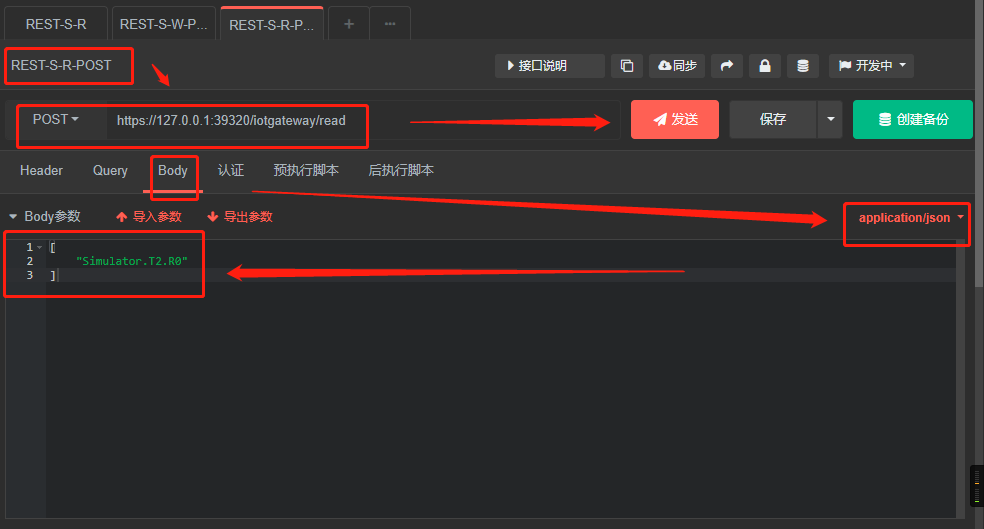

API 第三方工具访问：

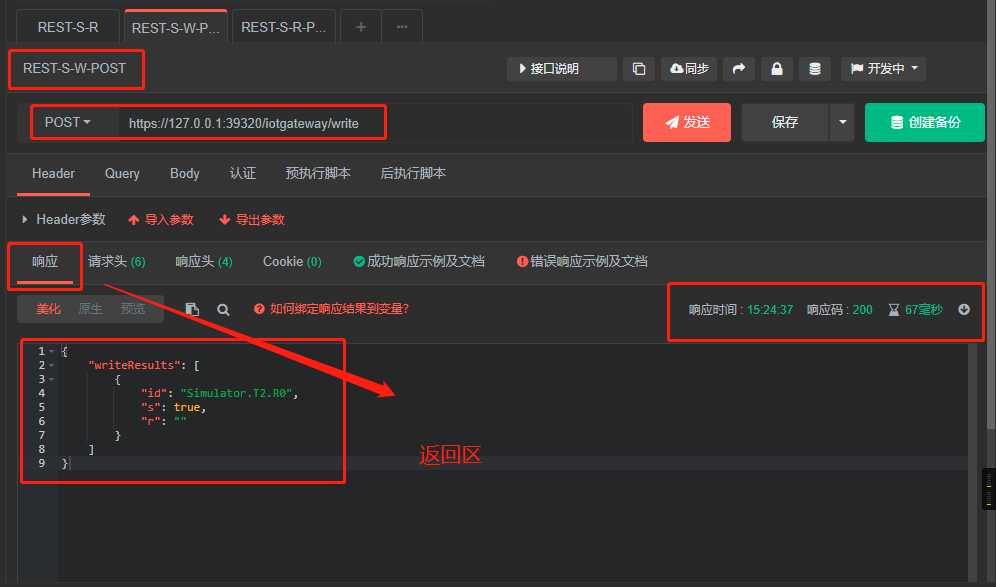

4. 启动测试（写） REST-S-R-POST JSON数组格式,测试OK

-----------------------------------------------------------------------

5. 127.0.0.1:39320/iotgateway 访问说明

IoT Gateway: Agent-REST-S (REST服务器)

以下是可与此IoT网关REST服务器一起使用的命令：

browse
read

write*

REST Server代理支持读取和写入除只能读取的字符串数组以外的所有数据类型。

物联网网关产品手册

(IoT Gateway Product Manual Click here for the IoT Gateway documentation.

----------------------

REST API

Name	browse
URL	https://127.0.0.1:39320/iotgateway/browse
Format	json
Method	GET
Returns	200 OK if successful. A JSON object in the response body containing a list of groups.

cURL example:

curl -H "Content-Type: application/json" -v https://127.0.0.1:39320/iotgateway/browse

JSON return value:

{
"browseResults": [
{
"id": "Channel1.Device1.tag1"
},
{
"id": "Channel1.Device1.tag2"
}
],
"succeeded": true,
"reason": ""
}

--------------read---------------------

Name	read
URL	https://127.0.0.1:39320/iotgateway/read
Format	json
Method	GET
Returns	200 OK if successful. A JSON object in the response body containing the tags that the user is authorized to browse.
Example	https://127.0.0.1:39320/iotgateway/read?ids=Channel1.Device1.tag1&ids=Channel1.Device1.tag2

cURL example:

curl -H "Content-Type: application/json" -v https://127.0.0.1:39320/iotgateway/read?ids=Channel1.Device1.tag1

JSON return value:

{
"readResults": [
    {
        "id": "Channel1.Device1.tag1",
        "s": true,
        "r": "",
        "v": 263,
        "t": 1442606724647
    }
]
}

--------------read---------------------

Name	read
URL	https://127.0.0.1:39320/iotgateway/read
Format	json
Method	POST
Returns	200 OK if successful. A JSON object in the response body containing a list of read results.

cURL example:

curl -H "Content-Type: application/json" -vX POST -d "[\"Channel1.Device1.tag1\"]" https://127.0.0.1:39320/iotgateway/read

JSON return value:

{
"readResults": [
    {
        "id": "Channel1.Device1.tag1",
        "s": true,
        "r": "",
        "v": 557,
        "t": 1442607022758
    }
]
}

--------------write---------------------

Name	write
URL	https://127.0.0.1:39320/iotgateway/write
Format	json
Method	POST
Returns	200 OK if successful. A JSON object in the response body containing a list of write results.

cURL example:

curl -H "Content-Type: application/json" -vX POST -d "[{ \"id\": \"Channel1.Device1.tag1\", \"v\": 42},{ \"id\": \"Channel1.Device1.tag2\", \"v\": 17},{ \"id\": \"Channel1.Device1.tag3\", \"v\": 36}]" https://127.0.0.1:39320/iotgateway/write

JSON return value:

{
"writeResults": [
    {
        "id": "Channel1.Device1.tag1",
        "s": true,
        "r": ""
    },
    {
        "id": "Channel1.Device1.tag2",
        "s": true,
        "r": ""
    },
    {
        "id": "Channel1.Device1.tag3",
        "s": true,
        "r": ""
    }
]
}

上面示例中的标记名称必须与Browse命令返回的标记名称匹配。

*仅当在REST Server界面中启用并且与可写标签一起使用时，写操作才可用。
