一、简介
1.1、概述
- Flume是Cloudera开发后来贡献给了Apache的一套用于进行日志的收集(collecting)、汇聚(aggregating)和传输(moving)的系统
- 日志是大数据的基石 - 实际开发中,有超过70%的数据是从日志中获取的
- 版本
a Flume0.X:Flume-og。对分布式和线程的并发性支持的不好
b Flume1.X:Flume-ng。Flume1.X和Flume0.X不兼容
1.2、基本概念
- Event:
a 在Flume中,会将收集到的每一条日志封装成一个Event对象
b Event对象本质上是一个json串。即Flume会将收集到的每一条日志封装成一个json,这个json就是Event对象
c Event对象固定的包含2个键:headers和body- Agent:是Flume流动模型的基本结构,固定的包含3部分
a Source:从数据源来获取数据 - collecting
b Channel:临时存储数据 - aggregating
c Sink:将数据发往目的地 - moving
1.3、流动模型
1.3.1、单级流动

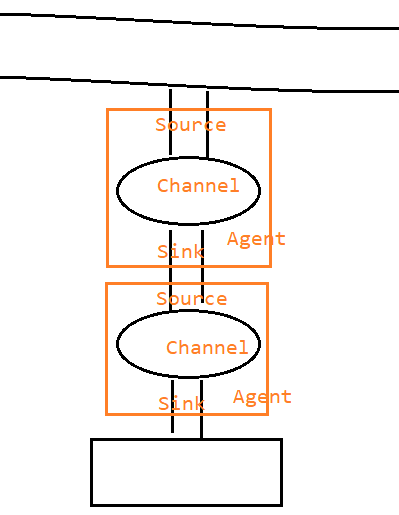

1.3.2、多级流动

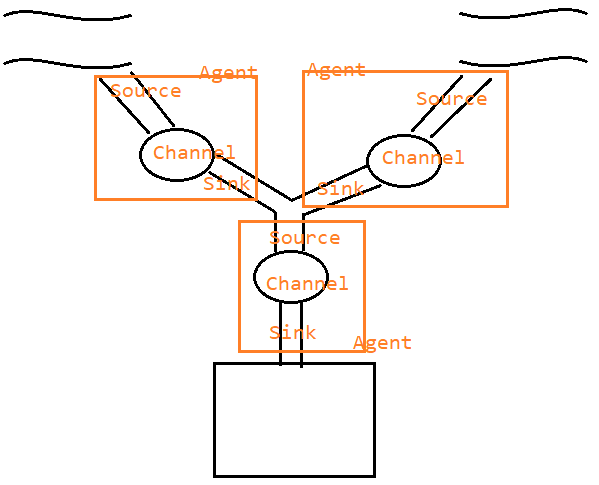

1.3.3、扇入流动
1.3.4、扇出流动
1.3.5、复杂流动:
- 将上述几种流动模型按照要求来进行组合,最终形成的结构就是复杂流动
1.4、事务
二、基本组件
2.1、Source
- Avro Source:接收被AVRO序列化之后的数据。结合Avro Sink可以实现多级、扇入、扇出流动的效果
- Exec Source:监听指定命令,然后将命令的执行结果作为日志进行收集
格式文件- Spooling Directory Source:监听指定目录,如果目录下产生新的文件,那么会自动的将新文件中的内容来按行收集
- Netcat Source:监听一个TCP请求,然后将TCP请求的内容作为日志来进行收集
- Sequence Generator Source:会从0开始,不断的递增,递增到指定的大小。如果不指定,则递增到LONG.MAX_VALUE。这个Source用于测试流动模型搭建是否成功
- HTTP Source:用于监听HTTP请求,将HTTP的请求内容作为日志收集。这个Source只能监听POST和GET请求,其中GET请求的监听只能用于实验阶段,所以实际开发中只用这个Source来监听POST请求
- 扩展:自定义Source
a 定义一个类实现Source接口的子接口之一:PollableSource或者EventDrivenSource
b 将代码打成jar包
c 放到Flume安装目录的lib目录下
2.2、Channel
- Memory Channel:内存通道, 这个Channel的读写速度相对较快但是不可靠
- File Channel:文件通道 将数据临时存储在磁盘上。这个Channel的读写速度慢但是可靠
- JDBC Channel:将数据临时存储到数据库中。
- Spillable Memory Channel:内存溢出通道 ,这个Channel目前处于测试阶段,不推荐在实际生产环境中使用
2.3、Sink
- HDFS Sink:将数据写出到HDFS上
- Logger Sink:将Flume收集到的数据打印到控制台上
- File Roll Sink:将数据写出到本地的文件系统中
- Null Sink:会丢弃所有来自于Channel的数据
- AVRO Sink:将数据以AVRO序列化之后写出到下一个节点上
- 扩展:自定义Sink
a. 在自定义Sink的过程中,需要注意其中的事务问题
三、其他组件
3.1、Selector
- Selector是Source的子组件,即Selector是配置在Source上的
- Selector提供了2种模式
a. replicating:复制模式。即输入节点收到数据之后,会将数据复制之后发送给每一个扇出节点,此时每一个扇出节点收到的数
据都是相同的
b. multiplexing:路由模式。即输入节点收到数据之后,会根据headers中指定的字段来对数据进行分发,此时每一个扇出节点收到的数据是不相同的
c. 如果不指定,则Selector默认采用的是复制模式
d. 在实际生产中,如果需要对数据来进行分类,那么使用路由模式;如果需要对数据进行备份,或者需要同时交给不同的集群来分别处理,那么使用复制模式
3.2、Processor
- Processor本质上是一个Sink Group
- 所谓的Sink Group实际上是指将一个或者多个Sink绑定到一个组中实现相同的功能
- Processor提供了3种模式
a. default:默认模式。在Flume中,如果不指定,使用的就是这种模式。在这种模式下,每一个Sink就是一个单独的SinkGroup
b. failover:崩溃恢复模式。将多个Sink绑定到一个组中,通过优先级来确定数据优先发送的节点。只要高优先级的节点存活,那么数据就不会发送给低优先级的节点
c. load balance:负载均衡模式。支持两种负载均衡模式:round_robin(轮询)和random。但是,Flume提供的load balance并没有效果
3.3、Interceptor - 拦截器
- Interceptor是Source的子组件,即Interceptor也是配置在Source上的
- Interceptor和Selector不一样,Interceptor可以配置多个,够程拦截器链
3.3.1、常见拦截器
1、TimeStamp Interceptor:
在headers中添加一个timestamp字段来标记数据被收集的时间
a1.sources.s1.type = netcat
a1.sources.s1.bind = 0.0.0.0
a1.sources.s1.port = 8090
a1.sources.s1.interceptors = i1
a1.sources.s1.interceptors.i1.type = timestamp
2、Host Interceptor:
在headers中添加一个host字段来标记数据是从哪台服务器上被收集来的
a1.sources.s1.type = netcat
a1.sources.s1.bind = 0.0.0.0
a1.sources.s1.port = 8090
a1.sources.s1.interceptors = i1 i2
a1.sources.s1.interceptors.i1.type = timestamp
a1.sources.s1.interceptors.i2.type = host
3、Static Interceptor:
在headers中添加一个固定的字段,实际过程中,用于对数据进行分类标记
a1.sources.s1.type = netcat
a1.sources.s1.bind = 0.0.0.0
a1.sources.s1.port = 8090
a1.sources.s1.interceptors = i1 i2 i3
a1.sources.s1.interceptors.i1.type = timestamp
a1.sources.s1.interceptors.i2.type = host
a1.sources.s1.interceptors.i3.type = static
a1.sources.s1.interceptors.i3.key = kind
a1.sources.s1.interceptors.i3.value = test
4、UUID Interceptor:
在headers中添加一个id字段,用于标记数据的唯一性
a1.sources.s1.type = netcat
a1.sources.s1.bind = 0.0.0.0
a1.sources.s1.port = 8090
a1.sources.s1.interceptors = i1 i2 i3 i4
a1.sources.s1.interceptors.i1.type = timestamp
a1.sources.s1.interceptors.i2.type = host
a1.sources.s1.interceptors.i3.type = static
a1.sources.s1.interceptors.i3.key = kind
a1.sources.s1.interceptors.i3.value = test
a1.sources.s1.interceptors.i4.type = org.apache.flume.sink.solr.morphline.UUIDInterceptor$Builder
5、Search And Replace Interceptor:
在使用的时候需要指定正则表达式,符合正则表达式格式的数据就会被替换为指定的形式
a1.sources.s1.type = netcat
a1.sources.s1.bind = 0.0.0.0
a1.sources.s1.port = 8090
a1.sources.s1.interceptors = i1
a1.sources.s1.interceptors.i1.type = search_replace
a1.sources.s1.interceptors.i1.searchPattern = [0-9]
a1.sources.s1.interceptors.i1.replaceString = *
6、Regex Filtering Interceptor:
在使用的时候需要给定正则,同时需要指定excludeEvents属性的值。如果excludeEvents的值为true,那么就表示刨除符合正则表达式格式的数据;如果excludeEvents的值为false,则表示抛出不符合正则表达式格式的数据
a1.sources.s1.type = netcat
a1.sources.s1.bind = 0.0.0.0
a1.sources.s1.port = 8090
a1.sources.s1.interceptors = i1
a1.sources.s1.interceptors.i1.type = regex_filter
a1.sources.s1.interceptors.i1.regex = .*[0-9].*
a1.sources.s1.interceptors.i1.excludeEvents = false
