2.网络需求

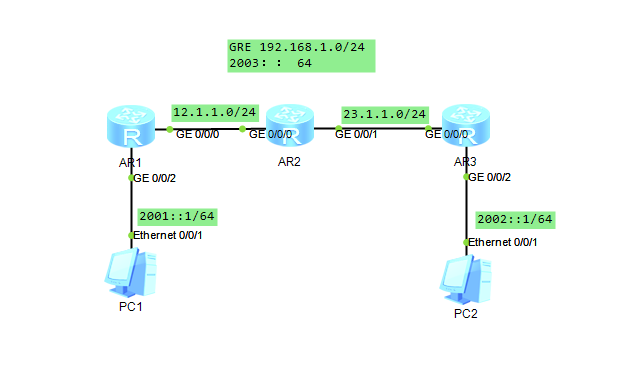

通过配置GRE隧道跨过IPv4网络把IPv6网络连起来，实现PC1和PC2相互通信。
3.配置
3.1、R1的配置
display current-configuration
[V200R003C00]
sysname R1
snmp-agent local-engineid 800007DB03000000000000
snmp-agent
clock timezone China-Standard-Time minus 08:00:00
portal local-server load flash:/portalpage.zip
drop illegal-mac alarm
ipv6
wlan ac-global carrier id other ac id 0
set cpu-usage threshold 80 restore 75
aaa
authentication-scheme default
authorization-scheme default
accounting-scheme default
domain default
domain default_admin
local-user admin password cipher % % K8m.Nt84DZ}e#<0`8bmE3Uw}% %
local-user admin service-type http
firewall zone Local
priority 15
interface GigabitEthernet0/0/0
ip address 12.1.1.1 255.255.255.0
interface GigabitEthernet0/0/1
interface GigabitEthernet0/0/2
ipv6 enable
ipv6 address 2001::1/64
interface NULL0
interface Tunnel0/0/0
ipv6 enable
ip address 192.168.1.1 255.255.255.0
ipv6 address 2003::1/64
tunnel-protocol gre
source GigabitEthernet0/0/0
destination 23.1.1.2
ospf 1 router-id 12.1.1.1
area 0.0.0.0
network 12.1.1.0 0.0.0.255
ip route-static 0.0.0.0 0.0.0.0 Tunnel0/0/0
ipv6 route-static 2002:: 64 Tunnel0/0/0
user-interface con 0
authentication-mode password
user-interface vty 0 4
user-interface vty 16 20
wlan ac
return
3.2、R2的配置
display current-configuration
[V200R003C00]
sysname R2
snmp-agent local-engineid 800007DB03000000000000
snmp-agent
clock timezone China-Standard-Time minus 08:00:00
portal local-server load flash:/portalpage.zip
drop illegal-mac alarm
wlan ac-global carrier id other ac id 0
set cpu-usage threshold 80 restore 75
aaa
authentication-scheme default
authorization-scheme default
accounting-scheme default
domain default
domain default_admin
local-user admin password cipher % % K8m.Nt84DZ}e#<0`8bmE3Uw}% %
local-user admin service-type http
firewall zone Local
priority 15
interface GigabitEthernet0/0/0
ip address 12.1.1.2 255.255.255.0
interface GigabitEthernet0/0/1
ip address 23.1.1.1 255.255.255.0
interface GigabitEthernet0/0/2
interface NULL0
ospf 1 router-id 23.1.1.1
area 0.0.0.0
network 12.1.1.0 0.0.0.255
network 23.1.1.0 0.0.0.255
user-interface con 0
authentication-mode password
user-interface vty 0 4
user-interface vty 16 20
wlan ac
return
3.3、R3的配置
display current-configuration
[V200R003C00]
sysname R3
snmp-agent local-engineid 800007DB03000000000000
snmp-agent
clock timezone China-Standard-Time minus 08:00:00
portal local-server load flash:/portalpage.zip
drop illegal-mac alarm
ipv6
wlan ac-global carrier id other ac id 0
set cpu-usage threshold 80 restore 75
aaa
authentication-scheme default
authorization-scheme default
accounting-scheme default
domain default
domain default_admin
local-user admin password cipher % % K8m.Nt84DZ}e#<0`8bmE3Uw}% %
local-user admin service-type http
firewall zone Local
priority 15
interface GigabitEthernet0/0/0
ip address 23.1.1.2 255.255.255.0
interface GigabitEthernet0/0/1
interface GigabitEthernet0/0/2
ipv6 enable
ipv6 address 2002::1/64
interface NULL0
interface Tunnel0/0/0
ipv6 enable
ip address 192.168.1.2 255.255.255.0
ipv6 address 2003::2/64
tunnel-protocol gre
source GigabitEthernet0/0/0
destination 12.1.1.1
ospf 1 router-id 23.1.1.2
area 0.0.0.0
network 23.1.1.0 0.0.0.255
ip route-static 0.0.0.0 0.0.0.0 Tunnel0/0/0
ipv6 route-static 2001:: 64 Tunnel0/0/0
user-interface con 0
authentication-mode password
user-interface vty 0 4
user-interface vty 16 20
wlan ac
return
4.测试PC1和PC2的通信情况
