C语言将数据表输出到文本文档

为什么要写这篇

起因大概是一篇定时关机的实现吧,实际测试之后并不理想就不放链接了,但另一点儿收获是用C语言执行cmd命令,后来又因此接触了一点儿批处理文件,最终发现几条语句很有意思,经过一段时间的摸索,有了如今的将数据表输出到文本文档。

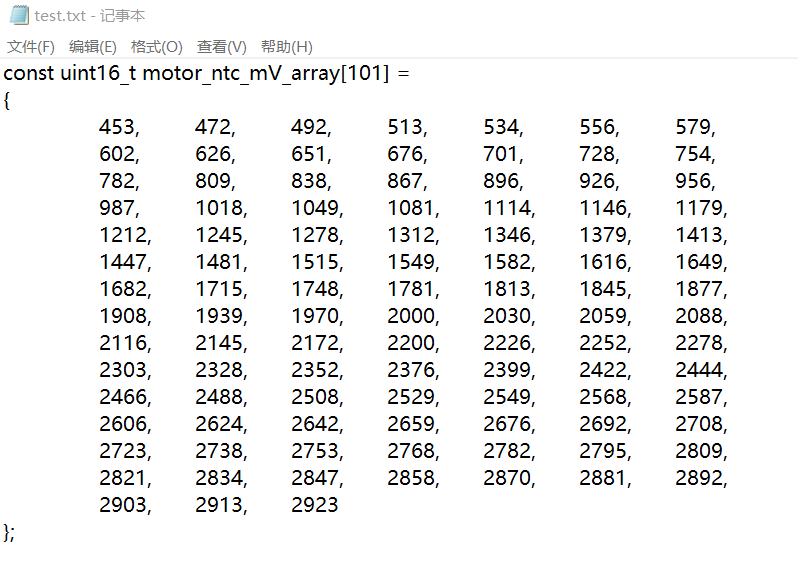

最终效果图如下,通过传入数组首地址,数组大小,以及列数,实现以下输出。

此函数因使用windows.h头文件,不能在菜鸟C在线工具中运行,若运行需要先搭建环境,我放在了这篇文章里:##使代码可读且提高封装性 。建议在VScode中运行,生成的test文本文档会和源文件在同一目录,若使用Notepad++,生成的文本文档会在Notepad++.exe的目录下。

#include <stdio.h>		/* 用来使用输出函数 printf sprintf */
#include <stdint.h>		/* 用来使用数据类型, uint8_t, uint16_t */
#include <windows.h>	/* 用来支持cmd命令 */
#include <string.h>		/* 用来使用字符串函数 strchr */
#include <stdlib.h>		/* 用来使用malloc free 函数 */

#define DEBUG_OUTPUT	0

#define	ARRAY_SIZE		101

const uint16_t motor_ntc_mV_array[ARRAY_SIZE] =
{
    453,    472,    492,    513,    534,    556,    579,    602,    626,   651,
    676,    701,    728,    754,    782,    809,    838,    867,    896,   926,
    956,    987,    1018,   1049,   1081,   1114,   1146,   1179,   1212,  1245,
    1278,   1312,   1346,   1379,   1413,   1447,   1481,   1515,   1549,  1582,
    1616,   1649,   1682,   1715,   1748,   1781,   1813,   1845,   1877,  1908,
    1939,   1970,   2000,   2030,   2059,   2088,   2116,   2145,   2172,  2200,
    2226,   2252,   2278,   2303,   2328,   2352,   2376,   2399,   2422,  2444,
    2466,   2488,   2508,   2529,   2549,   2568,   2587,   2606,   2624,  2642,
    2659,   2676,   2692,   2708,   2723,   2738,   2753,   2768,   2782,  2795,
    2809,   2821,   2834,   2847,   2858,   2870,   2881,   2892,   2903,  2913,
    2923
};


void eliminate_zero(char* arr);
void array_process_to_space(char* temp_array, uint16_t num);
void table_to_txt_file(uint16_t* array, uint16_t num, uint8_t column);



/**
 *  eliminate_zero
 * @brief	消除字符数组',' 后面的 '\0'
 * @param	arr字符数组首地址
 * @note	每调用一次sprintf函数都会有一个字符串结束标志,为输出多个数据,必须清除
 */
void
eliminate_zero(char* arr)
{
	if(arr == NULL)
	{
		return;
	}
	char *ptr = arr;			//不能初始化为NULL,否则不满足while的执行条件
	char *pts = arr;
	while(ptr != NULL)
	{							//strchr只能返回查找到首个匹配字符的位置
		ptr = strchr(pts,',');	//指针只能执行相减操作,不能执行相加操作
		if(ptr != NULL)			//可以用相对位置来查找,绝对位置来赋值
		{
			uint8_t index_1 = pts - arr;
			uint8_t index_2 = ptr - pts;
#if DEBUG_OUTPUT
			printf("index_1 is %d, index_2 is %d",index_1, index_2);
#endif
			pts = arr + index_1 + index_2 + 1;
			*pts = ' ';
		}
	}
}

/**
 * array_process_to_space
 * @brief   将数组清为空格,因数组中的0即'\0',会导致输出结束
 * @param   temp_array 参数描述: 数组首地址
 * @param   num 参数描述: 数组大小
 */
void
array_process_to_space(char* temp_array, uint16_t num)
{
	for(uint8_t j=0; j<num -1; j++)
    {
        temp_array[j] = ' ';
    }
	temp_array[num-1] = '\0';
}
/**
 * table_to_txt_file
 * @brief	将数据表输出到文本文档
 * @remarks	函数中有两行可发生更改
 * @param	array 数组首地址
 * @param	num	数组元素个数
 * @param	column 要输出为几列
 * @note 	数组的数据类型根据个人理解可更改为其它类型,如int8_t, int32_t,但整数位数不能超过9位
 * @note	因为用10字节将一个整数存放在字符数组中,格式也比较统一
 */
void
table_to_txt_file(uint16_t* array, uint16_t num, uint8_t column)
{

	char *temp1 = NULL;
	char *buffer = NULL;

	temp1 = (char*)malloc((column * 10) * sizeof(char));
	if(temp1 == NULL)
	{
		printf("temp1_array : no memory space allocated! \n");
		return;
	}
	buffer = (char*)malloc((column * 10 + 30) * sizeof(char));		///< buffer数组要比temp1数组大一些来存放cmd命令字符
	if(buffer == NULL)
	{
		printf("buffer_array : no memory space allocated! \n");
		free(temp1);
		return;
	}

	array_process_to_space(temp1, column*10);

	system("echo hello");												///< 此句为验证程序执行
	system("echo const uint16_t motor_ntc_mV_array[101] = >test.txt");	///< 此句需更改
	system("echo { >>test.txt");
	for(uint8_t i=0; i<num - 1; i++)
	{
		sprintf(&temp1[(i % column) * 10],"\t%d,", array[i]);	//用10个字节将整数存入字符数组
		if(i % column == (column -1))
		{
			eliminate_zero(temp1);

#if DEBUG_OUTPUT
			for(uint8_t k=0; k<column; k++)
			{
				printf("  %d  ",temp1[k]);
				if(k == (column-1))
				{
					printf("\n");
				}
			}
#endif
			sprintf(buffer,"echo %s >>test.txt",temp1); ///< 结束标志是\0
			system(buffer);

			array_process_to_space(temp1, column*10);
		}
	}
	eliminate_zero(temp1);

	sprintf(&temp1[((num-1) % column) * 10],"\t%d", array[num - 1]);
	sprintf(buffer,"echo %s >>test.txt",temp1); ///< 结束标志是\0
	system(buffer);

	system("echo }; >>test.txt");

	free(temp1);
	free(buffer);
	temp1 = NULL;
	buffer = NULL;
}


int main(void)
{
	table_to_txt_file(motor_ntc_mV_array, sizeof(motor_ntc_mV_array)/sizeof(motor_ntc_mV_array[0]), 7);

	return 0;
}
