一、数据收集
下载地址见上一篇，https://blog.csdn.net/bashendixie5/article/details/110432016
二、参考代码如下
这个版本是用gpu跑的，大概5s/Epoch，cpu大概需要48s
同样的数据集，训练完准确度好了一些。

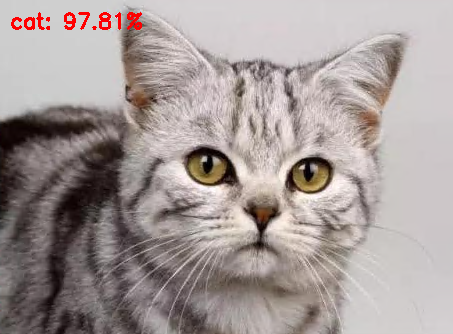

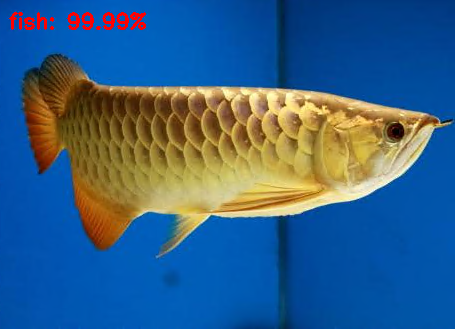

不过下面结果，其中浣熊被识别成了猫，后来仔细看了一下数据集，那个我认为是浣熊的应该是被叫做小熊猫，长的真不一样，所以换了一张新的小熊猫的图，识别的不错。
# import the necessary packages
from tensorflow.keras.models import Sequential
from tensorflow.keras.layers import BatchNormalization
from tensorflow.keras.layers import Conv2D
from tensorflow.keras.layers import MaxPooling2D
from tensorflow.keras.layers import Activation
from tensorflow.keras.layers import Flatten
from tensorflow.keras.layers import Dropout
from tensorflow.keras.layers import Dense
from tensorflow.keras import backend as K
# set the matplotlib backend so figures can be saved in the background
import matplotlib
matplotlib.use("Agg")
from sklearn.preprocessing import LabelBinarizer
from sklearn.model_selection import train_test_split
from sklearn.metrics import classification_report
from tensorflow.keras.preprocessing.image import ImageDataGenerator
from tensorflow.keras.optimizers import SGD
from tensorflow.keras.models import load_model
from imutils import paths
import matplotlib.pyplot as plt
import numpy as np
import argparse
import random
import pickle
import cv2
import os
os.environ['TF_FORCE_GPU_ALLOW_GROWTH'] = "true"
class SmallVGGNet:
@staticmethod
def build(width, height, depth, classes):
# initialize the model along with the input shape to be
# "channels last" and the channels dimension itself
model = Sequential()
inputShape = (height, width, depth)
chanDim = -1
# if we are using "channels first", update the input shape
# and channels dimension
if K.image_data_format() == "channels_first":
inputShape = (depth, height, width)
chanDim = 1
# CONV => RELU => POOL layer set
model.add(Conv2D(32, (3, 3), padding="same", input_shape=inputShape))
model.add(Activation("relu"))
model.add(BatchNormalization(axis=chanDim))
model.add(MaxPooling2D(pool_size=(2, 2)))
model.add(Dropout(0.25))
# (CONV => RELU) * 2 => POOL layer set
model.add(Conv2D(64, (3, 3), padding="same"))
model.add(Activation("relu"))
model.add(BatchNormalization(axis=chanDim))
model.add(Conv2D(64, (3, 3), padding="same"))
model.add(Activation("relu"))
model.add(BatchNormalization(axis=chanDim))
model.add(MaxPooling2D(pool_size=(2, 2)))
model.add(Dropout(0.25))
# (CONV => RELU) * 3 => POOL layer set
model.add(Conv2D(128, (3, 3), padding="same"))
model.add(Activation("relu"))
model.add(BatchNormalization(axis=chanDim))
model.add(Conv2D(128, (3, 3), padding="same"))
model.add(Activation("relu"))
model.add(BatchNormalization(axis=chanDim))
model.add(Conv2D(128, (3, 3), padding="same"))
model.add(Activation("relu"))
model.add(BatchNormalization(axis=chanDim))
model.add(MaxPooling2D(pool_size=(2, 2)))
model.add(Dropout(0.25))
# first (and only) set of FC => RELU layers
model.add(Flatten())
model.add(Dense(512))
model.add(Activation("relu"))
model.add(BatchNormalization())
model.add(Dropout(0.5))
# softmax classifier
model.add(Dense(classes))
model.add(Activation("softmax"))
# return the constructed network architecture
return model
def getFileList(dir, Filelist, ext=None):
"""
获取文件夹及其子文件夹中文件列表
输入 dir：文件夹根目录
输入 ext: 扩展名
返回： 文件路径列表
"""
newDir = dir
if os.path.isfile(dir):
if ext is None:
Filelist.append(dir)
else:
if ext in dir[-3:]:
Filelist.append(dir)
elif os.path.isdir(dir):
for s in os.listdir(dir):
newDir = os.path.join(dir, s)
getFileList(newDir, Filelist, ext)
return Filelist
# train的方法
def train():
# initialize the data and labels
print("[INFO] loading images...")
data = []
labels = []
imagePaths = []
paths = 'D:/deepLearn/custom/raccoon/'
# grab the image paths and randomly shuffle them
imagePaths = sorted(list(getFileList(paths, imagePaths)))
random.seed(42)
random.shuffle(imagePaths)
# 浣熊
for imagePath in imagePaths:
# load the image, resize the image to be 32x32 pixels (ignoring
# aspect ratio), flatten the image into 32x32x3=3072 pixel image
# into a list, and store the image in the data list
image = cv2.imread(imagePath)
image = cv2.resize(image, (64, 64))
data.append(image)
# extract the class label from the image path and update the
# labels list
label = 'raccoon'#imagePath.split(os.path.sep)[-2]
labels.append(label)
imagePaths = []
paths = 'D:/deepLearn/custom/fish/'
# grab the image paths and randomly shuffle them
imagePaths = sorted(list(getFileList(paths, imagePaths)))
random.seed(42)
random.shuffle(imagePaths)
# 鱼
for imagePath in imagePaths:
# load the image, resize the image to be 32x32 pixels (ignoring
# aspect ratio), flatten the image into 32x32x3=3072 pixel image
# into a list, and store the image in the data list
image = cv2.imread(imagePath)
image = cv2.resize(image, (64, 64))
data.append(image)
# extract the class label from the image path and update the
# labels list
label = 'fish'#imagePath.split(os.path.sep)[-2]
labels.append(label)
imagePaths = []
paths = 'D:/deepLearn/custom/cat/'
# grab the image paths and randomly shuffle them
imagePaths = sorted(list(getFileList(paths, imagePaths)))
random.seed(42)
random.shuffle(imagePaths)
# 猫
for imagePath in imagePaths:
# load the image, resize the image to be 32x32 pixels (ignoring
# aspect ratio), flatten the image into 32x32x3=3072 pixel image
# into a list, and store the image in the data list
image = cv2.imread(imagePath)
image = cv2.resize(image, (64, 64))
data.append(image)
# extract the class label from the image path and update the
# labels list
label = 'cat'#imagePath.split(os.path.sep)[-2]
labels.append(label)
# scale the raw pixel intensities to the range [0, 1]
data = np.array(data, dtype="float") / 255.0
labels = np.array(labels)
# partition the data into training and testing splits using 75% of
# the data for training and the remaining 25% for testing
(trainX, testX, trainY, testY) = train_test_split(data, labels, test_size=0.25, random_state=42)
# convert the labels from integers to vectors (for 2-class, binary
# classification you should use Keras' to_categorical function
# instead as the scikit-learn's LabelBinarizer will not return a
# vector)
lb = LabelBinarizer()
trainY = lb.fit_transform(trainY)
testY = lb.transform(testY)
# construct the image generator for data augmentation
aug = ImageDataGenerator(rotation_range=30, width_shift_range=0.1,
height_shift_range=0.1, shear_range=0.2, zoom_range=0.2,
horizontal_flip=True, fill_mode="nearest")
# initialize our VGG-like Convolutional Neural Network
model = SmallVGGNet.build(width=64, height=64, depth=3, classes=len(lb.classes_))
# initialize our initial learning rate, # of epochs to train for,
# and batch size
INIT_LR = 0.01
EPOCHS = 75
BS = 32
# initialize the model and optimizer (you'll want to use
# binary_crossentropy for 2-class classification)
print("[INFO] training network...")
opt = SGD(lr=INIT_LR, decay=INIT_LR / EPOCHS)
model.compile(loss="categorical_crossentropy", optimizer=opt, metrics=["accuracy"])
# train the network
H = model.fit(x=aug.flow(trainX, trainY, batch_size=BS),
validation_data=(testX, testY), steps_per_epoch=len(trainX) // BS,
epochs=EPOCHS)
return model, lb, testX, testY, EPOCHS, H
# 评估的方法,绘制训练损失和准确性
def evaluate(model, testX, testY, EPOCHS, H):
# evaluate the network
print("[INFO] evaluating network...")
predictions = model.predict(x=testX, batch_size=32)
print(classification_report(testY.argmax(axis=1),
predictions.argmax(axis=1), target_names=lb.classes_))

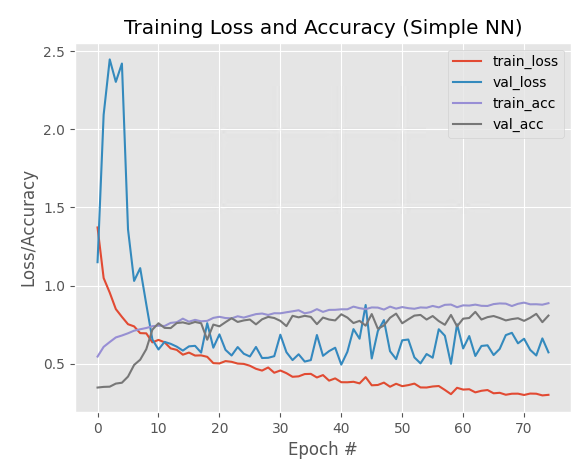

# plot the training loss and accuracy
N = np.arange(0, EPOCHS)
plt.style.use("ggplot")
plt.figure()
plt.plot(N, H.history["loss"], label="train_loss")
plt.plot(N, H.history["val_loss"], label="val_loss")
plt.plot(N, H.history["accuracy"], label="train_acc")
plt.plot(N, H.history["val_accuracy"], label="val_acc")
plt.title("Training Loss and Accuracy (Simple NN)")
plt.xlabel("Epoch #")
plt.ylabel("Loss/Accuracy")
plt.legend()
plt.savefig('D:/deepLearn/Desktop/simple_nn_plot.png')
# 保存模型
def savemodel(model, lb):
# save the model and label binarizer to disk
print("[INFO] serializing network and label binarizer...")
model.save('D:/deepLearn/Desktop/simple_nn_lb.h5', save_format="h5")
f = open('D:/deepLearn/Desktop/simple_nn_lb.pickle', "wb")
f.write(pickle.dumps(lb))
f.close()
# 测试模型
def testmodel():
# load the input image and resize it to the target spatial dimensions
image = cv2.imread('D:/deepLearn/Desktop/2.jpg')
output = image.copy()
image = cv2.resize(image, (32, 32))
# scale the pixel values to [0, 1]
image = image.astype("float") / 255.0
# check to see if we should flatten the image and add a batch
# dimension
if 1 > 0:
image = image.flatten()
image = image.reshape((1, image.shape[0]))
# otherwise, we must be working with a CNN -- don't flatten the
# image, simply add the batch dimension
else:
image = image.reshape((1, image.shape[0], image.shape[1],image.shape[2]))
# load the model and label binarizer
print("[INFO] loading network and label binarizer...")
model = load_model('D:/deepLearn/Desktop/simple_nn_lb.h5')
lb = pickle.loads(open('D:/deepLearn/Desktop/simple_nn_lb.pickle', "rb").read())
# make a prediction on the image
preds = model.predict(image)
# find the class label index with the largest corresponding
# probability
i = preds.argmax(axis=1)[0]
label = lb.classes_[i]
#array([[5.4622066e-01, 4.5377851e-01, 7.7963534e-07]], dtype=float32)
# draw the class label + probability on the output image
text = "{}: {:.2f}%".format(label, preds[0][i] * 100)
cv2.putText(output, text, (10, 30), cv2.FONT_HERSHEY_SIMPLEX, 0.7,
(0, 0, 255), 2)
# show the output image
cv2.imshow("Image", output)
cv2.waitKey(0)
#testmodel()
model, lb, testX, testY, EPOCHS, H = train()
evaluate(model, testX, testY, EPOCHS, H)
savemodel(model, lb)
