2.9 Linux中的火墙策略优化


环境配置
Windows环境下的虚拟机
一台主机node1是双网卡:192.168.4.23,172.25.254.123
另一台主机node2是单网卡:192.168.4.223
另一台主机node3作为真机:172.25.254.23
在这里插入图片描述 在这里插入图片描述

数据库在系统中的工作原理

火墙:
数据通过内核去访问服务
火墙相当于在内核上安装数据过滤表netfilter(决定谁可以通过,是一个插件)
软件工具iptables管理内核上的插件netfilter
通过firewall或者iptables对iptables进行控制

firewall和iptables的管理方式切换方法

企业7之前没有firewall管理方式
iptables更趋近于列表的更改方式
firewall更接近于Windows的管理方式

firewall方式切换到iptables方式

关闭firewall服务

systemctl disable --now firewalld
systemctl mask firewalld

启动iptables服务

dnf install iptables-services -y
systemctl enable --now iptables

查看iptables的火墙管理策略

iptabels -nL
提示词 说明
target 动作
ACCEPT 允许通过
REJECT 拒绝
prot 程序,协议名称
opt 参数
source 来源
destination 目的地
最后的内容 状态

在这里插入图片描述在这里插入图片描述

iptables方式切换到firewall方式

关闭iptables服务

systemctl disable --now iptables
systemctl mask iptables

开启firewall服务

systemctl enable --now firewalld
systemctl unmask firewalld

查看firewall服务的策略

firewall-cmd --list-all --zone=public

在这里插入图片描述在这里插入图片描述

firewall的管理

火墙中域的管理控制

firewall管理方式

用域的方式进行管理
其使用的数据保存机制是ssml可扩展语言的标记方式

火墙中允许的服务都保存到/etc的目录里
zones中有写允许了哪些服务
xml:数据封装

可以用命令添加服务,也可以用文件方式管理服务
/etc/firewall/zones目录中的public.xml
在这里插入图片描述在这里插入图片描述

管理域

不同的域直接设定好不同的服务
默认使用public

说明
trusted 接收所有的网络连接
home 用于家庭网络,允许连接ssh mdns ipp-client samba-client dhcp-client
work 工作网络,允许连接ssh ipp-client dhcp-client
public 公共网络,允许连接ssh dhcp-client
dmz 军级网络,允许连接ssh
block 拒绝所有
drop 丢弃所有数据,无任何回应
internal 内部网络,ssh ipp-client dhcp-client samba-client
external ipv4网络伪装转发sshd
firewall-cmd --get-default-zone			//查看域
firewall-cmd --get-active-zones			//查看活跃的域
firewall-cmd --get-zones				//查看可用的域,列出所有的域,libvirt是安装虚拟机后就会出现的

在这里插入图片描述

dnf install httpd
enable --now
访问主页,直接被拒绝:因为现在的域不允许(不是public)
–set-default-zone=trues
可以访问阿帕奇的主页

更改网络

firewall-cmd --set-default-zone=block
firewall-cmd --get-default-zone
firewall-cmd --list-all

在这里插入图片描述在这里插入图片描述

(以上是临时更改)
火墙重新启动restart,不会还原默认设置

更改域是永久的

更改成public后,在zones里没有文件,
因此,永久更改firewall-cmd --permanent --add-service=ssh
没有更改默认设定,默认阅读的是/lib/firewall
(不加--permanent只是修改了内存里的firewall方式)
如果修改了设定,就会修改/etc/firewall/zones

/etc/firewall/zones中的文件都是数据文件的格式

双网卡:添加服务

设定apache

dnf install httpd -y
systemctl enable --now httpd
vim /etc/httpd/conf/httpd.conf/index.html

在这里插入图片描述

临时设定:只修改了内存的信息,不需要reload。直接临时添加,就可以生效

firewall-cmd --add-service=http	//临时设定
firewall-cmd --list-all

如果进行reload,临时设定就失效了,
没有更改配置文件
在这里插入图片描述
临时设定不需要--reload,直接添加,直接生效
永久设定必须--reload才可以生效

永久设定--permanent(修改配置文件,生成了old,并修改public.xml

firewall-cmd --permanent --add-service=http
firewall-cmd --reload
firewall-cmd --lsit-all

双网卡:查看服务

firewall-cmd --get-services
cd /lib/firewalld/services
mv http.xml westos.xml
firewall-cmd --get-services | grep westos

在这里插入图片描述在这里插入图片描述在这里插入图片描述在这里插入图片描述

双网卡:查看域里允许的服务

firewall-cmd --list-services

双网卡:删除服务

firewall-cmd --permanent --remove-service=http
firewall-cmd --reload
firewall-cmd --list-all
firewall-cmd --list-services

双网卡:设定端口

修改http的端口号

vim /etc/httpd/conf/httpd.conf
//		/Listen,更改端口号为8080
systemctl restart httpd
netstat -antuple | grep 8080

添加端口

firewall-cmd --permanent --add-port=8080/tcp
firewall-cmd --reload
firewall-cmd --list-all

测试:Firefox : 172.25.254.123:8080

删除端口

firewall-cmd --permanent --remove-port=8080/tcp
firewall-cmd --reload
firewall-cmd --list-all

访问控制

实验之前,用172网段的真机172.25.254.23去访问http://172.25.254.123,访问失败(没有添加httpd服务)

firewall-cmd --permanent --add-source=172.25.254.0/24 --zone=trusted		//所有访问node1,只要是172.25.254.0网段的主机,都走的是trusted域
firewall-cmd --reload
firewall-cmd --list-all --zone=trusted

再次用172网段的真机去访问Firefox:http://172.25.254.123,可以访问成功

删除trusted域

firewall-cmd --permanent --remove-source=172.25.254.0/24 --zone=trusted
firewall-cmd --reload
firewall-cmd --list-all --zone=trusted

Firefox:http://172.25.254.123,访问失败

双网卡接口域的设定

默认ens3和ens9走的是public域

设定访问ens3走的是block域

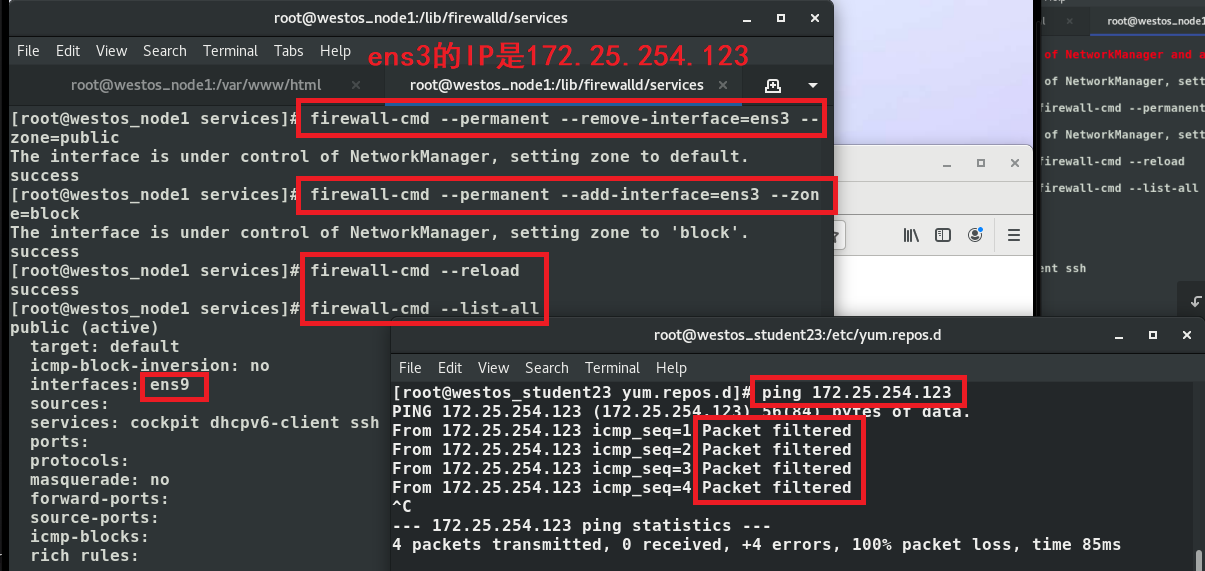

双网卡接口域的删除与添加

firewall-cmd --permanent --remove-interface=ens3 --zone=public	//将网卡ens3从public域中移除
firewall-cmd --permanent --add-interface=ens3 --zone=block		//添加网卡ens3到block域
firewall-cmd --reload
firewall-cmd --list-all -zone=trusted

真机测试:ping 172.25.254.123,失败
在这里插入图片描述
双网卡接口修改域的设定

firewall-cmd --permanent --change-interface=ens3 --zone=public
firewall-cmd --relaod
firewall-cmd --list-all --zone=public

真机测试:ping 172.25.254.123,成功

3表5链

添加规则

Apache不允许172.25.254.23主机访问,其他人可以访问

firewall-cmd --direct --permanent --add-rule ipv4 filter INPUT 1 -p tcp --dport 80 -s 172.25.254.23 -j REJECT		//编写规则
firewall-cmd --reload
firewall-cmd --direct --get-all-rules

真机172.25.254.23测试:Firefox:http://172.25.254.123,失败
node1172.25.254.123测试:Firefox:http://172.25.254.123,成功

第一条命令相当于编写/etc/firewalld/direct.xml文件
不符合INPUT第一条的数据均读取默认条件
-p:协议
-s:数据来源
–dport:目的地端口
-j:动作
REJECT:拒绝,会有响应
DROP:丢弃,没有响应

删除规则

firewall-cmd --direct --permanent --remove-rule ipv4 filter INPUT 1 -p tcp --dport 80 -s 172.25.254.23 -j REJECT

DNAT SNAT

SNAT

服务端:172.25.254.123 192.168.4.23

firewall-cmd --permanent --add-masquerate	//地址伪装功能必须开启
firewall-cmd --reload
sysctl -a | grep ip_forward		//开启内核路由功能
##如果 net.ipv4.ip_forward=0,那么需要编辑相关文件 /etc/sysctl.confg,
##可以使用命令 sysctl -p 查看文件的结果

客户端:

ip route add default via 192.168.4.23		//添加网关
route -n

测试:

node2:ssh [email protected]
真机:w -i

设定之后,192.168.4.223的所有数据交给网关192.168.4.23
node2 192.168.4.223 尝试ssh连接真机之后,真机键入命令w -i显示的是172.25.254.123连接
在这里插入图片描述
DNAT
目的地地址转换(内网转换)

firewall-cmd --permanent --add-forward-port=proto=tcp:port=22:toport=22:toaddr=192.168.4.223
firewall-cmd --reload
firewall-cmd --list-all

将发给192.168.4.23(172.25.254.123)的所有请求发到192.168.4.223
比如,真机尝试ssh [email protected]成功连接后,ifconfig后显示的是192.168.4.223

(源地址转换:node2通过网关,去连接真机并且进行地址伪装,显示的是伪装后的地址)
(目的地地址转换:任何主机再去连接伪装地址,所有数据和连接都是交付给node2 192.168.4.223)

iptables的管理

火墙依旧是开启的,只是不能用firewall方式管理了

systemctl disable --now firewalld	//关闭firewall服务
systemctl mask firewall
dnf install iptables-service -y
systemctl enable --now iptables

用iptables方式去查看策略

iptables -nL

state:软件包状态
NEW:新来源数据
RELATED:非首次来源数据
ESTABLISHED:正在连接

iptables方式删除策略

iptables -F		//刷新加载,只删除了内存中的数据
iptables -nL	//显示没有数据(n:不做解析)

如果restart重启iptables的服务,火墙策略会还原,因为配置文件的内容没有被删除

vim /etc/sysconfig/iptables
service iptables save
iptables -L		//做解析:anywhere
iptables -nL	//不做解析:速度快一些(ip)

指定表

iptables -t nat -nL		//查看指定的表
iptables -t filter -nL
iptables -t mangle -nL

添加策略(只能最后一条位置)

iptables -A INPUT -p tcp -dport 22 -j ACCEPT
iptables -nL

拒绝172.25.254.23
(如果第一条是允许所有主机连接,那么,第2条拒绝命令就不会不生效)

iptables -p tcp --dport 22 -s 172.25.254.23 -j REJECT
iptables -nL

删除策略

iptables -D INPUT 2
iptables -nL

插入,并作为第一条

iptables -I INPUT 1 -p tcp -dport 22 -s 172.25.254.23 -j ACCEPT
iptables -nL

修改策略
(DROP:不回应,REJECT:有回应)

iptables -R INPUT 1 -p tcp --dport 22 -s 172.25.254.23 -j DROP
iptables -nL

在这里插入图片描述在这里插入图片描述

添加新的链

iptables -N west
iptables -nL

修改链的名字

iptables -E west westos
iptables -nL

删除链

iptables -X westos
iptables -nL

修改表的默认规则
默认规则是ACCEPT(只能是DROP或者ACCEPT)

iptables -P INPUT DROP
iptables -nL

状态跟踪

iptables -F
iptables -nL
iptables -A INPUT -m state --state ESTABLISHED,RELATED -j ACCEPT	//m:状态
iptables -A INPUT -m state --state NEW -i lo -j ACCEPT
iptables -A INPUT -m state --state NEW -p tcp --dport 22 -j ACCEPT
iptables -A INPUT -m state --state NEW -p tcp --dport 53 -j ACCEPT
iptables -A INPUT -m state --state NEW -p tcp --dport 80 -j REJECT
iptables -A INPUT -j REJECT
iptables -nL
service iptables save

真机测试:Firefox:http://172.25.254.123

DNAT SNAT

iptables -t nat -F
iptables -t nat -nL

路由之后(内网访问外网)

node2去ping -w 3 172.25..254.23失败

服务端:

iptables -t nat -A POSTROUTING -o ens3 -j SNAT --to-source 172.25.254.123
iptables -t nat -nL

所有从node1的网卡ens3(其实是node2的数据)出去的数据都写上123的地址

客户端测试:

ping -w 3 172.25.254.23
ssh [email protected]
ifconfig	//显示的是真机的IP地址

真机测试:
真机显示的是172.25.254.123

w -i

路由之前(外网访问内网)

从真机172.25.254.23进行ssh连接172.25.254.123,显示的还是172.25.254.123,此时连接失败。地址转换失败

设定DNAT

服务端:

iptables -t nat -A PREROUTING -i ens3 -j DNAT --to-dest 192.168.4.223
iptables -nL

172.25.254.123进来的数据,转换到192.168.4.223网段
(!:除了的意思)
客户端测试:

ssh [email protected]
ifconfig

地址转换:iptables VS firewall
firewall的地址转换不需要进行任何操作,只需要打开masquerate
