Flink之状态编程KeyedState的使用

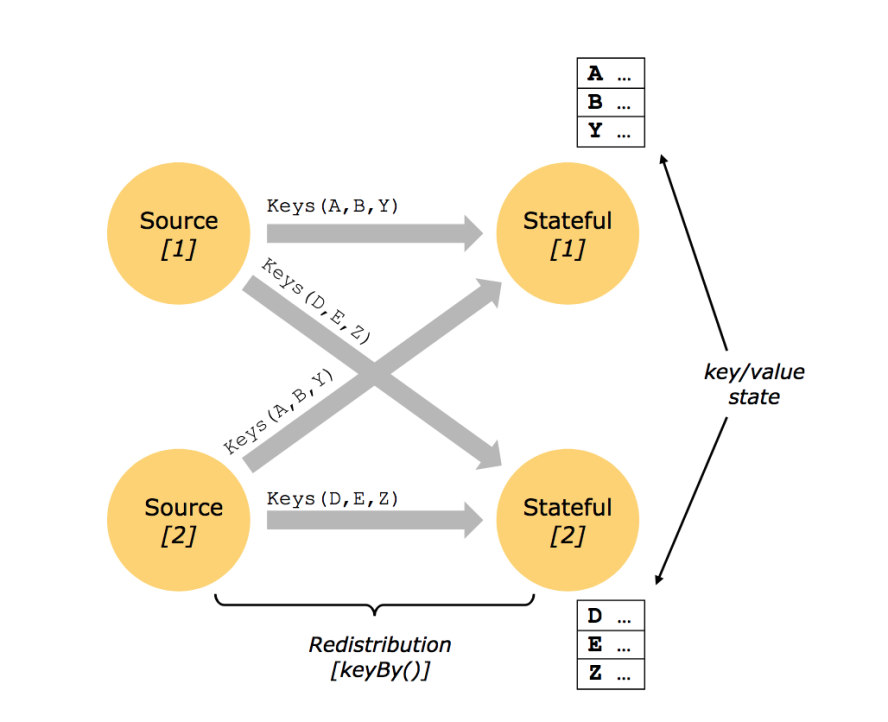

（1）KeyedState

键控状态是根据输入数据流中定义的键（key）来维护和访问的。

Flink 为每个键值维护一个状态实例，并将具有相同键的所有数据，都分区到同一个算子任务中，这个任务会维护和处理这个 key 对应的状态。当任务处理一条数据时，它会自动将状态的访问范围限定为当前数据的 key。因此，具有相同 key 的所有数据都会访问相同的状态。

Keyed State 很类似于一个分布式的 key-value map 数据结构，只能用于 KeyedStream （keyBy 算子处理之后）。

在这里插入图片描述

（2）键控状态支持的数据类型

ValueState：

保存单个值.
每个有 key 有一个状态值.
设置使用update(T), 获取使用T value()

ListState:

保存元素列表.
添加元素: add(T) addAll(List< T >)
获取元素: Iterable< T > get()
覆盖所有元素: update(List< T >)

ReducingState:

存储单个值, 表示把所有元素的聚合结果添加到状态中. 与 ListState 类似, 但是当使用 add(T)的时候 ReducingState 会使用指定的 ReduceFunction 进行聚合.

AggregatingState<IN, OUT>:

存储单个值. 与 ReducingState 类似, 都是进行聚合. 不同的是, AggregatingState 的聚合的结果和元素类型可以不一样.

MapState<UK, UV>:

存储键值对列表.
添加键值对: put(UK, UV) or putAll(Map<UK, UV>)
根据 key 获取值:get(UK)
获取所有: entries(), keys() and values()
检测是否为空: isEmpty()

注意:

所有的类型都有 clear(), 清空当前 key 的状态
这些状态对象仅用于用户与状态进行交互.
状态不是必须存储到内存,也可以存储在磁盘或者任意其他地方
从状态获取的值与输入元素的 key 相关

（3）代码实现

基于ValueState的开发实战

package com.aikfk.flink.datastream.state;

import org.apache.flink.api.common.functions.RichFlatMapFunction;
import org.apache.flink.api.common.state.ValueState;
import org.apache.flink.api.common.state.ValueStateDescriptor;
import org.apache.flink.api.common.typeinfo.TypeHint;
import org.apache.flink.api.common.typeinfo.TypeInformation;
import org.apache.flink.api.java.tuple.Tuple2;
import org.apache.flink.configuration.Configuration;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.util.Collector;

/**
 * @author ：caizhengjie
 * @description：TODO
 * @date ：2021/3/31 4:04 下午
 */
public class KeyedStateCount {


    public static void main(String[] args) throws Exception {


        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();

        DataStream<Tuple2<String,Long>> dataStream = env.fromElements(
                Tuple2.of("a", 3L),
                Tuple2.of("a", 5L),
                Tuple2.of("b", 7L),
                Tuple2.of("c", 4L),
                Tuple2.of("c", 2L))
                .keyBy(value -> value.f0)
                .flatMap(new CountFunction());

        dataStream.print();
        env.execute("KeyedState");
    }

    static class CountFunction extends RichFlatMapFunction<Tuple2<String,Long>,Tuple2<String,Long>>{



        // 定义状态ValueState
        private ValueState<Tuple2<String,Long>> keyCount;

        /**
         * 初始化
         * @param parameters
         * @throws Exception
         */
        @Override
        public void open(Configuration parameters) throws Exception {


            ValueStateDescriptor<Tuple2<String,Long>> descriptor =
                    new ValueStateDescriptor<Tuple2<String, Long>>("keycount",
                            TypeInformation.of(new TypeHint<Tuple2<String,Long>>() {

    }));

            keyCount = getRuntimeContext().getState(descriptor);
        }

        @Override
        public void flatMap(Tuple2<String, Long> input,
                            Collector<Tuple2<String, Long>> collector) throws Exception {



            // 使用状态
            Tuple2<String, Long> currentValue =
                    (keyCount.value() == null) ? new Tuple2<>("", 0L) : keyCount.value();

            // 累加数据
            currentValue.f0 = input.f0;
            currentValue.f1 ++;

            // 更新状态
            keyCount.update(currentValue);
            collector.collect(keyCount.value());
        }
    }
}

运行结果

3> (b,1)
11> (a,1)
11> (a,2)
8> (c,1)
8> (c,2)

基于keyedState的开发实战

package com.aikfk.flink.datastream.state;

import com.aikfk.flink.datastream.bean.WaterSensor;
import org.apache.flink.api.common.functions.MapFunction;
import org.apache.flink.api.common.state.*;
import org.apache.flink.configuration.Configuration;
import org.apache.flink.streaming.api.datastream.KeyedStream;
import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.functions.KeyedProcessFunction;
import org.apache.flink.util.Collector;

import java.util.ArrayList;
import java.util.HashMap;
import java.util.Iterator;
import java.util.Map;

/**
 * @author ：caizhengjie
 * @description：TODO
 * @date ：2021/4/1 2:09 下午
 */
public class KeyedStateTest {


    public static void main(String[] args) throws Exception {


        // 1.获取执行环境
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        env.setParallelism(1);

        // 2.读取端口数据并转换为JavaBean
        SingleOutputStreamOperator<WaterSensor> waterSensorDS = env.socketTextStream("bigdata-pro-m07", 9999)
                .map(new MapFunction<String, WaterSensor>() {


                    @Override
                    public WaterSensor map(String s) throws Exception {


                        String[] split = s.split(",");
                        return new WaterSensor(split[0],Long.parseLong(split[1]),Integer.parseInt(split[2]));
                    }
                });

        // 3.按照id分组
        KeyedStream<WaterSensor, String> keyedStream = waterSensorDS.keyBy(WaterSensor::getId);

        // 4.演示状态的使用
        SingleOutputStreamOperator<WaterSensor> result = keyedStream.process(new MyStateProcessFunc());

        // 5.打印
        result.print();

        // 6.执行任务
        env.execute();

    }

    public static class MyStateProcessFunc extends KeyedProcessFunction<String,WaterSensor,WaterSensor> {




        // a.定义状态
        private ValueState<Long> valueState;
        private ListState<Long> listState;
        private MapState<String,Long> mapState;
        private ReducingState<WaterSensor> reducingState;
        private AggregatingState<WaterSensor,WaterSensor> aggregatingState;


        // b.初始化
        @Override
        public void open(Configuration parameters) throws Exception {


            valueState = getRuntimeContext()
                    .getState(new ValueStateDescriptor<Long>("value-state",Long.class));


            listState = getRuntimeContext()
                    .getListState(new ListStateDescriptor<Long>("list-state", Long.class));

            mapState = getRuntimeContext()
                    .getMapState(new MapStateDescriptor<String, Long>("map-state", String.class,Long.class));

//            reducingState = getRuntimeContext()
//                    .getReducingState(new ReducingStateDescriptor<WaterSensor>())

//            aggregatingState = getRuntimeContext()
//                    .getAggregatingState(new AggregatingStateDescriptor
//                            <WaterSensor, Object, WaterSensor>());

        }


        // c.状态的使用
        @Override
        public void processElement(WaterSensor value,
                                   Context context, Collector<WaterSensor> collector) throws Exception {



            // c.1 Value状态
            Long value1 = valueState.value();
            valueState.update(122L);
            valueState.clear();

            // c.2 List状态
            Iterable<Long> longs = listState.get();
            listState.add(122L);
            listState.clear();
            listState.update(new ArrayList<>());

            // c.3 Map状态
            Iterator<Map.Entry<String,Long>> iterator = mapState.iterator();
            Long aLong = mapState.get("");
            mapState.contains("");
            mapState.put("",122L);
            mapState.putAll(new HashMap<>());
            mapState.remove("");
            mapState.clear();

            //c.4 Reduce状态
            WaterSensor waterSensor1 = reducingState.get();
            reducingState.add(new WaterSensor());
            reducingState.clear();

            //c.5 Agg状态
            aggregatingState.add(value);
            WaterSensor waterSensor2 = aggregatingState.get();
            aggregatingState.clear();

        }
    }
}
