准备三台服务器：

Jenkins+maven++git+tomcat： IP192.168.72.149

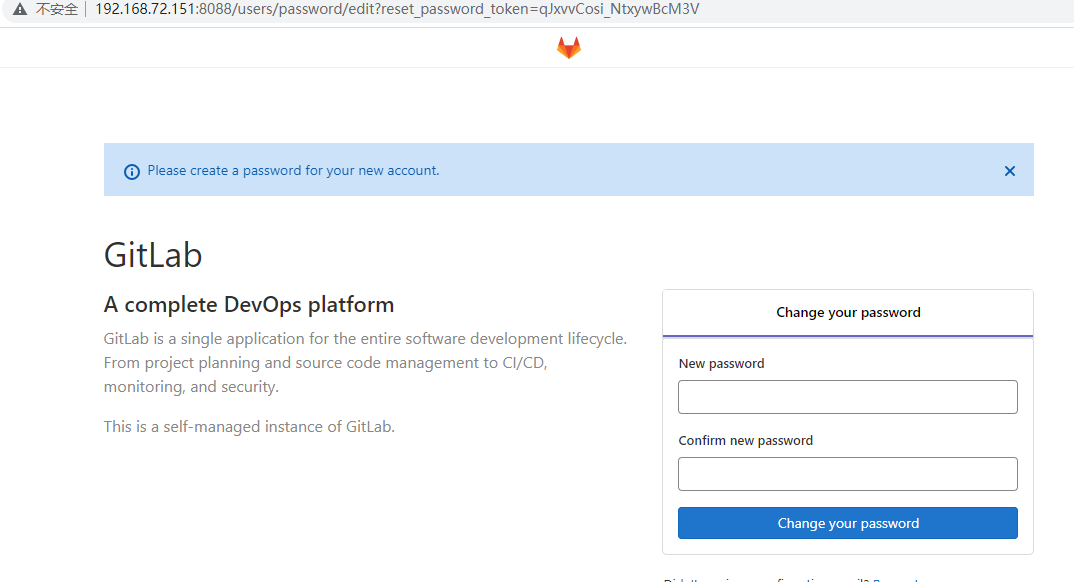

gitlab IP 192.168.72.151

Tomcat安装部署

上传安装包

1.apache-tomcat-8.5.35.tar.gz

2.jdk-8u131-linux-x64_.rpm

[root@localhost ~]# mkdir /tomcat
[root@localhost ~]# tar -xzvf  apache-tomcat-8.5.35.tar.gz -C /tomcat/
[root@localhost tomcat]# mv apache-tomcat-8.5.35/ tomcat-8888
[root@localhost tomcat]# cd tomcat-8888/
[root@localhost tomcat-8888]# cd bin/
[root@localhost bin]# ls
bootstrap.jar       commons-daemon.jar            daemon.sh         setclasspath.sh  startup.sh            tool-wrapper.sh
catalina.bat        commons-daemon-native.tar.gz  digest.bat        shutdown.bat     tomcat-juli.jar       version.bat
catalina.sh         configtest.bat                digest.sh         shutdown.sh      tomcat-native.tar.gz  version.sh
catalina-tasks.xml  configtest.sh                 setclasspath.bat  startup.bat      tool-wrapper.bat
[root@localhost bin]# ./startup.sh

[root@localhost bin]# systemctl stop firewalld

Jenkins安装部署

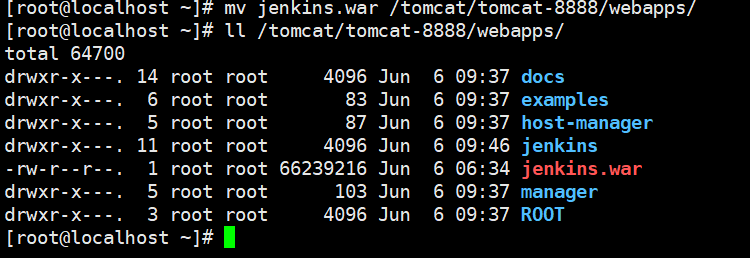

上传jenkins包放在tomcat webapps下自动解包

下载地址https://www.jenkins.io/zh/

http://192.168.72.149:8080/jenkins/

扫描二维码关注公众号，回复： 13465632 查看本文章

根据提示在服务器上查看解锁jenkins的密码等待一会就好

40615eff19a64c75abab5e3000ddb3f4

这样就完成了

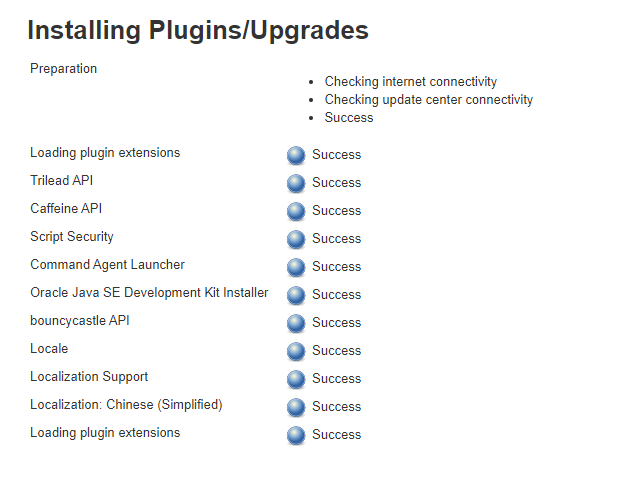

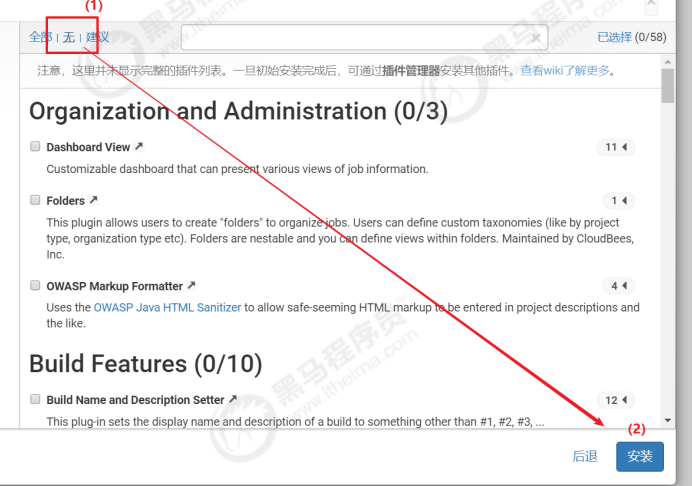

Jenkins插件管理

在搜索栏搜索：local 和 Localization: Chinese (Simplified)

关键字搜索

选择local Localization: Chinese (Simplified)

install without restart

第三步：

重启jenkins

[root@localhost ~]# cd /tomcat/tomcat-8888/bin/
[root@localhost bin]# ls
bootstrap.jar       commons-daemon.jar            daemon.sh         setclasspath.sh  startup.sh            tool-wrapper.sh
catalina.bat        commons-daemon-native.tar.gz  digest.bat        shutdown.bat     tomcat-juli.jar       version.bat
catalina.sh         configtest.bat                digest.sh         shutdown.sh      tomcat-native.tar.gz  version.sh
catalina-tasks.xml  configtest.sh                 setclasspath.bat  startup.bat      tool-wrapper.bat
[root@localhost bin]# ./shutdown.sh
Using CATALINA_BASE:   /tomcat/tomcat-8888
Using CATALINA_HOME:   /tomcat/tomcat-8888
Using CATALINA_TMPDIR: /tomcat/tomcat-8888/temp
Using JRE_HOME:        /usr
Using CLASSPATH:       /tomcat/tomcat-8888/bin/bootstrap.jar:/tomcat/tomcat-8888/bin/tomcat-juli.jar
[root@localhost bin]# ./startup.sh
Using CATALINA_BASE:   /tomcat/tomcat-8888
Using CATALINA_HOME:   /tomcat/tomcat-8888
Using CATALINA_TMPDIR: /tomcat/tomcat-8888/temp
Using JRE_HOME:        /usr
Using CLASSPATH:       /tomcat/tomcat-8888/bin/bootstrap.jar:/tomcat/tomcat-8888/bin/tomcat-juli.jar
Tomcat started.
