第 2 篇：绘制一个窗口

目录

        一、实例化GLFW窗口

        1、GLFW初始化

        2、查看GLFW版本信息

        3、创建窗口对象

二、GLAD

        1、初始化GLAD

        2、视口

        3、渲染

        4、释放资源

        三、实验源码

        1、显示窗口

        2、修改背景色

---

一、实例化GLFW窗口

1、GLFW初始化

#include <glad/glad.h>
#include <GLFW/glfw3.h>

#include <iostream>

int main() {

	glfwInit();//初始化GLFW
	glfwWindowHint(GLFW_CONTEXT_VERSION_MAJOR, 3);//设置主版本号
	glfwWindowHint(GLFW_CONTEXT_VERSION_MINOR, 3);//设置次版本号
	glfwWindowHint(GLFW_OPENGL_PROFILE, GLFW_OPENGL_CORE_PROFILE);//设置核心模式
	//glfwWindowHint(GLFW_OPENGL_FORWARD_COMPAT, GL_TRUE);//使用MAC系统的加上这句代码

	return 0;
}

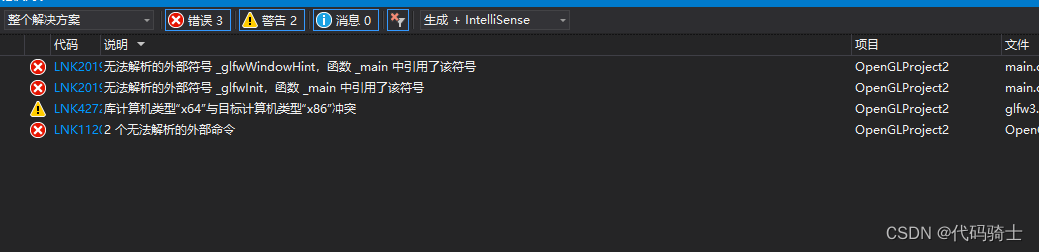

上面的代码如果发生如下报错，请查看解决办法链接：(3条消息) 解决错误： LNK2019 无法解析的外部符号_代码骑士的博客-CSDN博客

 2、查看GLFW版本信息

void getVersion() {
	int Major, Minor, Rev;
	glfwGetVersion(&Major, &Minor, &Rev);
	printf("GLFW %d.%d.%d initialized\n", Major, Minor, Rev);
}

调用这个函数输出版本信息

3、创建窗口对象

void createWindow() {
	GLFWwindow* window = glfwCreateWindow(800, 600, "window", NULL, NULL);//参数：宽，高，名称
	if (window == NULL) {//创建失败
		std::cout << "Failed to create GLFW window" << std::endl;
		glfwTerminate();
		return;
	}
	glfwMakeContextCurrent(window);
}

二、GLAD

1、初始化GLAD

glad是用来管理OpenGL的函数指针的，所以在调用任何OpenGL的函数之前我们都需要初始化GLAD

	if (!gladLoadGLLoader((GLADloadproc)glfwGetProcAddress))
	{
		std::cout << "Failed to initialize GLAD" << std::endl;
		return -1;
	}

2、视口

在开始渲染之前，我们要先设置OpenGL渲染窗口的尺寸大小，即视口（ViewPort）。目的是使OpenGL知道窗口的大小和坐标。我们可以通过调用glViewport函数设置窗口维度（Dimension）：

glViewport(0, 0, 800, 600);//参数：前两个是窗口左下角坐标，后两个是渲染窗口的宽和高(像素)

注意：

回调函数：

void framebuffer_size_callback(GLFWwindow* window, int width, int height);



void framebuffer_size_callback(GLFWwindow* window, int width, int height) {
	glViewport(0, 0, width, height);
}



glfwSetFramebufferSizeCallback(window, framebuffer_size_callback);



3、渲染

为了使我们的窗口能够持续渲染并且可以接收到用户输入，我们要在程序中添加一段while循环，也可称之为渲染循环（Render Loop），它能够在我们让GLF退出前一直保持运行。

while (!glfwWindowShouldClose(window))
	{
		glfwSwapBuffers(window);
		glfwPollEvents();
	}

函数说明：





4、释放资源



glfwTerminate();



三、实验源码

1、显示窗口

#include <glad/glad.h>
#include <GLFW/glfw3.h>

#include <iostream>
#include<conio.h>

void getVersion() {
	int Major, Minor, Rev;
	glfwGetVersion(&Major, &Minor, &Rev);
	printf("GLFW %d.%d.%d initialized\n", Major, Minor, Rev);
}

GLFWwindow* createWindow() {
	GLFWwindow* window = glfwCreateWindow(800, 600, "window", NULL, NULL);//参数：宽，高，名称
	if (window == NULL) {//创建失败
		std::cout << "Failed to create GLFW window" << std::endl;
		glfwTerminate();
		return window;
	}
	glfwMakeContextCurrent(window);
	//_getch();
	return window;
}

//回调函数
void framebuffer_size_callback(GLFWwindow* window, int width, int height) {
	glViewport(0, 0, width, height);
}

int main() {

	glfwInit();//初始化GLFW
	glfwWindowHint(GLFW_CONTEXT_VERSION_MAJOR, 3);//设置主版本号
	glfwWindowHint(GLFW_CONTEXT_VERSION_MINOR, 3);//设置次版本号
	glfwWindowHint(GLFW_OPENGL_PROFILE, GLFW_OPENGL_CORE_PROFILE);//设置核心模式
	//glfwWindowHint(GLFW_OPENGL_FORWARD_COMPAT, GL_TRUE);//使用MAC系统的加上这句代码

	getVersion();

	//createWindow();

	GLFWwindow* window = createWindow();

	if (!gladLoadGLLoader((GLADloadproc)glfwGetProcAddress))
	{
		std::cout << "Failed to initialize GLAD" << std::endl;
		return -1;
	}

	//glViewport(0, 0, 800, 600);//参数：前两个是窗口左下角坐标，后两个是渲染窗口的宽和高(像素)
	framebuffer_size_callback(window, 800, 600);
	glfwSetFramebufferSizeCallback(window, framebuffer_size_callback);

	while (!glfwWindowShouldClose(window))
	{
		glfwSwapBuffers(window);
		glfwPollEvents();
	}
	glfwTerminate();
	return 0;
}

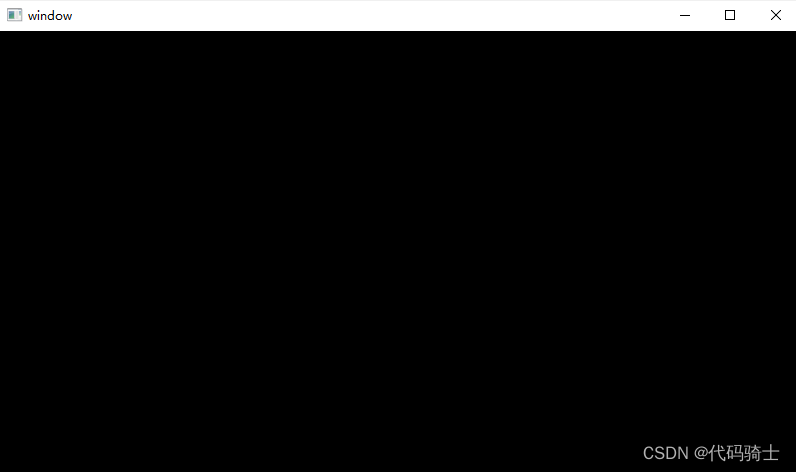

 输出结果：



2、修改背景色

渲染指令代码结构：

//渲染循环
	while (!glfwWindowShouldClose(window))
	{
		//输入
		processInput(window);

		//渲染指令
		//……

		//检测并调用事件，交换缓冲
		glfwPollEvents();
		glfwSwapBuffers(window);
	}



#include <glad/glad.h>
#include <GLFW/glfw3.h>

#include <iostream>
#include<conio.h>

void getVersion() {
	int Major, Minor, Rev;
	glfwGetVersion(&Major, &Minor, &Rev);
	printf("GLFW %d.%d.%d initialized\n", Major, Minor, Rev);
}

GLFWwindow* createWindow() {
	GLFWwindow* window = glfwCreateWindow(800, 600, "window", NULL, NULL);//参数：宽，高，名称
	if (window == NULL) {//创建失败
		std::cout << "Failed to create GLFW window" << std::endl;
		glfwTerminate();
		return window;
	}
	glfwMakeContextCurrent(window);
	//_getch();
	return window;
}

//回调函数
void framebuffer_size_callback(GLFWwindow* window, int width, int height) {
	glViewport(0, 0, width, height);
}

int main() {

	glfwInit();//初始化GLFW
	glfwWindowHint(GLFW_CONTEXT_VERSION_MAJOR, 3);//设置主版本号
	glfwWindowHint(GLFW_CONTEXT_VERSION_MINOR, 3);//设置次版本号
	glfwWindowHint(GLFW_OPENGL_PROFILE, GLFW_OPENGL_CORE_PROFILE);//设置核心模式
	//glfwWindowHint(GLFW_OPENGL_FORWARD_COMPAT, GL_TRUE);//使用MAC系统的加上这句代码

	getVersion();

	//createWindow();

	GLFWwindow* window = createWindow();

	if (!gladLoadGLLoader((GLADloadproc)glfwGetProcAddress))
	{
		std::cout << "Failed to initialize GLAD" << std::endl;
		return -1;
	}

	//glViewport(0, 0, 800, 600);//参数：前两个是窗口左下角坐标，后两个是渲染窗口的宽和高(像素)
	framebuffer_size_callback(window, 800, 600);
	glfwSetFramebufferSizeCallback(window, framebuffer_size_callback);

	//渲染循环
	while (!glfwWindowShouldClose(window))
	{
		//输入
		//processInput(window);
		//渲染指令
		glClearColor(0.0f, 0.34f, 0.57f, 1.0f);
		glClear(GL_COLOR_BUFFER_BIT);

		//检测并调用事件，交换缓冲
		glfwPollEvents();
		glfwSwapBuffers(window);
	}
	glfwTerminate();
	return 0;
}
