使用指南
安装
# 自行编译 build
go build -o dynamic-sharding main.go
修改配置文件
- 补充dynamic-sharding.yml中的信息:
consul_server:
# consul api 地址
addr: localhost:8500
username:
password:
# promethues中consul sd中pgw service name
register_service_name: pushgateway
# 服务web addr
http_listen_addr: :9292
# pushgateway 信息
pushgateway:
# 端口号
port: 9091
# pushgateway ip列表
servers:
- 1.1.1.1
- 1.1.1.2
启动dynamic-sharding服务
./dynamic-sharding --config.file=dynamic-sharding.yml
和promtheus集成
scrape_configs:
- job_name: pushgateway
consul_sd_configs:
- server: $cousul_api
services:
- pushgateway
relabel_configs:
- source_labels: ["__meta_consul_dc"]
target_label: "dc"
查看prometheus target发现的pgw结果
调用方调用 dynamic-sharding接口即可
- eg: http://localhost:9292/
- 测试一下getNexturl的结果
curl -vvv http://localhost:9292/metrics/job/job_abc
测试效果
使用go代码测试
package main
import (
"fmt"
"github.com/prometheus/client_golang/prometheus"
"github.com/prometheus/client_golang/prometheus/push"
"math/rand"
"time"
)
var (
// 带标签的gauge
TestMetricGauge01 = prometheus.NewGaugeVec(prometheus.GaugeOpts{
Name: "test_metric_gauge_01",
Help: "gauge metic test 01",
}, []string{
"idc", "ip"})
// 带标签的counter
TestMetricCounter01 = prometheus.NewCounterVec(prometheus.CounterOpts{
Name: "test_metric_counter_01",
Help: "gauge metic counter 01",
}, []string{
"path", "code"})
// histogram
hisStart = 0.1
histWidth = 0.2
TestHistogram01 = prometheus.NewHistogram(prometheus.HistogramOpts{
Name: "test_histogram_01",
Help: "RPC latency distributions.",
Buckets: prometheus.LinearBuckets(hisStart, histWidth, 20),
})
// summary
TestSummary01 = prometheus.NewSummaryVec(
prometheus.SummaryOpts{
Name: "test_summary_01",
Help: "RPC latency distributions.",
Objectives: map[float64]float64{
0.5: 0.05, 0.9: 0.01, 0.99: 0.001},
},
[]string{
"service"},
)
)
func Init(url string, jobName string) []*push.Pusher {
pushers := make([]*push.Pusher, 0)
for i := 0; i < 10; i++ {
jobN := fmt.Sprintf("%s_%d_%d", jobName, i, i)
pusher := push.New(url, jobN)
// collector 注册metrics
pusher.Collector(TestMetricGauge01)
pusher.Collector(TestMetricCounter01)
pusher.Collector(TestHistogram01)
pusher.Collector(TestSummary01)
pushers = append(pushers, pusher)
}
return pushers
}
// Summary设置值的方法
func setValueSummary() {
for {
v := rand.Float64()
TestSummary01.WithLabelValues("uniform").Observe(v)
time.Sleep(100 * time.Millisecond)
}
}
// gauge和counter设置值的方法
func setValueGaugeAndCounter() {
for {
TestMetricGauge01.With(prometheus.Labels{
"idc": "bj", "ip": "1.1"}).Set(float64(rand.Intn(100)))
TestMetricCounter01.With(prometheus.Labels{
"path": "/login", "code": "200"}).Add(float64(rand.Intn(100)))
time.Sleep(5 * time.Second)
}
}
func setValueHistogram() {
for {
v := rand.NormFloat64()
TestHistogram01.Observe(v)
time.Sleep(100 * time.Millisecond)
}
}
func PushWork(pushers []*push.Pusher) {
for {
for _, i := range pushers {
i := i
err := i.Push()
if err != nil {
fmt.Println("Could not push completion time to Pushgateway:", err)
}
time.Sleep(500 * time.Millisecond)
}
time.Sleep(5 * time.Second)
}
}
func main() {
rand.Seed(time.Now().UnixNano())
pushers := Init("http://192.168.3.200:9292/", "my_job")
go setValueGaugeAndCounter()
go setValueHistogram()
go setValueSummary()
go PushWork(pushers)
select {
}
}

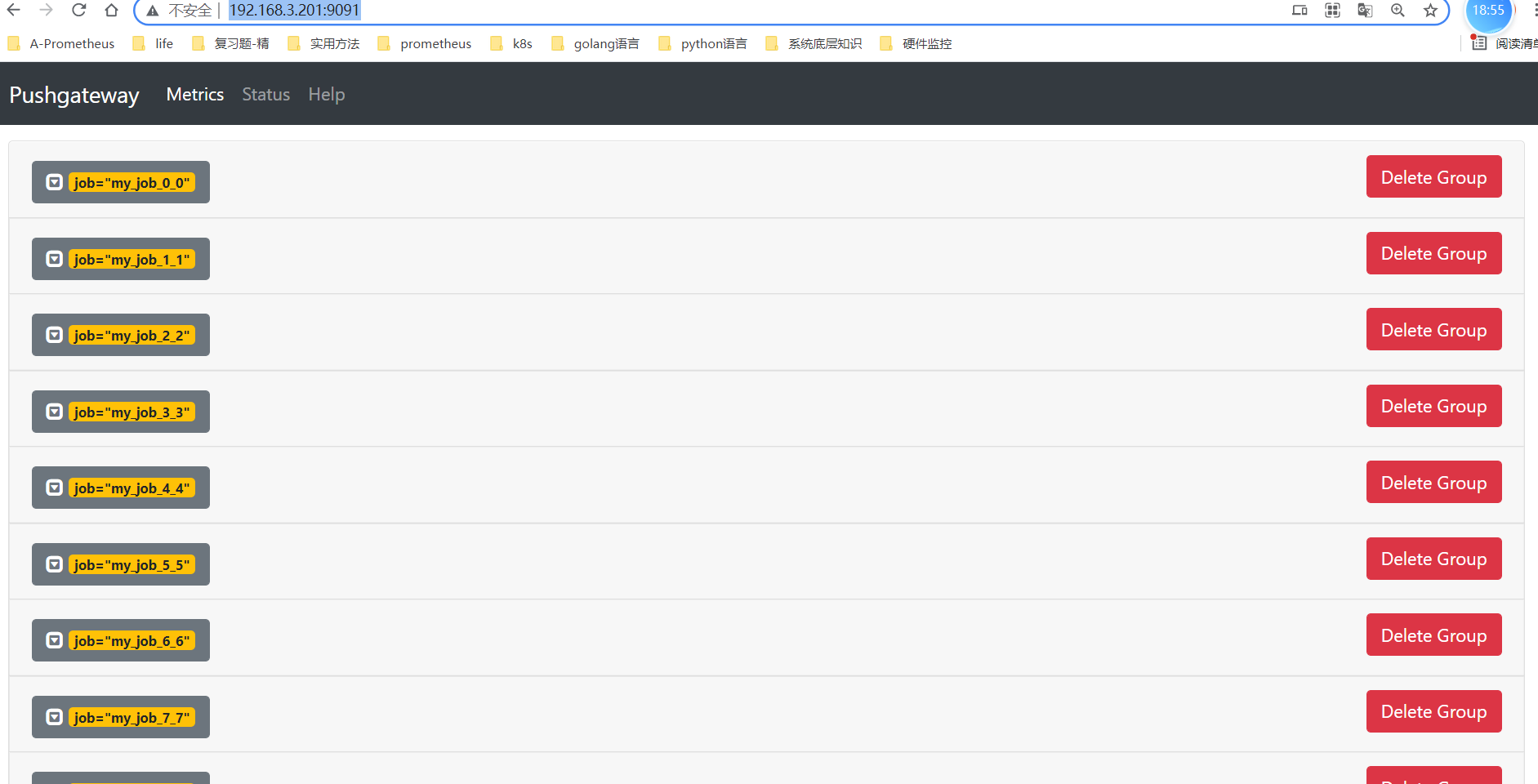

停掉一台pgw 测试
- 02开始只有一个job
- 停掉01发现全部过来02上了

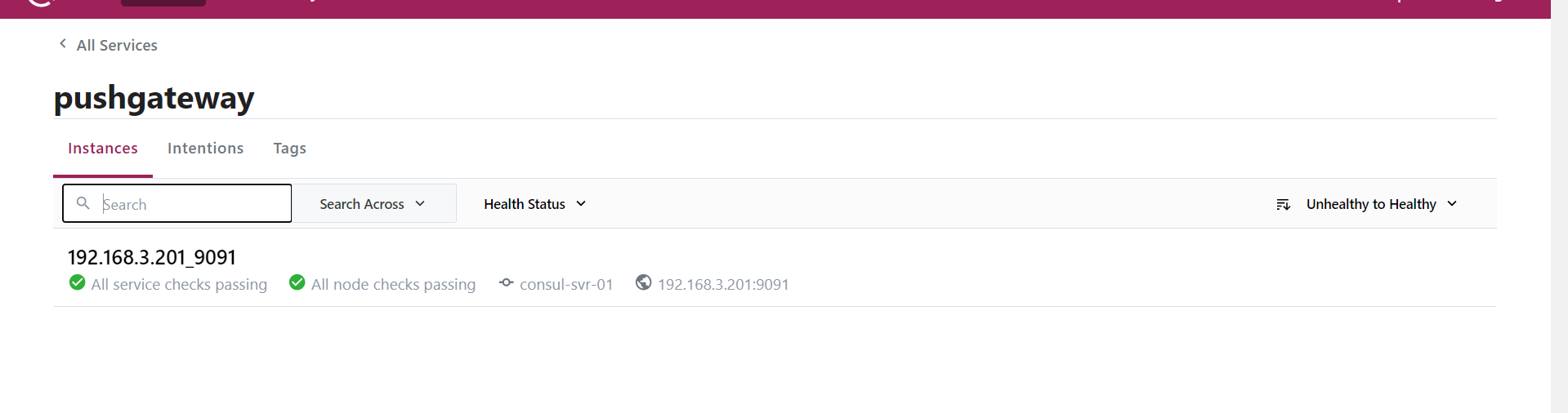

- consul已经把02从服务中踢掉了
因为在代码中设置了踢掉的时间，主要为了防止down了又回来，旧数据的问题
运维指南
pgw节点故障 (无需关心)
- eg: 启动了4个pgw实例,其中一个宕机了,则流量从4->3,以此类推
pgw节点恢复
- eg: 启动了4个pgw实例,其中一个宕机了,过一会儿恢复了,那么它会被consul unregister掉
- 避免出现和扩容一样的case: 再次rehash的job 会持续在原有pgw被prome scrap，而且value不会更新
扩容
- 修改yml配置文件将pgw servers 调整到扩容后的数量,重启服务dynamic-sharding
- 注意 同时也要重启所有存量pgw服务,不然rehash的job 会持续在原有pgw被prome scrap，而且value不会更新
缩容
方法一
调用cousul api
- 修改yml配置文件将pgw servers 调整到缩容后的数量，避免服务重启时再次注册缩容节点
curl -vvv --request PUT 'http://$cousul_api/v1/agent/service/deregister/$pgw_addr_$pgw_port'
eg: curl -vvv --request PUT 'http://localhost:8500/v1/agent/service/deregister/1.1.1.1_9091'
-
方法二
- 停止缩容节点服务,consul会将服务踢出,然后再注销
本节重点总结 :
- dynamic-sharding服务编写测试
