20241101给荣品PRO-RK3566开发板的预置Android13手动配置以太网的IP地址
2024/11/1 17:42
很容易知道 荣品PRO-RK3566开发板 的eth0插上网线已经自动获取了/拿到了IP地址：192.168.3.128
通过跑iperf3确认了千兆以太网。

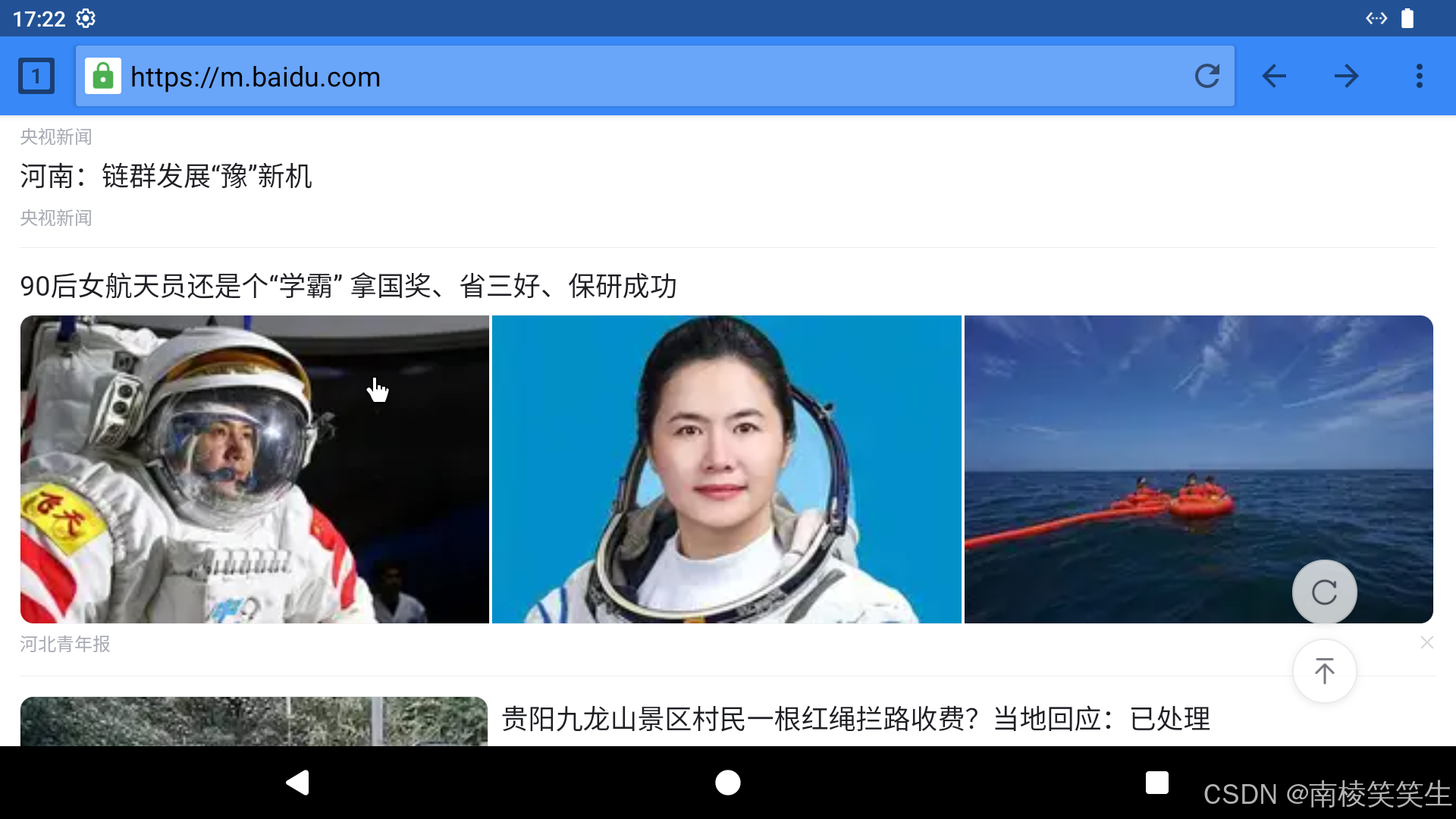

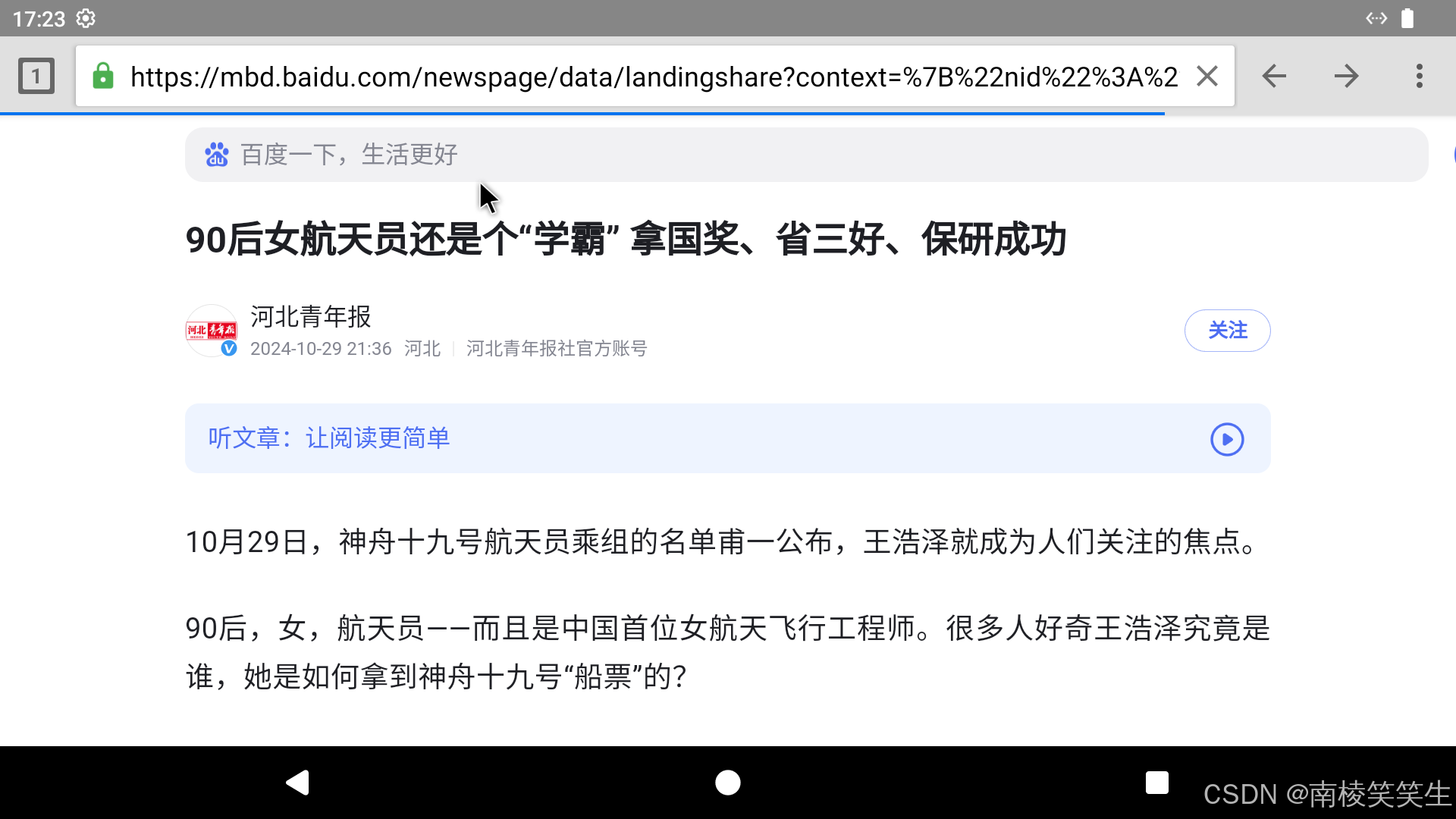

也可以上百度/上网了。
但是将来要在RK3566的eth0上接数传模块（USB转以太网接口）

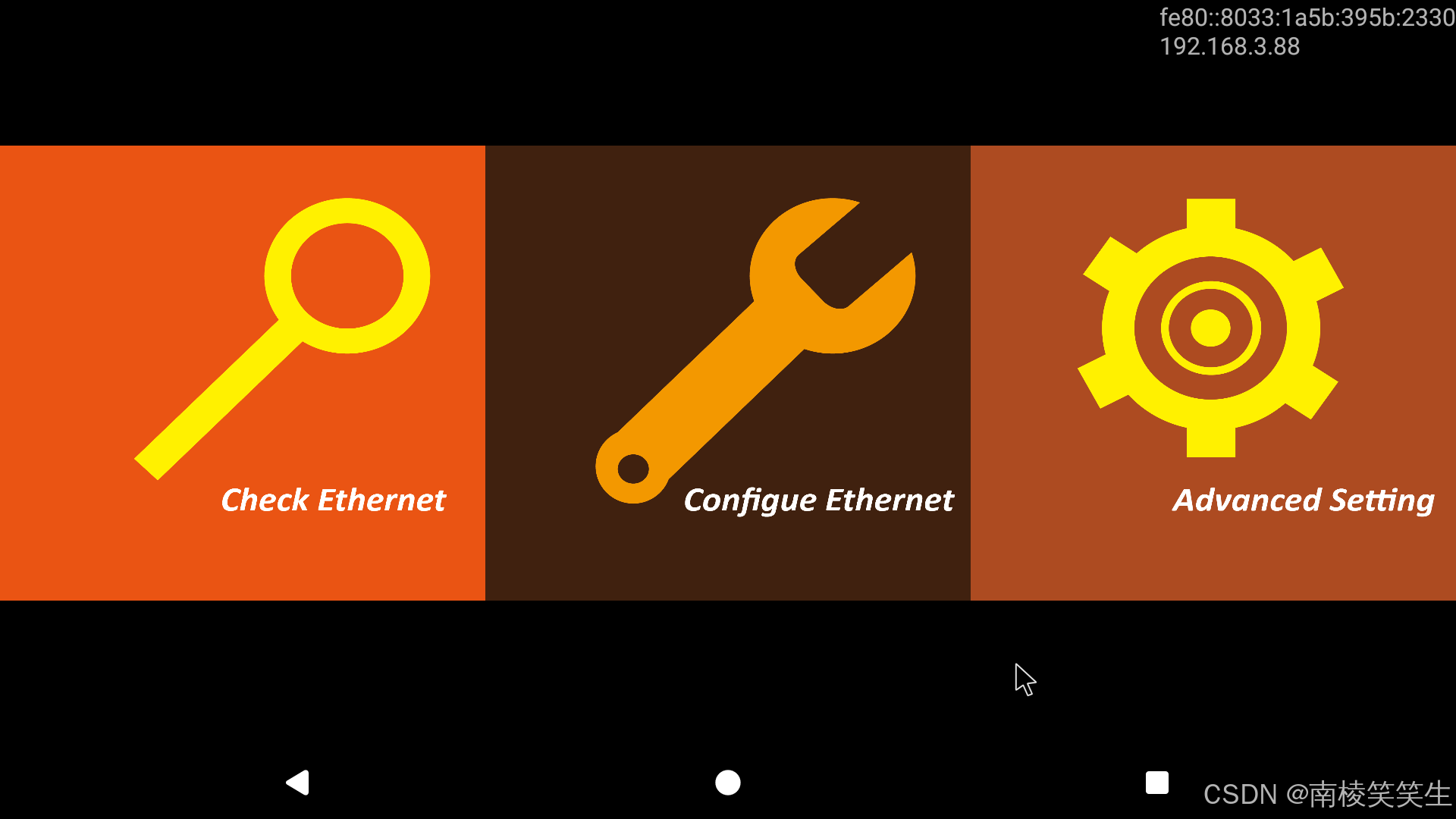

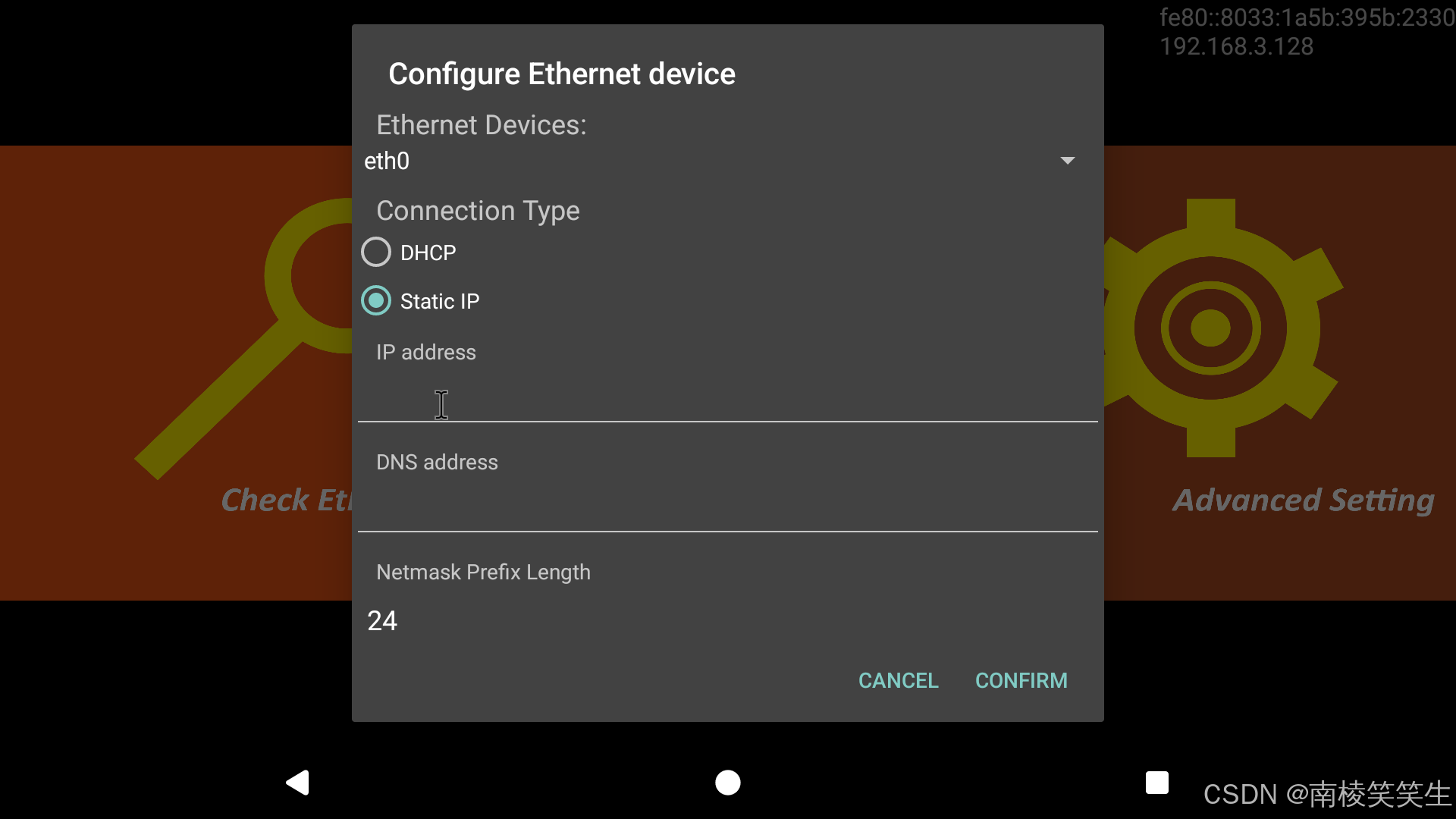

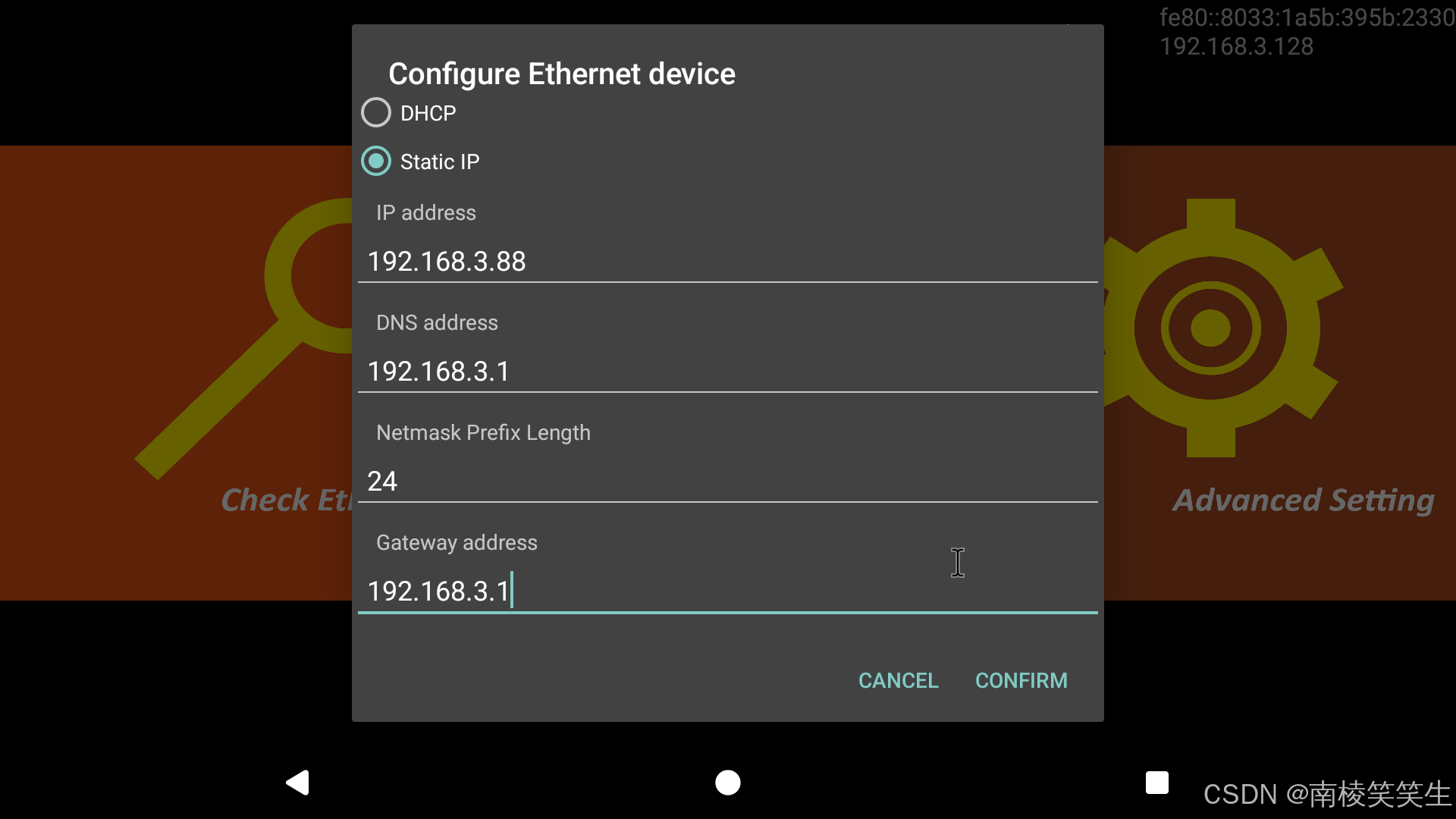

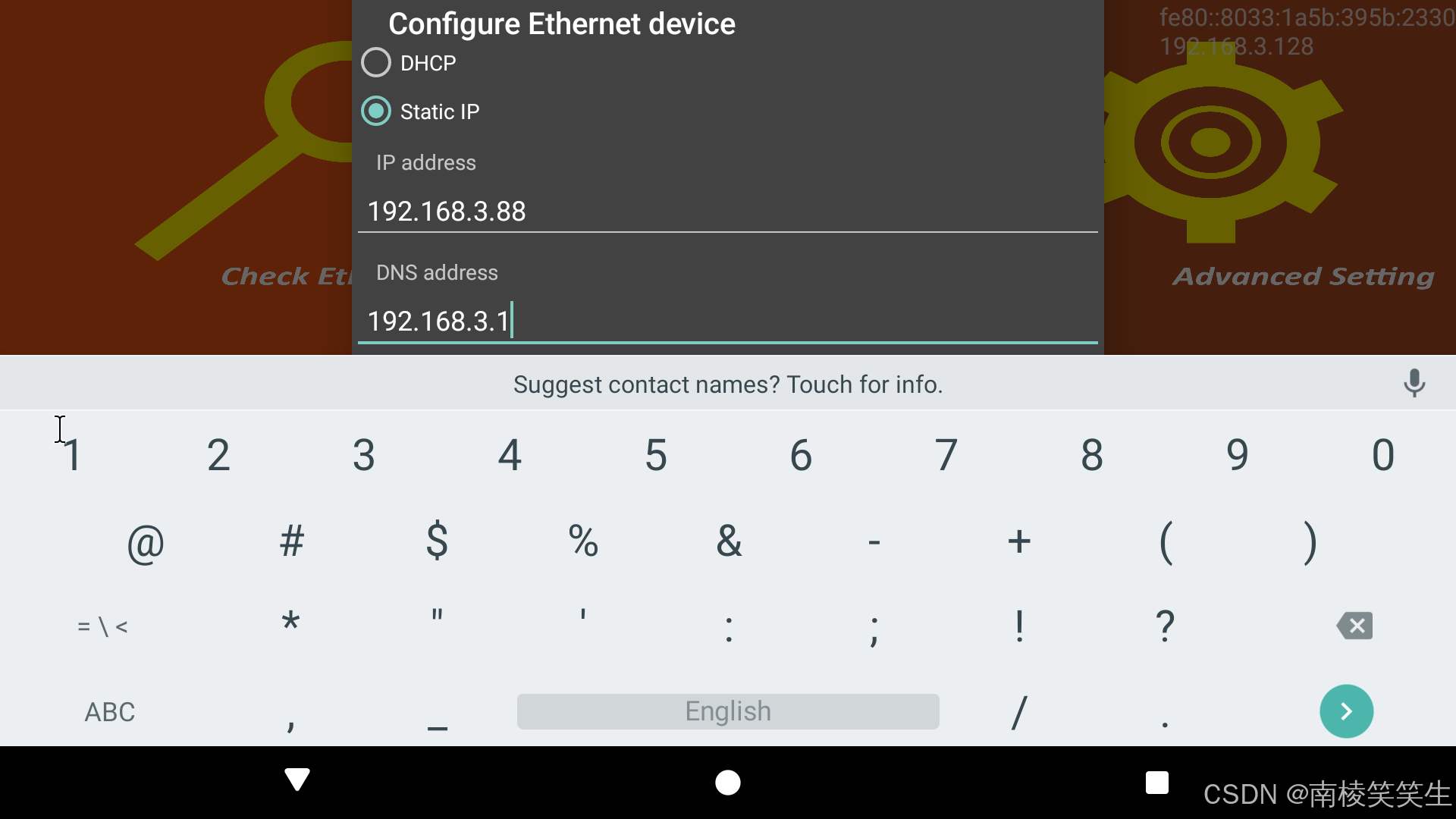

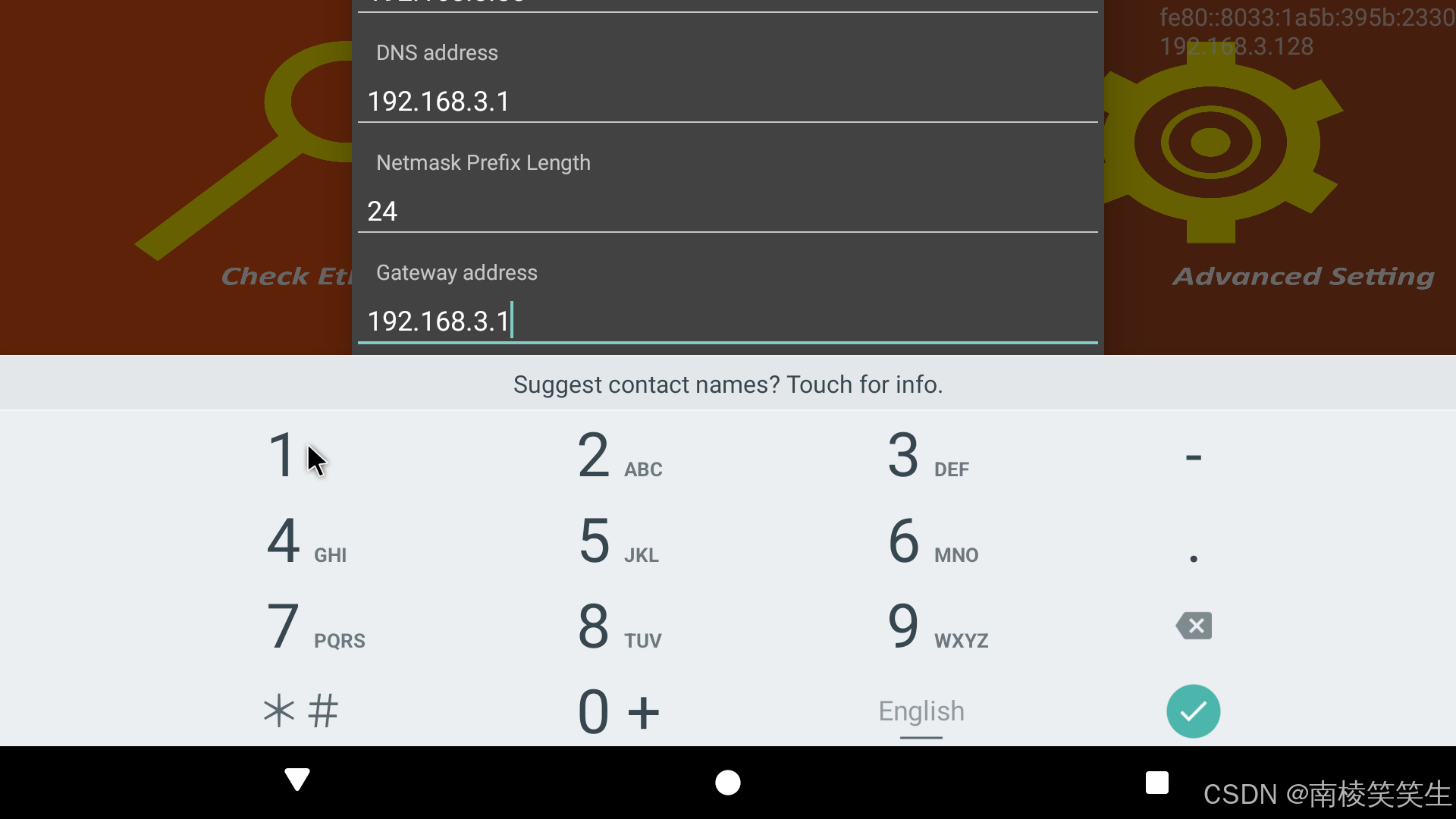

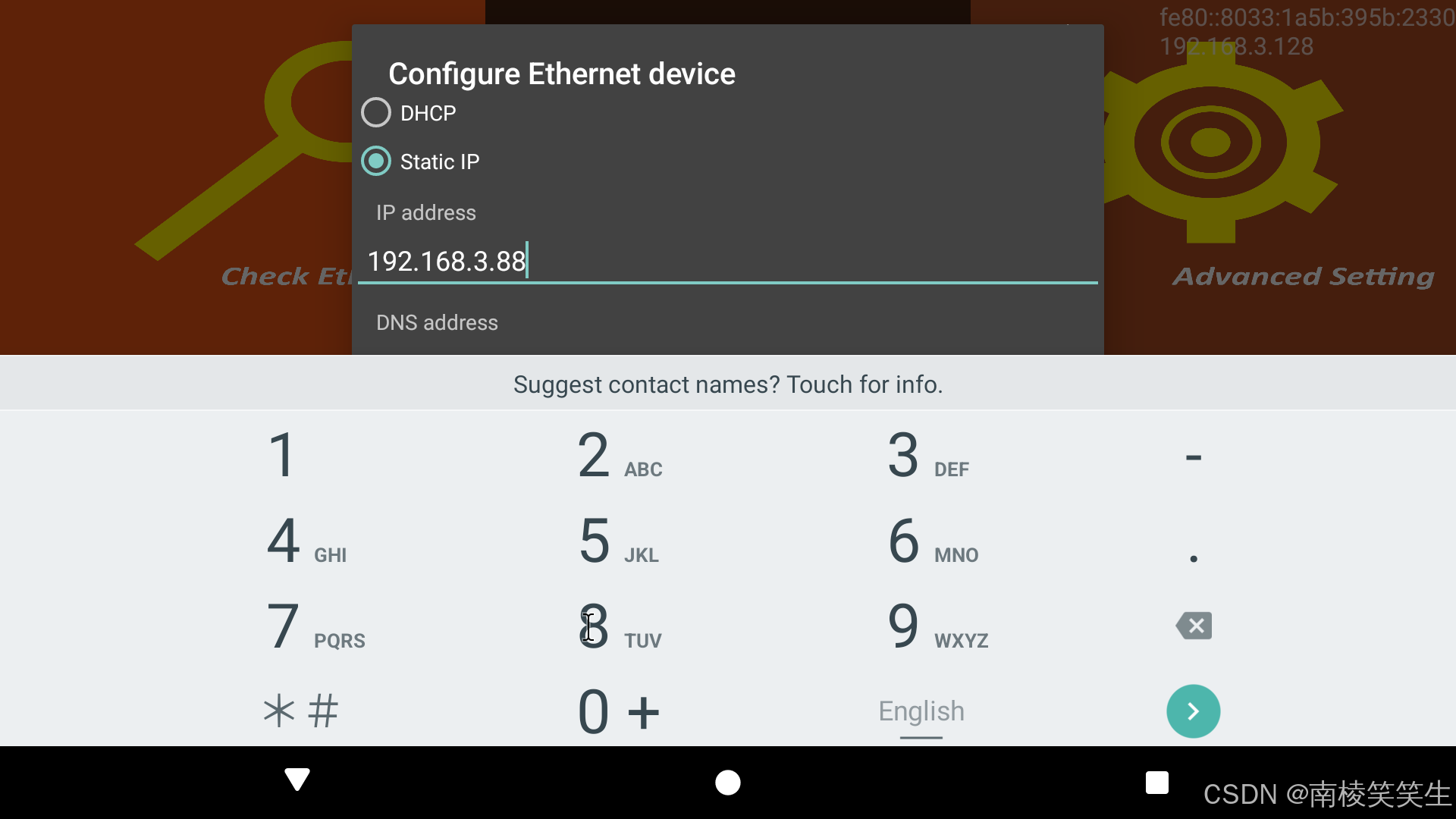

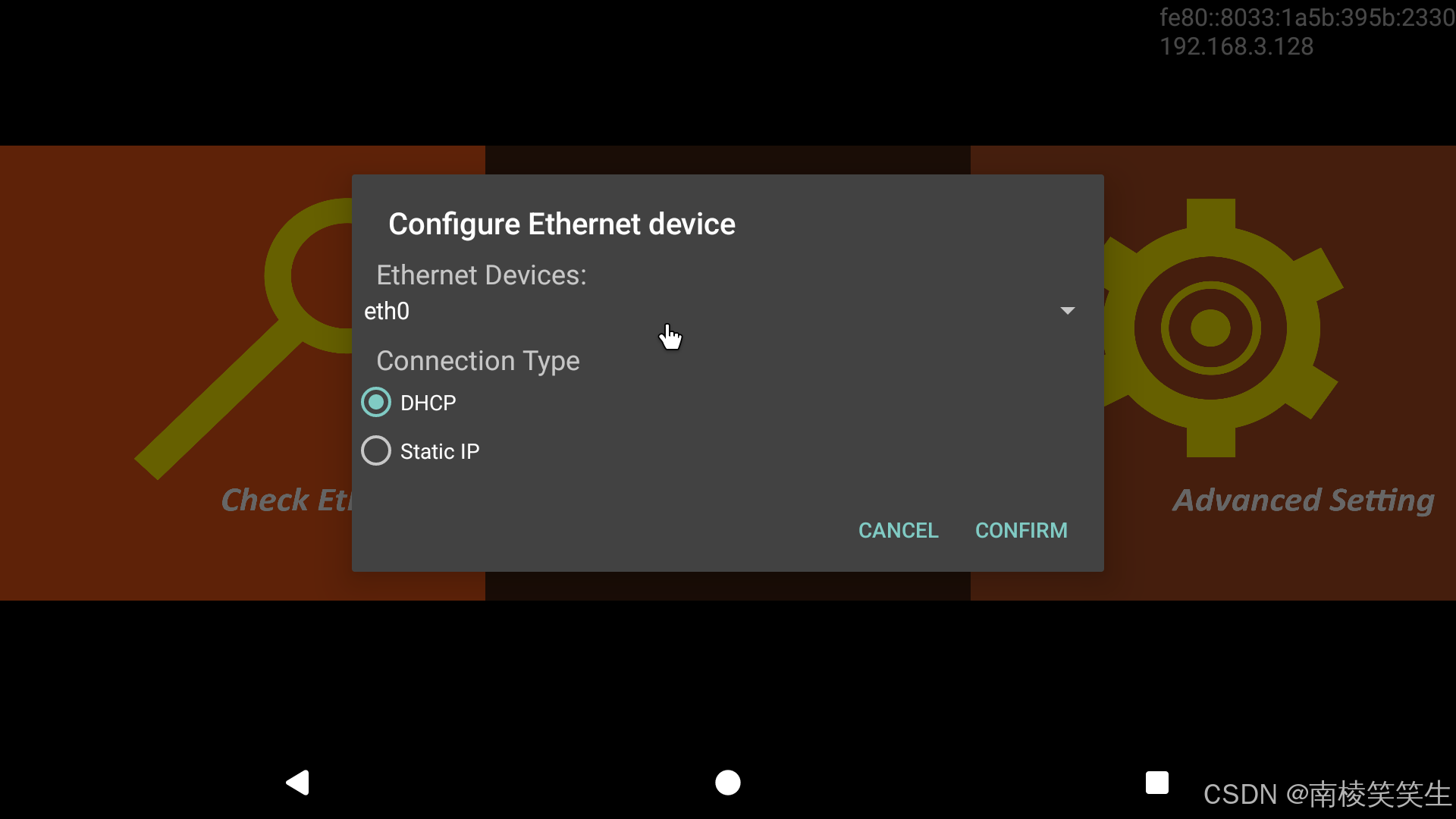

要把数传模块和RK3566的RTL8211F-CG配置到同一个网段，必须要能够配置以太网的IP地址。
Microsoft Windows [版本 10.0.22621.3296]
(c) Microsoft Corporation。保留所有权利。

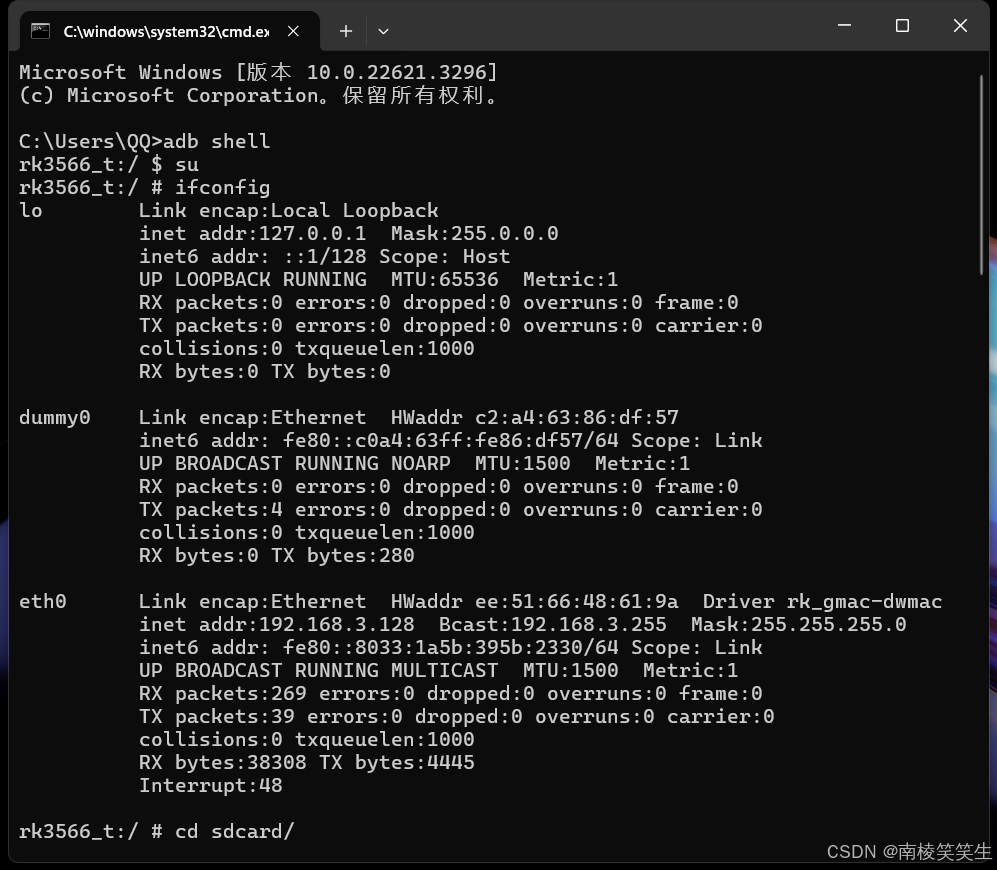

C:\Users\QQ>adb shell
rk3566_t:/ $ su
rk3566_t:/ # ifconfig
lo Link encap:Local Loopback
inet addr:127.0.0.1 Mask:255.0.0.0
inet6 addr: ::1/128 Scope: Host
UP LOOPBACK RUNNING MTU:65536 Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:0 TX bytes:0
dummy0 Link encap:Ethernet HWaddr c2:a4:63:86:df:57
inet6 addr: fe80::c0a4:63ff:fe86:df57/64 Scope: Link
UP BROADCAST RUNNING NOARP MTU:1500 Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:4 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:0 TX bytes:280
eth0 Link encap:Ethernet HWaddr ee:51:66:48:61:9a Driver rk_gmac-dwmac
inet addr:192.168.3.128 Bcast:192.168.3.255 Mask:255.255.255.0
inet6 addr: fe80::8033:1a5b:395b:2330/64 Scope: Link
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:269 errors:0 dropped:0 overruns:0 frame:0
TX packets:39 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:38308 TX bytes:4445
Interrupt:48
rk3566_t:/ # cd sdcard/
rk3566_t:/ #

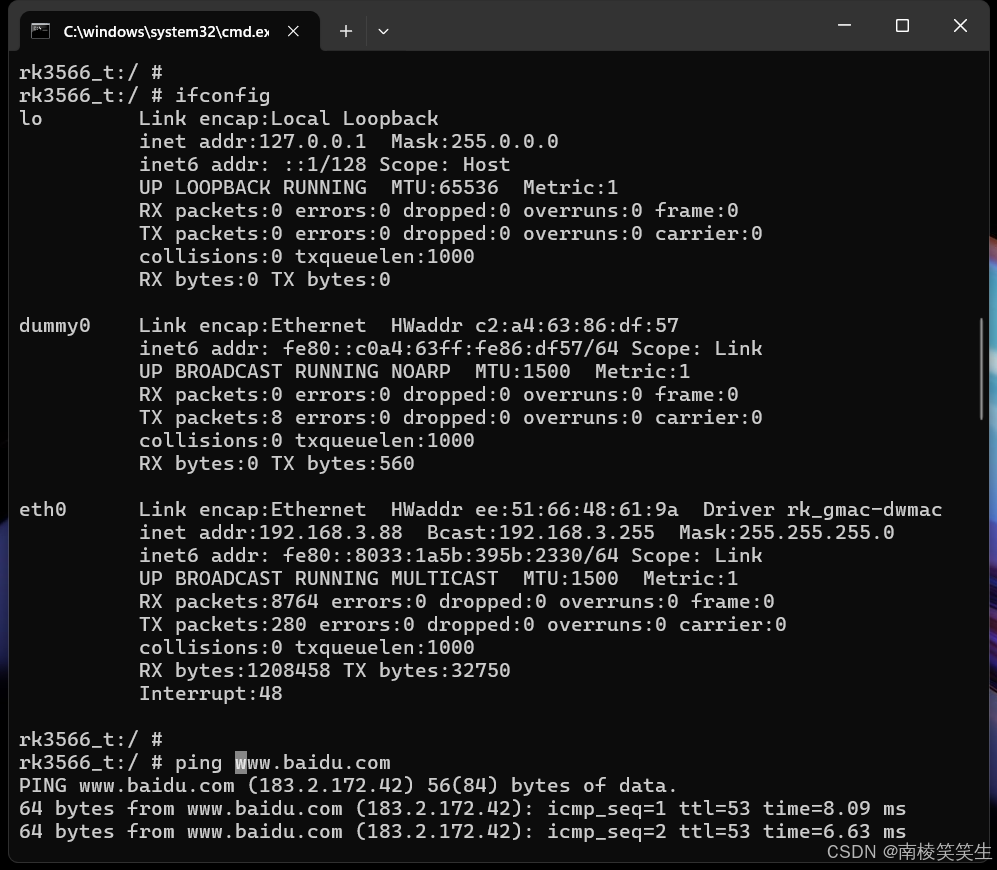

rk3566_t:/ # ifconfig
lo Link encap:Local Loopback
inet addr:127.0.0.1 Mask:255.0.0.0
inet6 addr: ::1/128 Scope: Host
UP LOOPBACK RUNNING MTU:65536 Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:0 TX bytes:0
dummy0 Link encap:Ethernet HWaddr c2:a4:63:86:df:57
inet6 addr: fe80::c0a4:63ff:fe86:df57/64 Scope: Link
UP BROADCAST RUNNING NOARP MTU:1500 Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:8 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:0 TX bytes:560
eth0 Link encap:Ethernet HWaddr ee:51:66:48:61:9a Driver rk_gmac-dwmac
inet addr:192.168.3.88 Bcast:192.168.3.255 Mask:255.255.255.0
inet6 addr: fe80::8033:1a5b:395b:2330/64 Scope: Link
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:8764 errors:0 dropped:0 overruns:0 frame:0
TX packets:280 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:1208458 TX bytes:32750
Interrupt:48
rk3566_t:/ #
rk3566_t:/ # ping www.baidu.com
PING www.baidu.com (183.2.172.42) 56(84) bytes of data.
64 bytes from www.baidu.com (183.2.172.42): icmp_seq=1 ttl=53 time=8.09 ms
64 bytes from www.baidu.com (183.2.172.42): icmp_seq=2 ttl=53 time=6.63 ms
64 bytes from www.baidu.com (183.2.172.42): icmp_seq=3 ttl=53 time=6.66 ms
64 bytes from www.baidu.com (183.2.172.42): icmp_seq=4 ttl=53 time=7.27 ms
64 bytes from www.baidu.com (183.2.172.42): icmp_seq=5 ttl=53 time=7.07 ms
64 bytes from www.baidu.com (183.2.172.42): icmp_seq=6 ttl=53 time=7.32 ms
64 bytes from www.baidu.com (183.2.172.42): icmp_seq=7 ttl=53 time=7.73 ms
^C
--- www.baidu.com ping statistics ---
7 packets transmitted, 7 received, 0% packet loss, time 6007ms
rtt min/avg/max/mdev = 6.630/7.257/8.099/0.505 ms
rk3566_t:/ # cd -
/sdcard/Pictures
rk3566_t:/sdcard/Pictures #
rk3566_t:/sdcard/Pictures #
