复现Mobile ALOHA SIM，超详细教程

1 简介

涉及到了这三大关键技术：ACT、Diffusion Policy、VINN

• 端到端的模仿学习
• 基于Transformer在动作序列上生成模型，动作分块算法。
• 解决现有机器人昂贵且难以做精确任务的问题
• 可以通过定制远程操作接口收集实际演示，进行端到端的模仿学习

2. ENV

• 本机配置：ubuntu20.04，cuda-11.3

2.1 环境配置

# 1. 创建python虚拟环境
conda create -n aloha python=3.8

# 2. 激活虚拟环境
conda activate aloha

# 3. 安装适合cuda的torch
pip install torch==1.11.0+cu113 torchvision==0.12.0+cu113 torchaudio==0.11.0 --extra-index-url https://download.pytorch.org/whl/cu113


# 4 安装detr
##  拉取act源码
git clone https://github.com/agilexrobotics/act-plus-plus.git
cd act-plus-plus


# 4.1 其他依赖
pip install -r requirements.txt

## 4.2 安装detr
cd detr && pip install -v -e .

2.2 simulated environments datasets

You can find all scripted/human demo for simulated environments here. link
下载后, 拷贝到act-plus-plus/data目录下，目录结构如下：

act-plus-plus/data
    ├── sim_insertion_human
    │   ├── sim_insertion_human-20240110T054847Z-001.zip
        ├── ...
    ├── sim_insertion_scripted
    │   ├── sim_insertion_scripted-20240110T054854Z-001.zip
        ├── ...
    ├── sim_transfer_cube_human
    │   ├── sim_transfer_cube_human-20240110T054900Z-001.zip
    │   ├── ...
    └── sim_transfer_cube_scripted
        ├── sim_transfer_cube_scripted-20240110T054901Z-001.zip
        ├── ...

3 generate episodes

# 1 运行
python3 record_sim_episodes.py --task_name sim_transfer_cube_scripted --dataset_dir <data save dir> --num_episodes 50
# --dataset_dir 保存路径

# 2 以sim_transfer_cube_scripted为样例,运行
python3 record_sim_episodes.py --task_name sim_transfer_cube_scripted --dataset_dir data/sim_transfer_cube_scripted --num_episodes 10

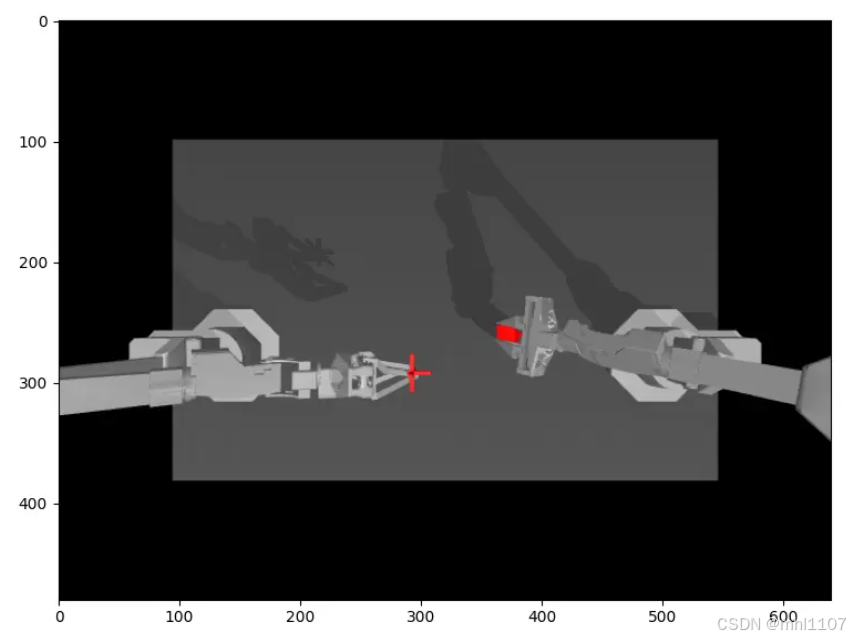

# 2.1 实时渲染
python3 record_sim_episodes.py --task_name sim_transfer_cube_scripted --dataset_dir data/sim_transfer_cube_scripted --num_episodes 10  --onscreen_render

# 2.2 运行后终端打印如下
ube_scripted --num_episodes 10
episode_idx=0
Rollout out EE space scripted policy
episode_idx=0 Failed
Replaying joint commands
episode_idx=0 Failed
Saving: 0.9 secs

episode_idx=1
Rollout out EE space scripted policy
episode_idx=1 Successful, episode_return=57
Replaying joint commands
episode_idx=1 Successful, episode_return=59
Saving: 0.6 secs
...
Saved to data/sim_transfer_cube_scripted
Success: 2 / 10

• 终端显示episodes10个, 成功2个, 文件目录如下：

act-plus-plus
└── sim_transfer_cube_scripted
    ├── episode_0.hdf5
    ├── episode_1.hdf5
    ├── episode_2.hdf5
    ├── episode_3.hdf5
    ├── episode_4.hdf5
    ├── episode_5.hdf5
    ├── episode_6.hdf5
    ├── episode_7.hdf5
    ├── episode_8.hdf5
    └── episode_9.hdf5

4 visualize episodes

python3 visualize_episodes.py --dataset_dir <data save dir> --episode_idx 0

python3 visualize_episodes.py --dataset_dir data/sim_transfer_cube_scripted --episode_idx 9
# --episode_idx 场景索引号
# 终端打印
# Saved video to: data/sim_transfer_cube_scripted/episode_0_video.mp4
# Saved qpos plot to: data/sim_transfer_cube_scripted/episode_0_qpos.png

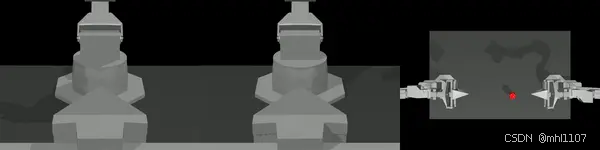

episode-video

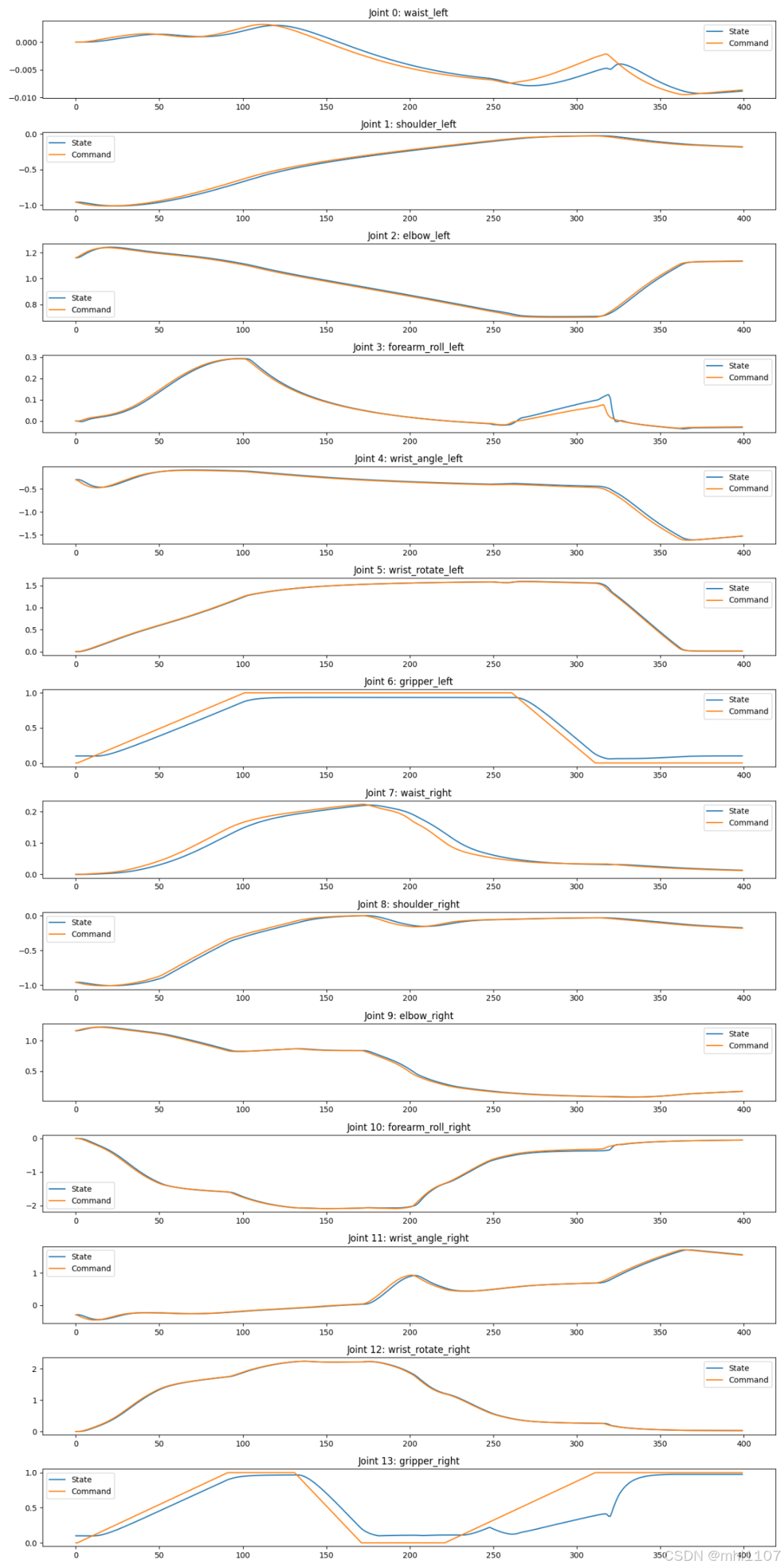

episode-qpos

5 train

python3 imitate_episodes.py --task_name sim_transfer_cube_scripted --ckpt_dir <ckpt dir> --policy_class ACT --kl_weight 10 --chunk_size 100 --hidden_dim 512 --batch_size 8 --dim_feedforward 3200 --num_epochs 2000  --lr 1e-5 --seed 0

# 使用
python3 imitate_episodes.py --task_name sim_transfer_cube_scripted --ckpt_dir trainings --policy_class ACT --kl_weight 1 --chunk_size 10 --hidden_dim 512 --batch_size 1 --dim_feedforward 3200  --lr 1e-5 --seed 0 --num_steps 2000
# 训练时会提示下面内容，由于没有W&B account，直接选择3
wandb: (1) Create a W&B account
wandb: (2) Use an existing W&B account
wandb: (3) Don't visualize my results
wandb: Enter your choice:

• 训练完成后，权重会保存到trainings目录结果如下：

trainings
  ├── config.pkl
  ├── dataset_stats.pkl
  ├── policy_best.ckpt
  ├── policy_last.ckpt
  └── policy_step_0_seed_0.ckpt

5 evaluate

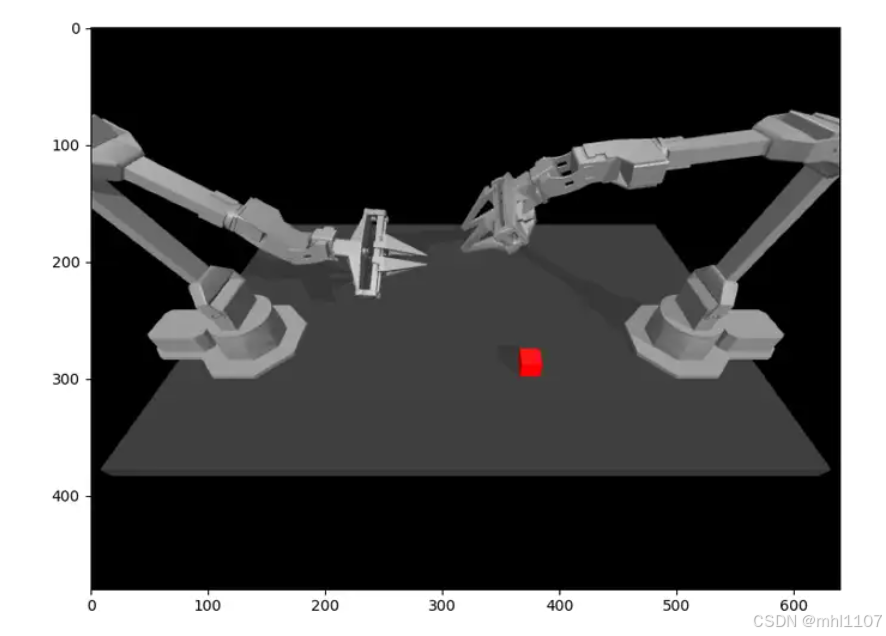

# 1 evaluate the policy  加上--onscreen_render实时渲染参数
python3 imitate_episodes.py --eval --task_name sim_transfer_cube_scripted --ckpt_dir trainings --policy_class ACT --kl_weight 1 --chunk_size 10 --hidden_dim 512 --batch_size 1 --dim_feedforward 3200  --lr 1e-5 --seed 0 --num_steps 20 --onscreen_render

episode-qpos
