上一节中已经在脚本中添加了代码，实际操作这篇内容，那需要完成上一篇的内容：编写二维码识别Quickbuild工程，本文在作业配置中添加代码，完整代码如下：
using System;
using System.Net;
using System.Text;
using System.Net.Sockets;
using System.Threading;
using System.Windows.Forms;
using System.Collections.Generic;
using Cognex.VisionPro;
using Cognex.VisionPro.QuickBuild;
public class UserScript : CogJobBaseScript
{
//集合可以看似数组，集合的长度是可变得，其元素是object类型
//泛型集合时指定了数据类型的集合
private object _lock=new object();
//定义NetworkStream的泛型集合
private List<NetworkStream>_streams = new List<NetworkStream>();
//定义TCPClient的泛型集合
private List<TcpClient>_clients = new List<TcpClient>();
//服务器端监听对象
private TcpListener _listener;
//连接线程
private Thread _connectionThread;
//定义Thread泛型集合
private List<Thread> _threads=new List<Thread>();
//接受数据总长度
private long _totalBytes;
//作业
private CogJob MyJob;
#region "When an Acq Fifo Has Been Constructed and Assigned To The Job"
// This function is called when a new fifo is assigned to the job. This usually
// occurs when the "Initialize Acquisition" button is pressed on the image source
// control. This function is where you would perform custom setup associated
// with the fifo.
public override void AcqFifoConstruction(Cognex.VisionPro.ICogAcqFifo fifo)
{
}
#endregion
#region "When an Acquisition is About To Be Started"
// Called before an acquisition is started for manual and semi-automatic trigger
// models. If "Number of Software Acquisitions Pre-queued" is set to 1 in the
// job configuration, then no acquisitions should be in progress when this
// function is called.
public override void PreAcquisition()
{
// To let the execution stop in this script when a debugger is attached, uncomment the following lines.
// #if DEBUG
// if (System.Diagnostics.Debugger.IsAttached) System.Diagnostics.Debugger.Break();
// #endif
}
#endregion
#region "When an Acquisition Has Just Completed"
// Called immediately after an acquisition has completed.
// Return true if the image should be inspected.
// Return false to skip the inspection and acquire another image.
public override bool PostAcquisitionRefInfo(ref Cognex.VisionPro.ICogImage image,
Cognex.VisionPro.ICogAcqInfo info)
{
// To let the execution stop in this script when a debugger is attached, uncomment the following lines.
// #if DEBUG
// if (System.Diagnostics.Debugger.IsAttached) System.Diagnostics.Debugger.Break();
// #endif
return true;
}
#endregion
#region "When the Script is Initialized"
//Perform any initialization required by your script here.
public override void Initialize(CogJob jobParam)
{
//DO NOT REMOVE - Call the base class implementation first - DO NOT REMOVE
base.Initialize(jobParam);
//将当前作业可以复制给Myjob
MyJob = jobParam;
//开启线程
StartThreading();
}
#endregion
//开启线程实现服务器的端口监听
private void StartThreading()
{
try
{
_totalBytes = 0;
//_connectionThread对象实例化
_connectionThread = new System.Threading.Thread(new ThreadStart(ConnectToClient));
//线程后台运行
_connectionThread.IsBackground = true;
//线程开始运行
_connectionThread.Start();
}
catch(Exception ex)
{
MessageBox.Show("线程启动失败");
}
}
//连接到客户端
private void ConnectToClient()
{
try
{
//开始监听6001端口
_listener = new TcpListener(IPAddress.Any, 6001);
_listener.Start();
}
catch(SocketException se)
{
MessageBox.Show("服务器监听失败" + se.Message);
StopServer();
return;
}
//监听客户端的连接请求
try
{
for(;;)
{
//等待客户端的连接请求
TcpClient client = _listener.AcceptTcpClient();
//创建线程开始接受客户端数据
Thread t = new Thread(new ParameterizedThreadStart(ReceiveDataFromClient));
//线程后台运行
t.IsBackground = true;
//线程优先级
t.Priority = ThreadPriority.AboveNormal;
//线程名称
t.Name = "Handle Client";
//开启线程
t.Start(client);
//将线程对象添加到泛型集合里
_threads.Add(t);
//将客户端添加到泛型集合里
_clients.Add(client);
}
}
catch(SocketException ex)
{
MessageBox.Show("Socket错误" + ex.Message);
}
catch(Exception ex)
{
MessageBox.Show("异常错误" + ex.Message);
}
}
//接受客户端传过来的数据
public void ReceiveDataFromClient(object clientObject)
{
//定义TcpClient对象并赋值
TcpClient client = clientObject as TcpClient;
//定义NetworkStream对象并赋值
NetworkStream netStream = null;
try
{
//获取客户端的网络数据流
netStream = client.GetStream();
}
catch(Exception ex)
{
if(netStream != null) netStream.Close();
MessageBox.Show("异常错误" + ex.Message);
return;
}
if(netStream.CanRead)
{
//将数据流添加到_streams泛型集合里
_streams.Add(netStream);
try
{
byte[] receiveBuffer = new byte[512];
int bytesReceived;
//循环读取客户端发来的数据
while((bytesReceived = netStream.Read(receiveBuffer, 0, receiveBuffer.Length)) > 0)
{
if(Encoding.ASCII.GetString(receiveBuffer, 0, bytesReceived) == "s")
{
MyJob.RunContinuous();
//MessageBox.Show("接受到的数据："+Encoding.ASCII.GetString(receiveBuffer,0,bytesReceived);
}
if(Encoding.ASCII.GetString(receiveBuffer, 0, bytesReceived) == "e")
{
MyJob.Stop();
//MessageBox.Show("接受到的数据:"+Encoding.ASCII.GetString(receiveBuffer, 0, bytesReceived));
}
}
}
catch(Exception ex)
{
MessageBox.Show("异常错误" + ex.Message);
}
}
}
//停止服务器
private void StopServer()
{
if(_listener != null)
{
//关闭TCP监听
_listener.Stop();
//等待服务器线程中断
_connectionThread.Join();
//关闭所有客户端的网络数据流
foreach(NetworkStream s in _streams)
s.Close();
//清除_streams泛型集合里的内容
_streams.Clear();
//关闭客户端连接
foreach(TcpClient client in _clients)
client.Close();
//清除_clients泛型集合里的内容
_clients.Clear();
//等待所有客户端线程中断
foreach(Thread t in _threads)
t.Join();
//清除_threads泛型集合里的内容
_threads.Clear();
}
}
}
需要一个超级终端：HyperTrm，这个百度上能够下载，毕竟是购买的课程，虽然不贵，但是分享出来感觉有点不妥，所以还是不分享终端及如何连接喽。见谅。

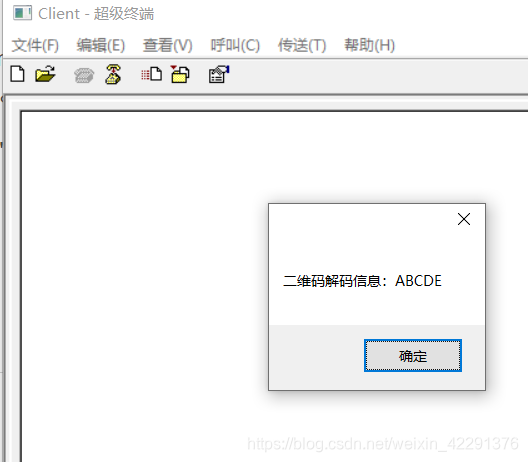

效果：在超级终端界面输入"s"后弹出的效果如下：
