概要

ESP32 的 OTA（Over-The-Air）升级功能允许通过无线网络Wi-Fi远程更新设备固件程序，无需物理连接（如 USB/UART）。比如ESP32设备在机壳内部不好拆卸，人离设备比较远，不好接线的环境可用到OTA方式给ESP32设备下载程序。为实现此功能每次更新程序的时候都要在代码里面加入OTA的相关代码。

创建ESP32-OTA无线局域网网页版远程升级入口

打开Arduino IDE中自带ESP32—OTAWebUpdater示例

#include <WiFi.h>
#include <WiFiClient.h>
#include <WebServer.h>
#include <ESPmDNS.h>
#include <Update.h>

const char* host = "esp32";
const char* ssid = "YXDZ1";
const char* password = "YXDZ#2023#1";

WebServer server(80);

/*
 * Login page
 */

const char* loginIndex =
 "<form name='loginForm'>"
    "<table width='20%' bgcolor='A09F9F' align='center'>"
        "<tr>"
            "<td colspan=2>"
                "<center><font size=4><b>ESP32 Login Page</b></font></center>"
                "<br>"
            "</td>"
            "<br>"
            "<br>"
        "</tr>"
        "<tr>"
             "<td>Username:</td>"
             "<td><input type='text' size=25 name='userid'><br></td>"
        "</tr>"
        "<br>"
        "<br>"
        "<tr>"
            "<td>Password:</td>"
            "<td><input type='Password' size=25 name='pwd'><br></td>"
            "<br>"
            "<br>"
        "</tr>"
        "<tr>"
            "<td><input type='submit' onclick='check(this.form)' value='Login'></td>"
        "</tr>"
    "</table>"
"</form>"
"<script>"
    "function check(form)"
    "{"
    "if(form.userid.value=='ESP32-OTA' && form.pwd.value=='ESP32-OTA')"
    "{"
    "window.open('/serverIndex')"
    "}"
    "else"
    "{"
    " alert('Error Password or Username')/*displays error message*/"
    "}"
    "}"
"</script>";

/*
 * Server Index Page
 */

const char* serverIndex =
"<script src='https://ajax.googleapis.com/ajax/libs/jquery/3.2.1/jquery.min.js'></script>"
"<form method='POST' action='#' enctype='multipart/form-data' id='upload_form'>"
   "<input type='file' name='update'>"
        "<input type='submit' value='Update'>"
    "</form>"
 "<div id='prg'>progress: 0%</div>"
 "<script>"
  "$('form').submit(function(e){"
  "e.preventDefault();"
  "var form = $('#upload_form')[0];"
  "var data = new FormData(form);"
  " $.ajax({"
  "url: '/update',"
  "type: 'POST',"
  "data: data,"
  "contentType: false,"
  "processData:false,"
  "xhr: function() {"
  "var xhr = new window.XMLHttpRequest();"
  "xhr.upload.addEventListener('progress', function(evt) {"
  "if (evt.lengthComputable) {"
  "var per = evt.loaded / evt.total;"
  "$('#prg').html('progress: ' + Math.round(per*100) + '%');"
  "}"
  "}, false);"
  "return xhr;"
  "},"
  "success:function(d, s) {"
  "console.log('success!')"
 "},"
 "error: function (a, b, c) {"
 "}"
 "});"
 "});"
 "</script>";

/*
 * setup function
 */
void setup(void) {


  Serial.begin(115200);

  // Connect to WiFi network
  WiFi.begin(ssid, password);
  Serial.println("");

  // Wait for connection
  while (WiFi.status() != WL_CONNECTED) {


    delay(500);
    Serial.print(".");
  }
  Serial.println("");
  Serial.print("Connected to ");
  Serial.println(ssid);
  Serial.print("IP address: ");
  Serial.println(WiFi.localIP());

  /*use mdns for host name resolution*/
  if (!MDNS.begin(host)) {

     //http://esp32.local
    Serial.println("Error setting up MDNS responder!");
    while (1) {


      delay(1000);
    }
  }
  Serial.println("mDNS responder started");
  /*return index page which is stored in serverIndex */
  server.on("/", HTTP_GET, []() {


    server.sendHeader("Connection", "close");
    server.send(200, "text/html", loginIndex);
  });
  server.on("/serverIndex", HTTP_GET, []() {


    server.sendHeader("Connection", "close");
    server.send(200, "text/html", serverIndex);
  });
  /*handling uploading firmware file */
  server.on("/update", HTTP_POST, []() {


    server.sendHeader("Connection", "close");
    server.send(200, "text/plain", (Update.hasError()) ? "FAIL" : "OK");
    ESP.restart();
  }, []() {


    HTTPUpload& upload = server.upload();
    if (upload.status == UPLOAD_FILE_START) {


      Serial.printf("Update: %s\n", upload.filename.c_str());
      if (!Update.begin(UPDATE_SIZE_UNKNOWN)) {

     //start with max available size
        Update.printError(Serial);
      }
    } else if (upload.status == UPLOAD_FILE_WRITE) {


      /* flashing firmware to ESP*/
      if (Update.write(upload.buf, upload.currentSize) != upload.currentSize) {


        Update.printError(Serial);
      }
    } else if (upload.status == UPLOAD_FILE_END) {


      if (Update.end(true)) {

     //true to set the size to the current progress
        Serial.printf("Update Success: %u\nRebooting...\n", upload.totalSize);
      } else {


        Update.printError(Serial);
      }
    }
  });
  server.begin();
}

void loop(void) {


  server.handleClient();
  delay(1);
}

并对其中的代码做如下更改：
给ESP32开发板连接到自己电脑所在的局域网的路由器WIFI上，填上WIFI名称ssis和密码password

const char* host = "esp32";
const char* ssid = "YXDZ1";
const char* password = "YXDZ#2023#1";

host为ESP32作为Web服务器时，将ESP32以易记的主机名（如esp32.local）广播到局域网，其他设备可直接通过该名称访问，用户可通过http://esp32.local直接访问，无需记忆IP地址

const char* host = "esp32";

  /*use mdns for host name resolution*/
  if (!MDNS.begin(host)) {

     //http://esp32.local
    Serial.println("Error setting up MDNS responder!");
    while (1) {


      delay(1000);
    }
  }

更改好OTA无线局域网网页版入口的用户名和密码，这里都更改为ESP32-OTA

"if(form.userid.value=='ESP32-OTA' && form.pwd.value=='ESP32-OTA')"

通过有线方式连接电脑和ESP32开发板，并把代码编译通过先通过有线方式下载到ESP32开发板，让开发板创建无线OTA远程升级网页版入口

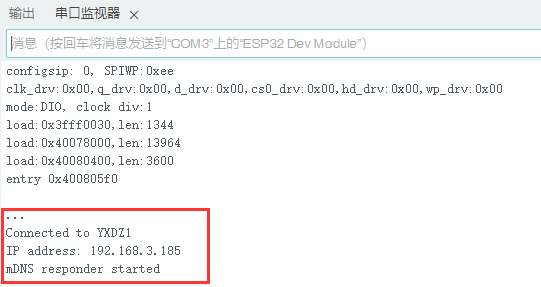

打开串口助手，按下ESP32开发板复位，会显示出所连接的局域网的IP地址，mDNS域名访问创建成功。

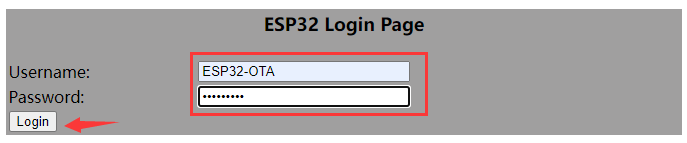

在浏览器输入IP地址或创建的http://esp32.local域名即可跳转到OTA远程升级网页版入口，输入创建好的用户名和密码并登录

此时再跳转到程序下载界面，选择编译好的程序文件并上传到开发板内

创建一个ESP32开发板进行OTA升级应用程序示例

若要每次都要对ESP32开发板进行OTA升级，新的应用程序中都要加入上述OTA无线局域网网页版远程升级入口的相关代码。下面为一个ESP32开发板GPIO2引脚上的闪灯程序的代码，并加入了OTA的相关代码，然后对OTA部分的代码进行上述一样的更改。

#include <WiFi.h>
#include <WiFiClient.h>
#include <WebServer.h>
#include <ESPmDNS.h>
#include <Update.h>

const char* host = "esp32";
const char* ssid = "YXDZ1";
const char* password = "YXDZ#2023#1";

//variabls to blink without delay:
const int led = 2;
unsigned long previousMillis = 0;        // will store last time LED was updated
const long interval = 1000;           // interval at which to blink (milliseconds)
int ledState = LOW;             // ledState used to set the LED

WebServer server(80);

/*
 * Login page
 */

const char* loginIndex =
 "<form name='loginForm'>"
    "<table width='20%' bgcolor='A09F9F' align='center'>"
        "<tr>"
            "<td colspan=2>"
                "<center><font size=4><b>ESP32 Login Page</b></font></center>"
                "<br>"
            "</td>"
            "<br>"
            "<br>"
        "</tr>"
        "<td>Username:</td>"
        "<td><input type='text' size=25 name='userid'><br></td>"
        "</tr>"
        "<br>"
        "<br>"
        "<tr>"
            "<td>Password:</td>"
            "<td><input type='Password' size=25 name='pwd'><br></td>"
            "<br>"
            "<br>"
        "</tr>"
        "<tr>"
            "<td><input type='submit' onclick='check(this.form)' value='Login'></td>"
        "</tr>"
    "</table>"
"</form>"
"<script>"
    "function check(form)"
    "{"
    "if(form.userid.value=='ESP32-OTA' && form.pwd.value=='ESP32-OTA')"
    "{"
    "window.open('/serverIndex')"
    "}"
    "else"
    "{"
    " alert('Error Password or Username')/*displays error message*/"
    "}"
    "}"
"</script>";

/*
 * Server Index Page
 */

const char* serverIndex =
"<script src='https://ajax.googleapis.com/ajax/libs/jquery/3.2.1/jquery.min.js'></script>"
"<form method='POST' action='#' enctype='multipart/form-data' id='upload_form'>"
   "<input type='file' name='update'>"
        "<input type='submit' value='Update'>"
    "</form>"
 "<div id='prg'>progress: 0%</div>"
 "<script>"
  "$('form').submit(function(e){"
  "e.preventDefault();"
  "var form = $('#upload_form')[0];"
  "var data = new FormData(form);"
  " $.ajax({"
  "url: '/update',"
  "type: 'POST',"
  "data: data,"
  "contentType: false,"
  "processData:false,"
  "xhr: function() {"
  "var xhr = new window.XMLHttpRequest();"
  "xhr.upload.addEventListener('progress', function(evt) {"
  "if (evt.lengthComputable) {"
  "var per = evt.loaded / evt.total;"
  "$('#prg').html('progress: ' + Math.round(per*100) + '%');"
  "}"
  "}, false);"
  "return xhr;"
  "},"
  "success:function(d, s) {"
  "console.log('success!')"
 "},"
 "error: function (a, b, c) {"
 "}"
 "});"
 "});"
 "</script>";

/*
 * setup function
 */
void setup(void) {


  pinMode(led, OUTPUT);

  Serial.begin(115200);

  // Connect to WiFi network
  WiFi.begin(ssid, password);
  Serial.println("");

  // Wait for connection
  while (WiFi.status() != WL_CONNECTED) {


    delay(500);
    Serial.print(".");
  }
  Serial.println("");
  Serial.print("Connected to ");
  Serial.println(ssid);
  Serial.print("IP address: ");
  Serial.println(WiFi.localIP());

  /*use mdns for host name resolution*/
  if (!MDNS.begin(host)) {

     //http://esp32.local
    Serial.println("Error setting up MDNS responder!");
    while (1) {


      delay(1000);
    }
  }
  Serial.println("mDNS responder started");
  /*return index page which is stored in serverIndex */
  server.on("/", HTTP_GET, []() {


    server.sendHeader("Connection", "close");
    server.send(200, "text/html", loginIndex);
  });
  server.on("/serverIndex", HTTP_GET, []() {


    server.sendHeader("Connection", "close");
    server.send(200, "text/html", serverIndex);
  });
  /*handling uploading firmware file */
  server.on("/update", HTTP_POST, []() {


    server.sendHeader("Connection", "close");
    server.send(200, "text/plain", (Update.hasError()) ? "FAIL" : "OK");
    ESP.restart();
  }, []() {


    HTTPUpload& upload = server.upload();
    if (upload.status == UPLOAD_FILE_START) {


      Serial.printf("Update: %s\n", upload.filename.c_str());
      if (!Update.begin(UPDATE_SIZE_UNKNOWN)) {

     //start with max available size
        Update.printError(Serial);
      }
    } else if (upload.status == UPLOAD_FILE_WRITE) {


      /* flashing firmware to ESP*/
      if (Update.write(upload.buf, upload.currentSize) != upload.currentSize) {


        Update.printError(Serial);
      }
    } else if (upload.status == UPLOAD_FILE_END) {


      if (Update.end(true)) {

     //true to set the size to the current progress
        Serial.printf("Update Success: %u\nRebooting...\n", upload.totalSize);
      } else {


        Update.printError(Serial);
      }
    }
  });
  server.begin();
}

void loop(void) {


  server.handleClient();
  delay(1);

  //loop to blink without delay
  unsigned long currentMillis = millis();

  if (currentMillis - previousMillis >= interval) {


    // save the last time you blinked the LED
    previousMillis = currentMillis;

    // if the LED is off turn it on and vice-versa:
    ledState = not(ledState);

    // set the LED with the ledState of the variable:
    digitalWrite(led, ledState);
  }
}

ESP32开发板OTA升级下载应用程序

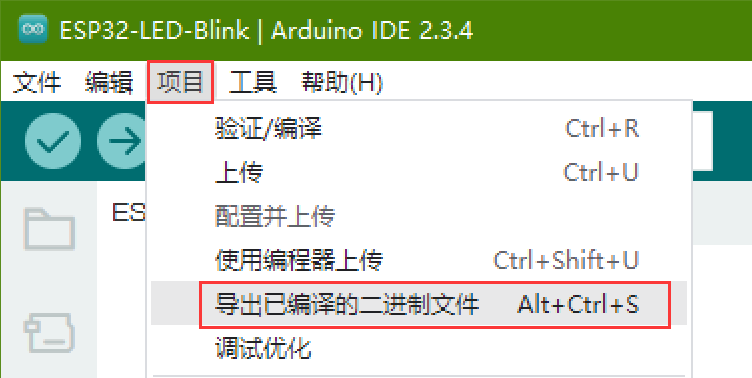

编译并导出可供OTA升级下载的二进制bin应用程序文件

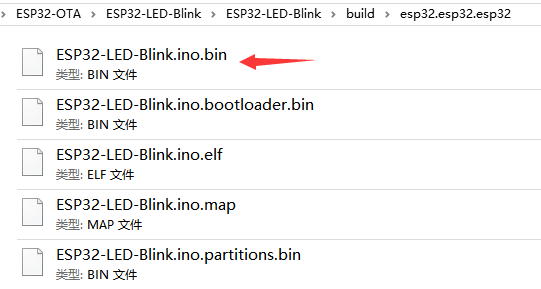

在项目文件夹下的build文件夹里可看到可供下载的bin应用程序文件

进入OTA无线局域网网页版远程升级入口，打开应用程序bin文件，并对ESP32开发板进行远程下载程序
