要进行本教程的内容，请先完成 Fabric 网络基础环境的搭建，Fabric 网络基础环境要求：安装git、curl、vim、jq、docker、docker-compose、Node.js，克隆下载 fabric 源码，克隆下载 fabric-samples 源码、下载二进制文件和拉取镜像。搭建 Fabric 网络基础环境，参考我之前写的文章：Hyperledger Fabric 2.4.9 环境搭建和 Caliper 0.5.0 测试工具部署教程（Ubuntu）-CSDN博客

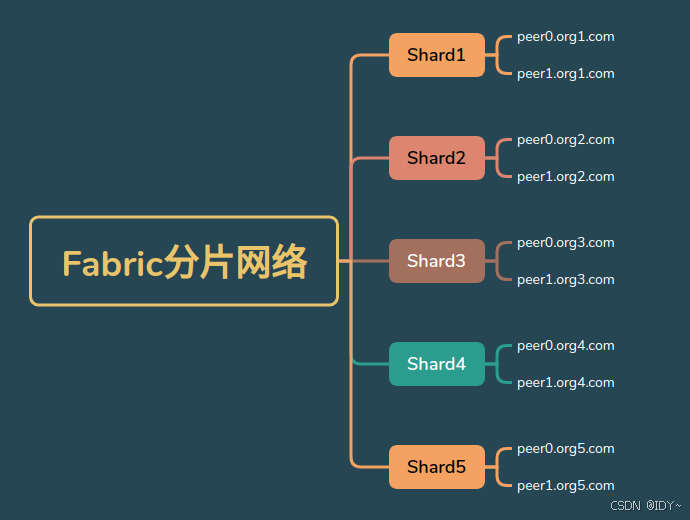

这里搭建的 Fabric 网络，是一个有着5个分片的分片区块链网络，有着1个排序组织（包含3个排序节点）和5个普通的组织（每个组织都包含2个对等节点，对应5个分片），网络拓扑如下所示（这里省略了排序节点）：
1. 生成相关的证书文件
在 ~/go/src/github.com/hyperledger 目录下新建 myfabric 文件夹并进入该文件夹：
mkdir myfabric && cd myfabric该文件夹就是我们要部署 Fabric 网络的根目录。
创建文件 crypto-config.yaml ，并用 gedit 软件打开：
touch crypto-config.yaml && gedit crypto-config.yaml添加如下内容：
# ---------------------------------------------------------------------------
# "OrdererOrgs" - Definition of organizations managing orderer nodes
# ---------------------------------------------------------------------------
OrdererOrgs:
# ---------------------------------------------------------------------------
# Orderer
# ---------------------------------------------------------------------------
- Name: Orderer
Domain: idy.com
EnableNodeOUs: true
Specs:
- Hostname: orderer0
- Hostname: orderer1
- Hostname: orderer2
# ---------------------------------------------------------------------------
# "PeerOrgs" - Definition of organizations managing peer nodes
# ---------------------------------------------------------------------------
PeerOrgs:
# ---------------------------------------------------------------------------
# Org1
# ---------------------------------------------------------------------------
- Name: Org1
Domain: org1.idy.com
EnableNodeOUs: true
Template:
Count: 2
Users:
Count: 1
# ---------------------------------------------------------------------------
# Org2
# ---------------------------------------------------------------------------
- Name: Org2
Domain: org2.idy.com
EnableNodeOUs: true
Template:
Count: 2
Users:
Count: 1
# ---------------------------------------------------------------------------
# Org3
# ---------------------------------------------------------------------------
- Name: Org3
Domain: org3.idy.com
EnableNodeOUs: true
Template:
Count: 2
Users:
Count: 1
# ---------------------------------------------------------------------------
# Org4
# ---------------------------------------------------------------------------
- Name: Org4
Domain: org4.idy.com
EnableNodeOUs: true
Template:
Count: 2
Users:
Count: 1
# ---------------------------------------------------------------------------
# Org5
# ---------------------------------------------------------------------------
- Name: Org5
Domain: org5.idy.com
EnableNodeOUs: true
Template:
Count: 2
Users:
Count: 1根据 crypto-config.yaml 生成相关的证书文件，生成的证书文件会在 ./crypto-config/ 文件夹下：
cryptogen generate --config=crypto-config.yaml2. 生成相关的通道配置文件
创建文件 configtx.yaml ，并用 gedit 软件打开：
touch configtx.yaml && gedit configtx.yaml添加如下内容：
# Copyright IBM Corp. All Rights Reserved.
#
# SPDX-License-Identifier: Apache-2.0
#
---
################################################################################
#
# Section: Organizations
#
# - This section defines the different organizational identities which will
# be referenced later in the configuration.
#
################################################################################
Organizations:
# SampleOrg defines an MSP using the sampleconfig. It should never be used
# in production but may be used as a template for other definitions
- &OrdererOrg
# DefaultOrg defines the organization which is used in the sampleconfig
# of the fabric.git development environment
Name: OrdererOrg
# ID to load the MSP definition as
ID: OrdererMSP
# MSPDir is the filesystem path which contains the MSP configuration
MSPDir: crypto-config/ordererOrganizations/idy.com/msp
# Policies defines the set of policies at this level of the config tree
# For organization policies, their canonical path is usually
# /Channel/<Application|Orderer>/<OrgName>/<PolicyName>
Policies:
Readers:
Type: Signature
Rule: "OR('OrdererMSP.member')"
Writers:
Type: Signature
Rule: "OR('OrdererMSP.member')"
Admins:
Type: Signature
Rule: "OR('OrdererMSP.admin')"
# OrdererEndpoints:
# - orderer.example.com:7050
- &Org1
# DefaultOrg defines the organization which is used in the sampleconfig
# of the fabric.git development environment
Name: Org1MSP
# ID to load the MSP definition as
ID: Org1MSP
MSPDir: crypto-config/peerOrganizations/org1.idy.com/msp
# Policies defines the set of policies at this level of the config tree
# For organization policies, their canonical path is usually
# /Channel/<Application|Orderer>/<OrgName>/<PolicyName>
Policies:
Readers:
Type: Signature
Rule: "OR('Org1MSP.admin', 'Org1MSP.peer', 'Org1MSP.client')"
Writers:
Type: Signature
Rule: "OR('Org1MSP.admin', 'Org1MSP.client')"
Admins:
Type: Signature
Rule: "OR('Org1MSP.admin')"
Endorsement:
Type: Signature
Rule: "OR('Org1MSP.peer')"
- &Org2
# DefaultOrg defines the organization which is used in the sampleconfig
# of the fabric.git development environment
Name: Org2MSP
# ID to load the MSP definition as
ID: Org2MSP
MSPDir: crypto-config/peerOrganizations/org2.idy.com/msp
# Policies defines the set of policies at this level of the config tree
# For organization policies, their canonical path is usually
# /Channel/<Application|Orderer>/<OrgName>/<PolicyName>
Policies:
Readers:
Type: Signature
Rule: "OR('Org2MSP.admin', 'Org2MSP.peer', 'Org2MSP.client')"
Writers:
Type: Signature
Rule: "OR('Org2MSP.admin', 'Org2MSP.client')"
Admins:
Type: Signature
Rule: "OR('Org2MSP.admin')"
Endorsement:
Type: Signature
Rule: "OR('Org2MSP.peer')"
- &Org3
# DefaultOrg defines the organization which is used in the sampleconfig
# of the fabric.git development environment
Name: Org3MSP
# ID to load the MSP definition as
ID: Org3MSP
MSPDir: crypto-config/peerOrganizations/org3.idy.com/msp
# Policies defines the set of policies at this level of the config tree
# For organization policies, their canonical path is usually
# /Channel/<Application|Orderer>/<OrgName>/<PolicyName>
Policies:
Readers:
Type: Signature
Rule: "OR('Org3MSP.admin', 'Org3MSP.peer', 'Org3MSP.client')"
Writers:
Type: Signature
Rule: "OR('Org3MSP.admin', 'Org3MSP.client')"
Admins:
Type: Signature
Rule: "OR('Org3MSP.admin')"
Endorsement:
Type: Signature
Rule: "OR('Org3MSP.peer')"
- &Org4
# DefaultOrg defines the organization which is used in the sampleconfig
# of the fabric.git development environment
Name: Org4MSP
# ID to load the MSP definition as
ID: Org4MSP
MSPDir: crypto-config/peerOrganizations/org4.idy.com/msp
# Policies defines the set of policies at this level of the config tree
# For organization policies, their canonical path is usually
# /Channel/<Application|Orderer>/<OrgName>/<PolicyName>
Policies:
Readers:
Type: Signature
Rule: "OR('Org4MSP.admin', 'Org4MSP.peer', 'Org4MSP.client')"
Writers:
Type: Signature
Rule: "OR('Org4MSP.admin', 'Org4MSP.client')"
Admins:
Type: Signature
Rule: "OR('Org4MSP.admin')"
Endorsement:
Type: Signature
Rule: "OR('Org4MSP.peer')"
- &Org5
# DefaultOrg defines the organization which is used in the sampleconfig
# of the fabric.git development environment
Name: Org5MSP
# ID to load the MSP definition as
ID: Org5MSP
MSPDir: crypto-config/peerOrganizations/org5.idy.com/msp
# Policies defines the set of policies at this level of the config tree
# For organization policies, their canonical path is usually
# /Channel/<Application|Orderer>/<OrgName>/<PolicyName>
Policies:
Readers:
Type: Signature
Rule: "OR('Org5MSP.admin', 'Org5MSP.peer', 'Org5MSP.client')"
Writers:
Type: Signature
Rule: "OR('Org5MSP.admin', 'Org5MSP.client')"
Admins:
Type: Signature
Rule: "OR('Org5MSP.admin')"
Endorsement:
Type: Signature
Rule: "OR('Org5MSP.peer')"
################################################################################
#
# SECTION: Capabilities
#
# - This section defines the capabilities of fabric network. This is a new
# concept as of v1.1.0 and should not be utilized in mixed networks with
# v1.0.x peers and orderers. Capabilities define features which must be
# present in a fabric binary for that binary to safely participate in the
# fabric network. For instance, if a new MSP type is added, newer binaries
# might recognize and validate the signatures from this type, while older
# binaries without this support would be unable to validate those
# transactions. This could lead to different versions of the fabric binaries
# having different world states. Instead, defining a capability for a channel
# informs those binaries without this capability that they must cease
# processing transactions until they have been upgraded. For v1.0.x if any
# capabilities are defined (including a map with all capabilities turned off)
# then the v1.0.x peer will deliberately crash.
#
################################################################################
Capabilities:
# Channel capabilities apply to both the orderers and the peers and must be
# supported by both.
# Set the value of the capability to true to require it.
Channel: &ChannelCapabilities
# V2_0 capability ensures that orderers and peers behave according
# to v2.0 channel capabilities. Orderers and peers from
# prior releases would behave in an incompatible way, and are therefore
# not able to participate in channels at v2.0 capab
