- AspectJ:Java社区里最完整最流行的AOP框架。
- 在Spring2.0以上版本中,可以使用基于AspectJ注解或基于XML配置的AOP
在Spring中启用AspectJ注解支持
- 要在Spring应用中使用AspectJ注解,必须在classpath下包含AspectrJ类库:aopalliance.jar、aspectj.weaver.jar、和spring-aspects.jar
- 将aopSchema添加到< beans > 根元素中.
- 要在SpringIOC容器中启用AspectJ注解支持,只要在Bean配置文件中定义一个空的XML元素< aop:aspectj-autoproxy >
- 当Spring IOC容器侦测到Bean配置文件中的< aop:aspectj-autoproxy >元素时,会自动为与AspectJ切面匹配的Bean创建代理。
用AspectJ注解声明切面
-
要在Spring中声明AspectJ切面,只需要在IOC容器中将切面声明为Bean实例。当在SpringIOC容器中初始化AspectJ切面之后,SpringIOC容器中初始化AspectJ切面之后,SpringIOC容器就会为那些于AspectJ切面相匹配的Bean创建代理.
-
在AspectJ注解中,切面只是一个带有@Aspect注解的Java类.
-
通知是标注有某种注解的简单的java方法.
-
AspectJ支持5中类型的通知注解:
- @Before:前置通知,在方法执行之前执行
- @After:后置通知,在方法执行之后执行
- @AfterRunning:返回通知,在方法返回结果之后执行
- @AfterThrowing:异常通知,在方法抛出异常之后
- @Around:环绕通知,围绕着方法执行
前置通知
- 前置通知:在方法执行之前的通知
- 前置通知使用@Before注解,并将切入点表达式的值作为注解值
例子程序

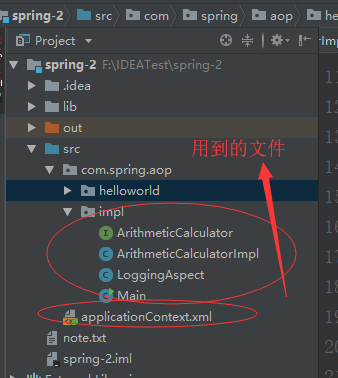

基本结构
ArithmeticCalculator.java
package com.spring.aop.impl;
public interface ArithmeticCalculator {
int add(int i, int j);
int sub(int i, int j);
int mul(int i, int j);
int div(int i, int j);
}
ArithmeticCalculatorImpl.java
package com.spring.aop.impl;
import org.springframework.stereotype.Component;
@Component
public class ArithmeticCalculatorImpl implements ArithmeticCalculator {
@Override
public int add(int i, int j) {
int result = i+j;
return result;
}
@Override
public int sub(int i, int j) {
int result = i-j;
return result;
}
@Override
public int mul(int i, int j) {
int result = i*j;
return result;
}
@Override
public int div(int i, int j) {
int result = i/j;
return result;
}
}
LoggingAspect.java
package com.spring.aop.impl;
import org.aspectj.lang.JoinPoint;
import org.aspectj.lang.annotation.Aspect;
import org.aspectj.lang.annotation.Before;
import org.springframework.stereotype.Component;
import java.util.Arrays;
import java.util.List;

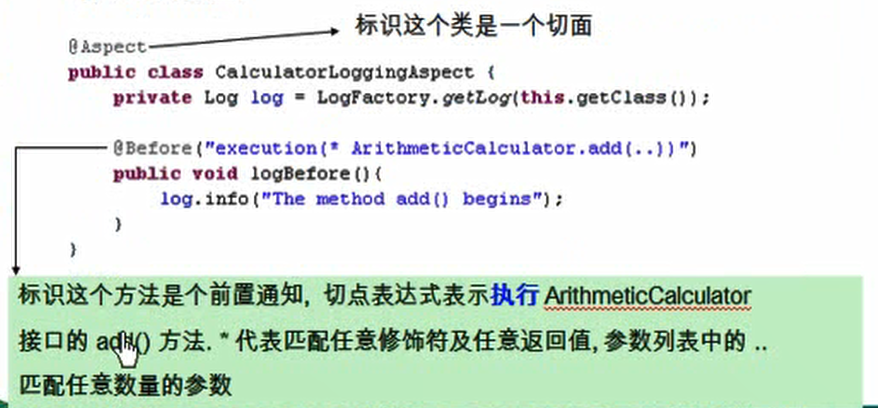

//把这个类声明为一个切面:需要把该类放入到IOC容器中、再声明为一个切面
@Aspect
@Component
public class LoggingAspect {
//声明该方法是一个前置通知:在目标方法开始之前执行

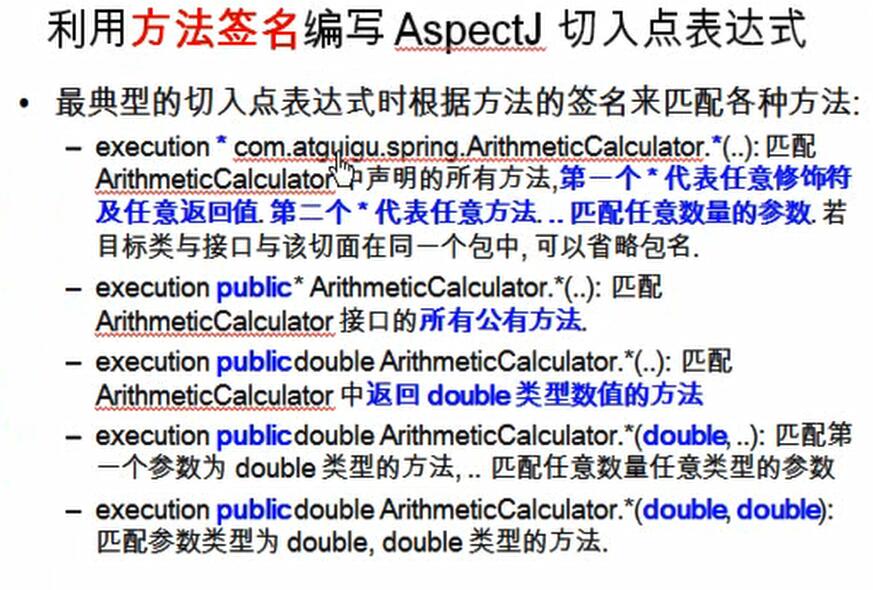

@Before("execution(public int com.spring.aop.impl.ArithmeticCalculator.*(int ,int ))")
public void beforeMethod(JoinPoint joinPoint){
String methodName = joinPoint.getSignature().getName();
List<Object> args = Arrays.asList(joinPoint.getArgs());
System.out.println("The method "+methodName + " begins with " + args);
}
}
applicationContext.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:aop="http://www.springframework.org/schema/aop"
xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop.xsd">
<!--配置自动扫描的包-->
<context:component-scan base-package="com.spring.aop.impl"></context:component-scan>
<!--使AspjectJ 注解起作用: 自动为匹配的类生成代理对象-->
<aop:aspectj-autoproxy></aop:aspectj-autoproxy>
</beans>
Main.java
package com.spring.aop.impl;
import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;
public class Main {
public static void main(String[] args){
//1.创建Spring的IOC容器
ApplicationContext ctx = new ClassPathXmlApplicationContext("applicationContext.xml");
//2.从IOC容器中获取bean的实例
ArithmeticCalculator arithmeticCalculator = ctx.getBean(ArithmeticCalculator.class);
//3.使用bean
int result = arithmeticCalculator.add(3,6);
System.out.println("result:" + result);
result = arithmeticCalculator.div(12,6);
System.out.println("result:" + result);
}
}
note.txt
1.SpringAOP
1).加入jar包:
com.springsource.org.aspectj.weaver-1.6.8.RELEASE.jar
com.springsource.org.aopalliance-1.0.0.jar
spring-aop-4.0.0.RELEASE.jar
spring-aspects-4.0.0.RELEASE.jar
commons-logging-1.1.1.jar
spring-beans-4.0.0.RELEASE.jar
spring-context-4.0.0.RELEASE.jar
spring-core-4.0.0.RELEASE.jar
spring-expression-4.0.0.RELEASE.jar
2).在配置文件中加入aop的命名空间
3).基于注解的方式
1.在配置文件中加入如下配置:
<aop:aspectj-aitoproxy> </aop:aspectj-aitoproxy>
2.把横切关注点的代码抽象到切面的类中。
1))切面首先是一个IOC中的bean,即加入@Component注解
2))切面还需要加入@Aspect注解
3.在类中声明各种通知:
1))声明一个方法
2))在方法前加入@Before注解
4.可以在通知方法中声明一个类型为JointPoint的参数。然后就能访问链接细节。如方法名称和参数值。
