mybatis延迟加载策略

mybatis延迟加载策略

在一对一、一对多、多对一、多对多的查询中用到了关联查询,实际开发过程中很多时候我们并不需要总是在加载用户信息时就一定要加载他的账户信息。 此时就是我们所说的延迟加载

1 延迟加载概述

​ 延迟加载:就是在需要用到数据时才进行加载,不需要用到数据时就不加载数据。延迟加载也称懒加载.

  • 好处: 先从单表查询,需要时再从关联表去关联查询,大大提高数据库性能,因为查询单表要比关联查询多张表速度要快。

  • 坏处:因为只有当需要用到数据时,才会进行数据库查询,这样在大批量数据查询时,因为查询工作也要消耗时间,所以可能造成用户等待时间变长,造成用户体验下降。

2 实现需求

需求:

​ 查询账户(Account)信息并且关联查询用户(User)信息。如果先查询账户(Account)信息即可满足要求,当我们需要查询用户(User)信息时再查询用户(User)信息。把对用户(User)信息的按需去查询就是延迟加载。

​ mybatis实现多表操作时,我们使用了resultMap来实现一对一,一对多,多对多关系的操作。主要是通过 association、 collection 实现一对一及一对多映射。 association、 collection 具备延迟加载功能。

3开启mybatis的延迟加载策略

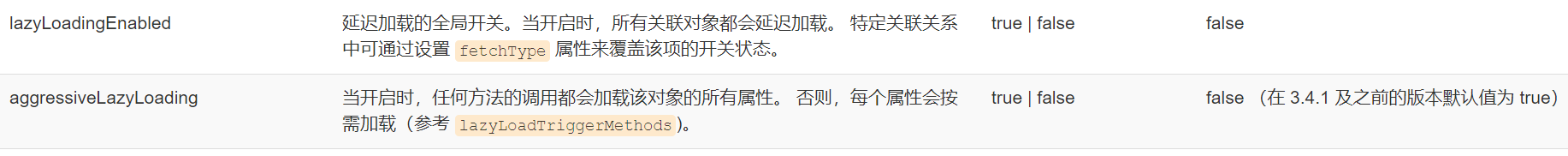

进入 Mybaits 的官方文档,找到 settings 的说明信息:

在这里插入图片描述

我们需要在 Mybatis 的配置文件 SqlMapConfig.xml 文件中添加延迟加载的配置。

<!-- 开启延迟加载的支持 -->
<settings>
<setting name="lazyLoadingEnabled" value="true"/>
<setting name="aggressiveLazyLoading" value="false"/>
</settings>

4 使用association实现延迟加载

需求:查询账户信息同时查询用户信息。

(1)账户的持久层DAO接口

public interface IAccountDao {
/**
* 查询所有账户,同时获取账户的所属用户名称以及它的地址信息
* @return
*/
List<Account> findAll();
}

(2)账户的持久层映射文件

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.mb.dao.IAccountDao">
    <!-- 建立对应关系 -->
    <resultMap type="account" id="accountMap">
        <id column="aid" property="id"/>
        <result column="uid" property="uid"/>
        <result column="money" property="money"/>
        <!-- 它是用于指定从表方的引用实体属性的 -->
        <association property="user" javaType="user"
            select="com.mb.dao.IUserDao.findById"
            column="uid">
        </association>
    </resultMap>
    <select id="findAll" resultMap="accountMap">
        select * from account
    </select>
</mapper>

**property pojo类中的关联属性 **

**select 关联执行的sql select映射的Id **

**JavaType 结果集类型 **

column 传递给select的参数 即两张表的关联字段(外键)

fetchType 标记是否懒加载 lazy懒加载 eager不是懒加载

(3)用户的持久层接口和映射文件

/*
* <p>Description: 用户的业务层接口</p>
*/
public interface IUserDao {
/**
* 根据 id 查询
* @param userId
* @return
*/
User findById(Integer userId);
}
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.mb.dao.IUserDao">
    <!-- 根据 id 查询 -->
    <select id="findById" resultType="user" parameterType="int" >
        select * from user where id = #{uid}
    </select>
</mapper>

5 使用 Collection 实现延迟加载

同样我们也可以在一对多关系配置的<collection>结点中配置延迟加载策略。

<collection>结点中也有 select 属性, column 属性。

需求:完成加载用户对象时,查询该用户所拥有的账户信息。

(1)在 User 实体类中加入 List属性

/**
*
* <p>Title: User</p>
* <p>Description: 用户的实体类</p>
* <p>Company: http://www.itheima.com/ </p>
*/
public class User implements Serializable {
    private Integer id;
    private String username;
    private Date birthday;
    private String sex;
    private String address;
    private List<Account> accounts;
}

(2)编写用户和账户持久层接口的方法

/**
* 查询所有用户,同时获取出每个用户下的所有账户信息
* @return
*/
List<User> findAll();
/**
* 根据用户 id 查询账户信息
* @param uid
* @return
*/
List<Account> findByUid(Integer uid);

(3) 编写用户持久层映射配置

<resultMap type="user" id="userMap">
    <id column="id" property="id"></id>
    <result column="username" property="username"/>
    <result column="address" property="address"/>
    <result column="sex" property="sex"/>
    <result column="birthday" property="birthday"/>
    <collection property="accounts" ofType="account"
        select="com.mb.dao.IAccountDao.findByUid" column="id">
    </collection>
</resultMap>
<!-- 配置查询所有操作 -->
<select id="findAll" resultMap="userMap">
    select * from user
</select>

collection 是用于建立一对多中集合属性的对应关系
ofType 用于指定集合元素的数据类型
select 是用于指定查询账户的唯一标识(账户的 dao 全限定类名加上方法名称)
column 是用于指定使用哪个字段的值作为条件查询
(4)编写账户持久层映射配置

<!-- 根据用户 id 查询账户信息 -->
<select id="findByUid" resultType="account" parameterType="int">
    select * from account where uid = #{uid}
</select>
