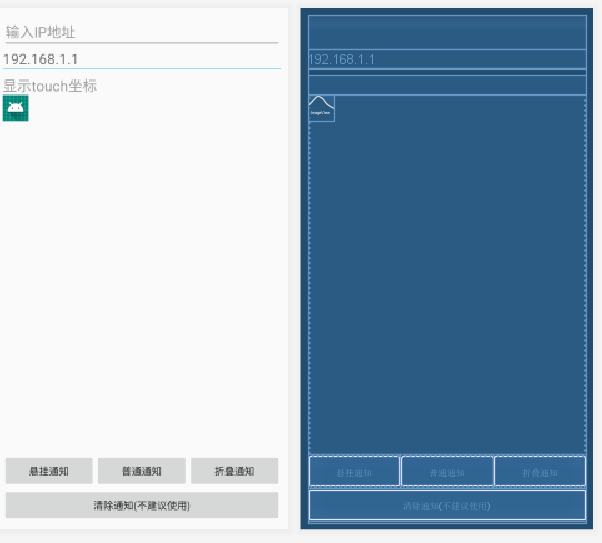

1 完成效果
2 布局代码
<?xml version="1.0" encoding="utf-8"?><EditText
android:id="@+id/et_ip"
android:hint="输入IP地址"
android:inputType="number"
android:ems="20"
android:textSize="20sp"
android:layout_width="match_parent"
android:layout_height="wrap_content"/>
<TextView
android:id="@+id/tv_showIP"
android:textSize="20sp"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:text="192.168.1.1" />
<View
android:layout_width="match_parent"
android:layout_height="1dp"
android:background="#66CCFF"/>
<TextView
android:id="@+id/tv_coordinate"
android:textSize="20sp"
android:hint="显示touch坐标"
android:layout_marginTop="10dp"
android:layout_width="match_parent"
android:layout_height="wrap_content" />
<RelativeLayout
android:id="@+id/relative_layout"
android:layout_weight="1"
android:layout_width="match_parent"
android:layout_height="0dp">
<ImageView
android:id="@+id/img_view"
android:layout_width="96px"
android:layout_height="96px"
android:src="@mipmap/ic_launcher_round" />
</RelativeLayout>
<LinearLayout
android:orientation="vertical"
android:layout_width="match_parent"
android:layout_height="wrap_content">
<LinearLayout
android:orientation="horizontal"
android:gravity="center_horizontal|bottom"
android:layout_width="match_parent"
android:layout_height="wrap_content">
<Button
android:id="@+id/btn_hang"
android:text="悬挂通知"
android:layout_weight="1"
android:layout_width="0dp"
android:layout_height="wrap_content"/>
<Button
android:id="@+id/btn_normal"
android:text="普通通知"
android:layout_weight="1"
android:layout_width="0dp"
android:layout_height="wrap_content"/>
<Button
android:id="@+id/btn_fold"
android:text="折叠通知"
android:layout_weight="1"
android:layout_width="0dp"
android:layout_height="wrap_content"/>
</LinearLayout>
<LinearLayout
android:gravity="center_horizontal"
android:layout_width="match_parent"
android:layout_height="wrap_content">
<Button
android:id="@+id/btn_clear"
android:text="清除通知(不建议使用)"
android:layout_width="match_parent"
android:layout_height="wrap_content"/>
</LinearLayout>
</LinearLayout>
说明:
1 本布局中 把中间显示图片空白区域下压要用到RelativeLayout,并且layout_weight=“1”,且layout_width="match_parent"才能达到效果.
2 底下有两行按钮,分别用两个包裹,第一个设置横向,注意的是layout_weight=“1”,layout_width=“0dp”.这里给它设置的是按钮所占大小权重,3个按钮权重相同,就达到了效果.
3 监听事件
package com.example.myapplication;
import android.annotation.SuppressLint;
import android.app.Notification;
import android.app.NotificationChannel;
import android.app.NotificationManager;
import android.app.PendingIntent;
import android.content.Intent;
import android.graphics.BitmapFactory;
import android.graphics.Rect;
import android.os.Build;
import android.os.Bundle;
import android.support.annotation.RequiresApi;
import android.support.v4.app.NotificationCompat;
import android.support.v7.app.AppCompatActivity;
import android.view.KeyEvent;
import android.view.MotionEvent;
import android.view.View;
import android.view.inputmethod.InputMethodManager;
import android.widget.Button;
import android.widget.EditText;
import android.widget.ImageView;
import android.widget.RelativeLayout;
import android.widget.RemoteViews;
import android.widget.TextView;
import java.util.Locale;
public class Main6Activity extends AppCompatActivity implements View.OnClickListener {
// 1. 定义这些控件
private EditText etIp;
private TextView tvShowIp;
private TextView tvXY;
private ImageView imgView;
private Rect rect = new Rect(); // 布局的长方形对象
private float deltaX, deltaY; // x、y方向上的移动偏移量
private Button btnHang, btnNormal, btnFold, btnClear;
private NotificationManager manager; // 消息管理器对象
@SuppressLint("ClickableViewAccessibility")
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main6);
// 2. 获取控件对象,并设置相关的监听事件
ininView();
// 3. 设置事件监听器
// 3.1 图片的移动的Touch事件
imgView.setOnTouchListener(new View.OnTouchListener() {
@Override
public boolean onTouch(View v, MotionEvent event) {
return moveImage(v, event);
}
});
// 3.2 键盘输入的事件
etIp.setOnKeyListener(new View.OnKeyListener() {
// 4. 处理监听事件
@Override
public boolean onKey(View v, int keyCode, KeyEvent event) {
switch (event.getAction()) {
case KeyEvent.ACTION_UP:
String ip = etIp.getText().toString();
if (ip.length() == 12) {
String newIp = analysisIp(ip);
tvShowIp.setText(newIp);
// 关闭软键盘
closeSoftKeyboard(v);
}
break;
}
return false;
}
});
// 4. 创建通知渠道
createChannel();
}
// 功能:初始化布局上的所有组件,并设置监听事件
private void ininView() {
// 获取ip解析的两个控件
etIp = findViewById(R.id.et_ip);
tvShowIp = findViewById(R.id.tv_showIP);
tvXY = findViewById(R.id.tv_coordinate);
// 获取ImageView控件
imgView = findViewById(R.id.img_view);
// 初始化消息的3个按钮,并设置监听事件
btnHang = findViewById(R.id.btn_hang);
btnNormal = findViewById(R.id.btn_normal);
btnFold = findViewById(R.id.btn_fold);
btnClear = findViewById(R.id.btn_clear);
btnHang.setOnClickListener(this);
btnNormal.setOnClickListener(this);
btnFold.setOnClickListener(this);
btnClear.setOnClickListener(this);
}
// 功能:关闭软键盘
private void closeSoftKeyboard(View view) {
InputMethodManager imm = (InputMethodManager) getSystemService(INPUT_METHOD_SERVICE);
if (imm != null && imm.isActive()) {
imm.hideSoftInputFromWindow(view.getApplicationWindowToken(), 0);
}
}
// 功能:根据输入的ip字符串,解析为ip地址格式
private String analysisIp(String ip) {
// 转换IP地址
String newIp = "";
for (int i = 0; i < ip.length() / 3; i++) {
newIp += ip.substring(i * 3, Math.min(i * 3 + 3, ip.length())) + ".";
}
return newIp.substring(0, newIp.length() - 1);
}
// 功能:根据MotionEvent的触发,计算ImageView的位置,并通过设置ImageView的margin移动图片
private boolean moveImage(View v, MotionEvent event) {
// 1. 获取触控点的坐标,并显示到TextView
float x = event.getX() + v.getLeft();
float y = event.getY() + v.getTop();
String pos = "触点坐标:" + String.format(Locale.CHINA, "%.2f", x)
+ ", " + String.format(Locale.CHINA, "%.2f", y);
TextView tvXY = findViewById(R.id.tv_coordinate);
// 2. 获取可以移动的范围大小
findViewById(R.id.relative_layout).getDrawingRect(rect);
// 3. 获取imageView的布局参数
RelativeLayout.LayoutParams params = (RelativeLayout.LayoutParams) v.getLayoutParams();
// 4. 处理ACTION_DOWN、ACTION_MOVE、ACTION_UP的事件
switch (event.getAction()) {
case MotionEvent.ACTION_DOWN:
deltaX = x - params.leftMargin;
deltaY = y - params.topMargin;
break;
case MotionEvent.ACTION_MOVE:
int moveX = Math.round(x - deltaX);
int moveY = Math.round(y - deltaY);
if (moveX >= rect.left && moveX <= rect.right
&& moveY >= rect.top && moveY <= rect.bottom) {
params.leftMargin = moveX;
params.topMargin = moveY;
imgView.setLayoutParams(params);
}
break;
case MotionEvent.ACTION_UP:
imgView.performClick();
break;
}
return true;
}
// 创建3种不同的消息渠道
private void createChannel() {
if (android.os.Build.VERSION.SDK_INT >= android.os.Build.VERSION_CODES.O) {
// 悬挂通知:等级最高
String channelId = "悬挂";
String channelName = "悬挂通知";
int importance = NotificationManager.IMPORTANCE_HIGH; // 消息的重要性等级
createNotificationChannel(channelId, channelName, importance);
// 普通通知:等级中等
channelId = "普通";
channelName = "普通通知";
importance = NotificationManager.IMPORTANCE_DEFAULT;
createNotificationChannel(channelId, channelName, importance);
// 折叠通知:等级最低
channelId = "折叠";
channelName = "折叠通知";
importance = NotificationManager.IMPORTANCE_LOW;
createNotificationChannel(channelId, channelName, importance);
}
}
@RequiresApi(api = Build.VERSION_CODES.O)
private void createNotificationChannel(String channelId, String channelName, int importance) {
NotificationChannel channel = new NotificationChannel(channelId, channelName, importance);
manager = (NotificationManager) getSystemService(NOTIFICATION_SERVICE);
manager.createNotificationChannel(channel);
}
@RequiresApi(api = Build.VERSION_CODES.JELLY_BEAN)
@Override
public void onClick(View v) {
switch (v.getId()) {
case R.id.btn_hang:
sendHang();
break;
case R.id.btn_normal:
sendNormal();
break;
case R.id.btn_fold:
sendFold();
break;
case R.id.btn_clear:
clearAllNotification();
}
}
// 发送悬挂消息
private void sendHang() {
// 设置消息传递的动作,通过PendingIntent进行传递(自定义Intent跳转的第二个Activity需要自行定义)
Intent intent = new Intent(Main6Activity.this, Main7Activity.class);
PendingIntent pendingIntent = PendingIntent.getActivity(Main6Activity.this, 0, intent, 0);
// 1. 创建消息构造器,设置相关的属性;通过Builder构造方法传递channelId,匹配createChannel()方法中设置的channelId
NotificationCompat.Builder builder = new NotificationCompat.Builder(Main6Activity.this, "悬挂");
builder.setSmallIcon(R.mipmap.ic_launcher)
.setContentTitle("悬挂通知")
.setContentText("今天中午会下大雨")
.setWhen(System.currentTimeMillis())
.setLargeIcon(BitmapFactory.decodeResource(getResources(), R.drawable.ic_launcher_background))
.setContentIntent(pendingIntent)
.setAutoCancel(true);
// 针对低于Android 8.0的设置
if (Build.VERSION.SDK_INT < Build.VERSION_CODES.O) {
builder.setFullScreenIntent(pendingIntent, true);
}
// 2. 通过builder构建消息对象
Notification notification = builder.build();
// 3. 通过消息管理器发送消息
if (manager == null) {
manager = (NotificationManager) getSystemService(NOTIFICATION_SERVICE); // 消息通知是系统服务
}
manager.notify(1, notification); // 发送消息的id必须唯一,否则会被后面发送的消息覆盖
}
// 发送普通消息
private void sendNormal() {
// 设置消息传递的动作,通过PendingIntent进行传递(自定义Intent跳转的第二个Activity需要自行定义)
Intent intent = new Intent(Main6Activity.this, Main7Activity.class);
PendingIntent pendingIntent = PendingIntent.getActivity(Main6Activity.this,
0, intent, PendingIntent.FLAG_UPDATE_CURRENT);
// 1. 创建消息构造器,设置相关的属性;通过Builder构造方法传递channelId,匹配createChannel()方法中设置的channelId
NotificationCompat.Builder builder = new NotificationCompat.Builder(Main6Activity.this, "普通");
builder.setSmallIcon(R.mipmap.ic_launcher)
.setContentTitle("普通通知")
.setContentText("今天中午会下大雨")
.setLargeIcon(BitmapFactory.decodeResource(getResources(), R.drawable.ic_launcher_background))
.setContentIntent(pendingIntent)
.setAutoCancel(true);
// 2. 通过builder构建消息对象
Notification notification = builder.build();
// 3. 通过消息管理器发送消息
if (manager == null) {
manager = (NotificationManager) getSystemService(NOTIFICATION_SERVICE);
}
manager.notify(2, notification);
}
// 发送:发送折叠消息(了解即可)
@RequiresApi(api = Build.VERSION_CODES.JELLY_BEAN)
private void sendFold() {
// 设置消息传递的动作,通过PendingIntent进行传递(自定义Intent跳转的第二个Activity需要自行定义)
Intent intent = new Intent(Main6Activity.this, Main7Activity.class);
PendingIntent pendingIntent = PendingIntent.getActivity(Main6Activity.this, 0, intent, 0);
// 1. 创建消息构造器,设置相关的属性;通过Builder构造方法传递channelId,匹配createChannel()方法中设置的channelId
NotificationCompat.Builder builder = new NotificationCompat.Builder(Main6Activity.this, "折叠");
builder.setSmallIcon(R.mipmap.ic_launcher)
.setContentTitle("折叠通知")
.setContentText("今天中午会下大雨")
.setLargeIcon(BitmapFactory.decodeResource(getResources(), R.drawable.ic_launcher_background))
.setContentIntent(pendingIntent)
.setAutoCancel(true);
// 2. 通过builder构建消息对象
Notification notification = builder.build();
// 3. 设置折叠通知展开后的布局
notification.bigContentView = new RemoteViews(getPackageName(), R.layout.activity_main7);
// 4. 通过消息管理器发送消息
if (manager == null) {
manager = (NotificationManager) getSystemService(NOTIFICATION_SERVICE);
}
manager.notify(3, notification);
}
// 功能:清除所有的通知,一般不使用
private void clearAllNotification() {
manager.cancelAll();
// 清除某一个通知方法:manager.cancel(id),此处的id是notify()的id
}
// 功能:activity界面上的触控事件处理
@Override
public boolean onTouchEvent(MotionEvent event) {
if (event.getAction() == MotionEvent.ACTION_DOWN) {
float x = event.getX();
float y = event.getY();
String pos = "触点坐标:" + String.format(Locale.CHINA, "%.2f", x)
+ ", " + String.format(Locale.CHINA, "%.2f", y);
tvXY.setText(pos);
// Toast.makeText(this, pos, Toast.LENGTH_LONG).show();
}
return super.onTouchEvent(event);
}
}
