Android提供了许多布局空间,对于不同的格式需求选择不同的布局控件,可以大大简化代码操作。下面为大家介绍一下以下经常用到的五种布局。
对了,补充一下,往常Android只有约束布局可以直接在Design页面拖动,现在都可以了。不过不推荐。
1.linear_layout(线性布局)
线性布局正如其名,他是呈线性分布的布局。只能控制水平或者垂直方向排布控件。可以用于设置登陆界面等简单排布的界面,下面有颜色填充一个线性布局,大家可以参考一下:
重点在于这句:android:orientation=“vertical” 在这个布局中控件垂直分布
android:orientation=“horizontal” 在这个布局中控件水平分布
如果复杂一些,大家灵活运用,各种嵌套肯定没问题。
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout
xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="vertical">
<LinearLayout
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:layout_weight="1"
android:orientation="vertical"
android:paddingLeft="10dp"> //设置左内边距
<TextView
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:text="第一行"
android:textColor="#ffffff"
android:background="#550000"
android:layout_weight="1"
android:gravity="center_vertical" //设置控件位置
android:paddingLeft="20dp" />
<TextView
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:text="第二行"
android:textColor="#ffffff"
android:background="#005500"
android:layout_weight="1"
android:gravity="center_horizontal|center_vertical"/>
<TextView
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:text="第三行"
android:textColor="#ffffff"
android:background="#000055"
android:layout_weight="1"
android:gravity="right|center_vertical"
android:layout_marginRight="10dp"/> //设置右外边距
</LinearLayout>
<LinearLayout
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:layout_weight="1"
android:orientation="horizontal">
<TextView
android:layout_width="wrap_content"
android:layout_height="match_parent"
android:text="第一列"
android:textColor="#ffffff"
android:background="#550000"
android:layout_weight="1"
android:gravity="top|left"/>
<TextView
android:layout_width="wrap_content"
android:layout_height="match_parent"
android:text="第二列"
android:textColor="#ffffff"
android:background="#005500"
android:layout_weight="1"
android:gravity="center_vertical|center_horizontal"/>
<TextView
android:layout_width="wrap_content"
android:layout_height="match_parent"
android:text="第三列"
android:textColor="#ffffff"
android:background="#005555"
android:layout_weight="1"
android:gravity="right|bottom"/>
</LinearLayout>
</LinearLayout>
运行结果如下:
2.frame_layout布局(框架布局)
框架布局很奇怪,因为他的所用控件是可以重叠的,控件直接没有约束,只能自己定义位置。不过肯定有它大展拳脚的地方,下面看个简单示例:
<?xml version="1.0" encoding="utf-8"?>
<FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="match_parent"
android:layout_height="match_parent">
<TextView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="TestTestTest"
android:textColor="#ff0000"/>
<Button
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="Button"
android:textColor="#0000ff"/>
</FrameLayout>

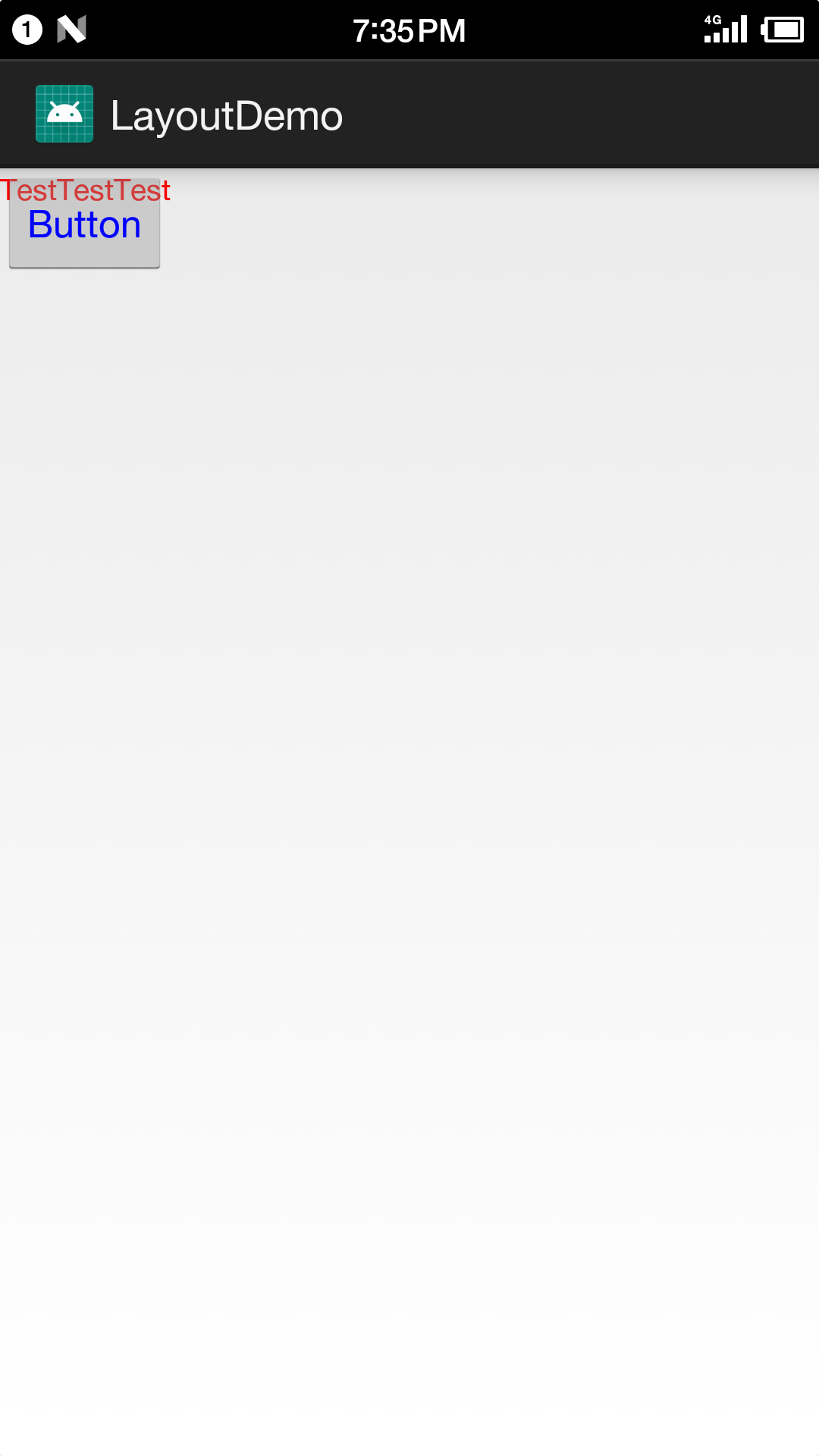

运行结果如下:
当然也可以通过设置margin,padding,还有gravity设置位置,大家自己尝试。
3.TableLayout(表格布局)
表格布局也是常用的布局之一,把父控件划分成一个个表格,在表格栏中加入控件。
每一列的宽度取决于那一列最宽的那个,而每一行的高度不受其他行影响,列数取决于所有行中列最多的那个。在TableLayout中加入行需要添加<TableRow />。如果不在<TableRow />中加入控件,而直接在外面,会默认这个控件占一行。同时可以通过设置android:stretchColumns=“x”来控制第x+1列自动补齐剩余空间。代码如下:
<?xml version="1.0" encoding="utf-8"?>
<TableLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:stretchColumns="1"> //设置第二列自动补满空间
<TableRow>
<TextView
android:text="张三"
android:background="#550000"
android:textColor="#ffffff"
android:padding="5dp"/>
<TextView
android:text="计算机"
android:textColor="#ffffff"
android:gravity="center_horizontal" //设置内容显示位置
android:background="#005500"/>
<TextView
android:text="85"
android:textColor="#ffffff"
android:background="#000055"/>
</TableRow>
<TableRow>
<TextView
android:text="李四"
android:textColor="#000000"
android:layout_width="100dp"/>
<TextView
android:text="数学"
android:textColor="#ffffff"
android:gravity="center_horizontal"
android:background="#550000"/>
</TableRow>
<TableRow>
<TextView
android:text="王五"
android:textColor="#ffffff"
android:layout_width="50dp"
android:layout_height="50dp"
android:background="#555555"
android:gravity="center_vertical"/>
<TextView
android:text="统计"
android:textColor="#ffffff"
android:gravity="center_horizontal"
android:background="#000055"/>
<TextView
android:text="18000"
android:textColor="#000000"/>
</TableRow>
<TextView
android:text="赵六"
android:textColor="#ffffff"
android:layout_width="wrap_content"
android:layout_height="50dp"
android:background="#550000"
android:gravity="center_horizontal|center_vertical"/>
</TableLayout>

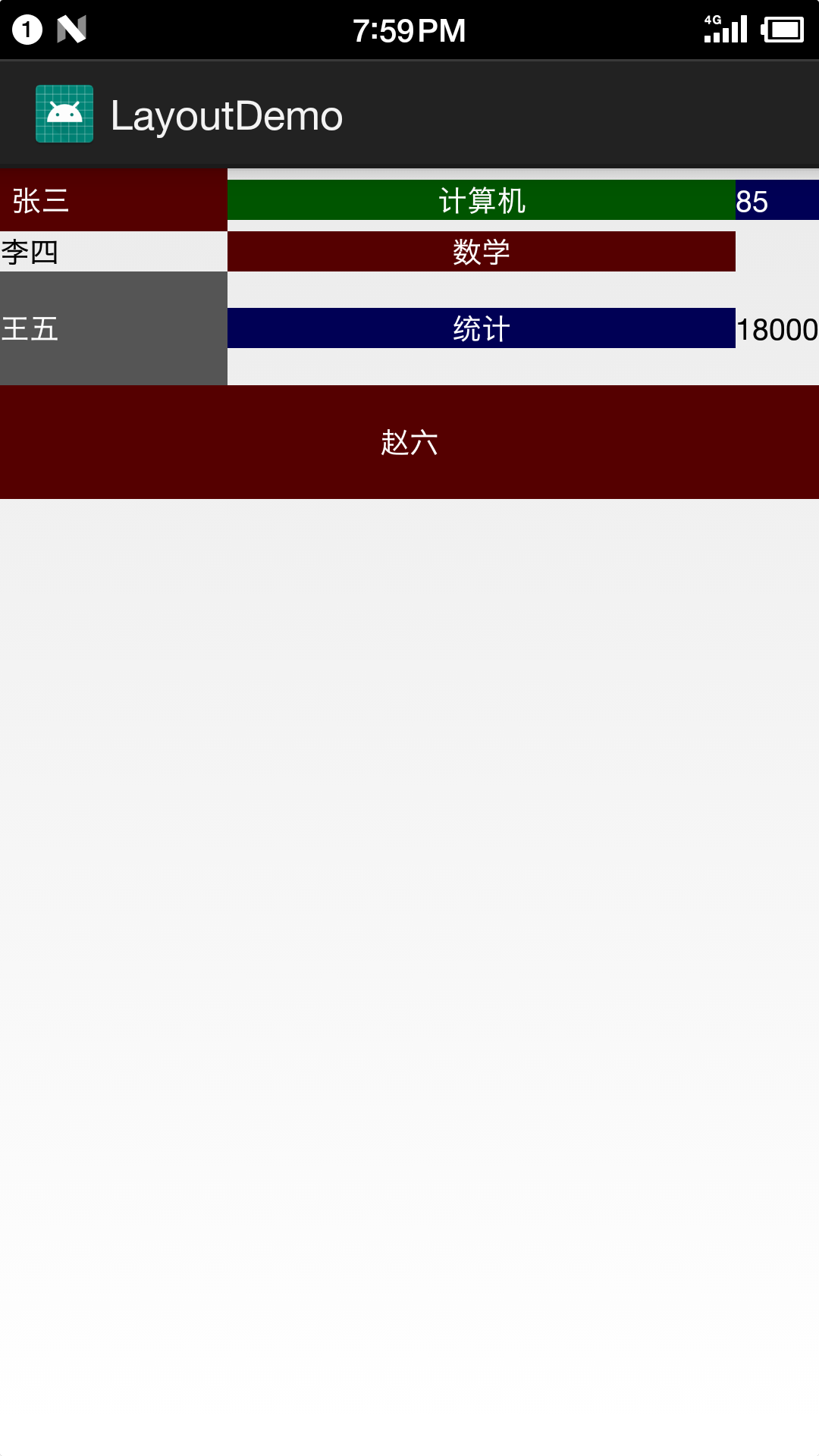

运行结果如下:
4.RativeLayout(相对布局)相对布局也火过很长时间,因为只需要找到相对物就能把别的控件好好的安排了。其实大家看名字就能懂,下面给大家展示一下代码:
<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout
xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:padding="20dp">
<TextView
android:id="@+id/label"
android:layout_height="wrap_content"
android:layout_width="wrap_content"
android:text="用户名:"/>
<EditText
android:id="@+id/entry"
android:layout_height="wrap_content"
android:layout_width="match_parent"
android:layout_below="@id/label"/>
<Button
android:id="@+id/cancel"
android:layout_height="wrap_content"
android:layout_width="wrap_content"
android:layout_alignParentRight="true"
android:layout_marginLeft="20px"
android:layout_below="@id/entry"
android:text="取消" />
<Button
android:id="@+id/ok"
android:layout_height="wrap_content"
android:layout_width="wrap_content"
android:layout_toLeftOf="@id/cancel"
android:layout_alignTop="@id/cancel"
android:text="确定"/>
</RelativeLayout>
是不是有几行代码看不太懂,下面给大家介绍几个关于这个控件的关键属性:
a)、第一类:属性值为true或false
android:layout_centerHrizontal 水平居中
android:layout_centerVertical 垂直居中
android:layout_centerInparent 相对于父元素完全居中
android:layout_alignParentBottom 贴紧父元素的下边缘
android:layout_alignParentLeft 贴紧父元素的左边缘
android:layout_alignParentRight 贴紧父元素的右边缘
android:layout_alignParentTop 贴紧父元素的上边缘
b)、第二类:属性值必须为id的引用名“@id/id-name”
android:layout_below 在某元素的下方
android:layout_above 在某元素的的上方
android:layout_toLeftOf 在某元素的左边
android:layout_toRightOf 在某元素的右边
android:layout_alignTop 本元素的上边缘和某元素的的上边缘对齐
android:layout_alignLeft 本元素的左边缘和某元素的的左边缘对齐
android:layout_alignBottom 本元素的下边缘和某元素的的下边缘对齐
android:layout_alignRight 本元素的右边缘和某元素的的右边缘对齐
c)、第三类:属性值为具体的像素值,如30dip,40px
android:layout_marginBottom 离某元素底边缘的距离
android:layout_marginLeft 离某元素左边缘的距离
android:layout_marginRight 离某元素右边缘的距离
android:layout_marginTop 离某元素上边缘的距离

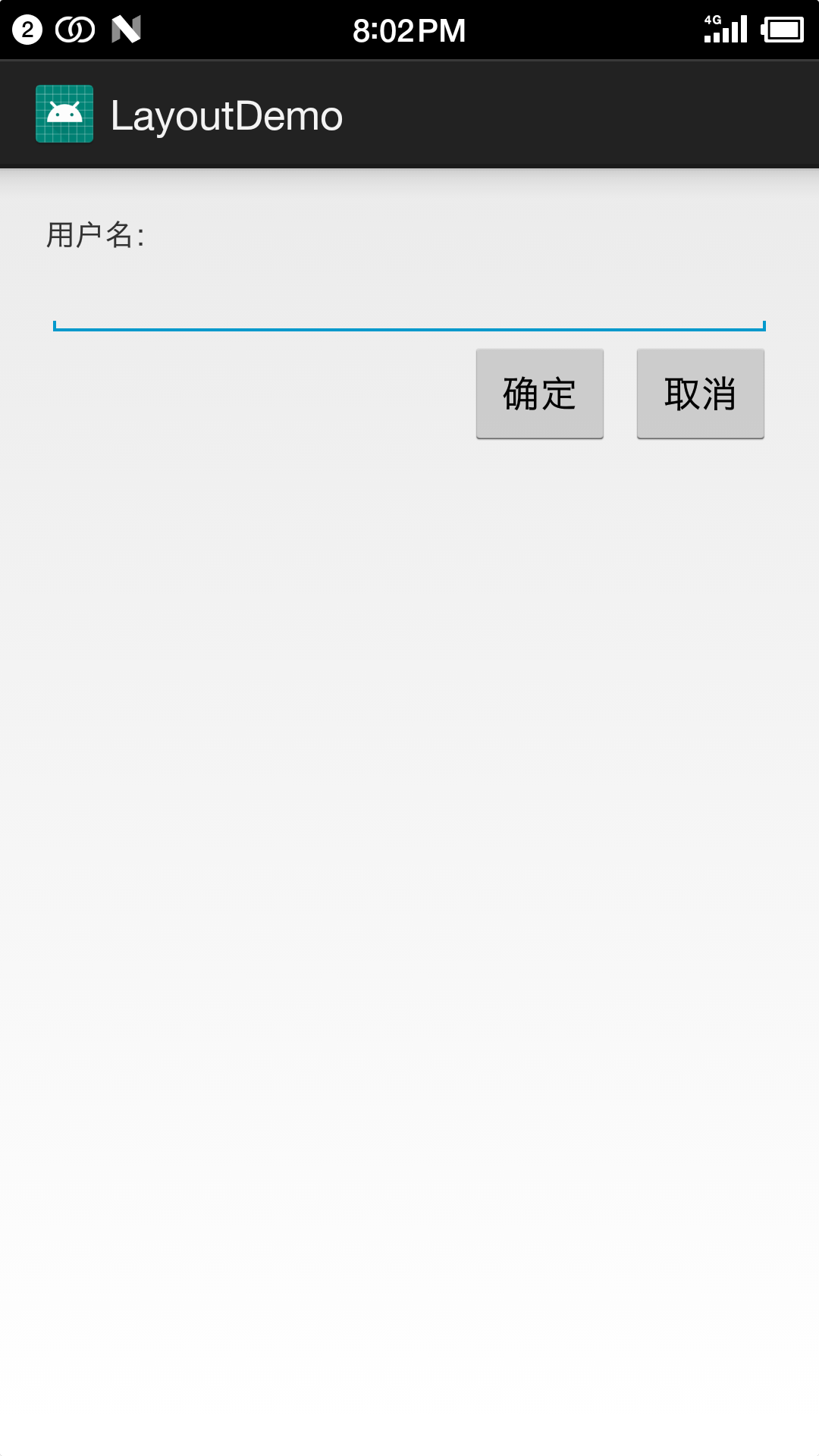

运行结果如下:
5.ConstraintLayout(约束布局)
这个已经成为android布局的主流,并且现在官方也极力推荐这种布局,估计以后这个就是霸主了。老实说这个还真没有什么要展示的代码,因为这些都可以在Design页面设计,下面给大家介绍一下这个控件的使用。首先肯定要创建这个控件的布局,不用担心,系统默认的就是。

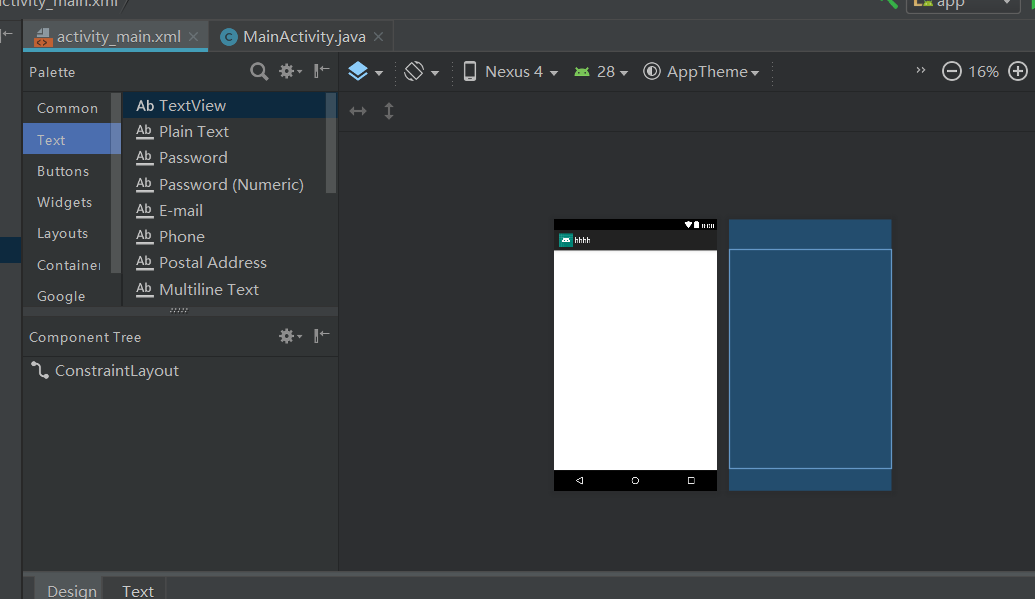

1.我们只需要找到自己需要的控件,然后拖进去:
在这里,我拖进去一个TextView

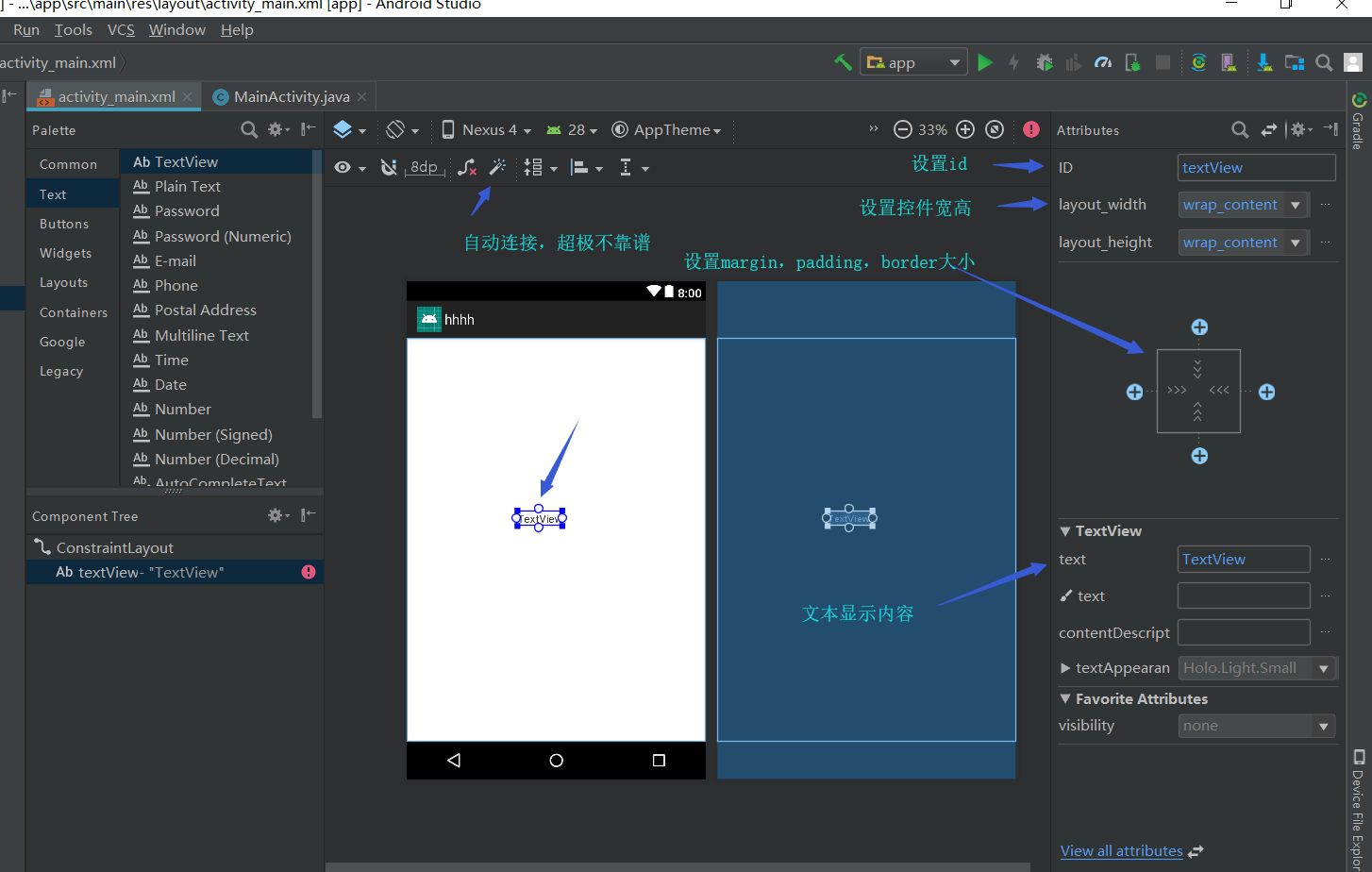

2.为控件设置属性

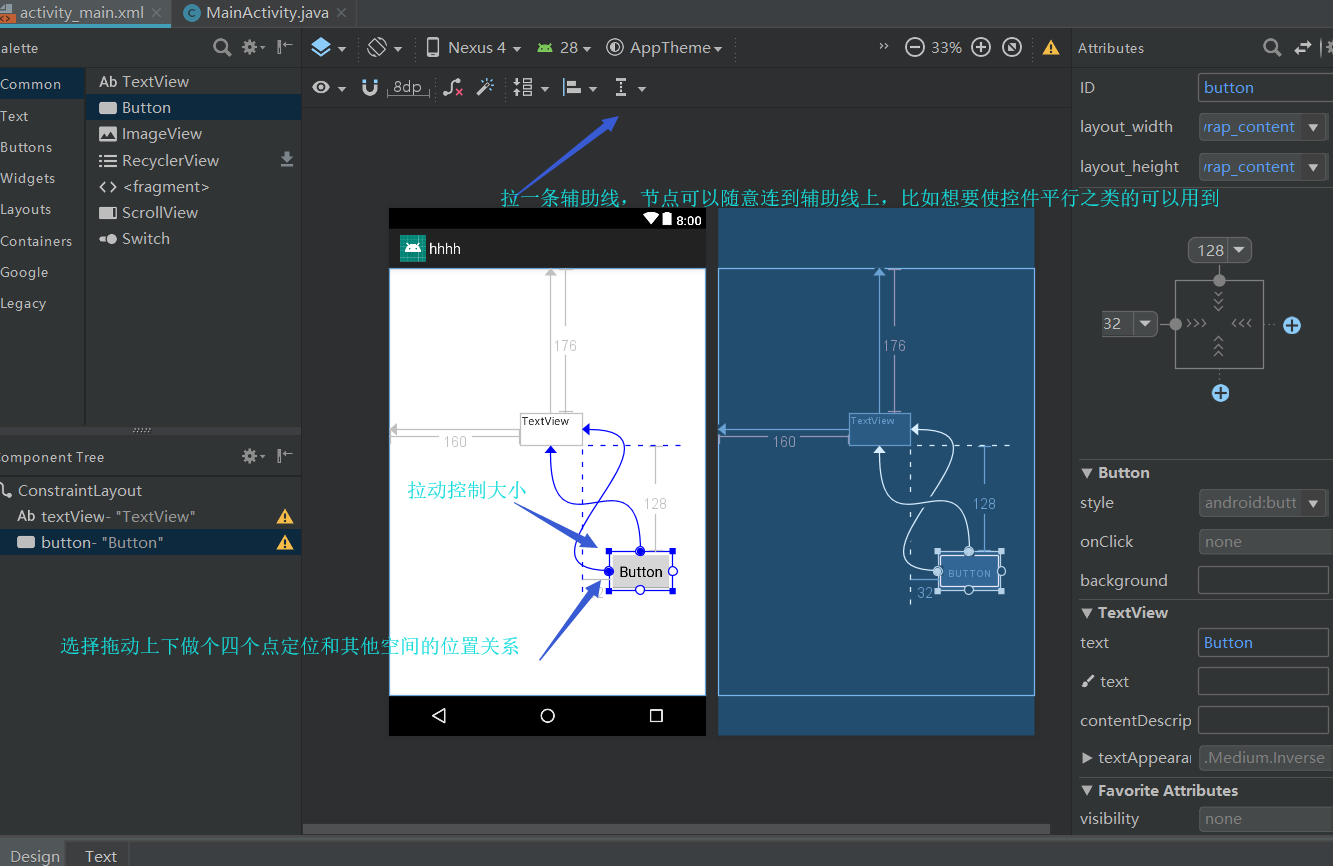

3.为控件设置位置
详细代码可到下面地址查阅:https://download.csdn.net/download/qq_38367681/10799407
