二叉树的最大深度与最小深度

最大深度

1）非递归遍历

 以层次遍历为例，对层次遍历稍加改写，遍历过程记录层数即可，遍历所有结点返回depth（注意与最小深度区分）

/**
 * Definition for a binary tree node.
 * struct TreeNode {
 *     int val;
 *     TreeNode *left;
 *     TreeNode *right;
 *     TreeNode(int x) : val(x), left(NULL), right(NULL) {}
 * };
 */
class Solution {
public:
    int maxDepth(TreeNode *root){
        if(!root) return 0;
        queue<TreeNode *> q;
        TreeNode *now;
        q.push(root);
        int depth=0;
        while(!q.empty()){
            depth++;
            int cnt=0;
            int qlength=q.size();
            while(cnt<qlength){
                cnt++;
                now=q.front();
                q.pop();
                if(now->left)  q.push(now->left);
                if(now->right) q.push(now->right);
            }
        }
        return depth;
    }
};

2）递归遍历：

递归进入到二叉树的最后一层的左右子树（空），然后逐层返回，每return一下，高度+1

int maxDepth2(TreeNode *root){
	if(!root) return 0;
	return max(maxDepth2(root->lchild),maxDepth2(root->rchild))+1;
}

最小深度

1）非递归遍历：

助队列进行层次遍历，累加层数，若某一层的某个结点没有左右子树则返回该结点所在层数，over（没有遍历完所有结点）（题目出自leetcode）

/**
 * Definition for a binary tree node.
 * struct TreeNode {
 *     int val;
 *     TreeNode *left;
 *     TreeNode *right;
 *     TreeNode(int x) : val(x), left(NULL), right(NULL) {}
 * };
 */
class Solution {
public:
    int minDepth(TreeNode* root) {
    if(!root) return 0;
       queue<TreeNode *> q;
       TreeNode *now;
       q.push(root);
       int depth=0;
       while(!q.empty()){
            depth++;
            int cnt=0;
            int qlength=q.size();
            while(cnt<qlength){
                cnt++;
                now=q.front();
                q.pop();
                if(now->left)  q.push(now->left);
                if(now->right)  q.push(now->right);
                if(!now->left && !now->right) return depth;
			}
        }
    }
};

递归写法：

1）空树返回0，只有一个根节点返回1
2）若根节点的左子树为空，对右子树进行算法递问
     若根节点的右子树为空，对左子树进行算法递问 （可能出现一边倾斜的那种问)
3）返回左右子树的最小高度+1

/**
 * Definition for a binary tree node.
 * struct TreeNode {
 *     int val;
 *     TreeNode *left;
 *     TreeNode *right;
 *     TreeNode(int x) : val(x), left(NULL), right(NULL) {}
 * };
 */
class Solution {
public:
    int minDepth(TreeNode* root) {
        if(!root) return 0;
        if(!root->left && !root->right) return 1;
        if(!root->left)
              return minDepth( root->right)+1;
        if(!root->right)
              return minDepth( root->left)+1;
        return min(minDepth( root->left),minDepth( root->right))+1;
    }
};

完整代码

​
#include<iostream>
#include<queue>
#include<stack>
using namespace std;

struct TreeNode{
	int val;
	TreeNode *lchild,*rchild;
};

//递归实现
int maxDepth1(TreeNode *root){
	if(!root) return 0;
	return max(maxDepth1(root->lchild),maxDepth1(root->rchild))+1;
}
//最大深度 递归实现
int maxDepth2(TreeNode *root){
    if(!root) return 0;
       queue<TreeNode *> q;
       TreeNode *now;
       q.push(root);
       int depth=0;
          while(!q.empty()){
              depth++;
              int cnt=0;
              int qlength=q.size();
              while(cnt<qlength){
                  cnt++;
                  now=q.front();
                  q.pop();
                  if(now->lchild)  q.push(now->lchild);
                  if(now->rchild) q.push(now->rchild);
            }
        }
    return depth;
}


//递归实现
/**
 * Definition for a binary tree node.
 * struct TreeNode {
 *     int val;
 *     TreeNode *left;
 *     TreeNode *right;
 *     TreeNode(int x) : val(x), left(NULL), right(NULL) {}
 * };
 */
int minDepth1(TreeNode* root) {
    if(!root) return 0;
    if(!root->lchild&& !root->rchild) return 1;
    if(!root->lchild)
        return minDepth1( root->rchild)+1;
    if(!root->rchild)
        return minDepth1( root->lchild)+1;
    return min(minDepth1( root->lchild),minDepth1( root->rchild))+1;
}

//非递归实现
int minDepth2(TreeNode *root){
    if(!root) return 0;
    queue<TreeNode *> q;
    TreeNode *now;
    q.push(root);
    int depth=0;
    while(!q.empty()){
        depth++;
        int cnt=0;
        int qlength=q.size();
        while(cnt<qlength){
            cnt++;
            now=q.front();
            q.pop();
            if(now->lchild)	q.push(now->lchild);
            if(now->rchild) q.push(now->rchild);
            if(!now->lchild && !now->rchild) return depth;
		}
    }
    return depth;
}

int main(){
	TreeNode *root=new TreeNode;
	root->val=1;
	root->lchild=new TreeNode;
        root->rchild=new TreeNode;
        root->lchild->val=2;
        root->rchild->val=3;
        root->lchild->lchild=new TreeNode;
	root->lchild->rchild=new TreeNode;
	root->lchild->lchild->val=4;
	root->lchild->rchild->val=5;
	root->lchild->lchild->lchild=NULL;
	root->lchild->lchild->rchild=NULL;
	root->lchild->rchild->lchild=NULL;
	root->lchild->rchild->rchild=NULL;
	root->rchild->lchild=NULL;
	root->rchild->rchild=NULL;
	int max_depth1=maxDepth1(root);
	int max_depth2=maxDepth2(root);
        cout<<"max_depth of binary tree:\n"<<"\n递归遍历:"<<max_depth1<<endl<<"\n非递归遍历:"<<max_depth2<<endl;
        int min_depth1=minDepth1(root);
        int min_depth2=minDepth2(root);
        cout<<"min_depth of binary tree:\n"<<"\n递归遍历:"<<min_depth1<<endl<<"\n非递归遍历:"<<min_depth2<<endl;
}

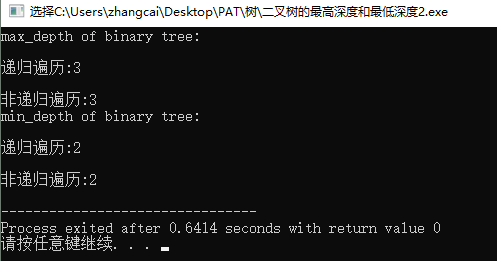

测试截图：
