CSS布局(position)

position定位分为了几个重要的属性,分别是绝对定位(absolute)、相对定位(relative)、固定定位(fixed)、static定位(static)

首先先放一段未进行定位的元素的HTML代码:

<!DOCTYPE html>
<html>
	<head>
		<meta charset="UTF-8">
		<title></title>
		<style>
			.div1{
				width: 200px;
				height: 200px;
				background-color: rosybrown;
			}
			.div2{
				width: 200px;
				height: 200px;
				background-color: coral;
			}
		</style>

	</head>
	<body>
			<div class="div1">div1</div>
			<div class="div2">div2</div>
	</body>
</html>

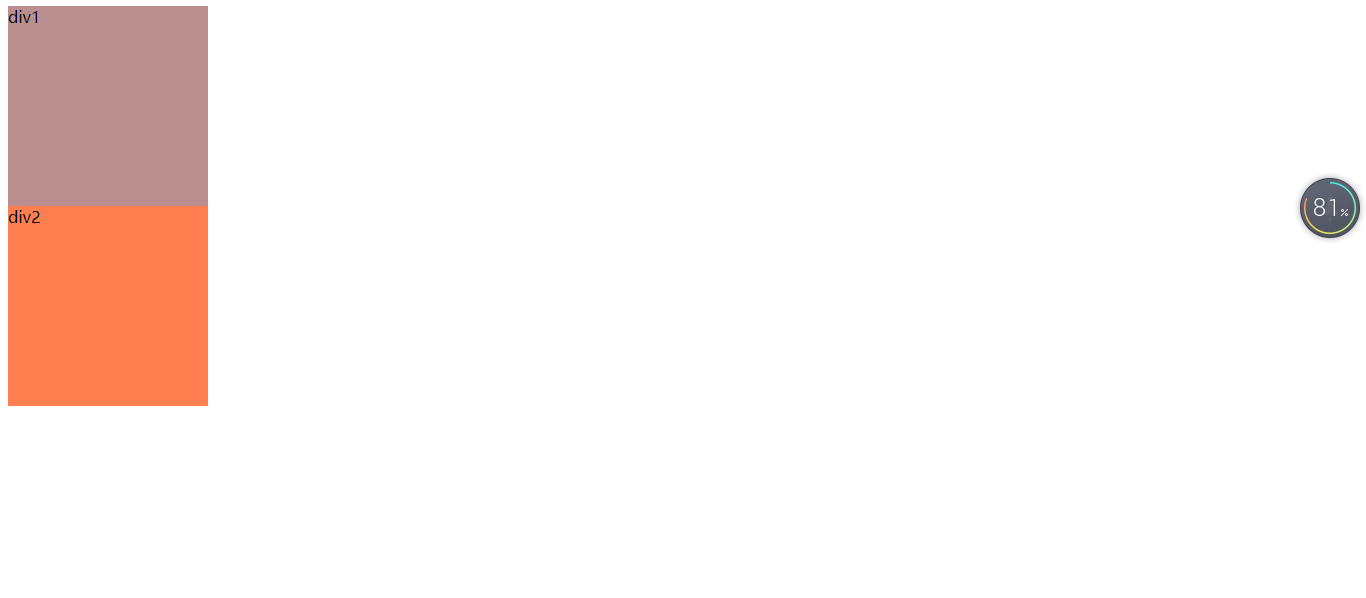

运行效果图:
运行效果图
根据以上的效果图可以看出来,我们在页面中放置了两个DIV,并且设置了它的宽度高度还有颜色。这是正常情况下,DIV标签是行级元素,所以每一个DIV都占用了一行位置。
以上的效果是一个初始的效果,我们将在初始效果上进行改动并作对比。

static
static定位其实是一个默认值,如果将position设置为static那么该元素将不会被特殊的定位。
代码:

<!DOCTYPE html>
<html>
	<head>
		<meta charset="UTF-8">
		<title></title>
		<style>
			.div1{
				width: 200px;
				height: 200px;
				background-color: rosybrown;

			}
			.div2{
				width: 200px;
				height: 200px;
				background-color: coral;
				position: static;
				top: 300px;
				left: 200px;

			}
		</style>

	</head>
	<body>
			<div class="div1">div1</div>
			<div class="div2">div2</div>
	</body>
</html>

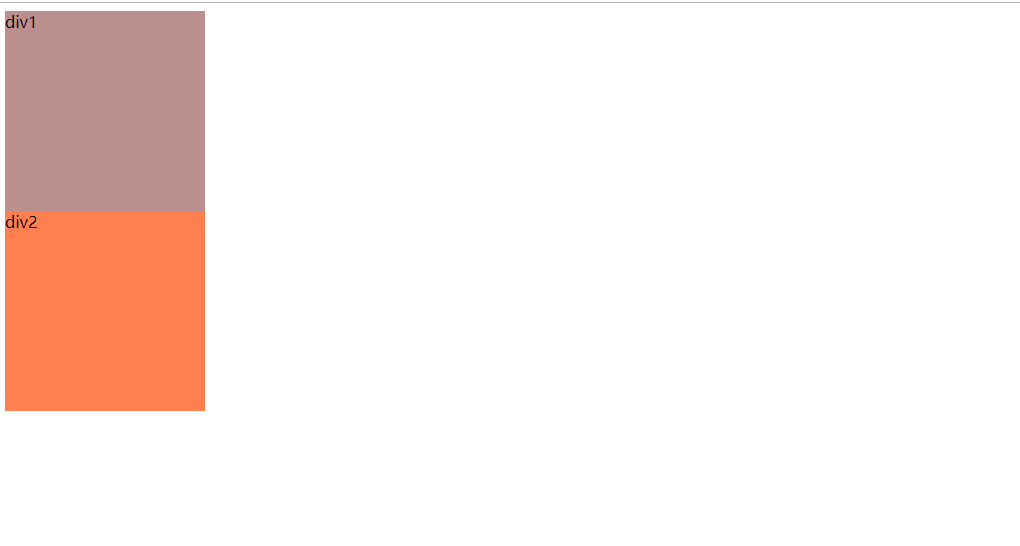

效果图:
static定位
以上的代码为div2添加了static定位并且设置了它的top值和left值,但是并没有什么卵用。

absolute

absolute是绝对定位,一旦设置了该属性,被设置的元素将从文档流中脱离出来。
并且absolute分为了两种方式进行绝对定位,如果说被绝对定位的元素存在父节点但是父节点未设置其他的position,那么该方式将以body为基准进行定位。以下代码就是该方式。
代码:

<!DOCTYPE html>
<html>
	<head>
		<meta charset="UTF-8">
		<title></title>
		<style>
			.div1{
				width: 200px;
				height: 200px;
				background-color: rosybrown;
				position: absolute;
			}
			.div2{
				width: 200px;
				height: 200px;
				background-color: coral;
			}
		</style>

	</head>
	<body>
			<div class="div1">div1</div>
			<div class="div2">div2</div>
	</body>
</html>

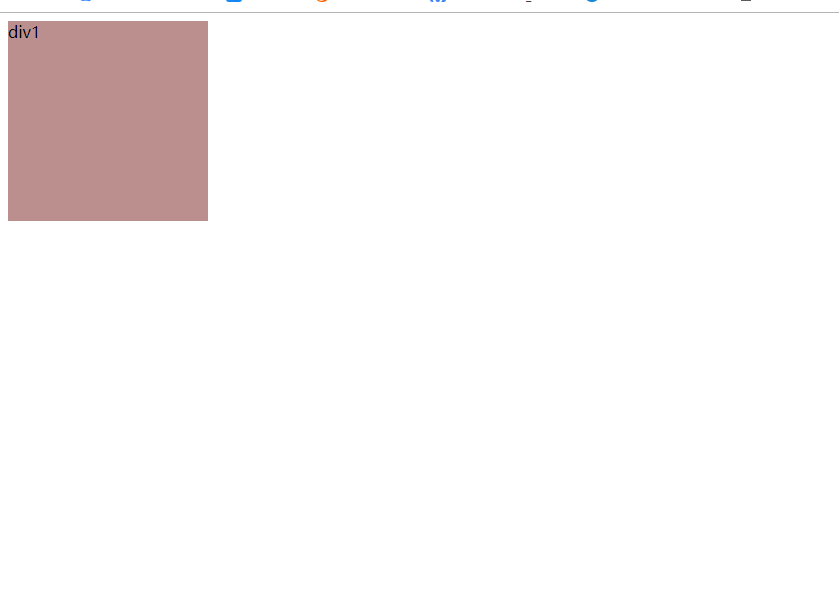

效果图:
absolute
效果图中目前只能看到div1元素,因为div1被设置了absolute元素脱离的文档流,所以div2元素往上移动到了之前的div1的位置。

代码:

<!DOCTYPE html>
<html>
	<head>
		<meta charset="UTF-8">
		<title></title>
		<style>
			.div1{
				width: 50px;
				height: 50px;
				background-color: rosybrown;
				position: absolute;
				top: 0px;
			}
			.div2{
				width: 200px;
				height: 200px;
				background-color: coral;
			}
		</style>

	</head>
	<body>
			<div class="div2">
				div2
				<div class="div1">div1</div>
			</div>
	</body>
</html>

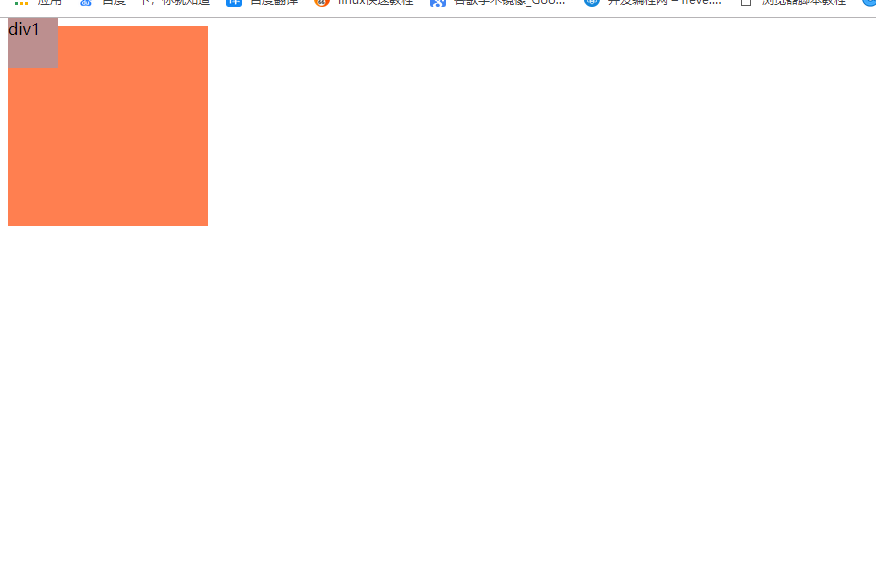

在这里插入图片描述
以上代码,是为了验证当被absolute绝对定位的元素div1并且存在没有设置定位的父元素后,absolute是基于body进行定位。我在代码中将top为值设置为了0px,div1元素是被定位到了body的0px的位置。

然后我们在实验另外一种情况,如果它存在父节点并且父节点也设定了position,则它的定位将不依照body进行定位,而是按照父节点的位置进行定位。
代码:

<!DOCTYPE html>
<html>
	<head>
		<meta charset="UTF-8">
		<title></title>
		<style>
			.div1{
				width: 50px;
				height: 50px;
				background-color: rosybrown;
				position: absolute;
				top: 0px;
			}
			.div2{
				width: 200px;
				height: 200px;
				background-color: coral;
				position: relative;
			}
		</style>

	</head>
	<body>
			<div class="div2">
				div2
				<div class="div1">div1</div>
			</div>
	</body>
</html>

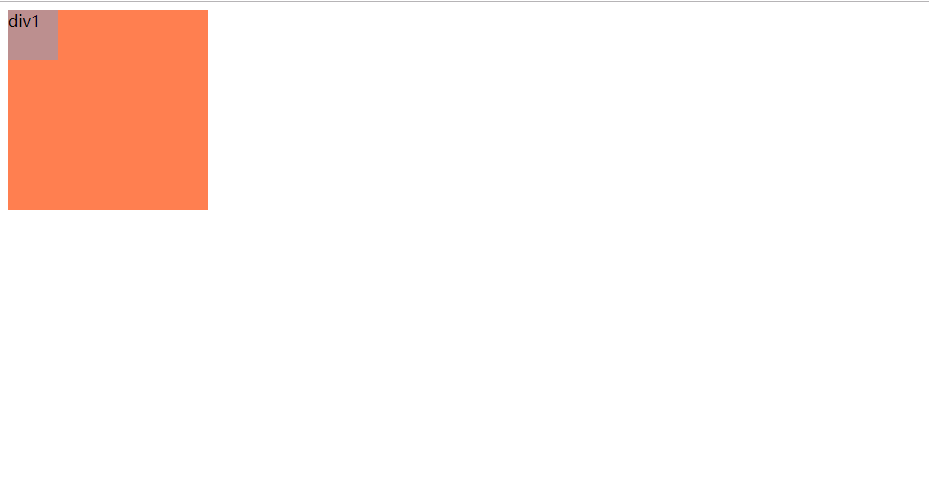

效果图:
在这里插入图片描述
这里就可以看到效果了,我给div1元素的父节点div2节点,设置了定位之后div1元素的定位是基于它的父节点来进行定位,如果父节点移动的话,那么div1也会跟着父节点div2进行移动。

relative
相对定位属性relative,在不添加额外的属性(top,left,…)与static定位是类似的。在一个定位为relative的元素上设置额外的属性该元素将会脱离正常的位置,但不会脱离文档流。

代码:

<!DOCTYPE html>
<html>
	<head>
		<meta charset="UTF-8">
		<title></title>
		<style>
			.div1{
				width: 50px;
				height: 50px;
				background-color: rosybrown;
			}
			.div2{
				width: 200px;
				height: 200px;
				background-color: coral;
				position: relative;
				top: 300px;
			}
		</style>

	</head>
	<body>
			<div class="div2">
				div2
			</div>
			<div class="div1">div1</div>
	</body>
</html>

效果图:

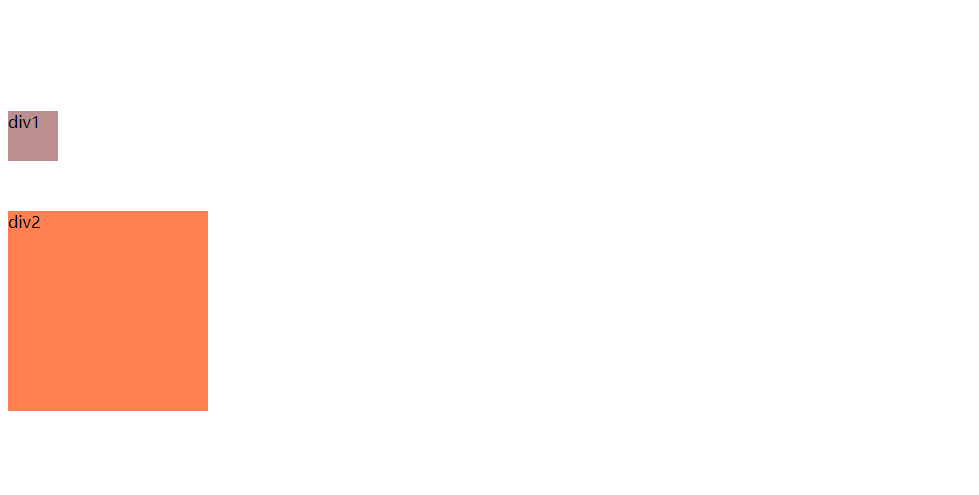

在这里插入图片描述
可以看到该元素的定位并不会影响其他元素的位置,它其实也就是根据自己初始化的位置进行相对定位。

fixed
固定定位(position属性的值为fixed)元素会相对于视窗来定位,这意味着即便页面滚动,它还是会停留在相同的位置。和 relative 一样, top 、 right 、 bottom 和 left 属性都可用。
代码:

<!DOCTYPE html>
<html>
	<head>
		<meta charset="UTF-8">
		<title></title>
		<style>
			.div1{
				width: 50px;
				height: 50px;
				background-color: rosybrown;
				position: fixed;
				bottom: 0px;
			}
			.div2{
				width: 200px;
				height: 200px;
				background-color: coral;
			}
		</style>

	</head>
	<body>
			<div class="div2">
				div2
			</div>
			<div class="div1">div1</div>
	</body>
</html>

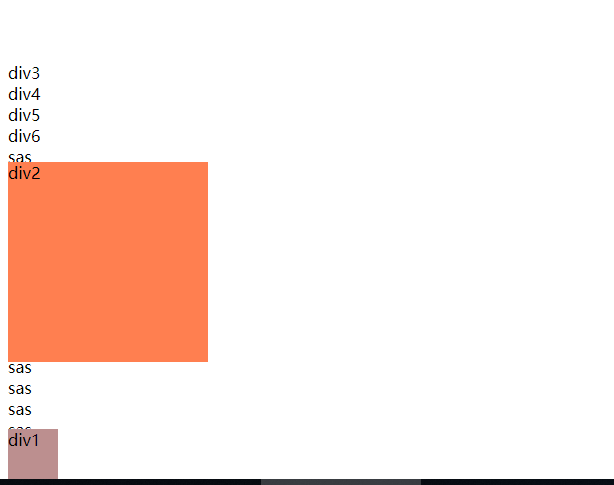

效果图
在这里插入图片描述
为div1元素设定了固定定位之后,他将脱离文档流,不管文档有没有滚动,他都会在最底部。

以上说的就是CSS布局中的定位属性。熟练运用可搞出更复杂了页面布局。
