Spring-AOP模块的Advisor分析

描述：Advisor模块是切面核心实现，需要重点掌握

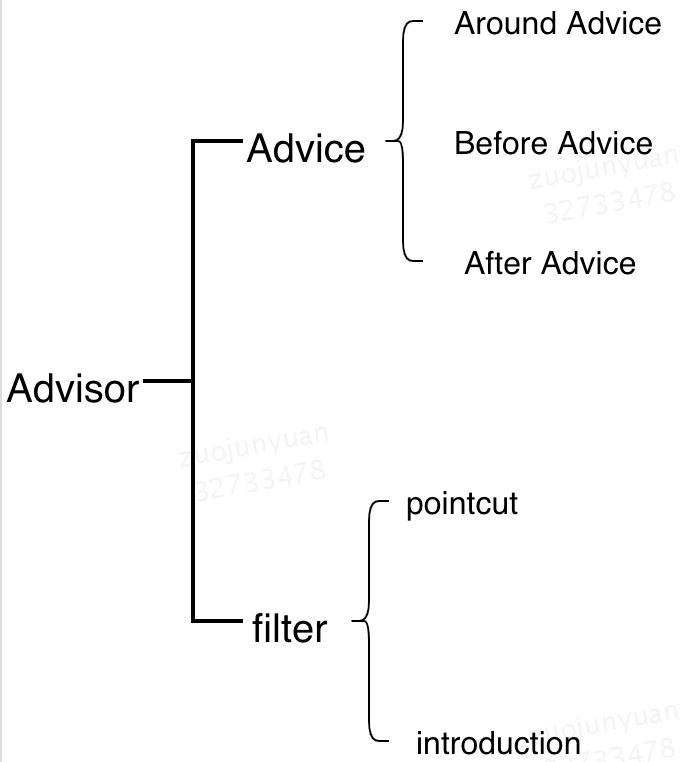

使用结构：

UML结构图如下：

备注：IntroductionAdvisor:不使用pointcut,只作用于类(根据类的实现接口做筛选)。 todo:详细理解IntroductionAdvisor

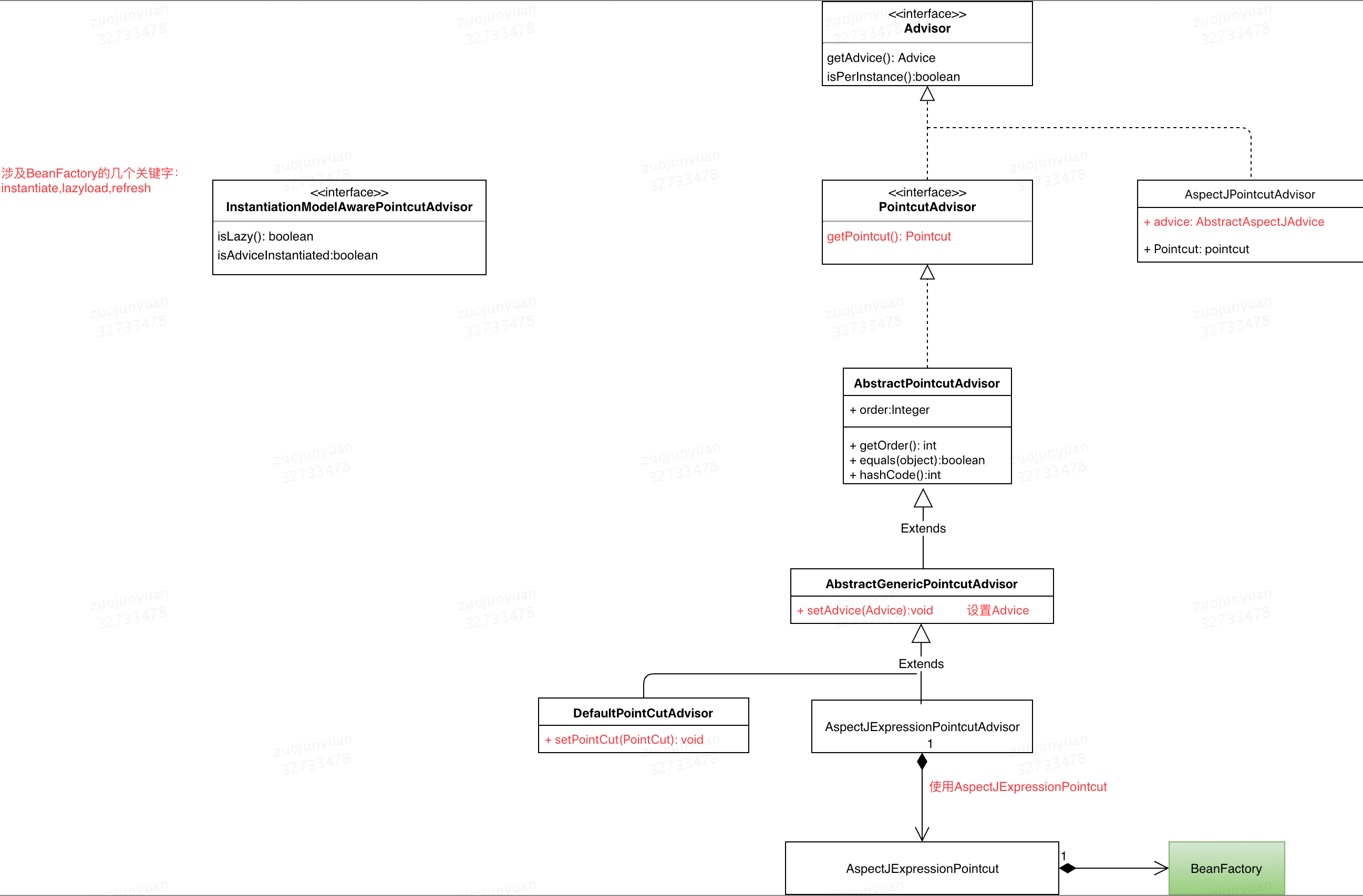

PointcutAdvisor的UML结构图如下：

Pointcut: 一个切入点由一个类过滤器和一个方法匹配器组成; 维度是类和方法

public interface Pointcut {

   /**
    * Return the ClassFilter for this pointcut.
    * @return the ClassFilter (never {@code null})
    */
   ClassFilter getClassFilter();  //类过滤器
   /**
    * Return the MethodMatcher for this pointcut.
    * @return the MethodMatcher (never {@code null})
    */
   MethodMatcher getMethodMatcher(); //方法匹配器
   /**
    * Canonical Pointcut instance that always matches.
    */
   Pointcut TRUE = TruePointcut.INSTANCE;
}

实现类型	实现功能	例子
JdkRegexpMethodPointcut	使用正则表达式来匹配类型和方法
AnnotationMatchingPointcut	通过类和方法是否实现特定注解进行匹配
AbstractExpressionPointcut	使用表达式进行方法匹配
AspectJExpressionPointcut	使用AspectJweaver来计算切入点表达式(pointcut expression),支持方法(Method)

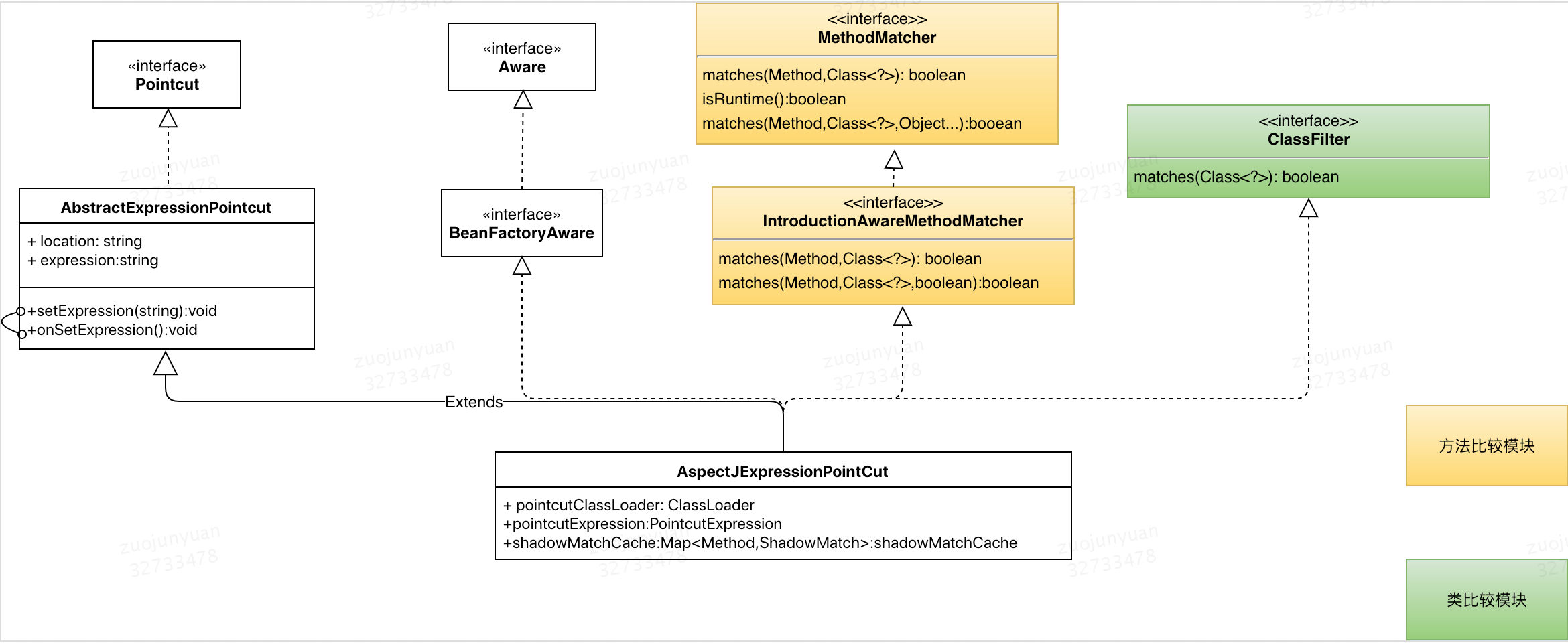

AbstractExpressionPointcut类UML结构图如下：

AspectJExpressionPointcut:使用AspectJweaver来计算切入点表达式(pointcut expression),支持方法(Method)

核心方法：

1.matches

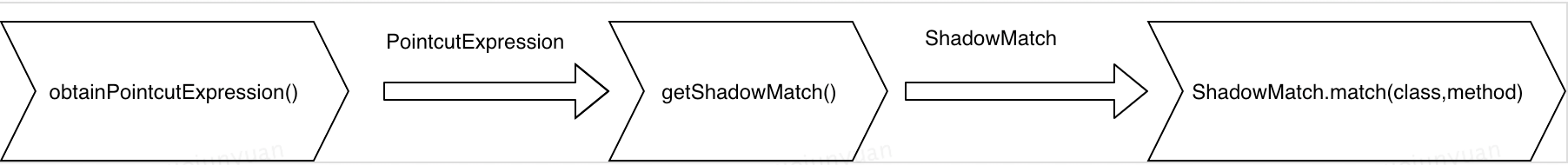

matches方法核心业务流程：

@Override
	public boolean matches(Method method, @Nullable Class<?> targetClass, Object... args) {
		obtainPointcutExpression();
		ShadowMatch shadowMatch = getShadowMatch(AopUtils.getMostSpecificMethod(method, targetClass), method);
		ShadowMatch originalShadowMatch = getShadowMatch(method, method);

		// Bind Spring AOP proxy to AspectJ "this" and Spring AOP target to AspectJ target,
		// consistent with return of MethodInvocationProceedingJoinPoint
		ProxyMethodInvocation pmi = null;
		Object targetObject = null;
		Object thisObject = null;
		try {
			MethodInvocation mi = ExposeInvocationInterceptor.currentInvocation();
			targetObject = mi.getThis();
			if (!(mi instanceof ProxyMethodInvocation)) {
				throw new IllegalStateException("MethodInvocation is not a Spring ProxyMethodInvocation: " + mi);
			}
			pmi = (ProxyMethodInvocation) mi;
			thisObject = pmi.getProxy();
		}
		catch (IllegalStateException ex) {
			// No current invocation...
			if (logger.isDebugEnabled()) {
				logger.debug("Could not access current invocation - matching with limited context: " + ex);
			}
		}

		try {
			JoinPointMatch joinPointMatch = shadowMatch.matchesJoinPoint(thisObject, targetObject, args);

			/*
			 * Do a final check to see if any this(TYPE) kind of residue match. For
			 * this purpose, we use the original method's (proxy method's) shadow to
			 * ensure that 'this' is correctly checked against. Without this check,
			 * we get incorrect match on this(TYPE) where TYPE matches the target
			 * type but not 'this' (as would be the case of JDK dynamic proxies).
			 * <p>See SPR-2979 for the original bug.
			 */
			if (pmi != null && thisObject != null) {  // there is a current invocation
				RuntimeTestWalker originalMethodResidueTest = getRuntimeTestWalker(originalShadowMatch);
				if (!originalMethodResidueTest.testThisInstanceOfResidue(thisObject.getClass())) {
					return false;
				}
				if (joinPointMatch.matches()) {
					bindParameters(pmi, joinPointMatch);
				}
			}

			return joinPointMatch.matches();
		}
		catch (Throwable ex) {
			if (logger.isDebugEnabled()) {
				logger.debug("Failed to evaluate join point for arguments " + Arrays.asList(args) +
						" - falling back to non-match", ex);
			}
			return false;
		}
	}

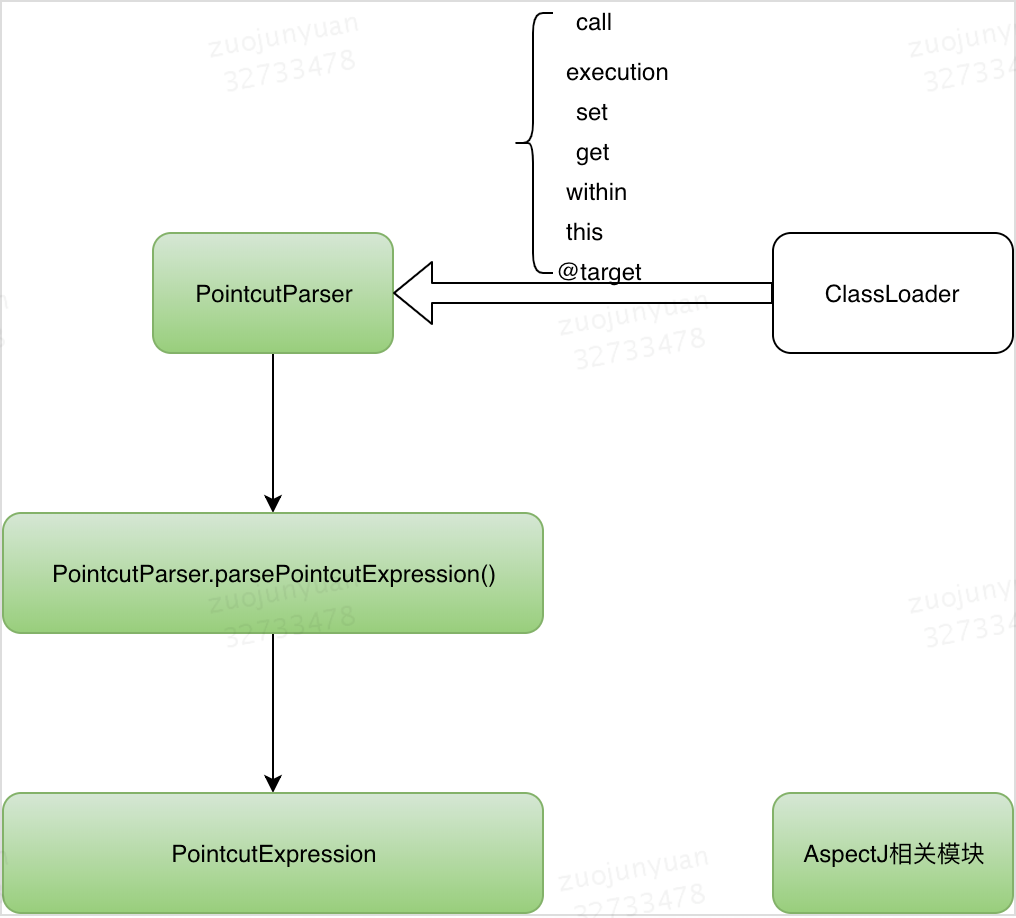

2.obtainPointcutExpression

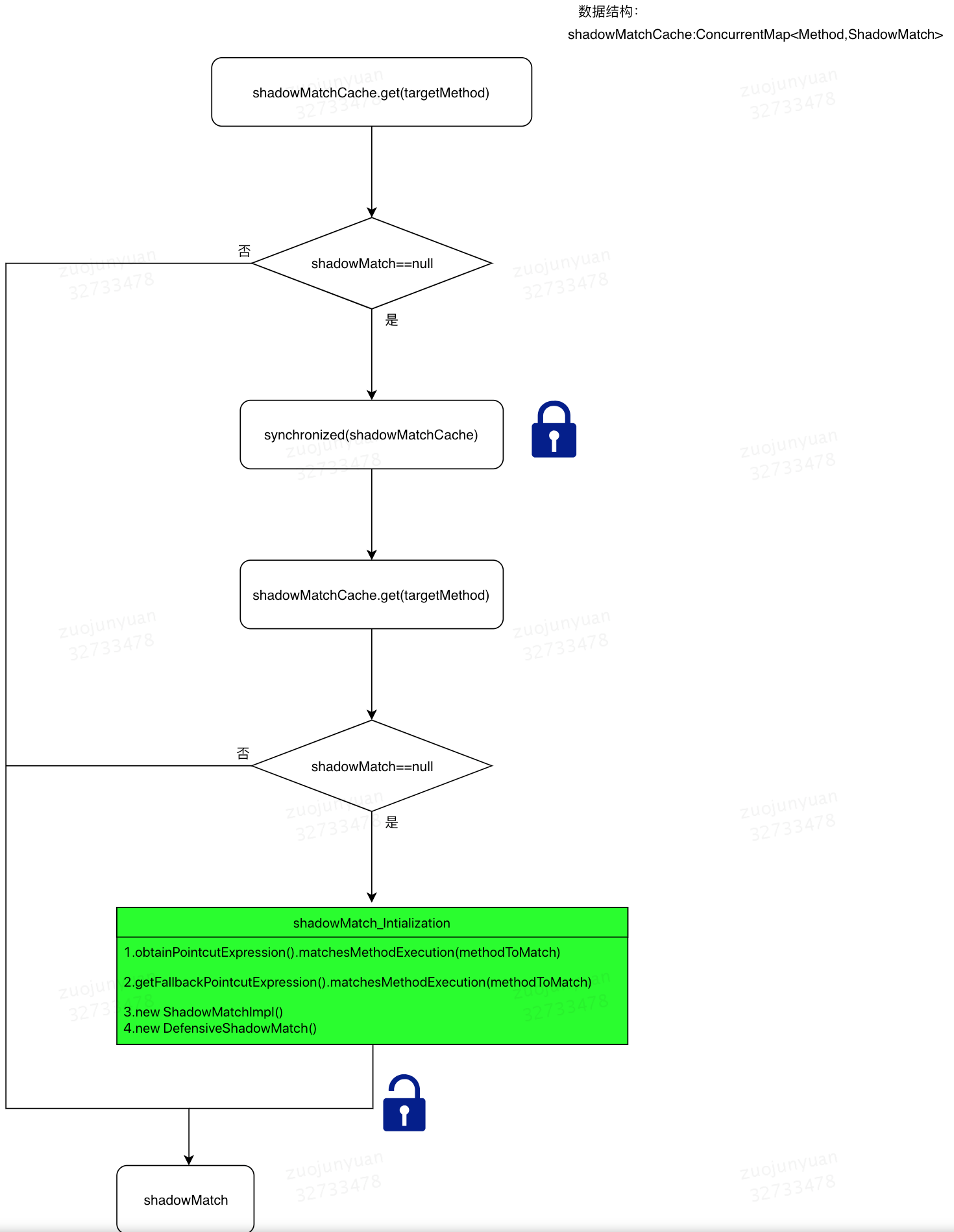

3.getShadowMatch

AbstractBeanFactoryPointcutAdvisor：基于BeanFactory的抽象PointcutAdvisor,通过名称来引用BeanFactory中的Spring Bean 作为Advice(Spring AOP和IOC模块集成)

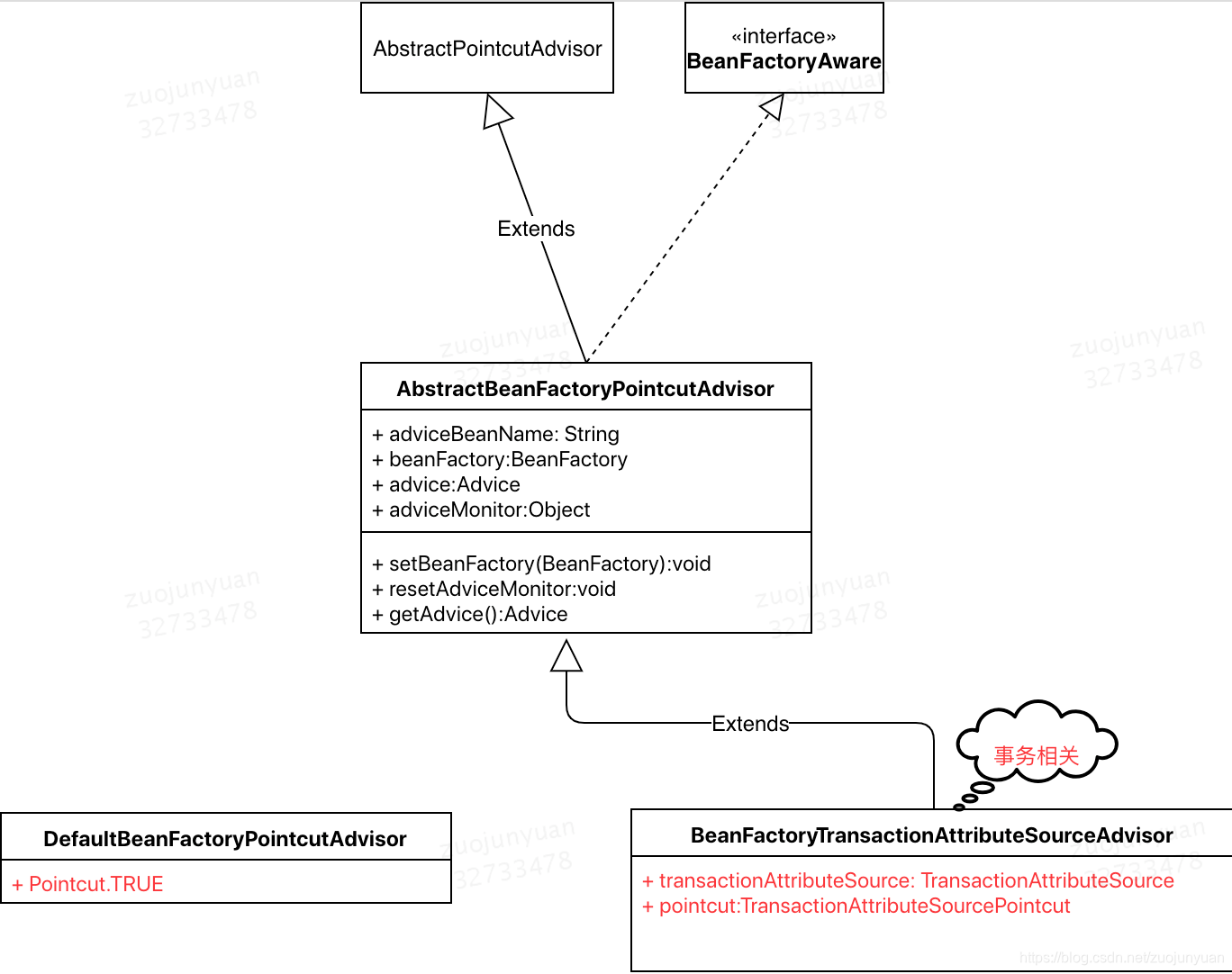

类图如下：

核心方法：

1.resetAdviceMonitor

2.getAdvice

DefaultAdvisorChainFactory:根据Advised对象的advisor列表重新生成MethodInterceptor chain

核心方法：

1.getInterceptorsAndDynamicInterceptionAdvice

@Override
	public List<Object> getInterceptorsAndDynamicInterceptionAdvice(
			Advised config, Method method, @Nullable Class<?> targetClass) {

		// This is somewhat tricky... We have to process introductions first,
		// but we need to preserve order in the ultimate list.
		List<Object> interceptorList = new ArrayList<>(config.getAdvisors().length);
		Class<?> actualClass = (targetClass != null ? targetClass : method.getDeclaringClass());
		boolean hasIntroductions = hasMatchingIntroductions(config, actualClass);
		AdvisorAdapterRegistry registry = GlobalAdvisorAdapterRegistry.getInstance();

		for (Advisor advisor : config.getAdvisors()) {
			if (advisor instanceof PointcutAdvisor) {
				// Add it conditionally.
				PointcutAdvisor pointcutAdvisor = (PointcutAdvisor) advisor;
				if (config.isPreFiltered() || pointcutAdvisor.getPointcut().getClassFilter().matches(actualClass)) {
					MethodInterceptor[] interceptors = registry.getInterceptors(advisor);
					MethodMatcher mm = pointcutAdvisor.getPointcut().getMethodMatcher();
					if (MethodMatchers.matches(mm, method, actualClass, hasIntroductions)) {
						if (mm.isRuntime()) {
							// Creating a new object instance in the getInterceptors() method
							// isn't a problem as we normally cache created chains.
							for (MethodInterceptor interceptor : interceptors) {
								interceptorList.add(new InterceptorAndDynamicMethodMatcher(interceptor, mm));
							}
						}
						else {
							interceptorList.addAll(Arrays.asList(interceptors));
						}
					}
				}
			}
			else if (advisor instanceof IntroductionAdvisor) {
				IntroductionAdvisor ia = (IntroductionAdvisor) advisor;
				if (config.isPreFiltered() || ia.getClassFilter().matches(actualClass)) {
					Interceptor[] interceptors = registry.getInterceptors(advisor);
					interceptorList.addAll(Arrays.asList(interceptors));
				}
			}
			else {
				Interceptor[] interceptors = registry.getInterceptors(advisor);
				interceptorList.addAll(Arrays.asList(interceptors));
			}
		}

		return interceptorList;
	}

执行流程如下：

遍历config对象的Advisor列表类型，采取不同的过滤方式：

1.Advisor的具体实现类型是PointcutAdvisor,通过class和method match 进行过滤

2.Advisor的具体实现类型是IntroductionAdvisor,通过class match进行过滤

3.其他类型直接通过

ReflectiveAspectJAdvisorFactory:用于创建AspectJ类型的Spring AOP advisor的工厂类;在使用AspectJ 5注解的类型上，通过反射的方式调用相应的advice方法

核心方法：

getAdvisors(MetadataAwareAspectInstanceFactory aspectInstanceFactory)

执行流程：

a.遍历使用AspectJ注解对象的包含Around,Before,After,AfterReturning和AfterThrowing注解的方法，调用getAdvisor方法来生成Advisor

b.判断当前类型的Aspect注解设置的延迟初始化属性，决定是否生成SyntheticInstantiationAdvisor

c.遍历当前类型的使用DeclareParents注解的字段，生成DeclareParentsAdvisor

2. getAdvisor(Method candidateAdviceMethod, MetadataAwareAspectInstanceFactory aspectInstanceFactory,
int declarationOrderInAspect, String aspectName)

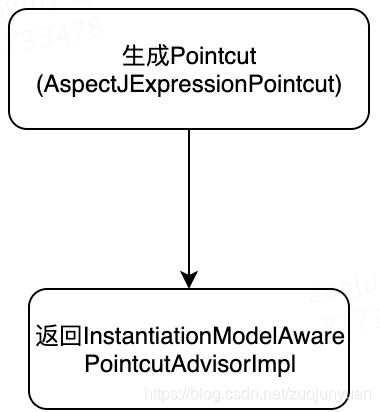

执行流程：

3. getAdvice(Method candidateAdviceMethod, AspectJExpressionPointcut expressionPointcut,
MetadataAwareAspectInstanceFactory aspectInstanceFactory, int declarationOrder, String aspectName)

执行流程：

根据方法上的Aspect注解，生成对应的Advice

注解类型	advice类型	分析链接
AtBefore	AspectJMethodBeforeAdvice
AtAfter	AspectJAfterAdvice
AtAfterReturning	AspectJAfterReturningAdvice
AtAfterThrowing	AspectJAfterThrowingAdvice
AtAround	AspectJAroundAdvice
