文章目录
1、简单的消息队列
1.1、创建连接
public class ConnectionUtil {
public static Connection getConnection() throws Exception {
//定义连接工厂
ConnectionFactory factory = new ConnectionFactory();
//设置服务地址
factory.setHost("127.0.0.1");
//端口
factory.setPort(5672);
//设置账号信息,用户名、密码、vhost
factory.setVirtualHost("/taotao");
factory.setUsername("taotao");
factory.setPassword("taotao");
// 通过工程获取连接
Connection connection = factory.newConnection();
return connection;
}
}
1.2、生产者向队列中发送消息
package cn.aop8.rabbitmq.simple;
import cn.aop8.rabbitmq.util.ConnectionUtil;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
public class Send {
private final static String QUEUE_NAME = "test_queue";
public static void main(String[] args) throws Exception {
// 获取到连接以及mq通道
Connection connection = ConnectionUtil.getConnection();
// 从连接中创建通道
Channel channel = connection.createChannel();
// 声明(创建)队列
channel.queueDeclare(QUEUE_NAME, false, false, false, null);
// 消息内容
String message = "Hello World!";
channel.basicPublish("", QUEUE_NAME, null, message.getBytes());
System.out.println(" [x] Sent '" + message + "'");
//关闭通道和连接
channel.close();
connection.close();
}
}
channel.basicPublish(String exchange, String routingKey, BasicProperties props, byte[] body);
- exchange:交换器名称
- routingKey:路由键
- props:消息属性
- body:消息内容
1.3、消费者
package cn.aop8.rabbitmq.simple;
import cn.aop8.rabbitmq.util.ConnectionUtil;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.QueueingConsumer;
public class Recv {
private final static String QUEUE_NAME = "test_queue";
public static void main(String[] args) throws Exception {
// 获取到连接以及mq通道
Connection connection = ConnectionUtil.getConnection();
Channel channel = connection.createChannel();
// 声明队列
channel.queueDeclare(QUEUE_NAME, false, false, false, null);
// 定义队列的消费者
QueueingConsumer consumer = new QueueingConsumer(channel);
// 监听队列
channel.basicConsume(QUEUE_NAME, true, consumer);
// 获取消息
while (true) {
QueueingConsumer.Delivery delivery = consumer.nextDelivery();
String message = new String(delivery.getBody());
System.out.println(" [x] Received '" + message + "'");
}
}
}
2、work模式
2.1、生产者
package cn.aop8.rabbitmq.work;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import cn.aop8.rabbitmq.util.ConnectionUtil;
public class Send {
private final static String QUEUE_NAME = "test_queue_work";
public static void main(String[] args) throws Exception {
// 获取到连接以及mq通道
Connection connection = ConnectionUtil.getConnection();
Channel channel = connection.createChannel();
// 声明队列
channel.queueDeclare(QUEUE_NAME, false, false, false, null);
for (int i = 0; i < 100; i++) {
// 消息内容
String message = "" + i;
channel.basicPublish("", QUEUE_NAME, null, message.getBytes());
System.out.println(" [x] Sent '" + message + "'");
Thread.sleep(i * 10);
}
channel.close();
connection.close();
}
}
2.2、消费者1
从队列中获取消息,每次获取到消息后,休眠10毫秒,这个消费者消费消息比较快。
package cn.aop8.rabbitmq.work;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.QueueingConsumer;
import cn.aop8.rabbitmq.util.ConnectionUtil;
public class Recv {
private final static String QUEUE_NAME = "test_queue_work";
public static void main(String[] args) throws Exception {
// 获取到连接以及mq通道
Connection connection = ConnectionUtil.getConnection();
Channel channel = connection.createChannel();
// 声明队列
channel.queueDeclare(QUEUE_NAME, false, false, false, null);
// 同一时刻服务器只会发一条消息给消费者
//channel.basicQos(1);
// 定义队列的消费者
QueueingConsumer consumer = new QueueingConsumer(channel);
// 监听队列,手动返回完成
//第1个参数:队列名称
//第2个参数:是否自动应答
//第3个参数:回调函数
channel.basicConsume(QUEUE_NAME, false, consumer);
// 获取消息
while (true) {
QueueingConsumer.Delivery delivery = consumer.nextDelivery();
String message = new String(delivery.getBody());
System.out.println(" [x] Received '" + message + "'");
//休眠
Thread.sleep(10);
// 返回确认状态
//如果为“真”,则确认提供的传递标签之前的所有消息,包括提供的传递标签;
//如果为“假”,则仅确认提供的传递标签。
channel.basicAck(delivery.getEnvelope().getDeliveryTag(), false);
}
}
}
2.3、消费者2
从队列中获取消息,每次获取到消息后,休眠 1000毫秒 ,这个消费者消费消息比较慢。
package cn.aop8.rabbitmq.work;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.QueueingConsumer;
import cn.aop8.rabbitmq.util.ConnectionUtil;
public class Recv2 {
private final static String QUEUE_NAME = "test_queue_work";
public static void main(String[] args) throws Exception {
// 获取到连接以及mq通道
Connection connection = ConnectionUtil.getConnection();
Channel channel = connection.createChannel();
// 声明队列
channel.queueDeclare(QUEUE_NAME, false, false, false, null);
// 同一时刻服务器只会发一条消息给消费者
//channel.basicQos(1);
// 定义队列的消费者
QueueingConsumer consumer = new QueueingConsumer(channel);
// 监听队列,手动返回完成状态
channel.basicConsume(QUEUE_NAME, false, consumer);
// 获取消息
while (true) {
QueueingConsumer.Delivery delivery = consumer.nextDelivery();
String message = new String(delivery.getBody());
System.out.println(" [x] Received '" + message + "'");
// 休眠1秒
Thread.sleep(1000);
channel.basicAck(delivery.getEnvelope().getDeliveryTag(), false);
}
}
}
2.4、测试结果
消费者1和消费者2获取到的消息是一样多,各50个。 这样是否合理? – 不合理的。
2.5、work模式中的能者多劳

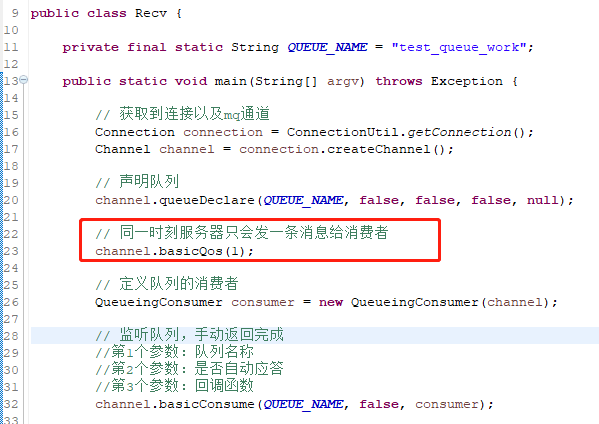

开启消费者1、消费者2的 channel.basicQos(1)
,表示 同一时刻服务器只会发一条消息给消费者。
实际这种情况更加的合理。
测试结果:
消费者1:67条消息
消费者2:33条消息
2.6、自动和手动反馈消息消费状态
自动:
消费端从服务端获取到消息后,就认为该消息已经成功消息,无论是否出异常。
代码说明:

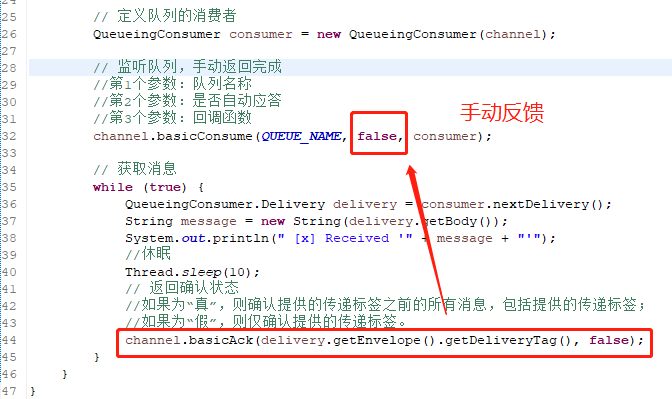

手动:
消费端 从服务端获取消息后,服务端要标记为该不可用状态,等待消费端的反馈,如果消费端一直没有反馈,该消息一直被标记为不可用,
如果接收到消费端的反馈,服务端就将该消息删除。
代码说明:
3、订阅模式(Publish/Subscribe)
订阅:微信中的公众号,所有订阅该公众号的人都会接受到该消息。
注意:
1、 消息是发送到交换机,而不是队列
a) 消息可以发送到队列,也可以发送到交换机
2、 消费者的消息来源只能是队列
如果将消息发送到没有绑定队列的交换机上,消息会去哪?
1、 消息存放在交换机
2、 消息丢失
说明:消息只能存放于队列,不能存放到交换机,交换机只是用于消息的传递。
3.1、发送者
package cn.aop8.rabbitmq.pubsub;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import cn.aop8.rabbitmq.util.ConnectionUtil;
public class Send {
private final static String EXCHANGE_NAME = "test_exchange_fanout";
public static void main(String[] args) throws Exception {
// 获取到连接以及mq通道
Connection connection = ConnectionUtil.getConnection();
Channel channel = connection.createChannel();
// 声明exchange,第一个参数是交换机的名称,第二个参数是交换机类型(direct,fanous,headers,topic)
channel.exchangeDeclare(EXCHANGE_NAME, "fanout");
// 消息内容
String message = "Hello World!";
channel.basicPublish(EXCHANGE_NAME, "", null, message.getBytes());
System.out.println(" [x] Sent '" + message + "'");
channel.close();
connection.close();
}
}
channel.exchangeDeclare(EXCHANGE_NAME, "fanout");
第一个参数:交换机的名称,
第二个参数:交换机类型。可选值(direct,fanous,headers,topic)
channel.basicPublish(String exchange, String routingKey, BasicProperties props, byte[] body);
- exchange:交换机名称
- routingKey:路由名称
- props:消息属性
- body:消息内容
3.2、消费者1
package cn.aop8.rabbitmq.pubsub;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.QueueingConsumer;
import cn.aop8.rabbitmq.util.ConnectionUtil;
public class Recv {
private final static String QUEUE_NAME = "test_queue_ps_1";
private final static String EXCHANGE_NAME = "test_exchange_fanout";
public static void main(String[] args) throws Exception {
// 获取到连接以及mq通道
Connection connection = ConnectionUtil.getConnection();
Channel channel = connection.createChannel();
// 声明队列
channel.queueDeclare(QUEUE_NAME, false, false, false, null);
// 绑定队列到交换机
channel.queueBind(QUEUE_NAME, EXCHANGE_NAME, "");
// 同一时刻服务器只会发一条消息给消费者
channel.basicQos(1);
// 定义队列的消费者
QueueingConsumer consumer = new QueueingConsumer(channel);
// 监听队列,手动返回完成
channel.basicConsume(QUEUE_NAME, false, consumer);
// 获取消息
while (true) {
QueueingConsumer.Delivery delivery = consumer.nextDelivery();
String message = new String(delivery.getBody());
System.out.println(" [x] Received '" + message + "'");
Thread.sleep(10);
channel.basicAck(delivery.getEnvelope().getDeliveryTag(), false);
}
}
}
3.3、消费者2
package cn.aop8.rabbitmq.pubsub;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.QueueingConsumer;
import cn.aop8.rabbitmq.util.ConnectionUtil;
public class Recv2 {
private final static String QUEUE_NAME = "test_queue_ps_2";
private final static String EXCHANGE_NAME = "test_exchange_fanout";
public static void main(String[] args) throws Exception {
// 获取到连接以及mq通道
Connection connection = ConnectionUtil.getConnection();
Channel channel = connection.createChannel();
// 声明队列
channel.queueDeclare(QUEUE_NAME, false, false, false, null);
// 绑定队列到交换机
channel.queueBind(QUEUE_NAME, EXCHANGE_NAME, "");
// 同一时刻服务器只会发一条消息给消费者
channel.basicQos(1);
// 定义队列的消费者
QueueingConsumer consumer = new QueueingConsumer(channel);
// 监听队列,手动返回完成
channel.basicConsume(QUEUE_NAME, false, consumer);
// 获取消息
while (true) {
QueueingConsumer.Delivery delivery = consumer.nextDelivery();
String message = new String(delivery.getBody());
System.out.println(" [x] Received '" + message + "'");
Thread.sleep(10);
channel.basicAck(delivery.getEnvelope().getDeliveryTag(), false);
}
}
}
3.4、测试
结果:消费者1和消费者2同时都能获取到消息。
3.5、订阅模式和work模式的区别
1、 work模式将消息发送到 队列, 订阅模式将消息发送到 交换机
3、 work模式是1个队列2个消费者,订阅模式是2个队列2个消费者
4、路由模式(routing)
交换器类型
路由模式、topic模式只是订阅模式的扩展罢了,属于不同的交换机类型。
交换器类型的取值有:fanous、direct、topic 、headers。
channel.exchangeDeclare(EXCHANGE_NAME, "fanout");
//订阅模式
channel.exchangeDeclare(EXCHANGE_NAME, "direct");
//路由模式
channel.exchangeDeclare(EXCHANGE_NAME, "topic");
//topic模式
-
fanout:(订阅模式)
它会把所有发送到交换器的消息路由到所有与该交换器绑定的队列中。
-
direct:(默认值,路由模式)
direct类型的交换器路由规则也很简单,它会把消息路由到那些BindingKey 和RoutingKey完全匹配的队列中。
-
topic:(topic模式)
将消息路由到 BindingKey RoutingKey 相匹配的队列中,但这里的匹配规则有些不同…
-
headers :
headers 类型的交换器不依赖于路由键的匹配规则来路由消息,而是根据发送的消息内容中的headers 属性进行匹配。
路由模式:
可以在队列绑定到交换机时指定一个规则,根据不同的消息中规格,选择是否接受该消息。
4.1、生产者
package cn.aop8.rabbitmq.routing;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import cn.aop8.rabbitmq.util.ConnectionUtil;
public class Send {
private final static String EXCHANGE_NAME = "test_exchange_direct";
public static void main(String[] args) throws Exception {
// 获取到连接以及mq通道
Connection connection = ConnectionUtil.getConnection();
Channel channel = connection.createChannel();
// 声明exchange
channel.exchangeDeclare(EXCHANGE_NAME, "direct");
// 消息内容
String message = "Hello World!";
channel.basicPublish(EXCHANGE_NAME, "key2", null, message.getBytes());
System.out.println(" [x] Sent '" + message + "'");
channel.close();
connection.close();
}
}
4.2、消费者1
package cn.aop8.rabbitmq.routing;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.QueueingConsumer;
import cn.aop8.rabbitmq.util.ConnectionUtil;
public class Recv {
private final static String QUEUE_NAME = "test_queue_work";
private final static String EXCHANGE_NAME = "test_exchange_direct";
public static void main(String[] args) throws Exception {
// 获取到连接以及mq通道
Connection connection = ConnectionUtil.getConnection();
Channel channel = connection.createChannel();
// 声明队列
channel.queueDeclare(QUEUE_NAME, false, false, false, null);
// 绑定队列到交换机
channel.queueBind(QUEUE_NAME, EXCHANGE_NAME, "key");
// 同一时刻服务器只会发一条消息给消费者
channel.basicQos(1);
// 定义队列的消费者
QueueingConsumer consumer = new QueueingConsumer(channel);
// 监听队列,手动返回完成
channel.basicConsume(QUEUE_NAME, false, consumer);
// 获取消息
while (true) {
QueueingConsumer.Delivery delivery = consumer.nextDelivery();
String message = new String(delivery.getBody());
System.out.println(" [x] Received '" + message + "'");
Thread.sleep(10);
channel.basicAck(delivery.getEnvelope().getDeliveryTag(), false);
}
}
}
4.3、消费者2
package cn.aop8.rabbitmq.routing;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.QueueingConsumer;
import cn.aop8.rabbitmq.util.ConnectionUtil;
public class Recv2 {
private final static String QUEUE_NAME = "test_queue_work2";
private final static String EXCHANGE_NAME = "test_exchange_direct";
public static void main(String[] args) throws Exception {
// 获取到连接以及mq通道
Connection connection = ConnectionUtil.getConnection();
Channel channel = connection.createChannel();
// 声明队列
channel.queueDeclare(QUEUE_NAME, false, false, false, null);
// 绑定队列到交换机
channel.queueBind(QUEUE_NAME, EXCHANGE_NAME, "key2");
// 同一时刻服务器只会发一条消息给消费者
channel.basicQos(1);
// 定义队列的消费者
QueueingConsumer consumer = new QueueingConsumer(channel);
// 监听队列,手动返回完成
channel.basicConsume(QUEUE_NAME, false, consumer);
// 获取消息
while (true) {
QueueingConsumer.Delivery delivery = consumer.nextDelivery();
String message = new String(delivery.getBody());
System.out.println(" [x] Received '" + message + "'");
Thread.sleep(10);
channel.basicAck(delivery.getEnvelope().getDeliveryTag(), false);
}
}
}
5、topic模式(通配符)
路由键符号 “#” 匹配 一个或多个词,符号 “*” 匹配 一个词。
5.1、生产者
package cn.aop8.rabbitmq.topic;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import cn.aop8.rabbitmq.util.ConnectionUtil;
public class Send {
private final static String EXCHANGE_NAME = "test_exchange_topic";
public static void main(String[] args) throws Exception {
// 获取到连接以及mq通道
Connection connection = ConnectionUtil.getConnection();
Channel channel = connection.createChannel();
// 声明exchange
channel.exchangeDeclare(EXCHANGE_NAME, "topic");
// 消息内容
String message = "Hello World!";
channel.basicPublish(EXCHANGE_NAME, "item.INSERT", null, message.getBytes());
System.out.println(" [x] Sent '" + message + "'");
channel.close();
connection.close();
}
}
channel.basicPublish(String exchange, String routingKey, BasicProperties props, byte[] body);
- exchange:交换器名称
- routingKey:路由键
- props:消息属性
- body:消息内容
5.2、消费者1
package cn.aop8.rabbitmq.topic;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.QueueingConsumer;
import cn.aop8.rabbitmq.util.ConnectionUtil;
public class Recv {
private final static String QUEUE_NAME = "test_queue_topic_1";
private final static String EXCHANGE_NAME = "test_exchange_topic";
public static void main(String[] args) throws Exception {
// 获取到连接以及mq通道
Connection connection = ConnectionUtil.getConnection();
Channel channel = connection.createChannel();
// 声明队列
channel.queueDeclare(QUEUE_NAME, false, false, false, null);
// 绑定队列到交换机
channel.queueBind(QUEUE_NAME, EXCHANGE_NAME, "item.UPDATE");
// 同一时刻服务器只会发一条消息给消费者
channel.basicQos(1);
// 定义队列的消费者
QueueingConsumer consumer = new QueueingConsumer(channel);
// 监听队列,手动返回完成
channel.basicConsume(QUEUE_NAME, false, consumer);
// 获取消息
while (true) {
QueueingConsumer.Delivery delivery = consumer.nextDelivery();
String message = new String(delivery.getBody());
System.out.println(" [x] Received '" + message + "'");
Thread.sleep(10);
channel.basicAck(delivery.getEnvelope().getDeliveryTag(), false);
}
}
}
//绑定队列到交换机
Queue.BindOk queueBind(String queueName, String exchange, String bindingKey)
queueName:队列名称
exchange:交换器名称
bindingKey:绑定键
5.3、消费者2
package cn.aop8.rabbitmq.topic;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.QueueingConsumer;
import cn.aop8.rabbitmq.util.ConnectionUtil;
public class Recv2 {
private final static String QUEUE_NAME = "test_queue_topic_2";
private final static String EXCHANGE_NAME = "test_exchange_topic";
public static void main(String[] args) throws Exception {
// 获取到连接以及mq通道
Connection connection = ConnectionUtil.getConnection();
Channel channel = connection.createChannel();
// 声明队列
channel.queueDeclare(QUEUE_NAME, false, false, false, null);
// 绑定队列到交换机
channel.queueBind(QUEUE_NAME, EXCHANGE_NAME, "item.#");
// 同一时刻服务器只会发一条消息给消费者
channel.basicQos(1);
// 定义队列的消费者
QueueingConsumer consumer = new QueueingConsumer(channel);
// 监听队列,手动返回完成
channel.basicConsume(QUEUE_NAME, false, consumer);
// 获取消息
while (true) {
QueueingConsumer.Delivery delivery = consumer.nextDelivery();
String message = new String(delivery.getBody());
System.out.println(" [x] Received '" + message + "'");
Thread.sleep(10);
channel.basicAck(delivery.getEnvelope().getDeliveryTag(), false);
}
}
}
