服务器环境:hadoop2.7.3集群、zookeper3.4.10集群、hbase1.2.5集群
测试环境:windows10、spring tool suite(STS)
一、测试前准备
1、由于是在windows连接Hbase,而hbase是依赖于hadoop的,所以我们需要下载hadoop的二进制包,这里我仅提供2.7.3版本的。下载地址:https://pan.baidu.com/s/1eL6fEU9AFMfZ871xnlJ0-g 提取码:vwel
把下载的haddop二进制包解压到你磁盘下的某个目录,后面配置需要用到。
2、本测试使用的是maven管理JAR包,还没安装maven的可以参考:Maven工程项目的创建(Eclipse)、打包及运行(Windows cmd)

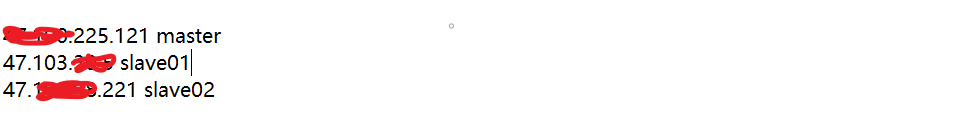

3、打开本地 C:\Windows\System32\drivers\etc下的名为hosts的系统文件。在文件底部插入集群名映射到ip,参考下图:
二、添加依赖
在pom.xml文件的<dependencies></dependencies>中添加以下依赖:
<!--HBase依赖 -->
<dependency>
<groupId>org.apache.hbase</groupId>
<artifactId>hbase-client</artifactId>
<version>1.2.5</version>
<exclusions>
<exclusion>
<groupId>org.slf4j</groupId>
<artifactId>slf4j-log4j12</artifactId>
</exclusion>
</exclusions>
</dependency>
<dependency>
<groupId>org.springframework.data</groupId>
<artifactId>spring-data-hadoop</artifactId>
<version>2.5.0.RELEASE</version>
</dependency>
<dependency>
<groupId>org.apache.hadoop</groupId>
<artifactId>hadoop-hdfs</artifactId>
<version>2.7.3</version>
</dependency>
<dependency>
<groupId>org.springframework.data</groupId>
<artifactId>spring-data-hadoop-core</artifactId>
<version>2.4.0.RELEASE</version>
</dependency>
<dependency>
<groupId>org.apache.hbase</groupId>
<artifactId>hbase</artifactId>
<version>1.2.5</version>
<type>pom</type>
</dependency>
<!--HBase依赖 -->
二、新建HBase工具类
新建一个HBaseUtils工具类,代码如下:
HBaseUtils.java:
package com.qcxy.helper.hbase;
import org.apache.hadoop.conf.Configuration;
import org.apache.hadoop.hbase.HBaseConfiguration;
import org.apache.hadoop.hbase.TableName;
import org.apache.hadoop.hbase.client.*;
import java.io.IOException;
import java.util.ArrayList;
import java.util.List;
import java.util.Map;
import java.util.Properties;
/**
* HBase工具类 Author zzq
*/
public class HBaseUtils {
private static Connection connection;
private static Configuration configuration;
private static HBaseUtils hBaseUtils;
private static Properties properties;
/**
* 创建连接池并初始化环境配置
*/
public void init() {
properties = System.getProperties();
// 实例化HBase配置类
if (configuration == null) {
configuration = HBaseConfiguration.create();
}
try {
// 加载本地hadoop二进制包,换成你解压的地址
properties.setProperty("hadoop.home.dir", "E:\\springboot\\hadoop-common-2.7.3-bin-master");
// zookeeper集群的URL配置信息
configuration.set("hbase.zookeeper.quorum", "master,slave01,slave02");
// HBase的Master
configuration.set("hbase.master", "master:90000");
// 客户端连接zookeeper端口
configuration.set("hbase.zookeeper.property.clientPort", "2181");
// HBase RPC请求超时时间,默认60s(60000)
configuration.setInt("hbase.rpc.timeout", 20000);
// 客户端重试最大次数,默认35
configuration.setInt("hbase.client.retries.number", 10);
// 客户端发起一次操作数据请求直至得到响应之间的总超时时间,可能包含多个RPC请求,默认为2min
configuration.setInt("hbase.client.operation.timeout", 30000);
// 客户端发起一次scan操作的rpc调用至得到响应之间的总超时时间
configuration.setInt("hbase.client.scanner.timeout.period", 200000);
// 获取hbase连接对象
if (connection == null || connection.isClosed()) {
connection = ConnectionFactory.createConnection(configuration);
}
} catch (IOException e) {
e.printStackTrace();
}
}
/**
* 关闭连接池
*/
public static void close() {
try {
if (connection != null)
connection.close();
} catch (IOException e) {
e.printStackTrace();
}
}
/**
* 私有无参构造方法
*/
private HBaseUtils() {
}
/**
* 唯一实例,线程安全,保证连接池唯一
*
* @return
*/
public static HBaseUtils getInstance() {
if (hBaseUtils == null) {
synchronized (HBaseUtils.class) {
if (hBaseUtils == null) {
hBaseUtils = new HBaseUtils();
hBaseUtils.init();
}
}
}
return hBaseUtils;
}
/**
* 单行插入数据
*
* @param tablename
* @param rowkey
* @param family
* @param cloumns
* @throws IOException
*/
public static void put(String tablename, String rowkey, String family, Map<String, String> cloumns)
throws IOException {
Table table = null;
try {
table = connection.getTable(TableName.valueOf(tablename));
Put put = new Put(rowkey.getBytes());
for (Map.Entry<String, String> entry : cloumns.entrySet()) {
put.addColumn(family.getBytes(), entry.getKey().getBytes(), entry.getValue().getBytes());
}
table.put(put);
} catch (IOException e) {
e.printStackTrace();
} finally {
table.close();
close();
}
}
/**
* 获取单条数据
*
* @param tablename
* @param row
* @return
* @throws IOException
*/
public static Result getRow(String tablename, String row) throws IOException {
Table table = null;
Result result = null;
try {
table = connection.getTable(TableName.valueOf(tablename));
Get get = new Get(row.getBytes());
result = table.get(get);
} finally {
table.close();
}
return result;
}
/**
* 查询多行信息
*
* @param tablename
* @param rows
* @return
* @throws IOException
*/
public static Result[] getRows(String tablename, List<byte[]> rows) throws IOException {
Table table = null;
List<Get> gets = null;
Result[] results = null;
try {
table = connection.getTable(TableName.valueOf(tablename));
gets = new ArrayList<Get>();
for (byte[] row : rows) {
if (row != null) {
gets.add(new Get(row));
}
}
if (gets.size() > 0) {
results = table.get(gets);
}
} catch (IOException e) {
e.printStackTrace();
} finally {
table.close();
}
return results;
}
/**
* 获取整表数据
*
* @param tablename
* @return
*/
public static ResultScanner get(String tablename) throws IOException {
Table table = null;
ResultScanner results = null;
try {
table = connection.getTable(TableName.valueOf(tablename));
Scan scan = new Scan();
scan.setCaching(1000);
results = table.getScanner(scan);
} catch (IOException e) {
e.printStackTrace();
} finally {
table.close();
}
return results;
}
/**
* 删除数据
*
* @param tablename
* @param family
* @param column
* @param row
* @throws IOException
*/
public static void delete(String tablename, String family, String column, String row) throws IOException {
Table table = null;
try {
table = connection.getTable(TableName.valueOf(tablename));
Delete del = new Delete(row.getBytes());
del.addColumns(family.getBytes(), column.getBytes());
table.delete(del);
} finally {
table.close();
}
}
}
三、操作Hbase
1、建表
在服务器中切换到hbase安装目录下的bin目录执行如下命令,使用hbase shell
$ hbase shell
在hbase shell 模式下我们执行以下命令新建一张表,在建表时要有列族,以下创建了张名为person的表,并且这张表中有一个名为info的列族。
create 'person','info'
执行命令成功后你会看到以下信息:
我们也可以用list命令验证下有没有此表
可以看到是有此表的。 我们建了结构如下的一张表
2、增加数据
public void putdata() {
//获取连接池唯
HBaseUtils.getInstance();
try {
Map<String, String> cloumns = new HashMap<String, String>();
cloumns.put("name", "zzq"); //列名和值
cloumns.put("age", "22"); //列名和值
//往表中的第1row的info族中增加了名为name、age的列并给出数据
HBaseUtils.put("person", "1", "info", cloumns);
System.out.println("增加成功");
} catch (IOException e) {
e.printStackTrace();
System.out.println("增加失败");
} finally {
HBaseUtils.close();
}
}
执行此函数后我们的表如下
3、更新数据
更新数据和增加数据一样,更改值后执行以上代码它会覆盖原来的值
4、获取数据
public void getTableAllData() {
HBaseUtils.getInstance();
ResultScanner results = null;
try {
results = HBaseUtils.get("person");//表名
for (Result result : results) {
NavigableMap<byte[], NavigableMap<byte[], NavigableMap<Long, byte[]>>> navigableMap = result.getMap();
for (byte[] family : navigableMap.keySet()) {
System.out.println("列族:" + new String(family));
for (byte[] column : navigableMap.get(family).keySet()) {
System.out.println("列:" + new String(column));
for (Long t : navigableMap.get(family).get(column).keySet()) {
System.out.println("值:" + new String(navigableMap.get(family).get(column).get(t)));
}
}
}
}
} catch (IOException e) {
e.printStackTrace();
} finally {
results.close();
HBaseUtils.close();
}
}
执行成功后会输出如下信息:
5、删除数据
public void delete() {
HBaseUtils.getInstance();
try { //删除person表中的第1行的info列族中的name列中的的值
HBaseUtils.delete("person", "info", "name", "1");
System.out.println("删除成功");
} catch (IOException e) {
System.out.println("删除失败");
e.printStackTrace();
}
}
删除成功后我们在查询表中的数据如下
以上操作代码的整合
Test.java:
package com.qcxy.helper.Controller;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.ResponseBody;
import org.apache.hadoop.hbase.client.Result;
import org.apache.hadoop.hbase.client.ResultScanner;
import java.io.IOException;
import java.util.*;
import com.qcxy.helper.hbase.HBaseUtils;
@Controller
public class Test {
@ResponseBody
@RequestMapping("/hello")
public String hello() {
return "hello";
}
/**
* 增加数据
*/
@ResponseBody
@RequestMapping("/putdata")
public void putdata() {
HBaseUtils.getInstance();
try {
Map<String, String> cloumns = new HashMap<String, String>();
cloumns.put("name", "zzq");
cloumns.put("age", "22");
HBaseUtils.put("person", "1", "info", cloumns);
System.out.println("增加成功");
} catch (IOException e) {
e.printStackTrace();
System.out.println("增加失败");
} finally {
HBaseUtils.close();
}
}
/**
* 获取整表数据
*/
@ResponseBody
@RequestMapping("/getTableAllData")
public void getTableAllData() {
HBaseUtils.getInstance();
ResultScanner results = null;
try {
results = HBaseUtils.get("person");
for (Result result : results) {
NavigableMap<byte[], NavigableMap<byte[], NavigableMap<Long, byte[]>>> navigableMap = result.getMap();
for (byte[] family : navigableMap.keySet()) {
System.out.println("列族:" + new String(family));
for (byte[] column : navigableMap.get(family).keySet()) {
System.out.println("列:" + new String(column));
for (Long t : navigableMap.get(family).get(column).keySet()) {
System.out.println("值:" + new String(navigableMap.get(family).get(column).get(t)));
}
}
}
}
} catch (IOException e) {
e.printStackTrace();
} finally {
results.close();
HBaseUtils.close();
}
}
/**
* 删除数据
*/
@ResponseBody
@RequestMapping("/deletedata")
public void delete() {
HBaseUtils.getInstance();
try {
HBaseUtils.delete("person", "info", "name", "1");
System.out.println("删除成功");
} catch (IOException e) {
System.out.println("删除失败");
e.printStackTrace();
}
}
}
到此本次测试完成!
