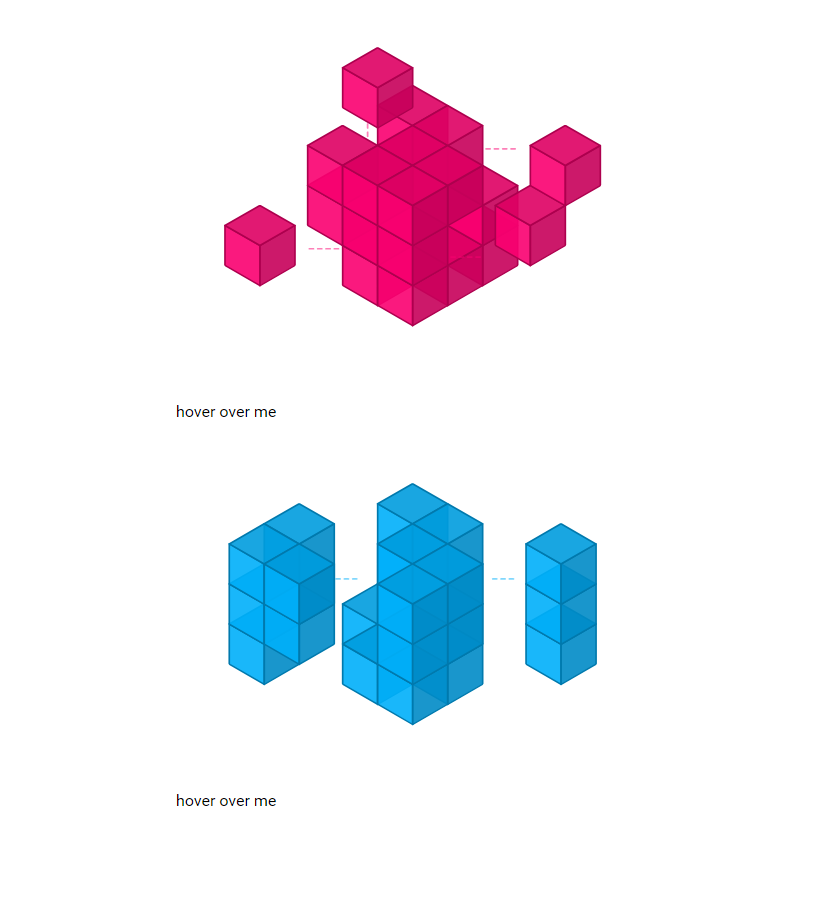

效果如下
下面是完整的js代码
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>change tab</title>
<script src="https://apps.bdimg.com/libs/jquery/2.1.4/jquery.min.js"></script>
<style>
body {
font-family: 'Roboto', sans-serif;
margin: 0 auto;
max-width: 500px;
}
.cube-unit {
fill-opacity: .9;
stroke-miterlimit: 0;
}
.blue-cube {
--mainColor: #009CDE;
--strokeColor: #0079ad;
--lightColor: #00affa;
--darkColor: #008bc7;
}
.pink-cube {
--mainColor: #de0063;
--strokeColor: #ad004e;
--lightColor: #fa0070;
--darkColor: #c7005a;
}
@keyframes moveX {
to {
transform: translateX(var(--translate, 35px));
}
}
@keyframes moveY {
to {
transform: translateY(var(--translate, -35px));
}
}
.m-left,
.m-right {
animation: 2s moveX alternate infinite paused;
}
.m-up,
.m-down {
animation: 2s moveY alternate infinite paused;
}
.m-left {
--translate: -50px;
}
.m-right {
--translate: 50px;
}
svg:hover * {
animation-play-state: running;
}
</style>
</head>
<body>
<svg class="pink-cube" viewBox="0 0 300 230" xmlns="http://www.w3.org/2000/svg"
xmlns:xlink="http://www.w3.org/1999/xlink">
<defs>
<g id="cube" class="cube-unit">
<rect width="21" height="24" fill="var(--lightColor)" stroke="var(--strokeColor)"
transform="skewY(30)" />
<rect width="21" height="24" fill="var(--darkColor)" stroke="var(--strokeColor)"
transform="skewY(-30) translate(21 24.3)" />
<rect width="21" height="21" fill="var(--mainColor)" stroke="var(--strokeColor)"
transform="scale(1.41,.81) rotate(45) translate(0 -21)" />
</g>
</defs>
<line opacity=".5" x1="80" x2="100" y1="150" y2="150" fill="none" stroke-width="1" stroke-linecap="round"
stroke="var(--lightColor)" stroke-dasharray="2.5" />
<line opacity=".5" x1="186" x2="204" y1="90" y2="90" fill="none" stroke-width="1" stroke-linecap="round"
stroke="var(--lightColor)" stroke-dasharray="2.5" />
<line opacity=".5" x1="115" x2="115" y1="75" y2="85" fill="none" stroke-width="1" stroke-linecap="round"
stroke="var(--lightColor)" stroke-dasharray="2.5" />
<use xlink:href="#cube" x="121" y="112" />
<use xlink:href="#cube" x="100" y="124" />
<use xlink:href="#cube" x="142" y="124" />
<use xlink:href="#cube" x="121" y="136" />
<use class="m-left" xlink:href="#cube" x="79" y="136" />
<use xlink:href="#cube" x="163" y="136" />
<use xlink:href="#cube" x="142" y="148" />
<use xlink:href="#cube" x="100" y="148" />
<use xlink:href="#cube" x="121" y="160" />
<use xlink:href="#cube" x="121" y="88" />
<use xlink:href="#cube" x="100" y="100" />
<use xlink:href="#cube" x="142" y="100" />
<use xlink:href="#cube" x="121" y="112" />
<use xlink:href="#cube" x="79" y="112" />
<use xlink:href="#cube" x="163" y="112" />
<line opacity=".5" x1="165" x2="185" y1="155" y2="155" fill="none" stroke-width="1" stroke-linecap="round"
stroke="var(--lightColor)" stroke-dasharray="2.5" />
<use class="m-right" xlink:href="#cube" x="142" y="124" />
<use xlink:href="#cube" x="100" y="124" />
<use xlink:href="#cube" x="121" y="136" />
<use xlink:href="#cube" x="121" y="64" />
<use class="m-up" xlink:href="#cube" x="100" y="76" />
<use xlink:href="#cube" x="142" y="76" />
<use xlink:href="#cube" x="121" y="88" />
<use xlink:href="#cube" x="79" y="88" />
<use class="m-right" xlink:href="#cube" x="163" y="88" />
<use xlink:href="#cube" x="142" y="100" />
<use xlink:href="#cube" x="100" y="100" />
<use xlink:href="#cube" x="121" y="112" />
</svg>
<p>hover over me</p>
<svg xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" class="blue-cube"
viewBox="0 -40 300 200">
<line opacity=".5" x1="96" x2="110" y1="45" y2="45" fill="none" stroke-width="1" stroke-linecap="round"
stroke="var(--lightColor)" stroke-dasharray="2.5" />
<line opacity=".5" x1="190" x2="205" y1="45" y2="45" fill="none" stroke-width="1" stroke-linecap="round"
stroke="var(--lightColor)" stroke-dasharray="2.5" />
<use xlink:href="#cube" x="121" y="48" />
<use xlink:href="#cube" x="121" y="24" />
<use xlink:href="#cube" x="121" y="0" />
<use xlink:href="#cube" x="100" y="60" />
<use class="m-left" xlink:href="#cube" x="100" y="36" />
<use class="m-left" xlink:href="#cube" x="100" y="12" />
<use xlink:href="#cube" x="142" y="60" />
<use xlink:href="#cube" x="142" y="36" />
<use xlink:href="#cube" x="142" y="12" />
<g class="m-right">
<use xlink:href="#cube" x="163" y="72" />
<use xlink:href="#cube" x="163" y="48" />
<use xlink:href="#cube" x="163" y="24" />
</g>
<g class="m-left">
<use xlink:href="#cube" x="79" y="72" />
<use xlink:href="#cube" x="79" y="48" />
<use xlink:href="#cube" x="79" y="24" />
</g>
<use xlink:href="#cube" x="121" y="72" />
<use xlink:href="#cube" x="121" y="48" />
<use xlink:href="#cube" x="121" y="24" />
<use xlink:href="#cube" x="100" y="84" />
<g class="m-left">
<use xlink:href="#cube" x="100" y="60" />
<use xlink:href="#cube" x="100" y="36" />
</g>
<use xlink:href="#cube" x="142" y="84" />
<use xlink:href="#cube" x="142" y="60" />
<use xlink:href="#cube" x="142" y="36" />
<use xlink:href="#cube" x="121" y="96" />
<use xlink:href="#cube" x="121" y="72" />
<use xlink:href="#cube" x="121" y="48" />
</svg>
<p>hover over me</p>
</body>
</html>
