工作需要绘制一张可动态添加的折线图，经过筛选，选择MPAndroidChart:v3.1.0。
**使用方法：**
1、添加build gradle
在项目的build gradle中上述位置中添加“maven { url ‘https://jitpack.io’ }”这串代码。
在APP的build gradle的dependencies中添加 implementation 'com.github.PhilJay:MPAndroidChart:v3.1.0’依赖。
在插入折线图的activity中添加如下代码，自行调整位置等。
<com.github.mikephil.charting.charts.LineChart
android:id="@+id/mChart"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:layout_marginTop="20dp"/>
在activity中添加代码：
public class MainActivity extends AppCompatActivity {
/*******画图********/
private LineChart chart;
private static final String TAG="MainActivity";
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
chart_init();//初始化绘图
}
protected void chart_init()
{
chart = (LineChart) findViewById(R.id.mChart);
//chart.setOnChartValueSelectedListener(this);
// enable description text
chart.getDescription().setEnabled(true);
// enable touch gestures
chart.setTouchEnabled(true);
/****************设置描述信息*************/
Description description =new Description();
description.setText("NH3 Concentration");
description.setTextColor(Color.RED);
description.setTextSize(10);
chart.setDescription(description);//设置图表描述信息
chart.setNoDataText("没有数据熬");//没有数据时显示的文字
chart.setNoDataTextColor(Color.BLUE);//没有数据时显示文字的颜色
chart.setDrawGridBackground(false);//chart 绘图区后面的背景矩形将绘制
chart.setDrawBorders(false);//禁止绘制图表边框的线
// enable scaling and dragging
chart.setDragEnabled(true);
chart.setScaleEnabled(true);
chart.setDrawGridBackground(false);
// if disabled, scaling can be done on x- and y-axis separately
chart.setPinchZoom(true);
// set an alternative background color
//chart.setBackgroundColor(0x4169E1FF);
LineData data = new LineData();
data.setValueTextColor(Color.BLACK);
// add empty data
chart.setData(data);
// get the legend (only possible after setting data)
Legend l = chart.getLegend();
// modify the legend ...
l.setForm(Legend.LegendForm.LINE);
l.setTextColor(Color.BLACK);
//x轴配置
XAxis xl = chart.getXAxis();
//xl.setTypeface(tfLight);
xl.setTextColor(Color.BLACK);
xl.setDrawGridLines(false);
xl.setAvoidFirstLastClipping(true);
xl.setEnabled(true);
xl.setPosition(XAxis.XAxisPosition.BOTTOM);//X轴文字显示位置
//左y轴配置
YAxis leftAxis = chart.getAxisLeft();
//leftAxis.setTypeface(tfLight);
leftAxis.setTextColor(Color.BLACK);
leftAxis.setAxisMaximum(30f);
leftAxis.setAxisMinimum(0f);
leftAxis.setDrawGridLines(true);
//右y轴配置
YAxis rightAxis = chart.getAxisRight();
rightAxis.setEnabled(false);
}
private void addEntry(float Concentration_data) {
LineData data = chart.getData();
YAxis leftAxis = chart.getAxisLeft();
if (data != null) {
ILineDataSet set = data.getDataSetByIndex(0);
// set.addEntry(...); // can be called as well
if (set == null) {
set = createSet();
data.addDataSet(set);
}
data.addEntry(new Entry(set.getEntryCount(), Concentration_data), 0);
if(data.getYMin() > -50 && data.getYMax() < 100)
{
leftAxis.setAxisMaximum(data.getYMax() + 5);
leftAxis.setAxisMinimum(data.getYMin() - 5);
}
data.notifyDataChanged();
chart.notifyDataSetChanged();
chart.setVisibleXRangeMaximum(80);
chart.moveViewToX(data.getEntryCount());
}
}
private LineDataSet createSet() {
LineDataSet set = new LineDataSet(null, "Dynamic Data");
set.setAxisDependency(YAxis.AxisDependency.LEFT);
set.setColor(Color.BLACK);
set.setCircleColor(Color.RED);
set.setLineWidth(2f);
set.setCircleRadius(4f);
set.setFillAlpha(65);
set.setFillColor(ColorTemplate.getHoloBlue());
set.setHighLightColor(Color.rgb(244, 117, 117));
set.setValueTextColor(Color.RED);
set.setValueTextSize(9f);
set.setDrawValues(true);
return set;
}
/*退出时调用*/
@Override
protected void onDestroy() {
super.onDestroy();
}
/********使用此代码可以返回时不退出应用，仅返回桌面**********/
@Override
public boolean onKeyDown(int keyCode, KeyEvent event) {
if (keyCode == KeyEvent.KEYCODE_BACK) {
moveTaskToBack(true);
return true;
}
return super.onKeyDown(keyCode, event);
}
}
在需要动态添加数据的位置使用“addEntry(datatest1);”代码，
datatest1为float类型的数据。

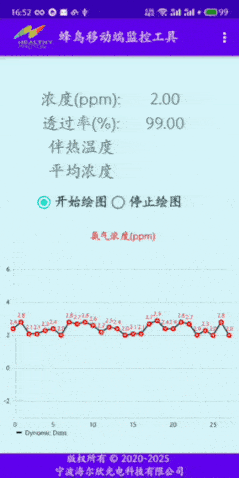

效果如下图所示
