代码如下:
import 'package:flutter/cupertino.dart';
import 'package:flutter/material.dart';
class BatteryView extends StatefulWidget {
final double electricQuantity;
double width;
double height;
BatteryView(
{Key key, this.electricQuantity, this.width = 27, this.height = 12})
: super(key: key);
@override
State<StatefulWidget> createState() {
return BatteryViewState();
}
}
class BatteryViewState extends State<BatteryView> {
@override
void initState() {
super.initState();
}
@override
Widget build(BuildContext context) {
return Container(
child: CustomPaint(
size: Size(widget.width, widget.height),
painter: BatteryViewPainter(widget.electricQuantity)),
);
}
}
class BatteryViewPainter extends CustomPainter {
double electricQuantity;
Paint mPaint;
double mStrokeWidth = 1.0;
double mPaintStrokeWidth = 1.5;
BatteryViewPainter(electricQuantity) {
this.electricQuantity = electricQuantity;
mPaint = Paint()..strokeWidth = mPaintStrokeWidth;
}
@override
void paint(Canvas canvas, Size size) {
//电池头部位置
double batteryHeadLeft = 0;
double batteryHeadTop = size.height / 4;
double batteryHeadRight = size.width / 15;
double batteryHeadBottom = batteryHeadTop + (size.height / 2);
//电池框位置
double batteryLeft = batteryHeadRight + mStrokeWidth;
double batteryTop = 0;
double batteryRight = size.width;
double batteryBottom = size.height;
//电量位置
double electricQuantityTotalWidth =
size.width - batteryHeadRight - 4 * mStrokeWidth; //电池减去边框减去头部剩下的宽度
double electricQuantityLeft = batteryHeadRight +
2 * mStrokeWidth +
electricQuantityTotalWidth * (1 - electricQuantity);
double electricQuantityTop = mStrokeWidth * 2;
double electricQuantityRight = size.width - 2 * mStrokeWidth;
double electricQuantityBottom = size.height - 2 * mStrokeWidth;
mPaint.style = PaintingStyle.fill;
mPaint.color = Color(0x80ffffff);
//画电池头部
canvas.drawRRect(
RRect.fromLTRBR(batteryHeadLeft, batteryHeadTop, batteryHeadRight,
batteryHeadBottom, Radius.circular(mStrokeWidth)),
mPaint);
mPaint.style = PaintingStyle.stroke;
//画电池框
canvas.drawRRect(
RRect.fromLTRBR(batteryLeft, batteryTop, batteryRight, batteryBottom,
Radius.circular(mStrokeWidth)),
mPaint);
mPaint.style = PaintingStyle.fill;
mPaint.color = Colors.white;
//画电池电量
canvas.drawRRect(
RRect.fromLTRBR(
electricQuantityLeft,
electricQuantityTop,
electricQuantityRight,
electricQuantityBottom,
Radius.circular(mStrokeWidth)),
mPaint);
}
@override
bool shouldRepaint(BatteryViewPainter other) {
return true;
}
}

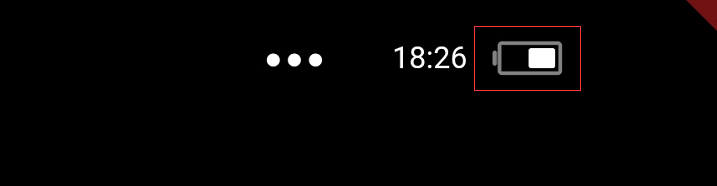

效果:
