【Qt学习】实现登录注册界面绘制

企业开发 2022-05-09 12:29:13 阅读次数: 0

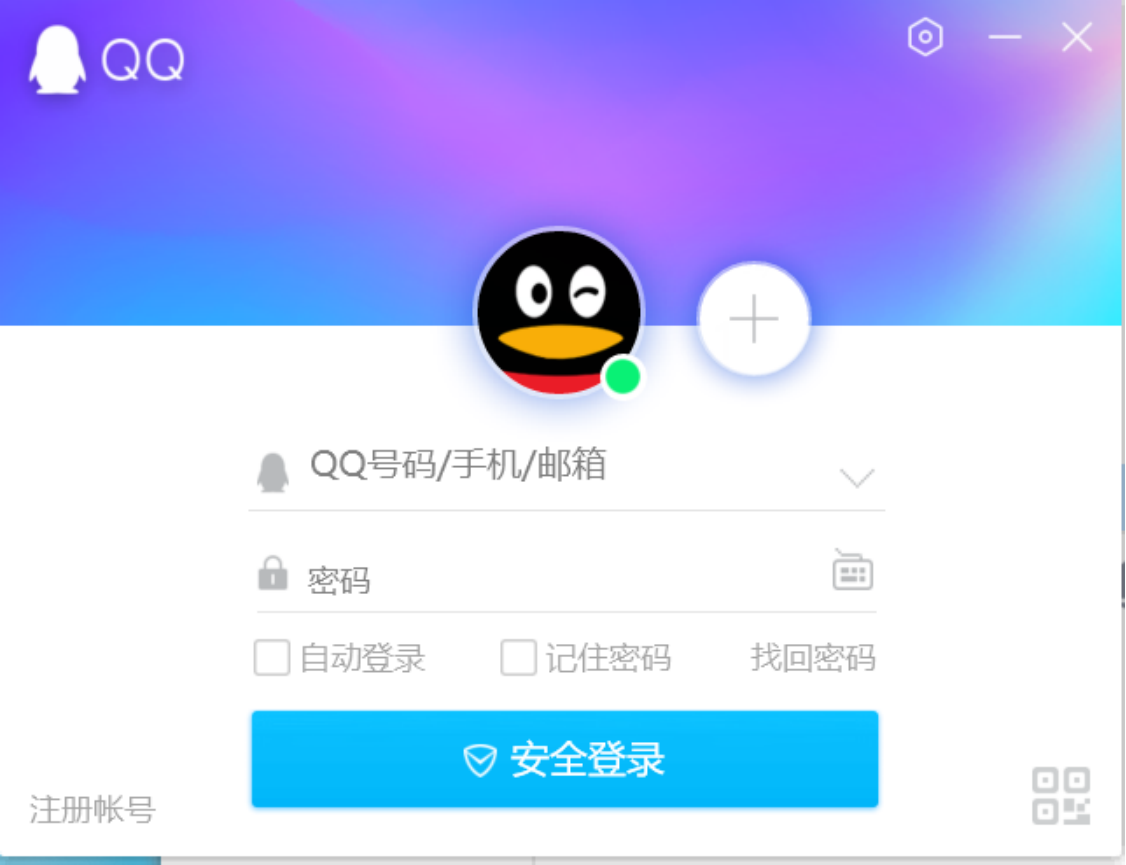

题目：模仿QQ做登录、注册界面

版本：Qt5

目录

一、效果

1.登录界面

2.注册界面

二、部分功能介绍

1.小眼睛

2.验证码

3.复选框

三、源代码展示

1.登录界面代码

2.注册界面代码

一、效果

1.登录界面

2.注册界面

二、部分功能介绍

1.小眼睛

鼠标放上去：

鼠标移动开：

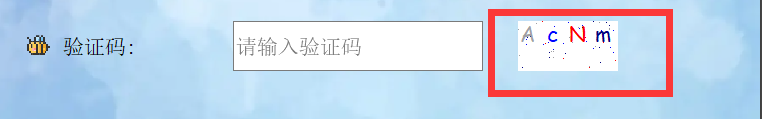

2.验证码

点击可变化

3.复选框

这边主要用到QCheckBox来进行实现

#include <QCheckBox>

以上功能文末附相关参考文章

三、源代码展示

1.登录界面代码

源代码：.cpp

#include "widget.h"
#include "indexwidget.h"
#include <QMessageBox>
#include "RegisterWidget.h"
#include "DB_Operation.h"
#include <QByteArray>
#include <QCryptographicHash>
#include <QDebug>

Widget::Widget(QWidget *parent)
    : QWidget(parent)
{
    this->resize(QSize(748,600));

    QValidator * input=new QIntValidator(100,1000000,this);

    //设置窗口的标题
    this->setWindowTitle("登录界面");

    //设置窗口的起始位置和大小
    this->setFixedSize(800,600);

    //设置窗口左上角的图标
    this->setWindowIcon(QIcon(QPixmap(":/image/qq登录.png")));

    //账号编辑框
    this->EdtAC=new QLineEdit(this);
    this->EdtAC->setGeometry(285,270,300,50);
    this->EdtAC->setPlaceholderText("请输入账号");
    this->EdtAC->setValidator(input);

    //密码编辑框
    this->EdtPW =new QLineEdit(this);
    this->EdtPW->setGeometry(285,350,300,50);
    this->EdtPW->setPlaceholderText("请输入密码");

    this->EdtPW->setValidator(input);
    this->EdtPW->setEchoMode(QLineEdit::Password);

    /*
    //验证码编辑框
    this->EdtYZ =new QLineEdit(this);
    this->EdtYZ->setGeometry(305,505,150,50);
    this->EdtYZ->setPlaceholderText("请输入验证码");
    this->EdtYZ->setValidator(input);
    */

    //小眼睛
    this->eye = new QLabel(this);
    this->eye->setAlignment(Qt::AlignCenter);
    this->eye->setPixmap(QPixmap(":/image/眼睛.png"));
    this->eye->setGeometry(540,360,30,30);
    this->eye->installEventFilter(this);

    //复选框
    pRemember_CheckBox  = new QCheckBox(this);
    pRemember_CheckBox->setGeometry(185,430,120,40);
    pRemember_CheckBox->setText(QStringLiteral("自动登录"));
    pAutoLogin_CheckBox = new QCheckBox(this);
    pAutoLogin_CheckBox->setGeometry(345,430,120,40);
    pAutoLogin_CheckBox->setText(QStringLiteral("记住密码"));

    //标签：
    //账号标签
    this->LblAC=new QLabel("账号:",this);
    this->LblAC->setGeometry(220,270,100,50);

    //密码标签
    this->LblPW=new QLabel("密码:",this);
    this->LblPW->setGeometry(220,350,100,50);

    /*
    //验证码标签
    this->LblYZ=new QLabel("验证码:",this);
    this->LblYZ->setGeometry(220,510,100,50);
    */

    //登录按钮
    this->BtnLogin=new QPushButton("登陆",this);
    this->BtnLogin->setStyleSheet("background-color:DeepSkyBlue");
    this->BtnLogin->setGeometry(185,505,400,65);
    //注册按钮
    this->BtnRegister=new QPushButton("注册账号",this);
    this->BtnRegister->setGeometry(30,550,100,40);
    this->BtnRegister->setFlat(true);//（无外框按钮）

    //找回密码按钮
    this->BtnBack=new QPushButton("找回密码",this);
    this->BtnBack->setGeometry(500,430,100,40);
    this->BtnBack->setFlat(true);//（无外框按钮）

    /*
    //验证码
    this->yanzhenma=new Verification(this);
    this->yanzhenma->setGeometry(480,505,100,40);
    */


    connect(this->BtnLogin,SIGNAL(clicked(bool)),this,SLOT(gotoLogining()));
    connect(this->BtnRegister,SIGNAL(clicked(bool)),this,SLOT(gotoRegister()));
}

Widget::~Widget()
{
    delete this->BtnLogin;
    delete this->BtnRegister;
    delete this->EdtAC;
    delete this->EdtPW;
    delete this->EdtYZ;
    delete this->LblAC;
    delete this->LblPW;
    delete this->LblYZ;
}

void Widget::paintEvent(QPaintEvent *)
{
    QPainter painter(this);
    QPixmap pix;

    //背景设置
    painter.drawPixmap(0,0,width(),height(), QPixmap(":/image/米色背景.png"));

    //图标
    pix.load(":/image/视频.png");
    painter.drawPixmap(185,285,20,20,pix);

    pix.load(":/image/锁.png");
    painter.drawPixmap(185,365,20,20,pix);

    /*
    pix.load(":/image/验证.png");
    painter.drawPixmap(185,525,20,20,pix);
    */

    pix.load(":/image/背景.png");
    painter.drawPixmap(25,15,753,205,pix);

}
void Widget::gotoLogining()
{
    QString AC=this->EdtAC->text();
    QString PW=this->EdtPW->text();
    char* ac=const_cast<char *>(AC.toStdString().c_str());
    QString MD5;
    QByteArray str;
    str=QCryptographicHash::hash(PW.toLatin1(),QCryptographicHash::Md5);
    MD5.append(str.toHex());
    char *pw=const_cast<char *>(MD5.toStdString().c_str());


    if(DB_Operation::LonginDB(ac,pw))
    {
        IndexWidget * idwg =new IndexWidget;
        idwg->show();
        this->hide();
    }
    else
    {
        QMessageBox::information(this,"登录失败","账号或者密码不正确");
    }
/*
    qDebug()<<QData::UserMap.count(AC);
    if(QData::UserMap.count(AC))//若不存在此账号,则结束
    {
        if(!QString::compare(QData::UserMap.value(AC).PW,PW))
        {
            IndexWidget * idwg =new IndexWidget;
            idwg->show();
            this->hide();

        }
        else
        {
            QMessageBox::information(this,"登录失败","密码错误");
        }

    }
    else
    {
        QMessageBox::information(this,"登录失败","不存在此账号");
    }
*/
}

void Widget::gotoRegister()
{
    RegisterWidget * rgtwg = new RegisterWidget;
    rgtwg->show();
    this->hide();
}

bool Widget::eventFilter(QObject *watched, QEvent *event)
{
    switch (event->type()) {
        case QEvent::Enter:
            EdtPW->setEchoMode(QLineEdit::Normal);  //显示密码
            break;
        case QEvent::Leave:
            EdtPW->setEchoMode(QLineEdit::Password);//隐藏密码
            break;
        default:
            break;
    }
    return QWidget::eventFilter(watched, event);
}

 源代码：.h

#ifndef WIDGET_H
#define WIDGET_H

#include <QLabel>
#include <QButtonGroup>
#include <QLineEdit>
#include <QPushButton>
#include <QWidget>
#include <QTextEdit>
#include <QPixmap>
#include <QPainter>
#include <QDebug>
#include "verification.h"
#include <QEvent>
#include <QCheckBox>

class Widget : public QWidget
{
    Q_OBJECT
public:
    Widget(QWidget *parent = 0);
    ~Widget();
    QLabel * LblAC;
    QLabel * LblYZ;
    QLabel * eye;
    QLabel * LblPW;
    QLineEdit * EdtAC;
    QLineEdit * EdtPW;
    QLineEdit * EdtYZ;
    QPushButton * BtnLogin;
    QPushButton * BtnRegister;
    QPushButton * BtnBack;
    QCheckBox * pRemember_CheckBox;
    QCheckBox * pAutoLogin_CheckBox;
    Verification * yanzhenma;

protected:
    void paintEvent(QPaintEvent *);
    bool eventFilter(QObject *watched, QEvent *event);
public slots:
    void gotoLogining();
    void gotoRegister();
};

#endif // WIDGET_H

2.注册界面代码

源代码：.cpp

#include "RegisterWidget.h"
#include "widget.h"
#include "DB_Operation.h"
#include "indexwidget.h"
#include <QMessageBox>
#include <QCryptographicHash>
#include <QDebug>
#include <QIntValidator>
#include "SetupPage.h"

RegisterWidget::RegisterWidget(QWidget *parent) : QWidget(parent)
{
    //this->resize(QSize(1500,600));

    QValidator * input=new QIntValidator(100,1000000,this);

    this->setWindowTitle("新用户注册");

    this->setFixedSize(800,600);

    //设置窗口左上角的图标
    this->setWindowIcon(QIcon(QPixmap(":/image/icon-注册头像.png")));

    this->LblAC=new QLabel("用户账号:",this);
    this->LblAC->setGeometry(100,100,100,50);
    this->LblPW=new QLabel("登录密码:",this);
    this->LblPW->setGeometry(100,180,100,50);
    this->LblPW2=new QLabel("确认密码:",this);
    this->LblPW2->setGeometry(100,260,200,50);

    //验证码标签
    this->LblYZ=new QLabel("验证码:",this);
    this->LblYZ->setGeometry(100,340,100,50);

    this->EdtAC=new QLineEdit(this);
    this->EdtAC->setGeometry(270,100,400,50);
    this->EdtAC->setPlaceholderText("请输入账号         (3~10位以内数字)");
    this->EdtAC->setValidator(input);
    this->EdtPW=new QLineEdit(this);
    this->EdtPW->setGeometry(270,180,400,50);
    this->EdtPW->setEchoMode(QLineEdit::Password);
    this->EdtPW->setPlaceholderText("请输入密码         (内容为3~6位数字)");
    this->EdtPW->setValidator(input);
    this->EdtPW2=new QLineEdit(this);
    this->EdtPW2->setGeometry(270,260,400,50);
    this->EdtPW2->setPlaceholderText("请再次输入密码");
    this->EdtPW2->setEchoMode(QLineEdit::Password);
    this->EdtPW2->setValidator(input);

    //验证码编辑框
    this->EdtYZ =new QLineEdit(this);
    this->EdtYZ->setGeometry(270,340,250,50);
    this->EdtYZ->setPlaceholderText("请输入验证码");
    this->EdtYZ->setValidator(input);

    //验证码
    this->yanzhenma=new Verification(this);
    this->yanzhenma->setGeometry(555,340,100,50);

    this->BtnLogin=new QPushButton("注册并登陆",this);
    this->BtnLogin->setGeometry(180,450,200,80);

    this->returnLogin=new QPushButton("返回登陆页面",this);
    this->returnLogin->setGeometry(400,450,200,80);
    connect(this->BtnLogin,SIGNAL(clicked(bool)),this,SLOT(RegistertoLogin()));
    connect(this->returnLogin,SIGNAL(clicked(bool)),this,SLOT(gotoLogining()));



}

RegisterWidget::~RegisterWidget()
{

}

void RegisterWidget::paintEvent(QPaintEvent *)
{

    QPainter painter(this);
    QPixmap pix;

    //背景设置
    painter.drawPixmap(0,0,width(),height(), QPixmap(":/image/蓝色背景2.png"));

    pix.load(":/image/像素-蜜蜂-01.png");
    painter.drawPixmap(60,110,30,30,pix);

    pix.load(":/image/像素-蜜蜂-01.png");
    painter.drawPixmap(60,190,30,30,pix);

    pix.load(":/image/像素-蜜蜂-01.png");
    painter.drawPixmap(60,270,30,30,pix);

    pix.load(":/image/像素-蜜蜂-01.png");
    painter.drawPixmap(60,350,30,30,pix);


}

void RegisterWidget::gotoLogining()
{
    Widget * login= new Widget;
    login->show();
    this->hide();
}

void RegisterWidget::RegistertoLogin()
{
    QString AC=this->EdtAC->text();
    QString PW=this->EdtPW->text();
    QString PW2=this->EdtPW2->text();
    if(AC.length()<3 || PW.length()<3)
    {
        QMessageBox::information(this,"注册失败","输入的账号或密码不符合要求");
    }
    else if(PW==PW2)
    {
        char * ac=const_cast<char *>(AC.toStdString().c_str());

        QString PWMD5;
        QString passWd=PW;
        QByteArray str;
        str = QCryptographicHash::hash(passWd.toLatin1(),QCryptographicHash::Md5);
        PWMD5.append(str.toHex());
        char * pw=const_cast<char *>(PWMD5.toStdString().c_str());
        qDebug()<<"在注册页面中"<<pw;
        if(DB_Operation::RegisterDB(ac,pw))
        {
            //注册成功并登陆
            QMessageBox::information(this,"注册成功","正在为您登录...");
            DB_Operation::LonginDB(ac,pw);
            SetupPage * idwg =new SetupPage;
            idwg->show();
            this->hide();
        }
        else
        {
            QMessageBox::information(this,"注册失败","已存在此账号");
        }
    }
    else
    {
        QMessageBox::information(this,"注册失败","两次密码输入不一致");
    }

}

源代码：.h

#ifndef REGISTERWIDGET_H
#define REGISTERWIDGET_H

#include <QObject>
#include <QWidget>
#include <QLabel>
#include <QButtonGroup>
#include <QLineEdit>
#include <QPushButton>
#include <QTextEdit>
#include <QPixmap>
#include <QPainter>
#include <QDebug>
#include <QValidator>
#include "verification.h"


class RegisterWidget : public QWidget
{
    Q_OBJECT
public:
    RegisterWidget(QWidget *parent = 0);
    ~RegisterWidget();
    QLabel * LblAC;//账号标签
    QLineEdit * EdtAC;//账号编辑框
    QLabel * LblPW,*LblYZ;//密码标签
    QLineEdit * EdtPW;//密码编辑框
    QLabel * LblPW2;//再次输入密码标签
    QLineEdit * EdtPW2 ,* EdtYZ;//再次输入密码编辑框
    QPushButton * BtnLogin;//注册并登陆
    QPushButton * returnLogin;//返回登陆页面
    Verification * yanzhenma;

protected:
    void paintEvent(QPaintEvent *);
public slots:
    void gotoLogining();
    void RegistertoLogin();
};

class Validato:public QValidator
{


};

#endif // REGISTERWIDGET_H

参考：Qt 之登录界面绘制_C君莫笑的博客-CSDN博客_qt 栅格布局

Qt之自定义验证码控件_C君莫笑的博客-CSDN博客

Qt实现密码输入框隐藏密码_小眼睛显示密码功能_棒棒糖半糖的博客-CSDN博客_qt密码隐藏
