第十一届蓝桥杯单片机组省赛模拟试题——智能门锁

企业开发 2020-04-03 10:47:48 阅读次数: 0

试题可以直接在官网下载（试题链接），十分神奇地考了矩阵键盘。

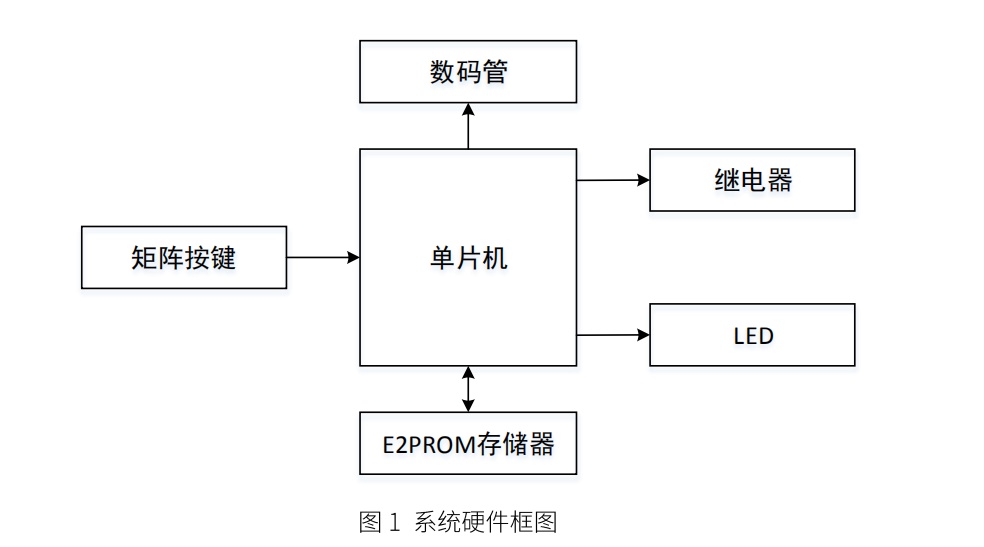

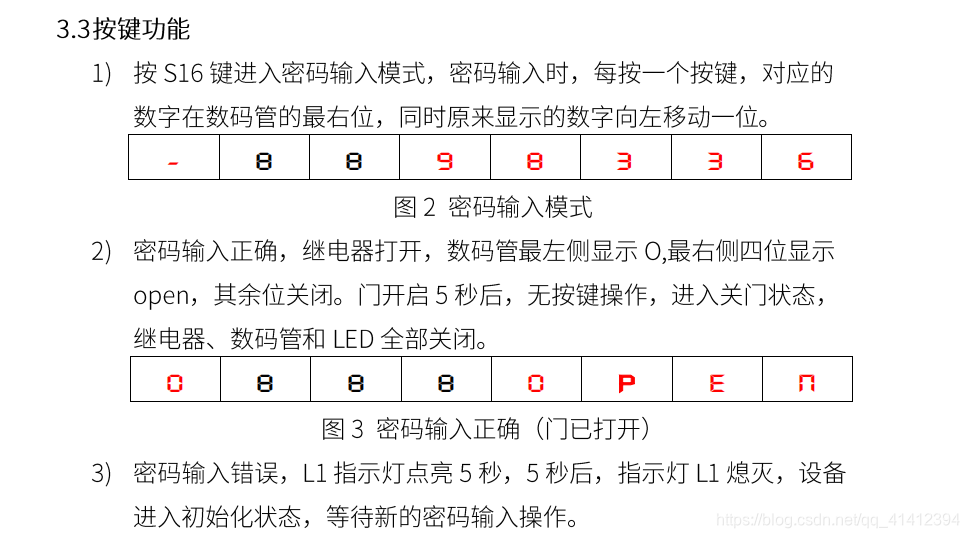

  • 按键功能：
    在这里插入图片描述在这里插入图片描述在这里插入图片描述

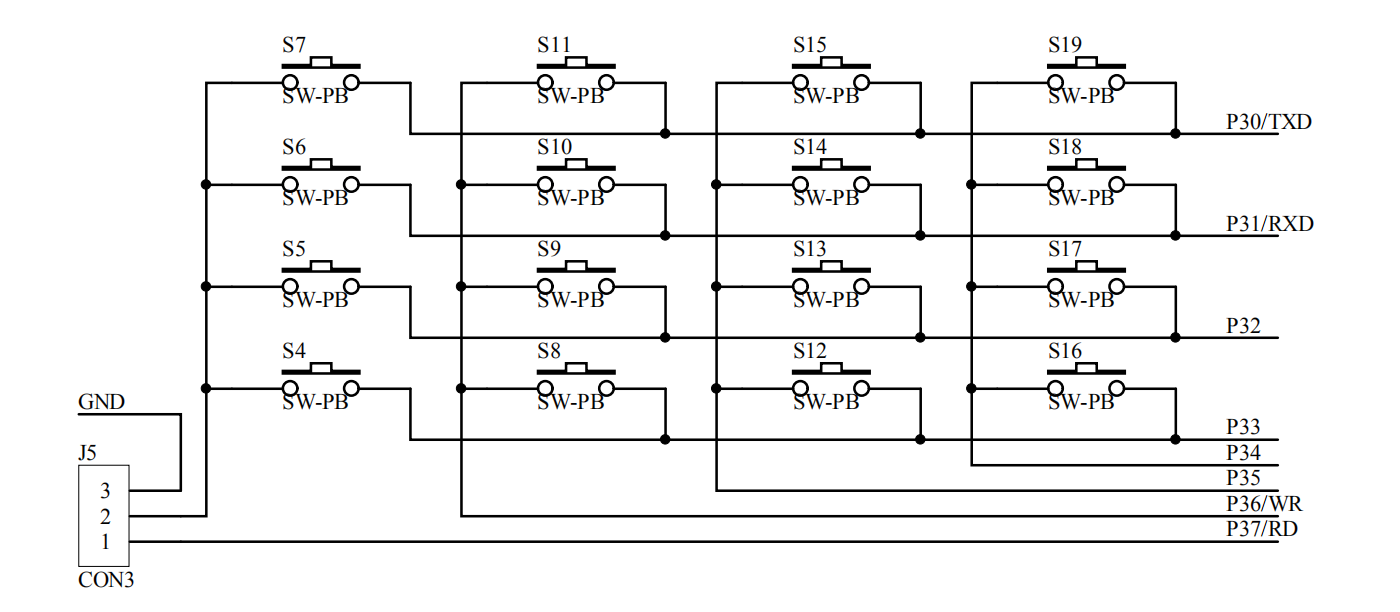

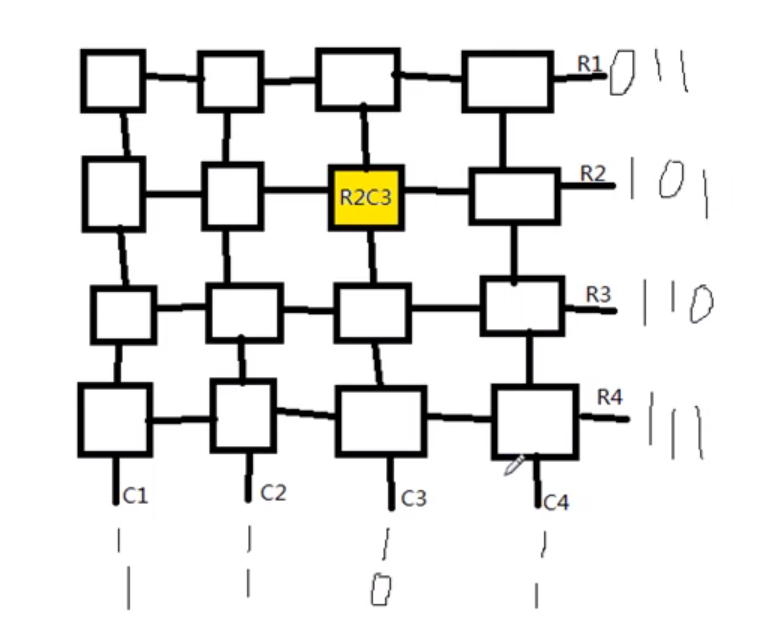

    矩阵键盘扫描方法很多，这里采用逐行扫描的方法：每次将某一行（R1、R2、R3、R4）置低电平，然后去读每一列（C1、C2、C3、C4）的电平。如果读出某一列为低电平，则表示该行该列所对应的按键被按下，按键注意去抖动。（可能实现起来比较暴力，图是白嫖的）
    在这里插入图片描述
    在这里插入图片描述

  • 源码：

(1)IIC驱动：

//IIC.h
#include<reg52.h>
sbit SDA = P2^1;      //数据线
sbit SCL = P2^0;      //时钟线

void Delay_IIC(unsigned char t);        //延时函数
void IIC_Start(void);                   //起始信号
void IIC_Stop(void);                    //停止信号
void IIC_Ack(unsigned char ackbit);     //产生应答
bit IIC_WaitAck(void);                  //等待应答
void IIC_SendByte(unsigned char byte);	//发送数据
unsigned char IIC_RecByte(void);        //接收数据


//IIC.c
#include<IIC.h>

void Delay_IIC(unsigned char time)
{
	while(time--);
}

void IIC_Start(void)
{
	SDA = 1;
	SCL = 1;
	Delay_IIC(5);
	SDA = 0;        //在SCL高电平期间，SDA由高变低
	Delay_IIC(5);
	SCL = 0;
}

void IIC_Stop(void)
{
	SDA = 0;
	SCL = 1;
	Delay_IIC(5);
	SDA = 1;	//在SCL高电平期间，SDA由高变低
	Delay_IIC(5);
}

void IIC_Ack(unsigned char ackbit)
{
	if(ackbit)
		SDA = 0;	//产生应答信号
	else
		SDA = 1;	//产生非应答信号
	Delay_IIC(5);
	SCL = 1;
	Delay_IIC(5);	        //第9个时钟周期
        SCL = 0;
	SDA = 1; 		//释放SDA线
	Delay_IIC(5);
}

bit IIC_WaitAck(void)
{
	SDA = 1;
	Delay_IIC(5);
	SCL = 1;
	Delay_IIC(5);

	if(SDA)    		//在SCL高电平期间，SDA为高电平，从机非应答。
	{
		SCL = 0;
		IIC_Stop();
		return 0;
	}
	else 			//在SCL高电平期间，SDA为低电平，从机有应答。
	{
		SCL = 0;
		return 1;
	}
}

void IIC_SendByte(unsigned char byt)
{
	unsigned char i;
	for(i=0;i<8;i++)		//循环发送8位数据
	{
		if(byt & 0x80) 		//数据位是高电平
		{
			SDA = 1;
		}
		else 			//数据位是低电平
		{
			SDA = 0;
		}

		Delay_IIC(5);
		SCL = 1;		//SCL高电平期间，SDA的数据要保持稳定
		byt <<= 1;		//发送的数据左移，准备发送下一位
		Delay_IIC(5);		//等待SDA的数据被读取
		SCL = 0;
	}
}

unsigned char IIC_RecByte(void)
{
	unsigned char da;
	unsigned char i;
	for(i=0;i<8;i++)
	{
		SCL = 1;
		Delay_IIC(5);		//在SCL高电平期间，读取SDA的数据
		da <<= 1;
		if(SDA)
			da |= 0x01;
		SCL = 0;
		Delay_IIC(5);
	}
	return da;
}

(2)主程序：

#include<reg52.h>
#include"IIC.h"

sfr P4 = 0xC0;     //定义P4口
sbit R1 = P3^0;	   //定义矩阵键盘的行
sbit R2 = P3^1;
sbit R3 = P3^2;
sbit R4 = P3^3;
sbit C1 = P4^4;	   //定义矩阵键盘的列
sbit C2 = P4^2;
sbit C3 = P3^5;
sbit C4 = P3^4;
sbit L1 = P0^0;	   //定义LED
sbit L7 = P0^6;
sbit L8 = P0^7;
sbit relay = P0^4;    //定义继电器

bit led = 0;               //LED状态位
bit over = 0;			   //密码修改完成标志位(0表示未修改完成，1表示修改完成)
unsigned char seg = 15;	   //数码管显示第1位
unsigned char stat = 15;   //密码操作状态位(14表示输入密码,10表示修改密码)
unsigned char status = 0;  //密码输入正确状态下有无操作标志位(0表示有操作，1表示无操作);密码错误状态下初始化标志位
unsigned char count = 0;   //定时器计数(50ms计时)
unsigned long pass = 0;    //输入密码(定义为32bit)
unsigned long cipher = 0;  //存放密码
unsigned char num = 0;     //记录存放密码的个数
unsigned char code SEG_code[16] =
	{0xc0,0xf9,0xa4,0xb0,0x99,0x92,0x82,0xf8,
	 0x80,0x90,0xc6,0x86,0x8c,0xC8,0xbf,0xff};
	                       //定义共阳数码管段码内容:0~9,C,E,P,N,—,


/*========================================端口选择========================================*/
//端口选择
void Select_HC138(unsigned char n)
{
	switch(n)
	{
		case 0:
			P2 = (P2 & 0x1f) | 0x00;
			break;
		case 4:
			P2 = (P2 & 0x1f) | 0x80;
			break;
		case 5:
			P2 = (P2 & 0x1f) | 0xa0;
			break;
		case 6:
			P2 = (P2 & 0x1f) | 0xc0;
			break;
		case 7:
			P2 = (P2 & 0x1f) | 0xe0;
			break;
	}
}
/*========================================================================================*/


/*======================================密码存取操作======================================*/
//24C02字节写操作
void Write_24C02(unsigned char addr,unsigned char dat)
{
	IIC_Start();           //IIC总线起始信号
	IIC_SendByte(0xa0);	   //写设备地址
	IIC_WaitAck();         //等待从机应答
	IIC_SendByte(addr);    //写内存字节地址
	IIC_WaitAck();         //等待从机应答
	IIC_SendByte(dat);     //写目标数据
	IIC_WaitAck();         //等待从机应答
	IIC_Stop();            //IIC总线停止信号
}

//24C02读字节操作
unsigned char Read_24C02(unsigned char addr)
{
	unsigned char temp;
	//进行一个伪写操作
	IIC_Start();            //IIC总线起始信号
	IIC_SendByte(0xa0);     //写设备地址
	IIC_WaitAck();          //等待从机应答
	IIC_SendByte(addr);     //写内存字节地址
	IIC_WaitAck();          //等待从机应答

	IIC_Start();            //IIC总线起始信号
	IIC_SendByte(0xa1);     //读设备地址
	IIC_WaitAck();          //等待从机应答
	temp = IIC_RecByte();   //读取目标数据
	IIC_Ack(0);             //产生一个非应答信号
	IIC_Stop();             //IIC总线停止信号
	return temp;
}

//24C02写字节延时函数
void Delay_24C02(unsigned int time)
{
	while(time--);
}
/*========================================================================================*/


/*=======================================系统初始化=======================================*/
//初始化
void Init_system()
{
	Select_HC138(5);
	P0 = 0x00;       //关闭蜂鸣器和继电器
	Select_HC138(4);
	P0 = 0xff;       //关闭LED
	Select_HC138(6);
	P0 = 0x00;       //熄灭数码管
	Select_HC138(0);

	led = 0;         //LED状态位
	over = 0;		 //密码修改完成标志位(0表示未修改完成，1表示修改完成)
	seg = 15;	     //数码管显示第1位
	stat = 15;       //密码操作状态位(14表示输入密码,10表示修改密码)
	status = 0;      //密码输入正确状态下有无操作标志位(0表示有操作，1表示无操作);密码错误状态下初始化标志位
	count = 0;       //定时器计数(50ms计时)
	pass = 0;        //输入密码(定义为32bit)
	cipher = 0;      //存放密码
	num = 0;         //记录存放密码的个数
}

//初始化密码
void Init_pass()
{
	Write_24C02(0x01,0x88);  //保存密码低8位
	Delay_24C02(1000);
	Write_24C02(0x02,0x88);  //保存密码中8位
	Delay_24C02(1000);
	Write_24C02(0x03,0x88);  //保存密码高8位
	Delay_24C02(1000);		 //初始密码为0x888888
}
/*========================================================================================*/


/*=======================================数码管显示=======================================*/
//数码管延时函数
void Delay_tube(unsigned char t)
{
	while(t--);
}

//数码管显示
void Show_tube(unsigned char position,unsigned char value)
{
	Select_HC138(7);
	P0 = 0xff;        //熄灭
	Select_HC138(6);
	P0 = 0x01 << position;
	Select_HC138(7);
	P0 = value;
}

void Show_all()
{
	Select_HC138(7);
	P0 = 0xff;
	Select_HC138(6);
	P0 = 0xff;
}

//数码管动态显示
void Display_cypher()	           //密码操作
{
	Show_tube(0,SEG_code[seg]);   //14显示—，10显示C
	Delay_tube(100);

	if(num >= 6)
	{
		Show_tube(2,SEG_code[(pass>>24)%16]);   //取pass十万位(6)
		Delay_tube(100);
	}
	if(num >= 5)
	{
		Show_tube(3,SEG_code[(pass>>20)%16]);   //取pass万位(5)
		Delay_tube(100);
	}
	if(num >= 4)
	{
		Show_tube(4,SEG_code[(pass>>16)%16]);   //取pass千位(4)
		Delay_tube(100);
	}
	if(num >= 3)
	{
		Show_tube(5,SEG_code[(pass>>12)%16]);   //取pass百位(3)
		Delay_tube(100);
	}
	if(num >= 2)
	{
		Show_tube(6,SEG_code[(pass>>8)%16]);    //取pass十位(2)
		Delay_tube(100);
	}
	if(num >= 1)
	{
		Show_tube(7,SEG_code[(pass>>4)%16]);	//取pass个位(1)
		Delay_tube(100);
	}

	Show_all();
}

void Display_open()        		   //密码输入正确
{
	Show_tube(0,SEG_code[0]);
	Delay_tube(100);

	Show_tube(4,SEG_code[0]);	   //显示open
	Delay_tube(100);
	Show_tube(5,SEG_code[12]);
	Delay_tube(100);
	Show_tube(6,SEG_code[11]);
	Delay_tube(100);
	Show_tube(7,SEG_code[13]);
	Delay_tube(100);

	Show_all();
}
/*========================================================================================*/


/*======================================密码检验操作======================================*/
//检验密码是否正确
void Check_pass()
{
	if(num == 6 && stat == 15 && seg == 14)
	{
		unsigned char c;
		c = Read_24C02(0x03);   //读高8位
		cipher |= c;
		cipher <<= 8;

		c = Read_24C02(0x02);	//读中8位
		cipher |= c;
		cipher <<= 8;

		c = Read_24C02(0x01);   //读低8位
		cipher |= c;

		if(cipher == (pass>>4))      //密码正确，显示open
		{
			stat = 0;
			seg = 0;
			TR0 = 1;            //开定时器中断
			num = 0;
			pass = 0;
			Select_HC138(5);
			P0 = 0x00;
			relay = 1;          //继电器吸合
			Select_HC138(0);
		}
		else if(cipher != (pass>>4))	   //密码错误
		{
			TR0 = 1;            //开定时器中断
			Select_HC138(4);
			L1 = led;           //点亮L1(5秒)
			Select_HC138(0);
			if(status == 1)
			{
				Init_system();	//初始化
				TR0 = 0;		//关定时器中断
			}
		}
	}
}

//修改密码
void Reset_pass()
{
	if(status == 1 && stat == 0)    //5秒内无操作
	{
		Init_system();      //初始化
		TR0 = 0;			//关定时器中断
	}
	else if(status == 0 && stat == 10)    //5秒内有操作
	{
		TR0 = 0;            //关定时器中断
		pass = 0;
		num = 0;
		stat = 14;          //重新输入密码
	}
}

//密码修改完成
void Reset_over()
{
	if(over == 1)	     //再次按下S12，密码修改完成
	{
		cipher = (pass>>4);
		Write_24C02(0x01,cipher%256);  //保存密码低8位
		Delay_24C02(1000);
		Write_24C02(0x02,(cipher>>8)%256);  //保存密码中8位
		Delay_24C02(1000);
		Write_24C02(0x03,(cipher>>16)%256);  //保存密码高8位
		Delay_24C02(1000);
		Init_system();
	}
}
/*========================================================================================*/


/*=========================================定时器=========================================*/
//定时器0中断初始化
void Init_timer0()
{
	TMOD = 0x01;
	TH0 = (65535 - 50000) / 256;
	TL0 = (65535 - 50000) % 256;    //50ms定时

	EA = 1;     //打开总中断
	ET0 = 1;    //打开定时器0的中断
	TR0 = 0;    //关闭定时器0
}

//定时器0中断服务函数
void Service_timer0() interrupt 1
{
	TH0 = (65535 - 50000) / 256;
	TL0 = (65535 - 50000) % 256;
	count++;

	if(count == 100)     //计时满5S
	{
		count = 0;
		led = 1;
		status = 1;
	}
}
/*========================================================================================*/


/*========================================按键处理========================================*/
//按键延时函数
void Delay_keys()
{
	unsigned char i,j;
	i = 108;
	j = 145;
	do
	{
		while(--j);
	}while(--i);
}

//矩阵键盘
void Press_keys()
{
//==============================扫描第一行================================
	R1 = 0;
	R2 = R3 = R4 = 1;
	C1 = C2 = C3 = C4 = 1;

	if(C1 == 0 && stat == 14)
	{
		Delay_keys();
		if(C1 == 0)
		{
			pass |= 0x00;
			pass <<= 4;
			num++;
		}
		while(C1 == 0);
	}

	else if(C2 == 0 && stat == 14)
	{
		Delay_keys();
		if(C2 == 0)
		{
			pass |= 0x01;
			pass <<= 4;
			num++;
		}
		while(C2 == 0);
	}

	else if(C3 == 0 && stat == 14)
	{
		Delay_keys();
		if(C3 == 0)
		{
			pass |= 0x02;
			pass <<= 4;
			num++;
		}
		while(C3 == 0);
	}

	else if(C4 == 0 && stat == 14)
	{
		Delay_keys();
		if(C4 == 0)
		{
			pass |= 0x03;
			pass <<= 4;
			num++;
		}
		while(C4 == 0);
	}

	if(num >= 6)
	{
		stat = 15;
		Select_HC138(4);
		P0 = 0xff;
		Select_HC138(0);
		if(seg == 10)      //在修改密码状态下，将stat置0
		{
			stat = 0;
			over = 1;     //输入完成
		}
	}
//========================================================================

//==============================扫描第二行================================
	R2 = 0;
	R1 = R3 = R4 = 1;
	C1 = C2 = C3 = C4 = 1;
	if(C1 == 0 && stat == 14)
	{
		Delay_keys();
		if(C1 == 0)
		{
			pass |= 0x04;
			pass <<= 4;
			num++;
		}
		while(C4 == 0);
	}

	else if(C2 == 0 && stat == 14)
	{
		Delay_keys();
		if(C2 == 0)
		{
			pass |= 0x05;
			pass <<= 4;
			num++;
		}
		while(C2 == 0);
	}

	else if(C3 == 0 && stat == 14)
	{
		Delay_keys();
		if(C3 == 0)
		{
			pass |= 0x06;
			pass <<= 4;
			num++;
		}
		while(C3 == 0);
	}

	else if(C4 == 0 && stat == 14)
	{
		Delay_keys();
		if(C4 == 0)
		{
			pass |= 0x07;
			pass <<= 4;
			num++;
		}
		while(C4 == 0);
	}

	if(num >= 6)
	{
		stat = 15;
		Select_HC138(4);
		P0 = 0xff;
		Select_HC138(0);
		if(seg == 10)      //在修改密码状态下，将stat置0
		{
			stat = 0;
			over = 1;
		}
	}
//========================================================================

//==============================扫描第三行================================
	R3 = 0;
	R1 = R2 = R4 = 1;
	C1 = C2 = C3 = C4 = 1;
	if(C1 == 0 && stat == 14)
	{
		Delay_keys();
		if(C1 == 0)
		{
			pass |= 0x08;
			pass <<= 4;
			num++;
		}
		while(C1 == 0);
	}

	else if(C2 == 0 && stat == 14)
	{
		Delay_keys();
		if(C2 == 0)
		{
			pass |= 0x09;
			pass <<= 4;
			num++;
		}
		while(C2 == 0);
	}

	if(num >= 6)
	{
		stat = 15;
		Select_HC138(4);
		P0 = 0xff;
		Select_HC138(0);
		if(seg == 10)      //在修改密码状态下，将stat置0
		{
			stat = 0;
			over = 1;
		}
	}
//========================================================================

//==============================扫描第四行================================
	R4 = 0;
	R1 = R2 = R3 = 1;
	C1 = C2 = C3 = C4 = 1;

	if(C2 == 0 && stat == 14)	 //清除全部数字
	{
		Delay_keys();
		if(C2 == 0)
		{
			if(num < 6)
			{
				pass = 0;
				num = 0;
			}
		}
		while(C2 == 0);
	}

	else if(C3 == 0 && stat == 0)	  //修改密码
	{
		Delay_keys();
		if(C3 == 0)
		{
			stat = 10;
			seg = 10;
			Select_HC138(4);
			P0 = 0xff;
			L8 = 0;		        //点亮L8
			Select_HC138(0);
			Reset_over();      //再次按下，修改完成
		}
		while(C3 == 0);
	}

	else if(C4 == 0 && stat == 15 && seg != 10)	 //开始输入密码
	{
		Delay_keys();
		if(C4 == 0)
		{
			stat = 14;
			seg = 14;
			Select_HC138(4);
			P0 = 0xff;
			L7 = 0;		        //点亮L7
			Select_HC138(0);
		}
		while(C4 == 0);
	}
}
/*========================================================================================*/


/*=========================================主函数=========================================*/
//主函数
void main()
{
	Init_timer0();
	Init_system();
	Init_pass();
	while(1)
	{
		switch(seg)
		{
			case 14:
			case 10:
				Display_cypher();
				break;
			case 0:
				Display_open();
				break;
		}
		Press_keys();
		Check_pass();
		Reset_pass();
	}
}
/*========================================================================================*/
Y=7²
发布了4 篇原创文章 · 获赞 4 · 访问量 1394
私信 关注

猜你喜欢

转载自blog.csdn.net/qq_41412394/article/details/105266987
今日推荐
基于大语言模型的开源知识库问答系统 MaxKB GitHub Star 数量突破 5,000 个！
美国拟限制 AI 大模型出口中国和俄罗斯
苹果将与 OpenAI 达成协议，将 ChatGPT 应用于 iPhone
openKylin 社区生态委员会第六次会议圆满召开
阿里云正式发布通义千问 2.5
Python 3.13 发布首个 Beta：实验性自由线程模式和 JIT、改进交互式解释器
Stack Overflow 拿我的代码去训练 AI 大模型，还封了我的账号
Pop!_OS 的 COSMIC 桌面完成 App Store 上架工作
《2024 年一季度互联网投融资运行情况》研究报告
报告：Django 仍然是 74% 开发者的首选
15 年前上了“FFmpeg 耻辱柱”，今天他还得谢谢咱——腾讯QQPlayer一雪前耻？
TIOBE 5 月榜单：Fortran “复活”进入 Top 10
周排行
记一下去大梅沙的准备（2018-05-26）
Spring 注解 事务
基于HTTP协议的客户端缓存
阿里云rds 备份和还原
[PHP] 几个拖慢 PHP 程序/API 运行速度的点
python 代码风格------------PEP8规则
js控制json生成菜单——自制菜单（一）
将字符串: 'k:1|k1:2|k2:3|k3:4 ' ,处理成 python 字典: {'k':1, 'k1':2, ...}
微信小程序转支付宝小程序
Qt551.窗口滚动条
每日归档
更多
2024-05-13(18)
2024-05-12(0)
2024-05-11(38)
2024-05-10(38)
2024-05-09(35)
2024-05-08(42)
2024-05-07(14)
2024-05-06(40)
2024-05-05(0)
2024-05-04(7)

代码天地 © 2018 codetd.com

境外服务器   最新电视剧2022
