DB Version
mysql> select version();
+------------+
| version() |
+------------+
| 5.7.29-log |
+------------+
1 row in set
默认隔离级别 RR 可重复读
Table
CREATE TABLE `employees` (
`id` int(11) NOT NULL AUTO_INCREMENT,
`name` varchar(24) NOT NULL DEFAULT '' COMMENT '姓名',
`age` int(11) NOT NULL DEFAULT '0' COMMENT '年龄',
`position` varchar(20) NOT NULL DEFAULT '' COMMENT '职位',
`hire_time` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '入职时间',
PRIMARY KEY (`id`),
KEY `idx_name_age_position` (`name`,`age`,`position`) USING BTREE
) ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8 COMMENT='员工记录表';
重点
- 主键id PRIMARY KEY (
id) - 联合索引 KEY
idx_name_age_position(name,age,position) USING BTREE

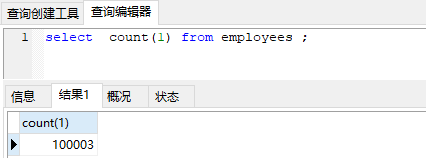

我们向表里写入10万来条数据
Case 1 : 联合索引第一个字段用范围不一定会走索引

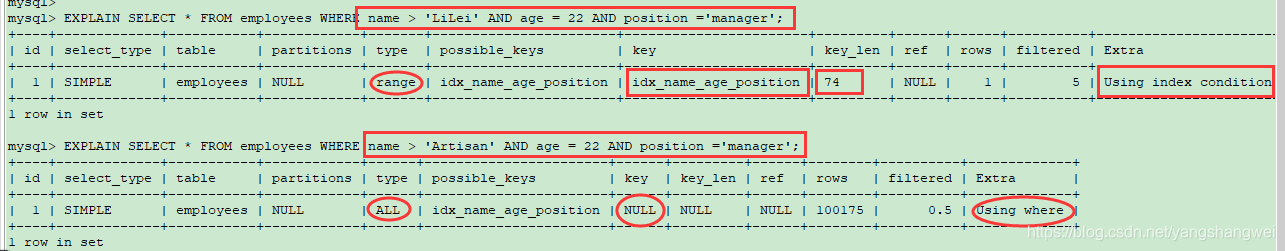

mysql> EXPLAIN SELECT * FROM employees WHERE name > 'LiLei' AND age = 22 AND position ='manager';
+----+-------------+-----------+------------+-------+-----------------------+-----------------------+---------+------+------+----------+-----------------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+-----------+------------+-------+-----------------------+-----------------------+---------+------+------+----------+-----------------------+
| 1 | SIMPLE | employees | NULL | range | idx_name_age_position | idx_name_age_position | 74 | NULL | 1 | 5 | Using index condition |
+----+-------------+-----------+------------+-------+-----------------------+-----------------------+---------+------+------+----------+-----------------------+
1 row in set
mysql> EXPLAIN SELECT * FROM employees WHERE name > 'Artisan' AND age = 22 AND position ='manager';
+----+-------------+-----------+------------+------+-----------------------+------+---------+------+--------+----------+-------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+-----------+------------+------+-----------------------+------+---------+------+--------+----------+-------------+
| 1 | SIMPLE | employees | NULL | ALL | idx_name_age_position | NULL | NULL | NULL | 100175 | 0.5 | Using where |
+----+-------------+-----------+------------+------+-----------------------+------+---------+------+--------+----------+-------------+
1 row in set
mysql>
当然了，也不是所有的情况都不走索引， MySQL会基于Cost选择一个合适的 ，如果没有走索引，可能mysql内部可能觉得第一个字段就用范围，结果集应该很大，回表效率不高，还不如就全表扫描
如果没有走索引想要去优化的话怎么办呢？
优化一 强制走索引 force index(idx_name_age_position)

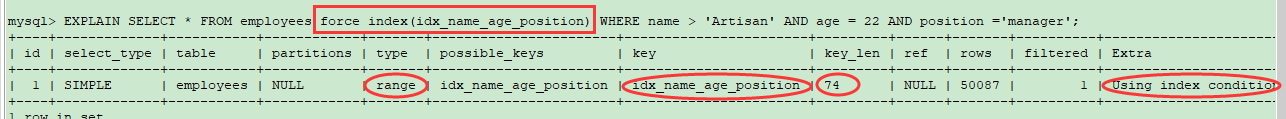

mysql> EXPLAIN SELECT * FROM employees force index(idx_name_age_position) WHERE name > 'Artisan' AND age = 22 AND position ='manager';
+----+-------------+-----------+------------+-------+-----------------------+-----------------------+---------+------+-------+----------+-----------------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+-----------+------------+-------+-----------------------+-----------------------+---------+------+-------+----------+-----------------------+
| 1 | SIMPLE | employees | NULL | range | idx_name_age_position | idx_name_age_position | 74 | NULL | 50087 | 1 | Using index condition |
+----+-------------+-----------+------------+-------+-----------------------+-----------------------+---------+------+-------+----------+-----------------------+
1 row in set
优化二 覆盖索引优化

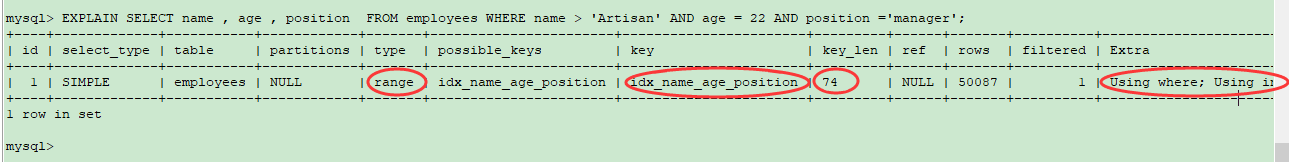

mysql> EXPLAIN SELECT name , age , position FROM employees WHERE name > 'Artisan' AND age = 22 AND position ='manager';
+----+-------------+-----------+------------+-------+-----------------------+-----------------------+---------+------+-------+----------+--------------------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+-----------+------------+-------+-----------------------+-----------------------+---------+------+-------+----------+--------------------------+
| 1 | SIMPLE | employees | NULL | range | idx_name_age_position | idx_name_age_position | 74 | NULL | 50087 | 1 | Using where; Using index |
+----+-------------+-----------+------------+-------+-----------------------+-----------------------+---------+------+-------+----------+--------------------------+
1 row in set
mysql>
name , age , position 是联合索引，在索引树上，同时索引树上的叶子节点还会关联一个主键id , 如果查询 * 的话，还要根据id去主键索引上去查找其他字段，需要回表， 如果仅查询二级索引树idx_name_age_position上的字段，那就无需回表操作了，效率自然高一些。
Case 2 : in和or在表数据量比较大的情况会走索引，在表记录不多的情况下会选择全表扫描

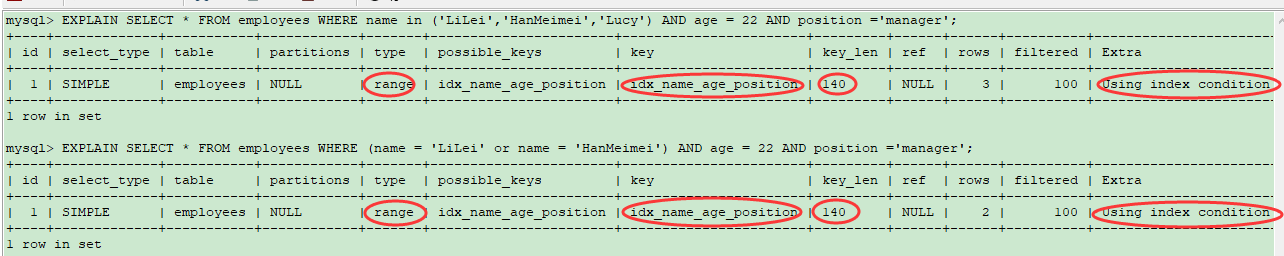

mysql> EXPLAIN SELECT * FROM employees WHERE name in ('LiLei','HanMeimei','Lucy') AND age = 22 AND position ='manager';
+----+-------------+-----------+------------+-------+-----------------------+-----------------------+---------+------+------+----------+-----------------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+-----------+------------+-------+-----------------------+-----------------------+---------+------+------+----------+-----------------------+
| 1 | SIMPLE | employees | NULL | range | idx_name_age_position | idx_name_age_position | 140 | NULL | 3 | 100 | Using index condition |
+----+-------------+-----------+------------+-------+-----------------------+-----------------------+---------+------+------+----------+-----------------------+
1 row in set
mysql> EXPLAIN SELECT * FROM employees WHERE (name = 'LiLei' or name = 'HanMeimei') AND age = 22 AND position ='manager';
+----+-------------+-----------+------------+-------+-----------------------+-----------------------+---------+------+------+----------+-----------------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+-----------+------------+-------+-----------------------+-----------------------+---------+------+------+----------+-----------------------+
| 1 | SIMPLE | employees | NULL | range | idx_name_age_position | idx_name_age_position | 140 | NULL | 2 | 100 | Using index condition |
+----+-------------+-----------+------------+-------+-----------------------+-----------------------+---------+------+------+----------+-----------------------+
1 row in set
再搞个小表 ，和 employees 一模一样哈，连索引也得一样，插入3条数据 。
CREATE TABLE `employees_2` (
`id` int(11) NOT NULL AUTO_INCREMENT,
`name` varchar(24) NOT NULL DEFAULT '' COMMENT '姓名',
`age` int(11) NOT NULL DEFAULT '0' COMMENT '年龄',
`position` varchar(20) NOT NULL DEFAULT '' COMMENT '职位',
`hire_time` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '入职时间',
PRIMARY KEY (`id`),
KEY `idx_name_age_position` (`name`,`age`,`position`) USING BTREE
) ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8 COMMENT='员工记录表';
INSERT INTO employees_2(name,age,position,hire_time) VALUES('LiLei',22,'manager',NOW());
INSERT INTO employees_2(name,age,position,hire_time) VALUES('HanMeimei', 23,'dev',NOW());
INSERT INTO employees_2(name,age,position,hire_time) VALUES('Lucy',23,'dev',NOW());

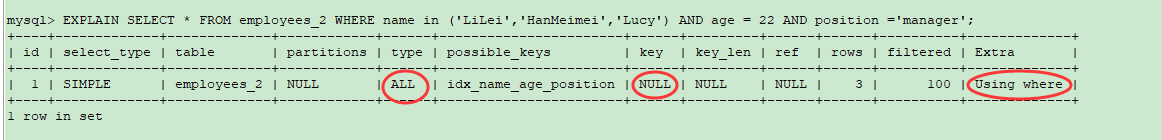

mysql> EXPLAIN SELECT * FROM employees_2 WHERE name in ('LiLei','HanMeimei','Lucy') AND age = 22 AND position ='manager';
+----+-------------+-------------+------------+------+-----------------------+------+---------+------+------+----------+-------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+-------------+------------+------+-----------------------+------+---------+------+------+----------+-------------+
| 1 | SIMPLE | employees_2 | NULL | ALL | idx_name_age_position | NULL | NULL | NULL | 3 | 100 | Using where |
+----+-------------+-------------+------------+------+-----------------------+------+---------+------+------+----------+-------------+
1 row in set
mysql>
为什么呢？ 就几条数据的话， 结合B+树的结构， MySQL认为从根节点开始向下找，还不如直接从叶子节点从头开始扫描快呢
Case 3 : like KK% 一般情况都会走索引
结合索引树 ， like KK% 可以理解为就是按照 = KK 查询
mysql> EXPLAIN SELECT * FROM employees WHERE name like 'LiLei%' AND age = 22 AND position ='manager';
+----+-------------+-----------+------------+-------+-----------------------+-----------------------+---------+------+------+----------+-----------------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+-----------+------------+-------+-----------------------+-----------------------+---------+------+------+----------+-----------------------+
| 1 | SIMPLE | employees | NULL | range | idx_name_age_position | idx_name_age_position | 140 | NULL | 1 | 5 | Using index condition |
+----+-------------+-----------+------------+-------+-----------------------+-----------------------+---------+------+------+----------+-----------------------+
1 row in set
mysql> EXPLAIN SELECT * FROM employees_2 WHERE name like 'LiLei%' AND age = 22 AND position ='manager';
+----+-------------+-------------+------------+-------+-----------------------+-----------------------+---------+------+------+----------+-----------------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+-------------+------------+-------+-----------------------+-----------------------+---------+------+------+----------+-----------------------+
| 1 | SIMPLE | employees_2 | NULL | range | idx_name_age_position | idx_name_age_position | 140 | NULL | 1 | 33.33 | Using index condition |
+----+-------------+-------------+------------+-------+-----------------------+-----------------------+---------+------+------+----------+-----------------------+
1 row in set
原因： 索引下推 MySQL -索引下推 Index Condition Pushdown 初探
特殊例子
一般情况 ，但也不绝对。看下面这个例子

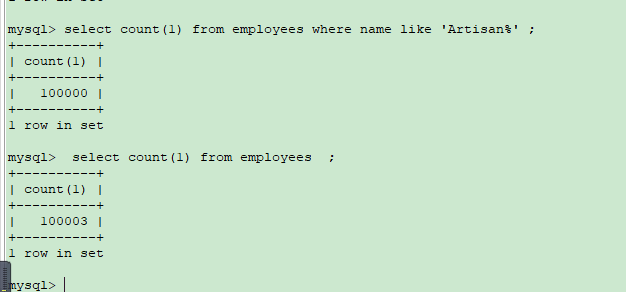

假设你这个表 的name字段 是以Artisan开头的，从Artisan1 到Artisan100000

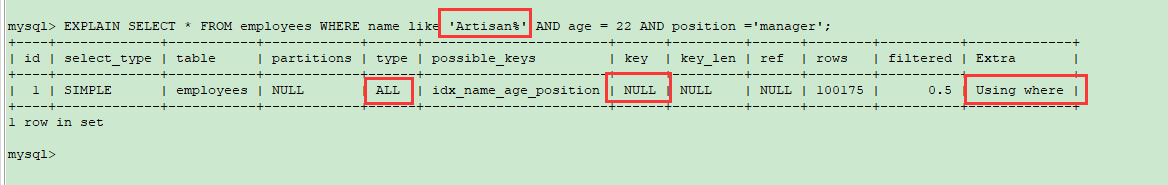

再去like的话 ，mysql会基于cost，自主选择 ，比如如下走了全表扫描。
