熟悉和掌握利用Parallel类完成数据并行编程的程序设计方法。
编写一个WPF应用程序,利用数据并行计算两个矩阵(M×N和N×P)的乘积,得到一个M×P的矩阵。
具体要求
(1)在代码中用多任务通过调用某方法实现矩阵并行运算,在调用的参数中分别传递M、N、P的大小。

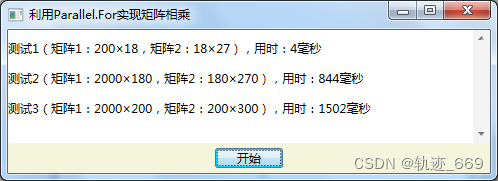

(2)程序中至少要测试3次有代表性的不同大小的矩阵运算,并显示其并行运行用时。
MainWindow.xaml
<Window x:Class="shiyan3.MainWindow"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
xmlns:local="clr-namespace:shiyan3"
mc:Ignorable="d"
Title="利用Parallel.For实现矩阵相乘" Height="450" Width="800">
<DockPanel>
<Border DockPanel.Dock="Bottom" Background="Beige" Padding="0 5 0 5">
<Button x:Name="startBtn" Content="开始" HorizontalAlignment="Center" Padding="20 0 20 0" Click="startBtn_Click"/>
</Border>
<ScrollViewer>
<StackPanel>
<TextBlock x:Name="tb" TextWrapping="Wrap"/>
</StackPanel>
</ScrollViewer>
</DockPanel>
</Window>
MainWindow.xaml.cs
using System;
using System.Collections.Generic;
using System.Diagnostics;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Data;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Imaging;
using System.Windows.Navigation;
using System.Windows.Shapes;
namespace shiyan3
{
/// <summary>
/// Interaction logic for MainWindow.xaml
/// </summary>
public partial class MainWindow : Window
{
Stopwatch stopwatch = new Stopwatch();
public MainWindow()
{
InitializeComponent();
}
private async void startBtn_Click(object sender, RoutedEventArgs e)
{
long time1 = await Task.Run(() => Multiply(200, 18, 27));
tb.Text = string.Format("测试1(矩阵1:200×18,矩阵2:18×27),用时:{0}毫秒", time1);
long time2 = await Task.Run(() => Multiply(2000, 180, 270));
tb.Text += string.Format("\n测试2(矩阵1:2000×180,矩阵2:180×270),用时:{0}毫秒",time2);
long time3 = await Task.Run(() => Multiply(3000, 200, 300));
tb.Text += string.Format("\n测试3(矩阵1:2000×200,矩阵2:200×300),用时:{0}毫秒", time3);
}
public long Multiply(int row,int col,int col2)
{
double[,] matrix1=InitializeMatrix(row,col);
double[,] matrix2=InitializeMatrix(col,col2);
double[,] result = new double[row, col2];
stopwatch.Restart();
MultiplyMatrices(matrix1, matrix2,result);
stopwatch.Stop();
return stopwatch.ElapsedMilliseconds;
}
public void MultiplyMatrices(double[,]matrix1, double[,] matrix2, double[,]matrix3)
{
int a = matrix1.GetLength(0);
int b = matrix1.GetLength(1);
int c = matrix2.GetLength(1);
Action<int> action = i =>
{
for (int j = 0; j < c; j++)
{
double temp = 0;
for (int k = 0; k < b; k++)
{
temp += matrix1[i, k] + matrix2[k, j];
}
matrix3[i, j] = temp;
}
};
Parallel.For(0, a, action);
}
public double[,] InitializeMatrix(int rows,int cols)
{
double[,] matrix = new double[rows, cols];
Random random = new Random();
for (int i = 0; i < rows; i++)
{
for (int j = 0; j < cols; j++)
{
matrix[i, j] = random.Next(50);
}
}
return matrix;
}
}
}
